| Cast iron gg/gts: | 120 |
|---|---|

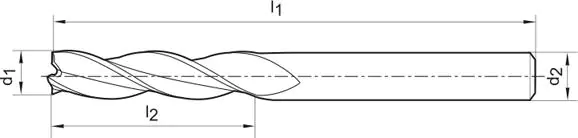

| Cutting part length l2: | 20 mm |
| Diameter d1 = h 10: | 3 mm |
| Ggg cast iron: | 96 |
| Shank diameter d2 = h6: | 3 mm |
| Steel < 1000 n/mm2: | 92 |
| Steel < 1000 n/mm2 fz: | 0.010 mm/rev. |
| Steel < 1400 n/mm2: | 74 |
| Steel < 700 n/mm2: | 115 |
| Titanium > 850 n/mm2: | 40 |
| Total length l1: | 75 mm |
Mandrel cutter, solid carbide

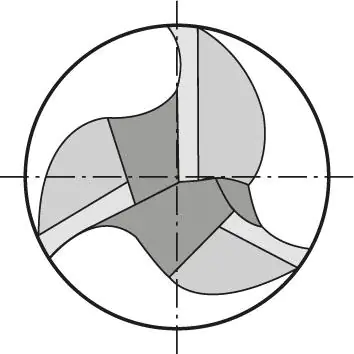

Execution: with center blade, suitable for drilling.
Application: for grooving and for universal machining. Up to max. milling depth 3 x D. Optimal for use in the production of molds and dies. Compared to 2-blade milling cutters, the feed is approx. 50 % higher.
Ultrafine grain cemented carbide.
Cutting speed approx. 50 % higher than uncoated tools. Dry processing possible.
Despite our best efforts, we cannot guarantee that the published technical data and photos do not contain inaccuracies or errors, which, however, cannot be a basis for claims.
