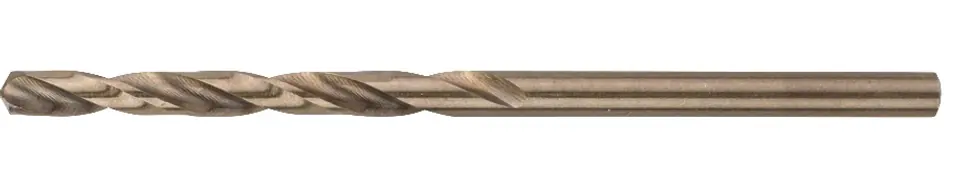

HSS-CO DRILL BIT 135 12,5/101MM

Specifications:

Product series: Ecoline accessories
Specification: 12.5 x 101 x 151 mm
Product text, accessories, grey: Pack of 1 pack
Genus. Package: Combined cardboard and plastic packaging, Tight Pack, with Euro hole
Zaw. package: 1 pc
Diameter (D) mm: 12,50
Working length (L1) mm: 101
Overall length (L2) mm: 151
Materials to be processed (details):
- Steel/ferrous metal
- Stainless steel/Inox
- Alloy/non-alloy steel
- Grey cast iron
- Hardened plastic




The HSS Cobalt twist drill has a long service life when drilling stainless steel

Two cutting edges and two grooves allow fast chip evacuation and extend drill life
Complies with DIN 338. N drill bit (apex angle), with 135-degree tip and diameter tolerance h8
Active cutting and perfect centering without the drill slipping on the surface thanks to cross-ground tip
The HSS Cobalt twist drill is manufactured in accordance with DIN 338. N drill bit (apical angle) with 135-degree tip and diameter tolerance h8. Active cutting and perfect centering without the drill slipping on the surface thanks to the cross-ground tip.

The drill is designed for drilling alloy and non-alloy steel, stainless steel, cast iron, cast steel and steel resistant to acid and high temperatures. It is equipped with a cylindrical chuck (a mandrel equal to the diameter of the drill) and is designed for use with stationary drills and screwdrivers.


**
