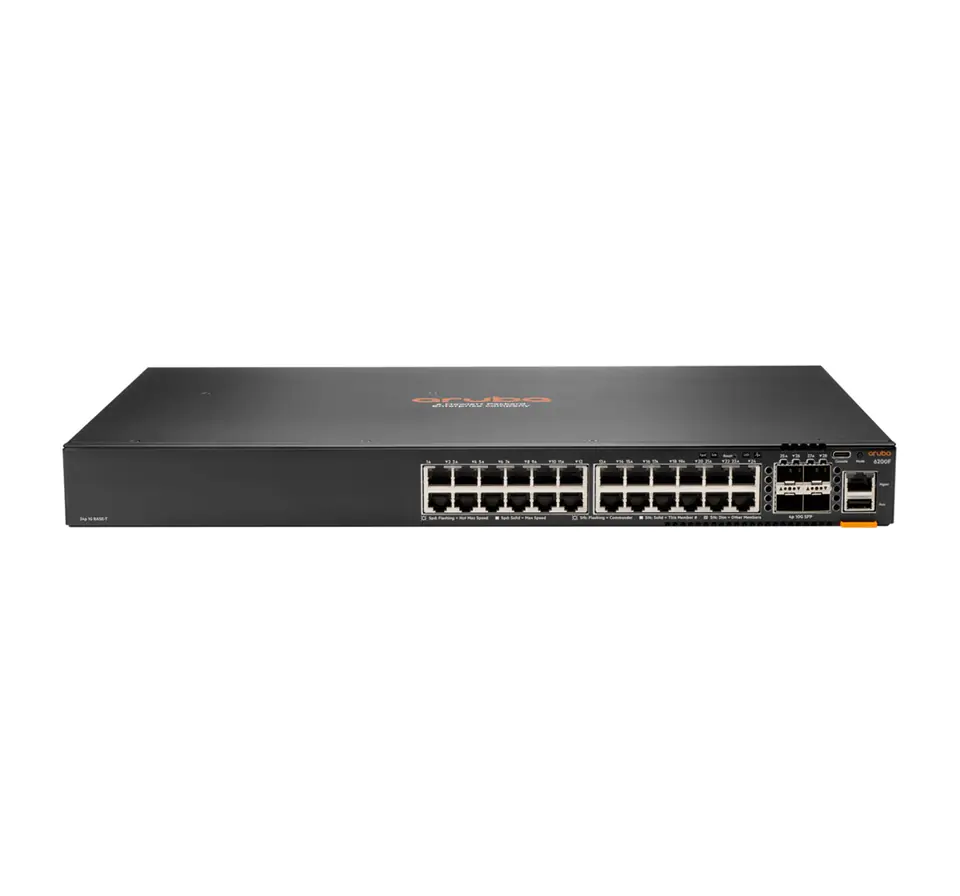

HPE Aruba Networking Aruba 6200F 24G Class4 PoE 4SFP+ 370W Managed L3 Gigabit Ethernet (10/100/1000) Power over Ethernet PoE) 1
€2,113.55
14 days returnUnconditional return policy
- Availability:
- moderate quantity
- Brand:
- High Peak
- Product code:
- JL725A / 0190017408514
Share this product:
Specification
| 10g support: | Yes |
|---|---|
| Ac input frequency: | 50/60 Hz |
| Ac input voltage: | 100 - 240 V |
| Access control list (acl): | Yes |
| Airflow direction: | Front-to-back airflow |
| Authentication: | MAC-based authentication, Web-based authentication |
| Authentication type: | RADIUS, TACACS+ |
| Basic switching rj-45 ethernet ports quantity: | 24 |
| Basic switching rj-45 ethernet ports type: | Gigabit Ethernet (10/100/1000) |
| Built-in processor: | Yes |
| Console port: | USB |
| Depth: | 327 mm |
| Dhcp features: | DHCP server, DHCP relay |
| Flash memory: | 16384 MB |
| Flow control support: | Yes |
| Form factor: | 1U |
| Height: | 43.9 mm |
| Igmp snooping: | Yes |
| Internal memory: | 8192 MB |
| Jumbo frames support: | Yes |
| Latency (1 gbps): | 2.28 µs |
| Latency (10 gbps): | 1.46 µs |
| Link aggregation: | Yes |
| Mac address table: | 32768 entries |
| Management protocols: | SNMPv2c, SNMPv3 |
| Memory type: | DDR4-SDRAM |
| Mld entries: | 1024 |
| Multicast support: | Yes |
| Networking standards: | IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.1ak, IEEE 802.3at, IEEE 802.1D, IEEE 802.3z, IEEE 802.3ae, IEEE 802.1w, IEEE 802.3x, IEEE 802.1AX, IEEE 802.3ad, IEEE 802.1s, IEEE 802.1ab, IEEE 802.1t, IEEE 802.3af, IEEE 802.3az, IEEE 802.1v |
| Non-operating altitude: | 0 - 4600 m |
| Number of power supply units: | 1 |
| Number of vlans: | 4094 |
| Operating altitude: | 0 - 3048 m |
| Operating relative humidity (h-h): | 15 - 95% |
| Operating temperature (t-t): | 0 - 45 °C |
| Packet buffer memory: | 8 MB |
| Physical stacking (units): | 8 |
| Power over ethernet (poe): | Yes |
| Power source: | AC |
| Power supply included: | Yes |
| Processor frequency: | 1800 MHz |
| Processor model: | ARM Cortex-A72 |
| Quality of service (qos) support: | Yes |
| Rack mounting: | Yes |
| Routing protocols: | OSPFv3, RIP-2, OSPFv2 |
| Sfp+ module slots quantity: | 4 |
| Spanning tree protocol: | Yes |
| Stackable: | Yes |
| Storage relative humidity (h-h): | 15 - 90% |
| Storage temperature (t-t): | -40 - 70 °C |
| Switch layer: | L3 |
| Switch type: | Managed |
| Switching capacity: | 128 Gbit/s |
| Throughput: | 95.2 Mpps |
| Total power over ethernet (poe) budget: | 370 W |
| Transmission distance (max): | 10 km |
| Usb type-a ports quantity: | 1 |
| Vlan support: | Yes |
| Weight: | 4.9 kg |
| Width: | 442 mm |
Despite our best efforts, we cannot guarantee that the published technical data and photos do not contain inaccuracies or errors, which, however, cannot be a basis for claims.
