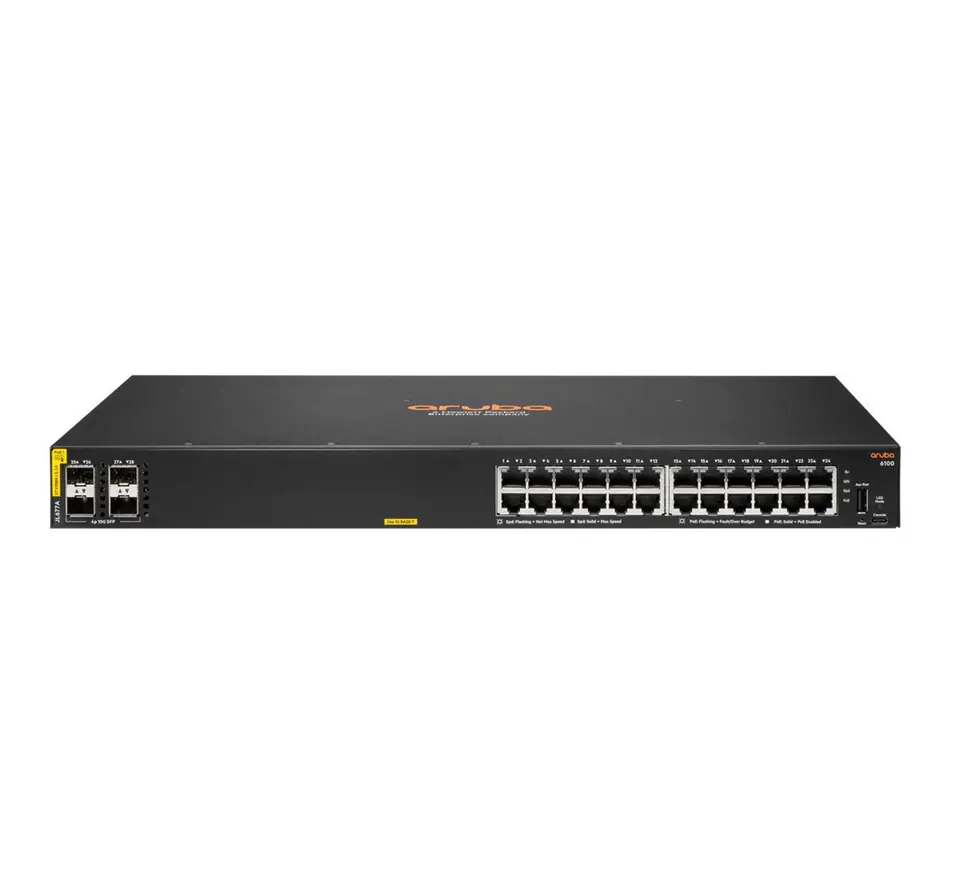

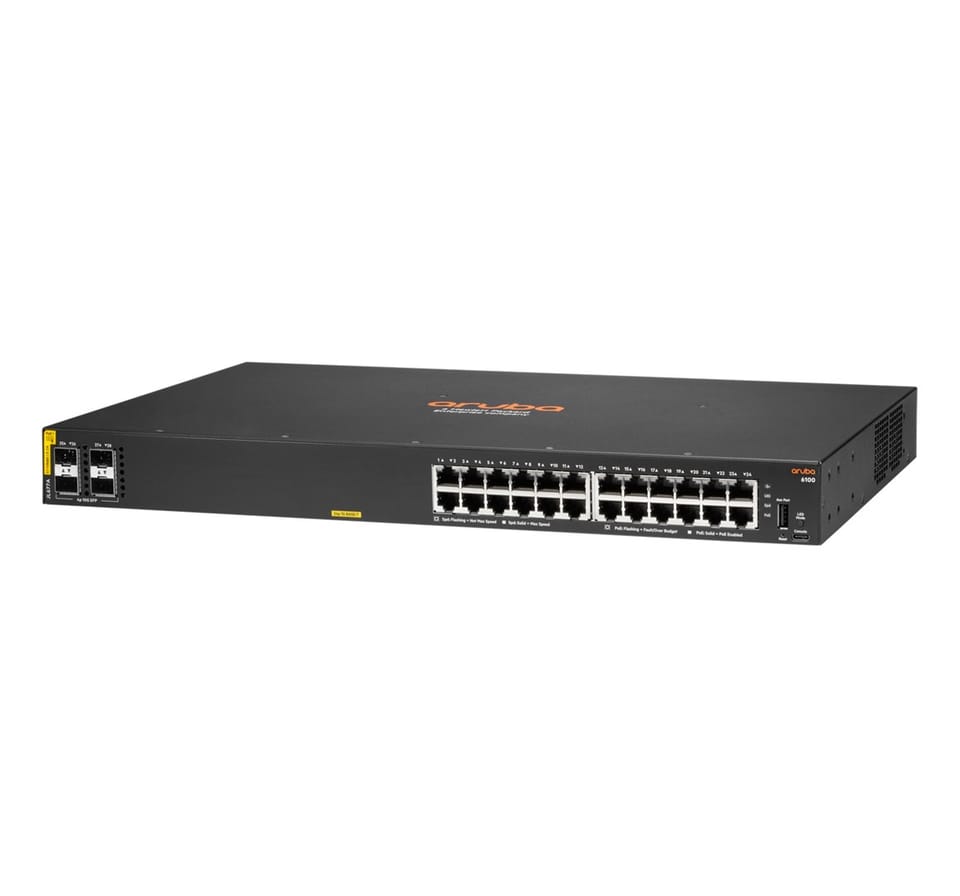

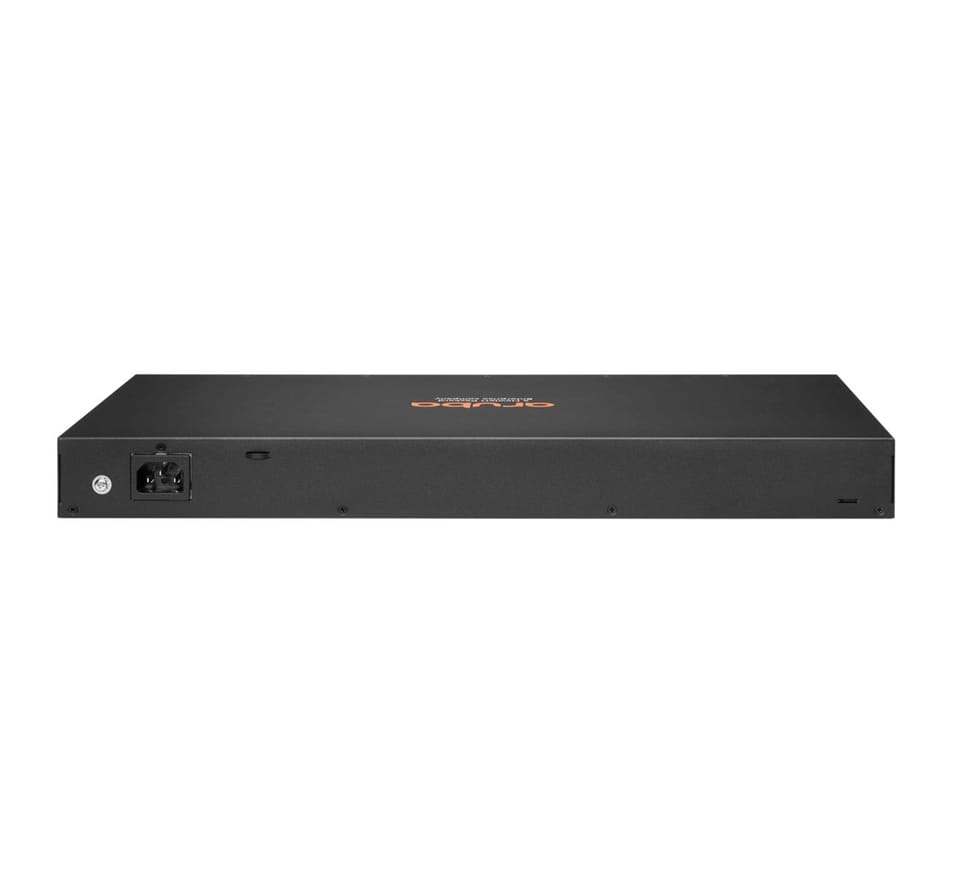

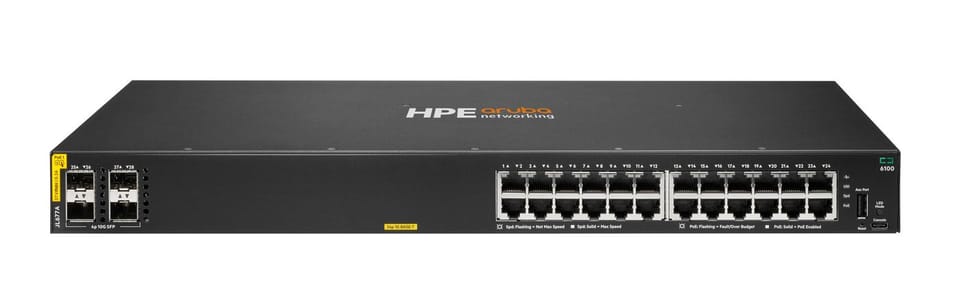

HPE Aruba Networking Aruba 6100 24G Class4 PoE 4SFP+ 370W Managed L3 Gigabit Ethernet (10/100/1000) Power over Ethernet PoE) 1U Blac
€1,762.82
Shipping from warehouse: A3
Estimated shipping: Mon, Nov 25 - Thu, Nov 28
14 days returnUnconditional return policy
- Availability:
- large quantity
- Brand:
- High Peak
- Product code:
- JL677A / 0190017348483
Share this product:
Specification
| 10g support: | Yes |
|---|---|
| Ac input frequency: | 50 - 60 Hz |
| Ac input voltage: | 100 - 240 V |
| Access control list (acl): | Yes |
| Airflow direction: | Side-to-side airflow |
| Authentication: | MAC-based authentication |
| Authentication type: | RADIUS, TACACS+ |
| Basic switching rj-45 ethernet ports quantity: | 24 |
| Basic switching rj-45 ethernet ports type: | Gigabit Ethernet (10/100/1000) |
| Built-in processor: | Yes |
| Console port: | USB |
| Depth: | 268 mm |
| Dhcp features: | DHCP client |
| Flash memory: | 16 MB |
| Flow control support: | Yes |
| Form factor: | 1U |
| Harmonized system (hs) code: | 85176990 |
| Height: | 44 mm |
| Igmp snooping: | Yes |
| Internal memory: | 4096 MB |
| Jumbo frames support: | Yes |
| Latency (1 gbps): | 1.5 µs |
| Latency (10 gbps): | 1.8 µs |
| Link aggregation: | Yes |
| Mac address table: | 8192 entries |
| Memory type: | DDR3-SDRAM |
| Multicast support: | Yes |
| Networking standards: | IEEE 802.3at, IEEE 802.1Q, IEEE 802.3x, IEEE 802.3, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3az, IEEE 802.3ad, IEEE 802.1s, IEEE 802.1w, IEEE 802.1D |
| Operating relative humidity (h-h): | 15 - 95% |
| Operating temperature (t-t): | 0 - 45 °C |
| Packet buffer memory: | 12.38 MB |
| Port mirroring: | Yes |
| Power consumption (max): | 32.7 W |
| Power over ethernet (poe): | Yes |
| Power source: | AC |
| Power supply included: | Yes |
| Processor frequency: | 1016 MHz |
| Processor model: | ARM Cortex-A9 |
| Product colour: | Black |
| Quality of service (qos) support: | Yes |
| Rack mounting: | Yes |
| Sfp+ module slots quantity: | 4 |
| Spanning tree protocol: | Yes |
| Stackable: | Yes |
| Storage relative humidity (h-h): | 15 - 90% |
| Storage temperature (t-t): | -40 - 70 °C |
| Switch layer: | L3 |
| Switch type: | Managed |
| Switching capacity: | 128 Gbit/s |
| Throughput: | 95.2 Mpps |
| Total power over ethernet (poe) budget: | 370 W |
| Virtual stacking (units): | 16 |
| Vlan support: | Yes |
| Weight: | 4.2 kg |
| Width: | 442 mm |
