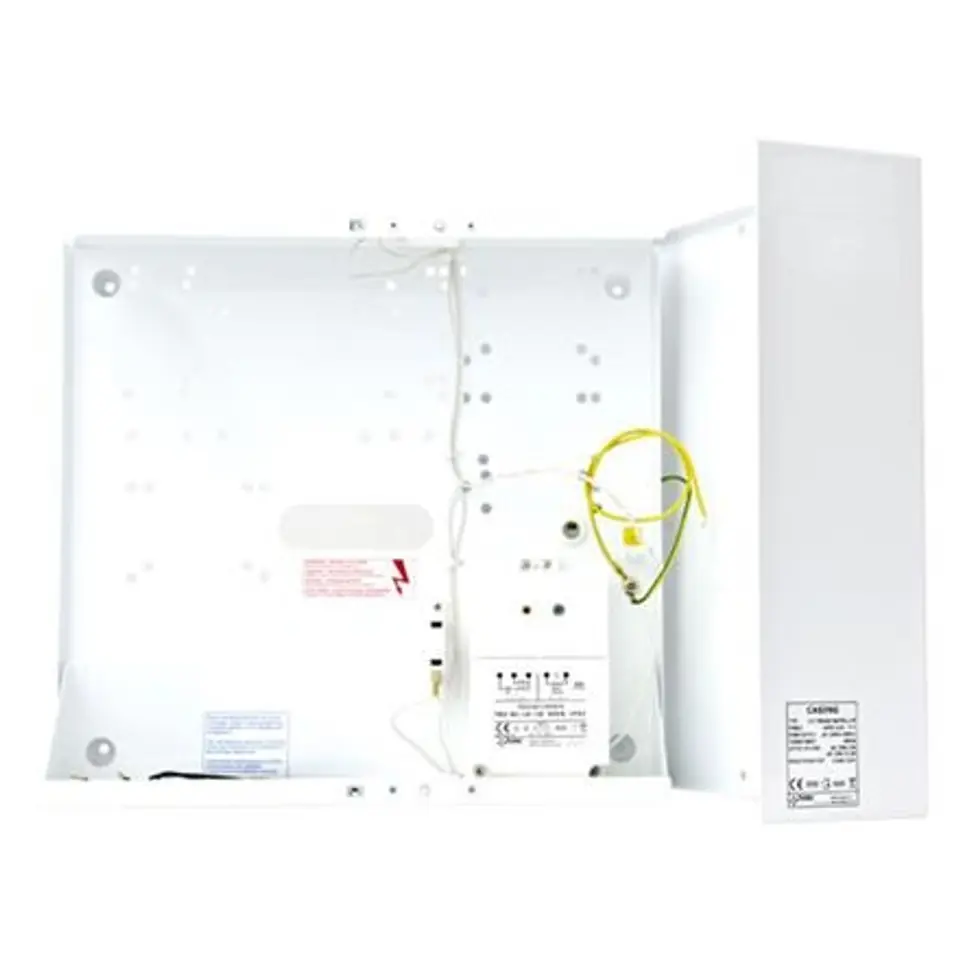

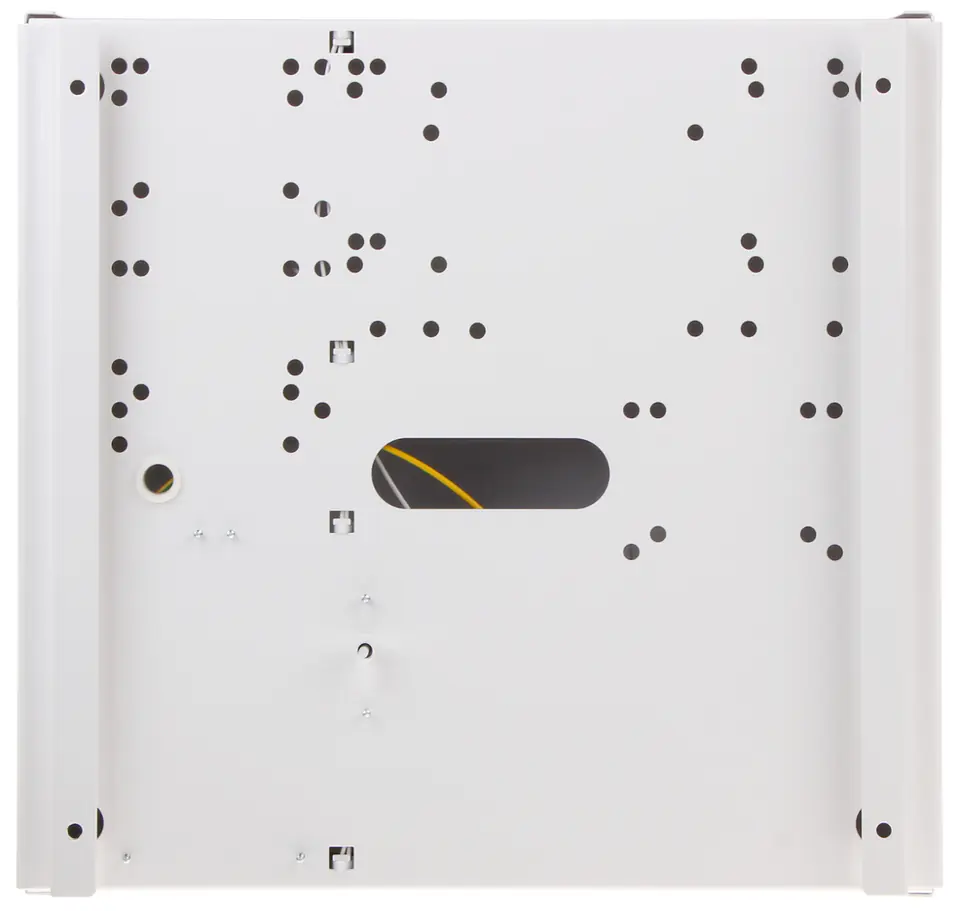

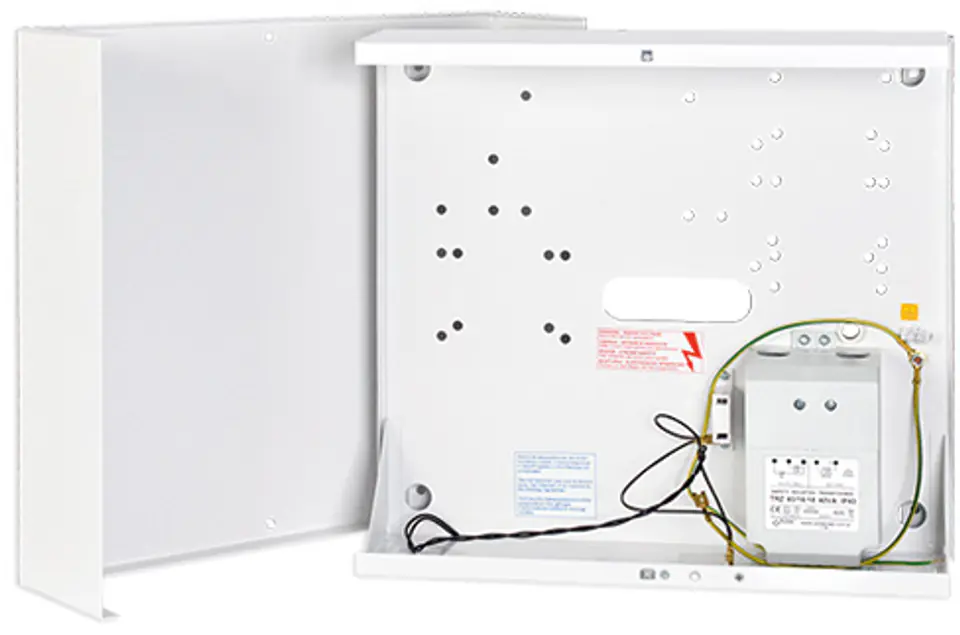

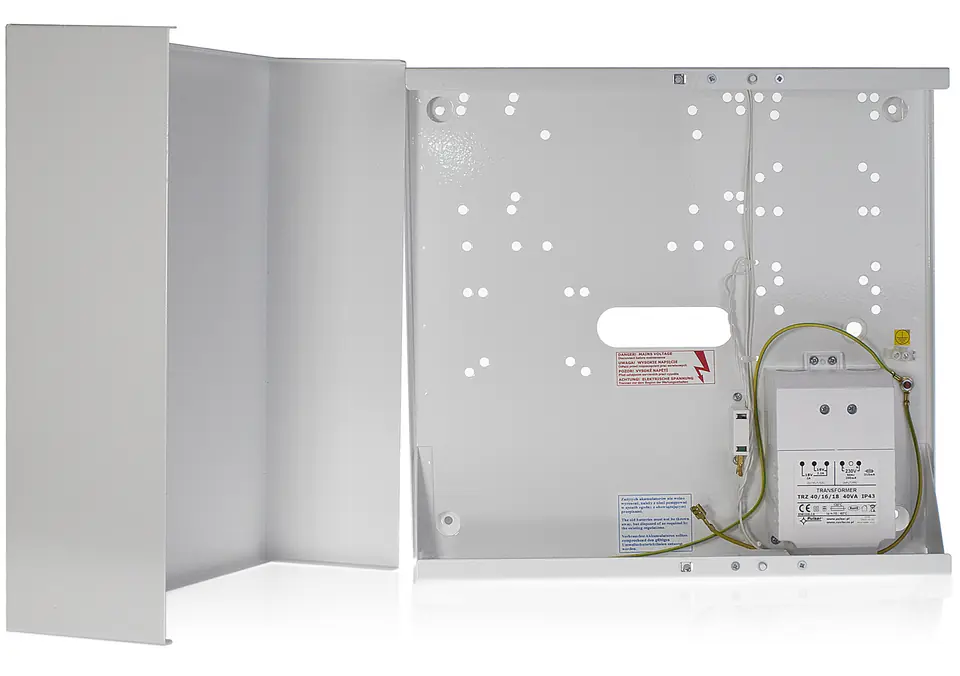

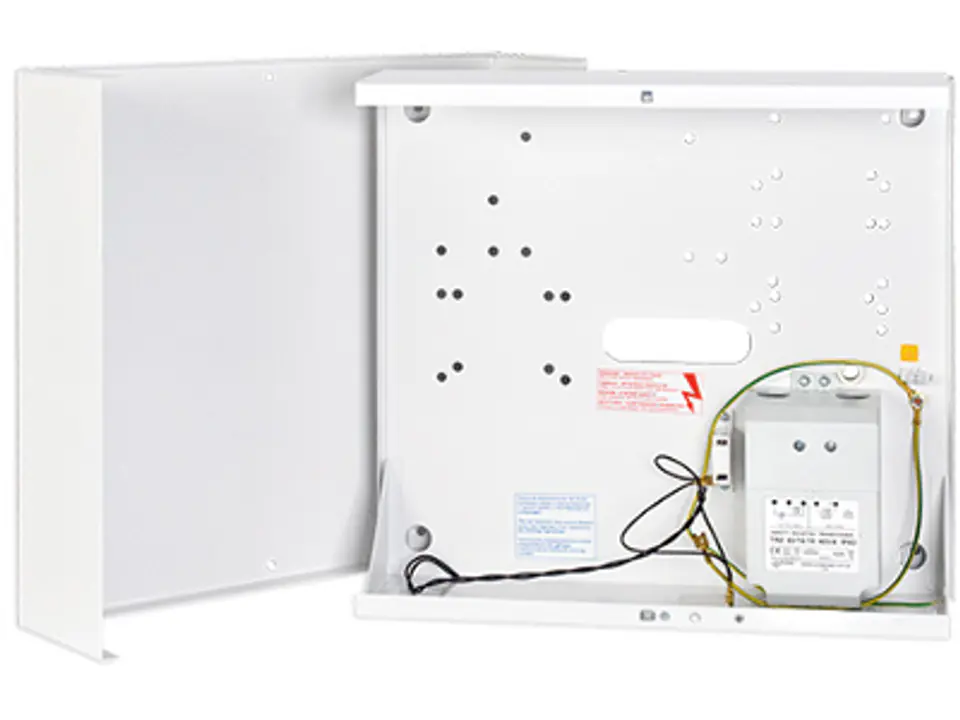

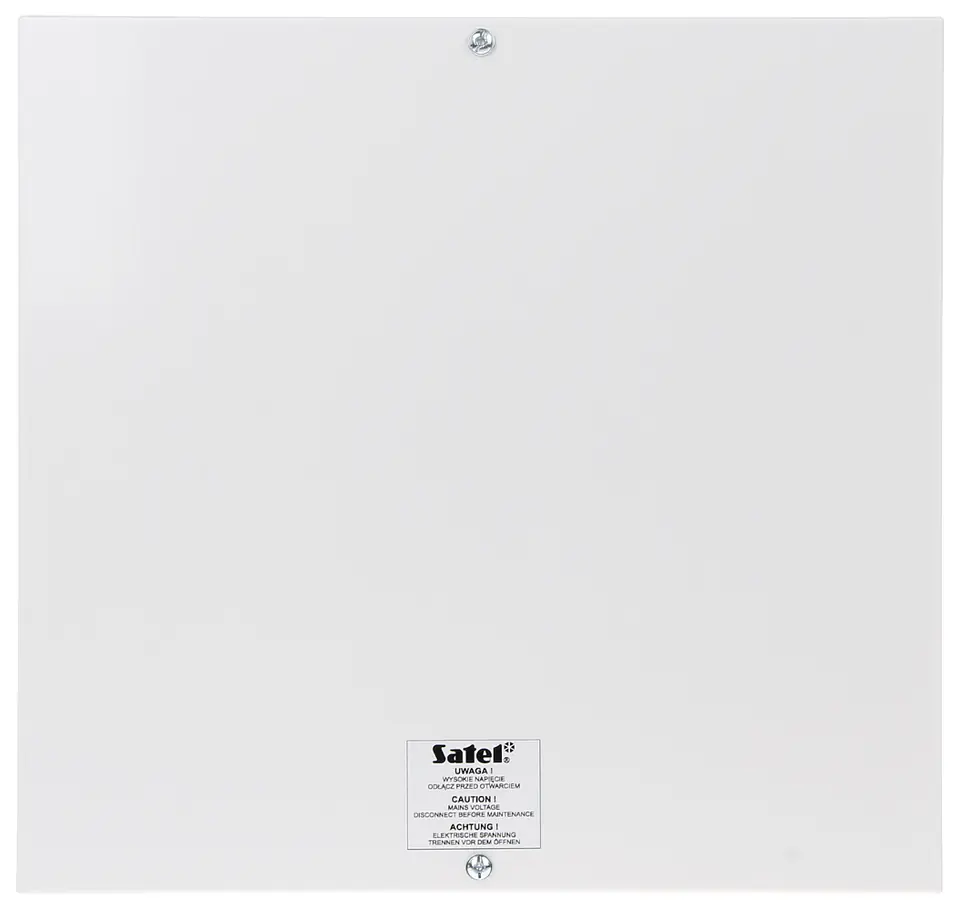

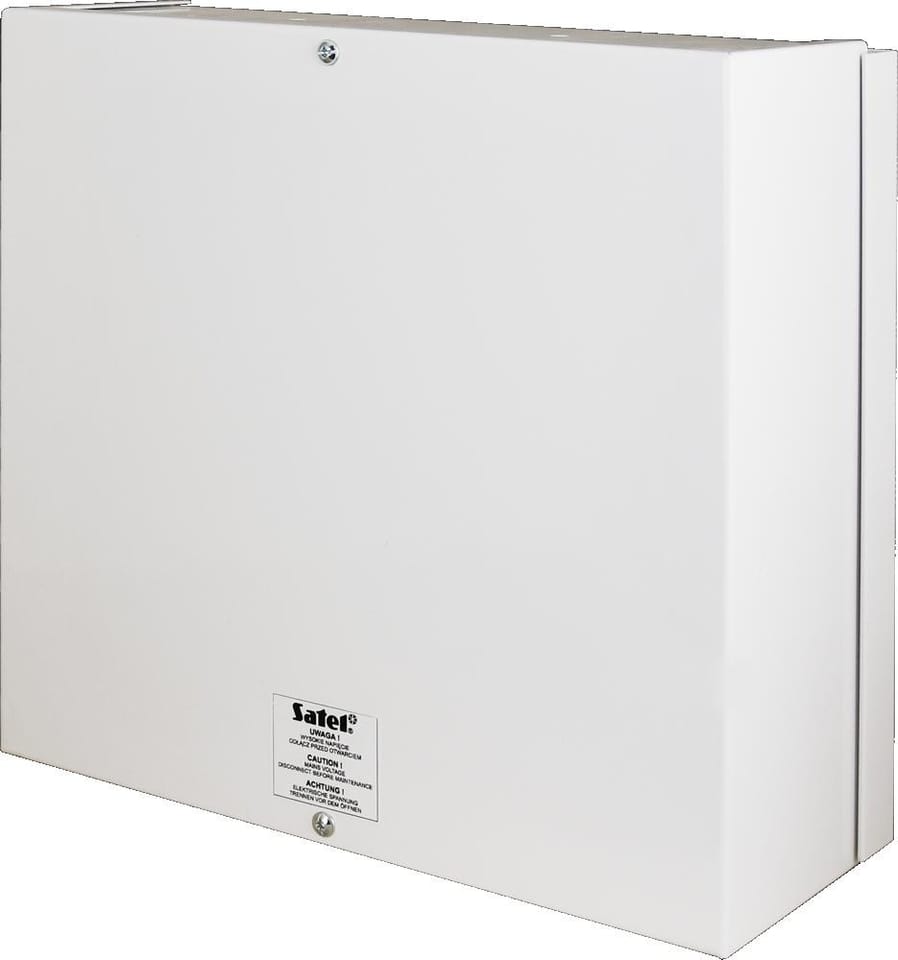

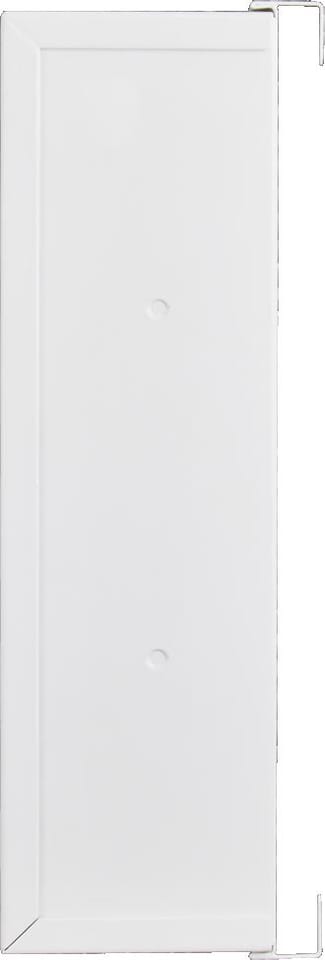

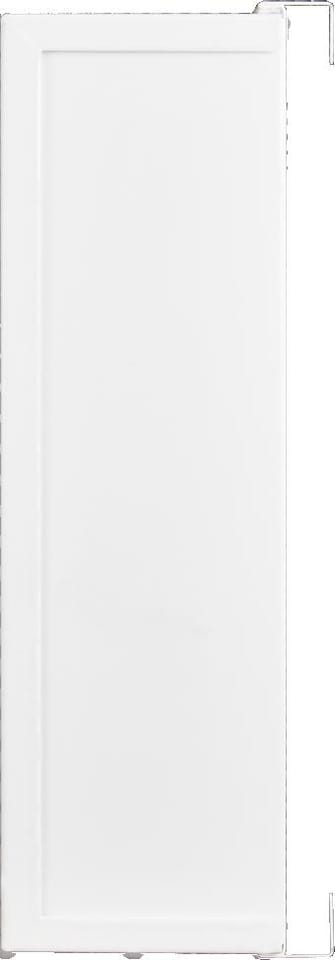

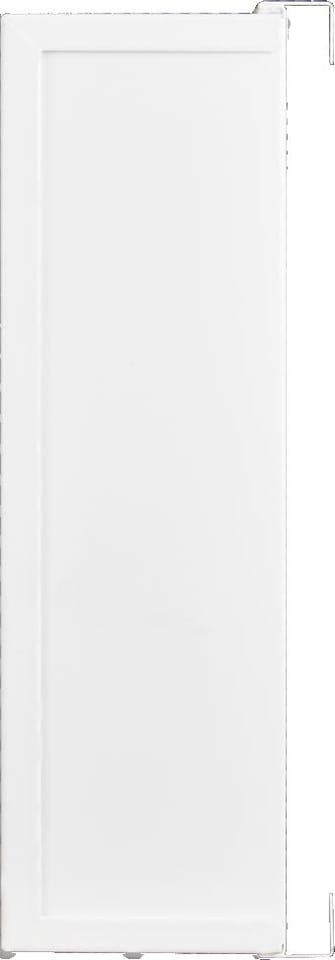

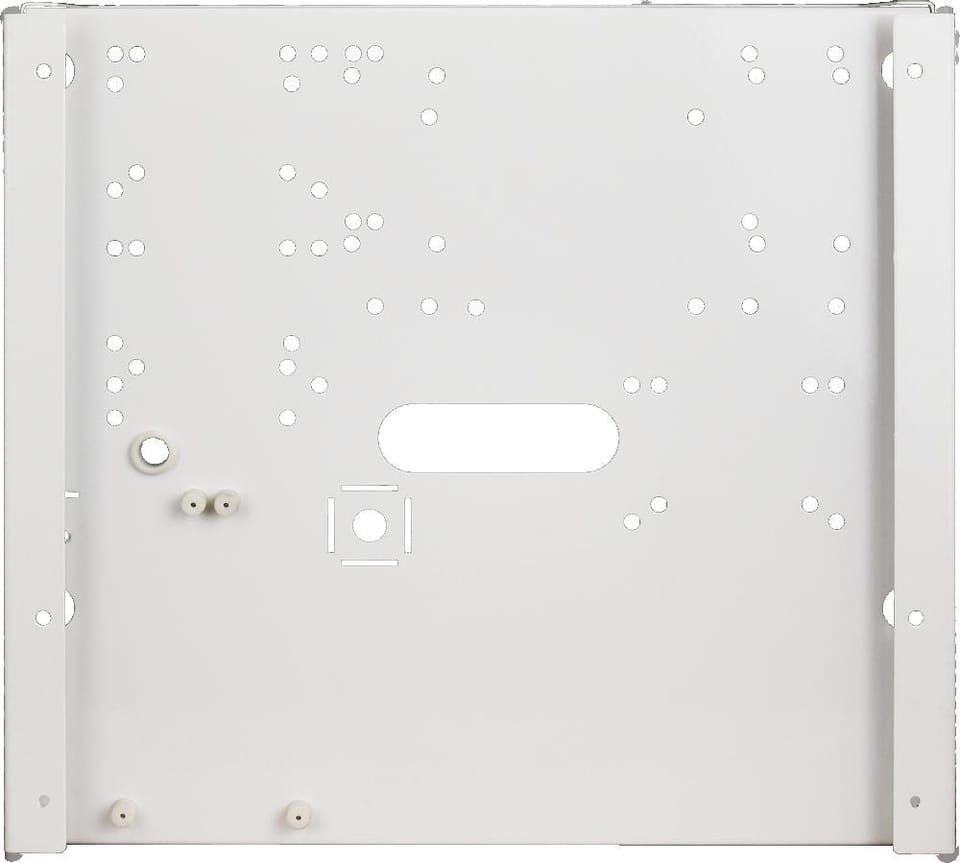

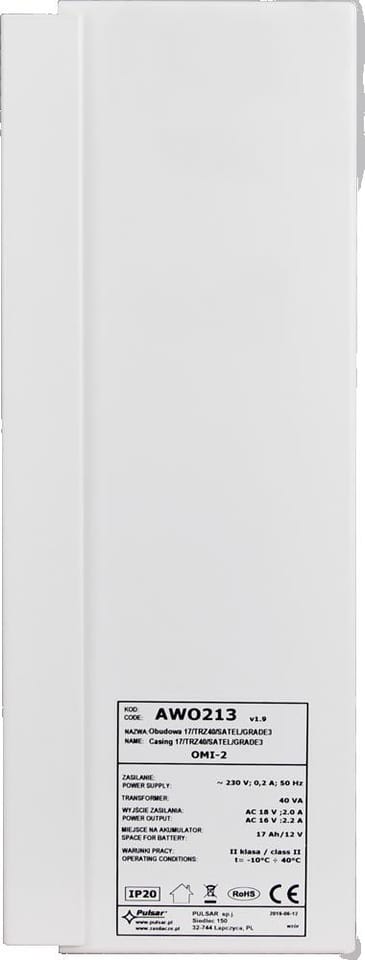

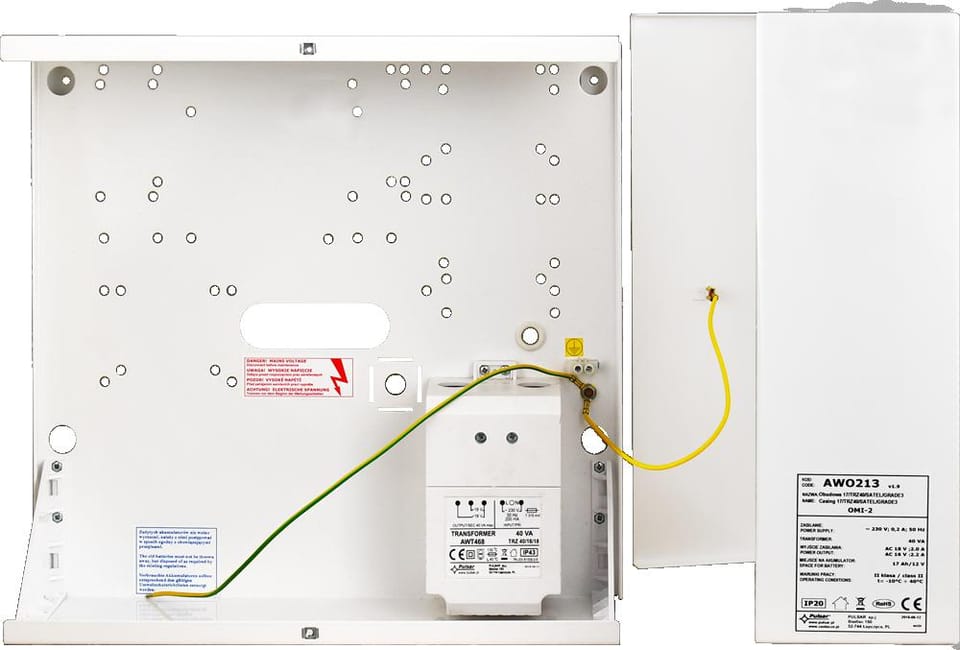

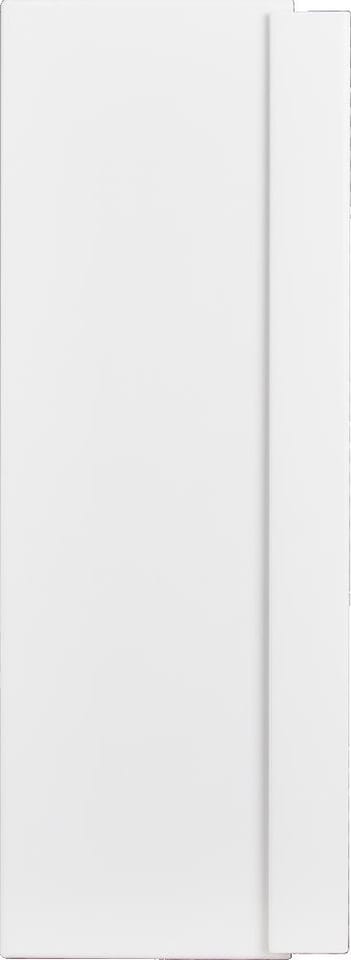

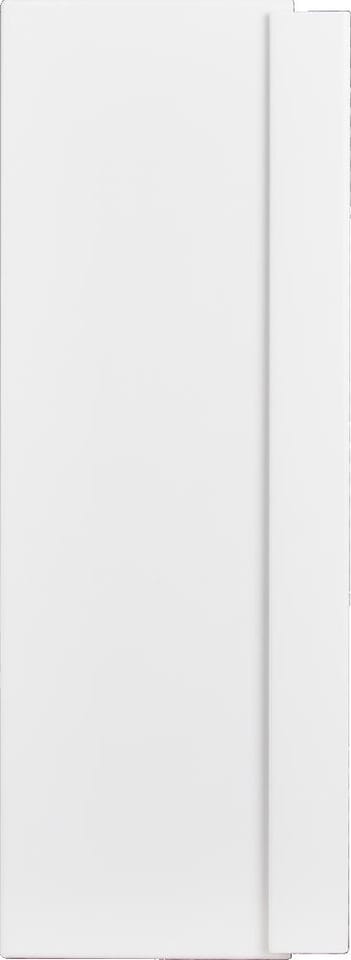

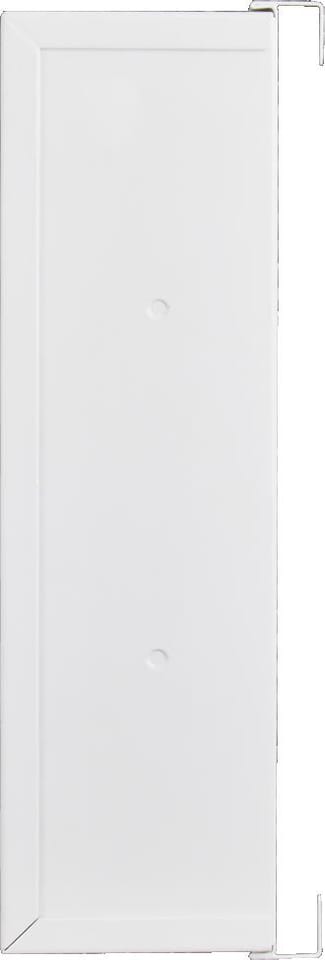

AWO-213 is a durable metal surface-mounted housing that has been designed for mounting SATEL control panels, modules and expanders in various configurations
Housing meets Grade 3, EN 50131 requirements
Battery space:: | 17 Ah / 12 volts |
---|---|
Current:: | 2.0 A @ 18 V 2.2 A @ 16 V |
Dimensions:: | 325 x 310 x 110 mm |
Manufacturer / brand:: | PULSAR |
Operating temperature:: | -10 °C ... 40 °C |
Power:: | 230 VAC |
Scales:: | 4.3 kg |
Sealing:: | IP20 |
Tamper output load capacity:: | Max. 500 mA @ 50 V DC |

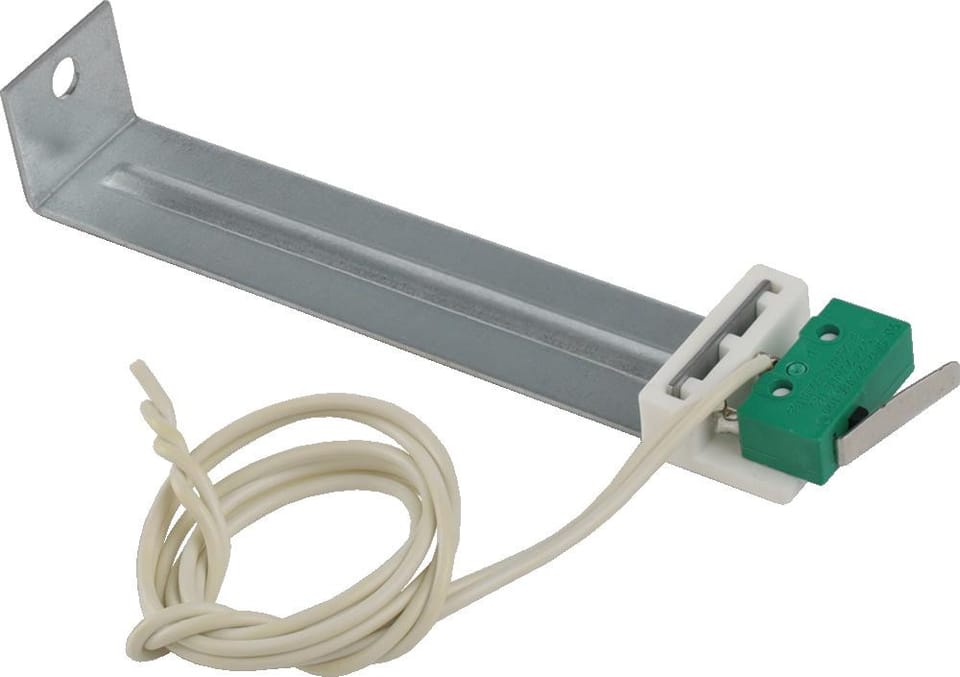

Tamper protection:: | Tamper detection - opening of the housing, detachment from the ground |
Tension:: | 16 V AC 18 V AC |

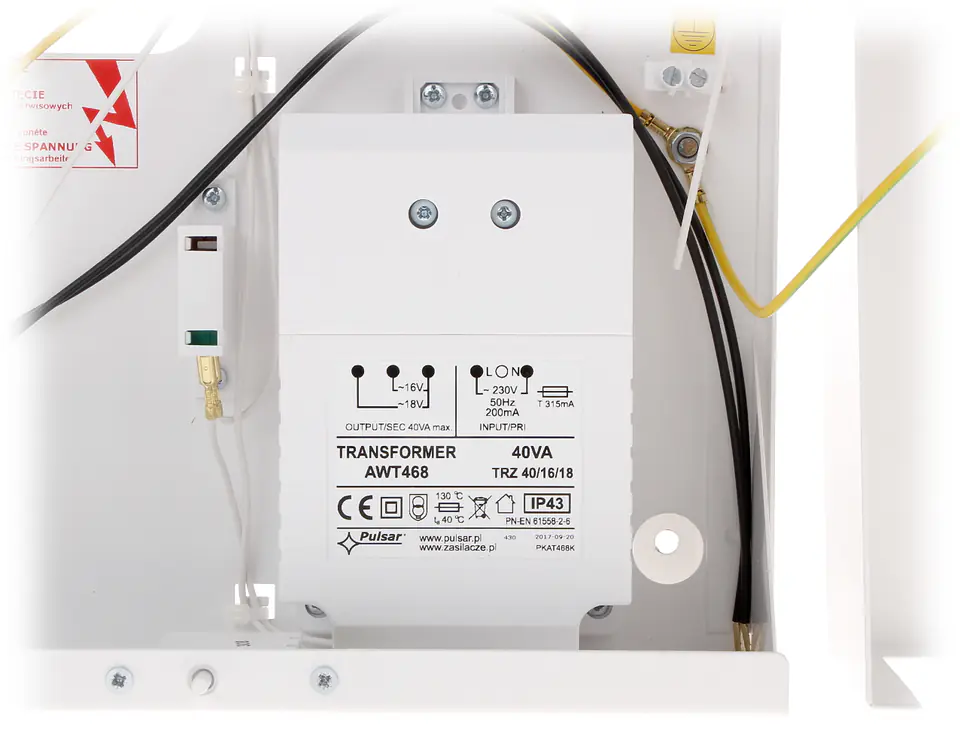

Transformer:: | 40 VA |
Use:: | Control panel : CA-4/PL, CA-5-P, CA-6-P, CA-10-P, VERSA-5, VERSA-10, VERSA-15, VERSA Plus, INTEGRA-24, INTEGRA-32, GSM, Radio module, and others |
Warranty:: | 2 years |
AWO-213 is a durable metal surface-mounted housing that has been designed for mounting SATEL control panels, modules and expanders in various configurations
Housing meets Grade 3, EN 50131 requirements
