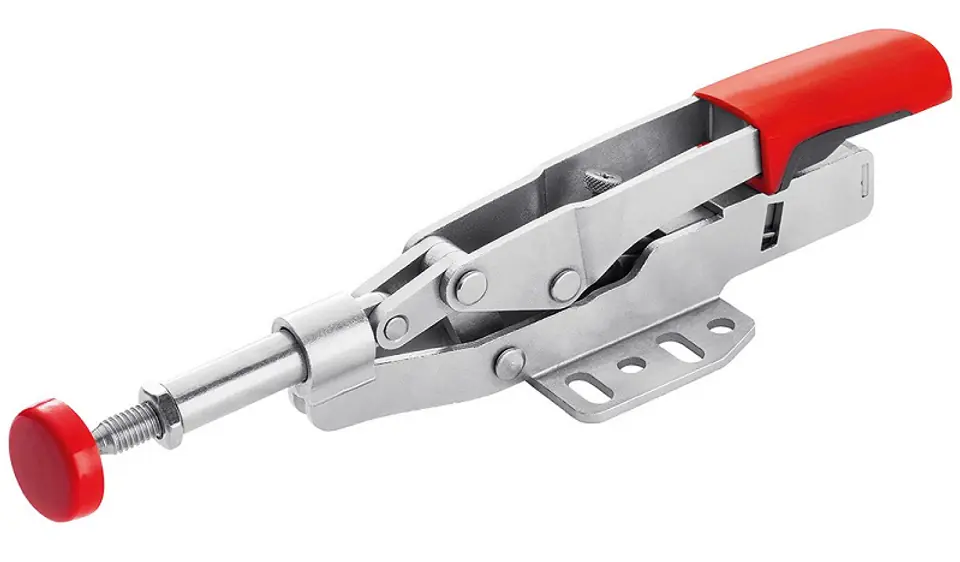

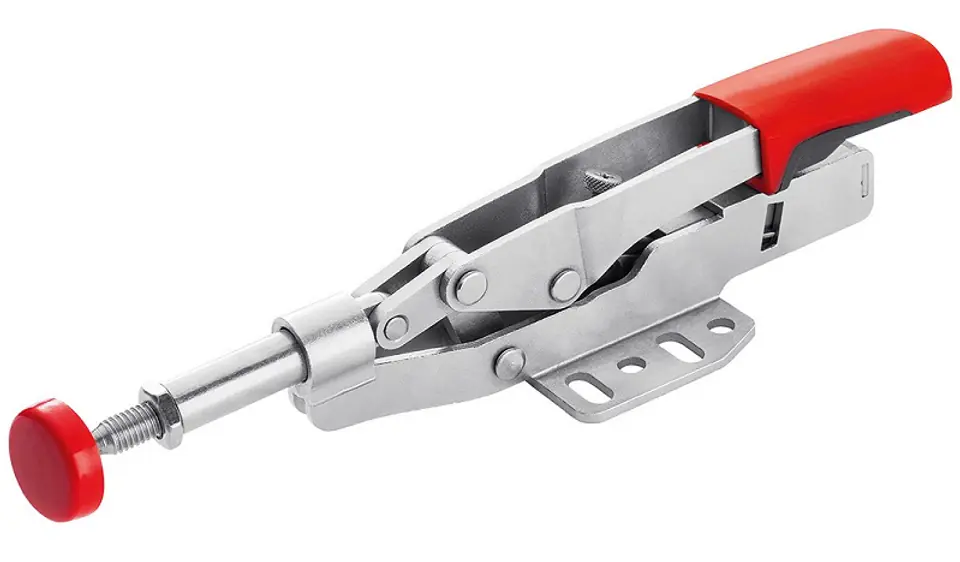

HORIZONTAL PRESSURE WITH HORIZONTAL BASE STC-IHH 25MM

Specifications:

Aperturement [mm]: 25
Automatic adjustment [mm]: 8
Clamping force [N]: 1100
Weight [kg]: 0.19
Pieces in carton: 6



Horizontal pressure with horizontal base stc-ihh 25mm
The movement of the lever is converted into axial movement of the pressure element
Automatic, stepless adjustment of the clamping range up to 13 mm with almost unchanged clamping force – no manual setting of the pressure screw required
Clamping force adjustable up to 2,500 N depending on the position of the pressure bolt in the joint
Strong and rigid high-grade sheet metal construction for long clamping life
Base with spacing of mounting holes in mm and inches
Two-component handle made of high-quality oil-resistant plastic

Quick application – on first use as well as after changing the workpiece
BESSEY STC clamps automatically adapt to different workpiece heights and widths with almost unchanged clamping force:
due to the automatic adjustment of the opening range

Uncompromising versatility
One BESSEY clamping size will replace several sizes offered by the competition:
Extremely high clamping range due to patented mechanism

Efficient and damage protection
Even delicate surfaces made of, for example, veneer or varnished can be gently pressed:
due to the movable pressure plate with removable protective cap thanks to the adjustment of the clamping force by means of an adjustable screw in the joint


**

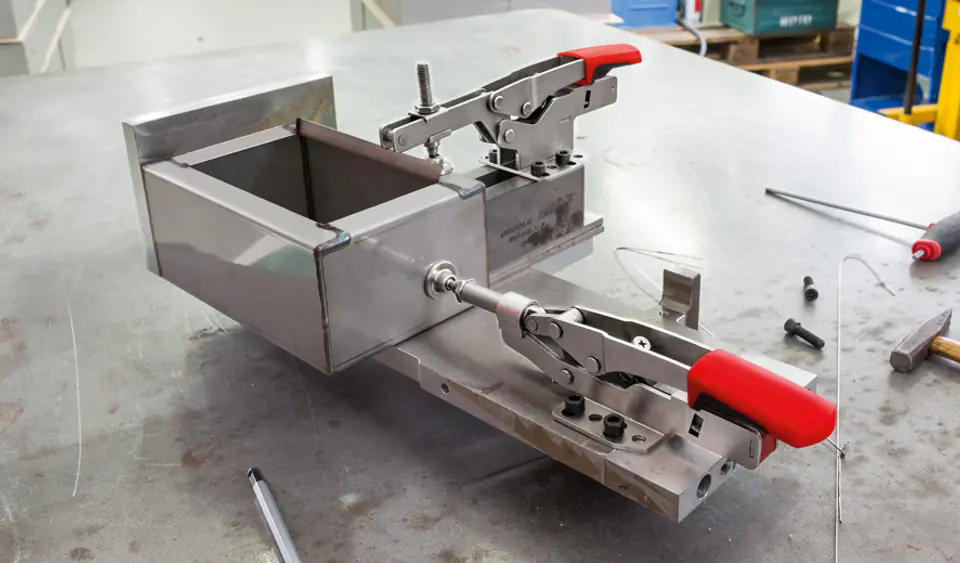

Illustrative photo
