Easy to use
The regulator has been specially designed for beginners and intermediate modelers. It is simple to use but at the same time very robust. It is equipped with automatic throttle calibration.
All weather conditions
Waterproof and dustproof housing will be used in all weather conditions. Drive in water, snow, dust or mud without worry!
Technology & Performance
Reliable hardware combined with advanced software not only provides high power output, but also protects the system from overloads.
Wide range of applications
The QuickRun WP 1025 controller can be used in many RC vehicles with brushed motors. Dedicated for 1:16 and 1:18 scale models

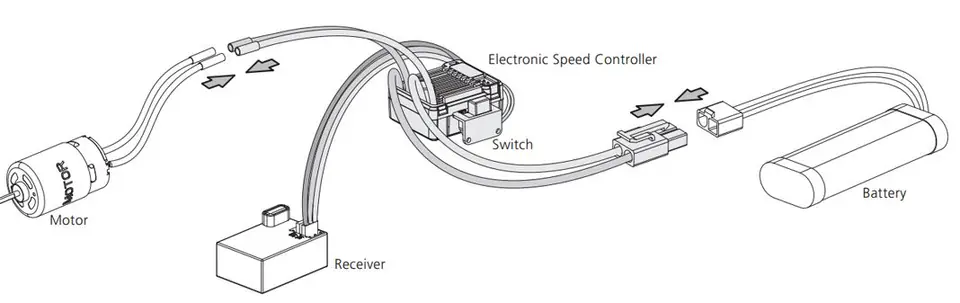

Installation example
Specification
| Specification | |
| Product name | QuicRun WP 1625 Brushed |
| Product number | 30120000 |
| Scale | 1:16 / 1:18 |
| Continuous/instantaneous current | 25A/100A |
| Power | 2-3S LiPo/6-9 NiMH Target |
| BEC output | Linear: 5V/1A |
| Input cables | Red - 18AWG-75mm/Black - 18AWG-75mm |
| Output cables | Blue- 18AWG-75mm *1 / yellow- 18AWG-75mm *1 |
| Input connector | Small Tamiya connectors |
| Output connector | Connector 4.0 bullet |
| Set button in ESC | Inactive |
| Led Program Box | Inactive |
| LCD Program box | Inactive |
| Wifi module | Inactive |
| Programming Port | Jumper Cap |
| Firmware update | Inactive |
| Size | 34 x 24 x 14mm |
| Scales | 24 grams |
| Dedicated | 1/16th, 1/18th Touring Cars/Buggies/Monster Trucks |
