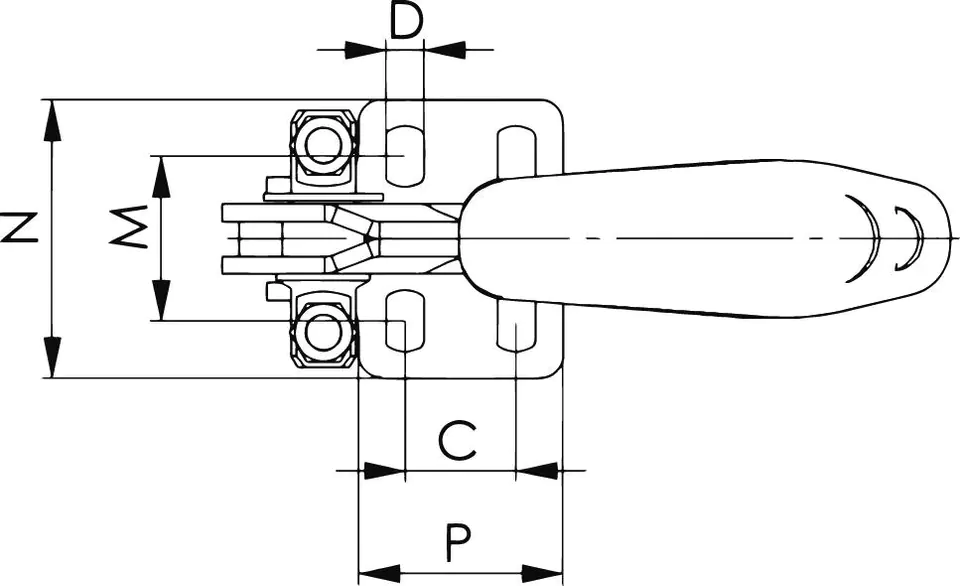

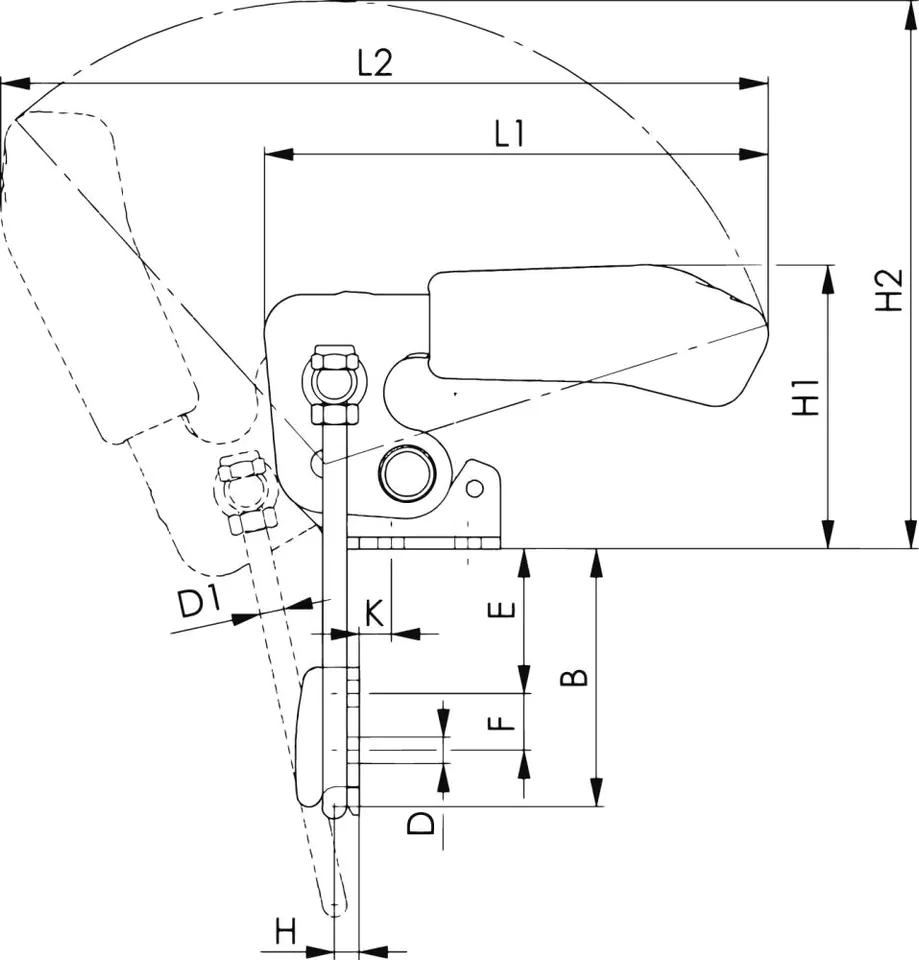

| B: | 43–81 |
|---|---|
| C: | 32 |
| D: | 8,5 |
| D1: | 8 |
| E: | 9–47 |
| F: | 19 |
| H: | 8 |
| H1: | 94,5 |
| H2: | 168 |
| K: | 9,5 |
| L1: | 151 |
| L2: | 239 |
| M: | 35–46 |
| N: | 64,5 |
| P: | 53,5 |
| Piston force: | 7 kN |
| Size: | 4 |

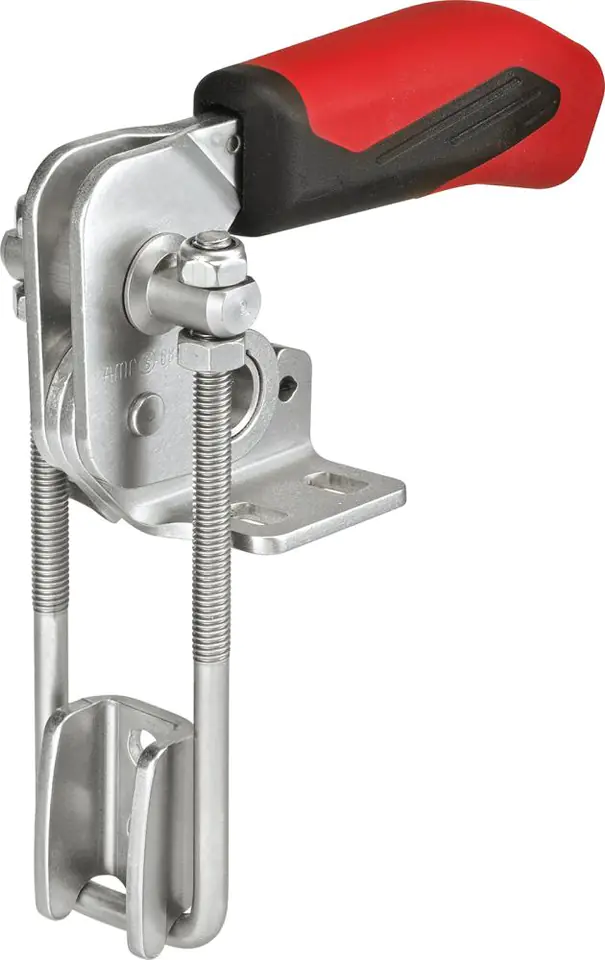

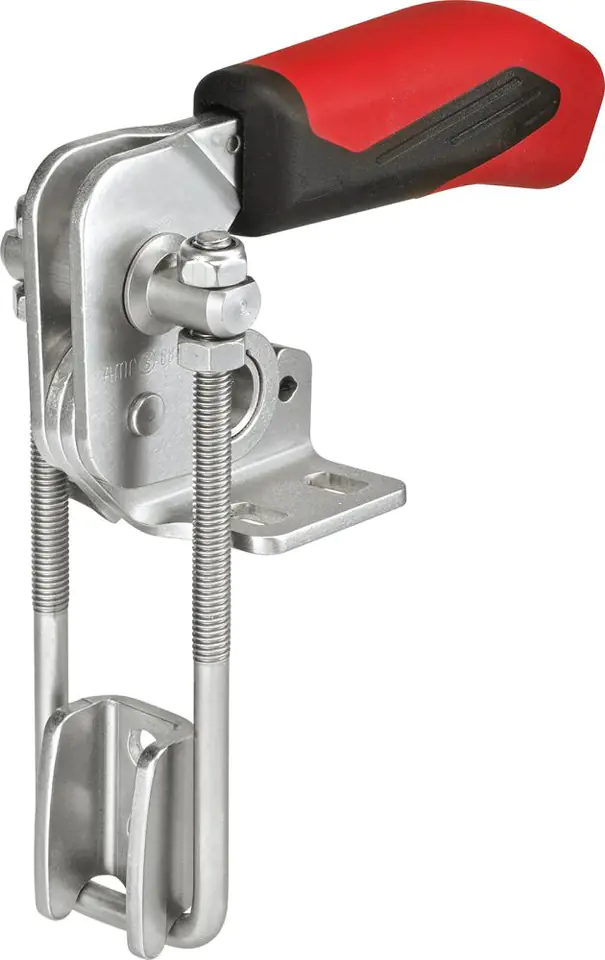

Coupling pressure, vertical
Material: galvanized and passivated. Bearing sleeves diffusion hardened, lubricated. Stainless steel rivets. Hook and collets heat enhanced. Handle made of red plastic, resistant to oils.
Scope of delivery: clamp with hook.
Note: Also available in stainless steel.
Despite our best efforts, we cannot guarantee that the published technical data and photos do not contain inaccuracies or errors, which, however, cannot be a basis for claims.
