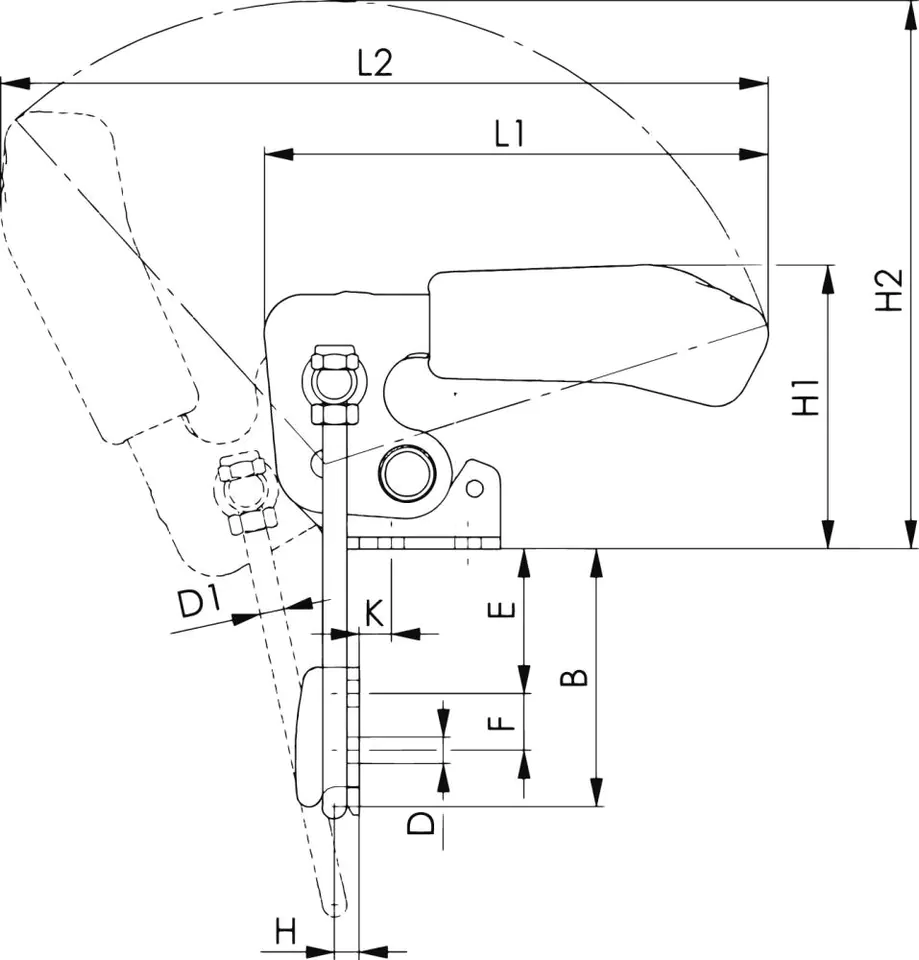

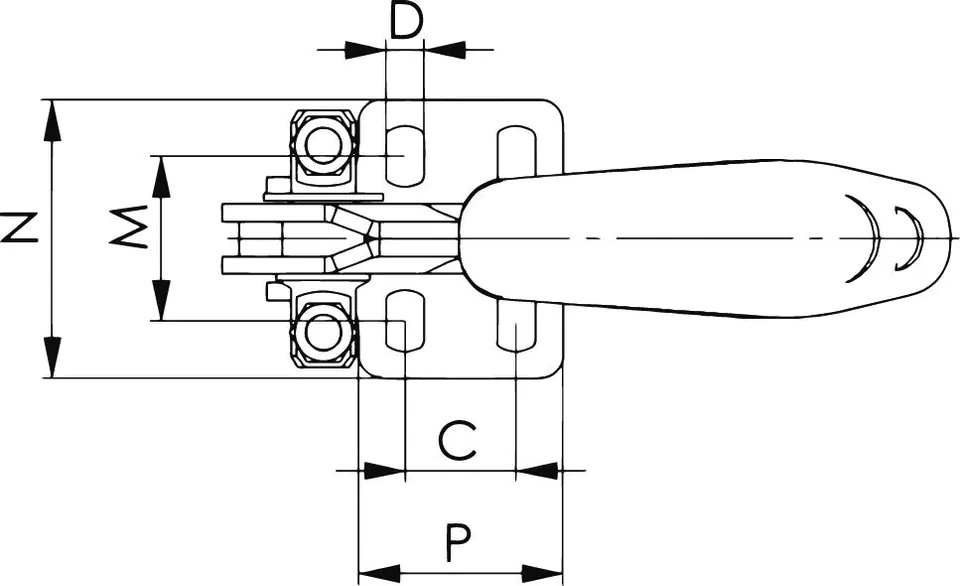

| B: | 34,5–64 |
|---|---|
| C: | 19 |
| D: | 6,5 |
| D1: | 6 |
| E: | 7–36 |
| F: | 14 |
| H: | 6 |
| H1: | 70 |
| H2: | 136 |
| K: | 8 |
| L1: | 125 |
| L2: | 190 |
| M: | 24,5–32 |
| N: | 48 |
| P: | 35 |
| Piston force: | 3.2 kN |
| Size: | 3 |

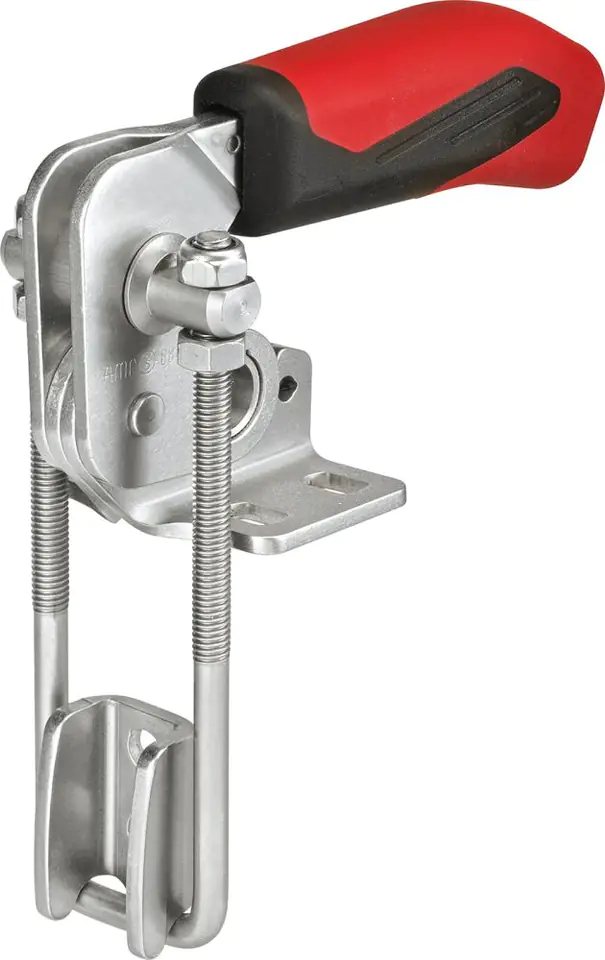

Coupling pressure, vertical
Material: galvanized and passivated. Bearing sleeves diffusion hardened, lubricated. Stainless steel rivets. Hook and collets heat enhanced. Handle made of red plastic, resistant to oils.
Scope of delivery: clamp with hook.
Note: Also available in stainless steel.
Despite our best efforts, we cannot guarantee that the published technical data and photos do not contain inaccuracies or errors, which, however, cannot be a basis for claims.
