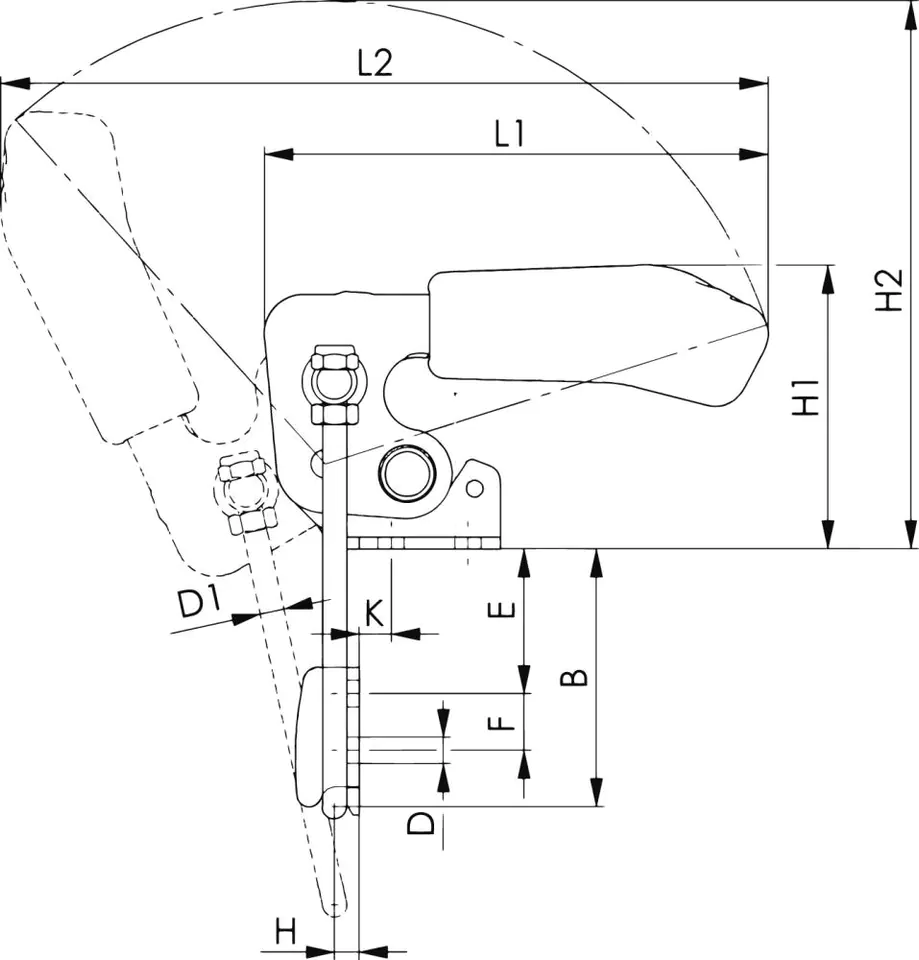

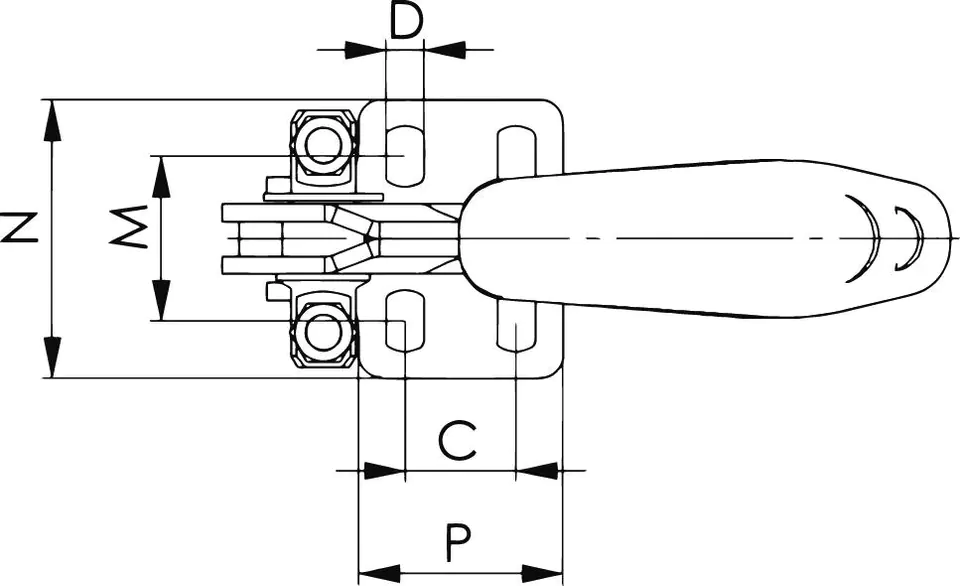

| B: | 24–49 |
|---|---|
| C: | 13 |
| D: | 5,2 |
| D1: | 4 |
| E: | 5–30 |
| F: | 11 |
| H: | 4,5 |
| H1: | 47 |
| H2: | 99 |
| K: | 6,4 |
| L1: | 91 |
| L2: | 158 |
| M: | 19,5–23,5 |
| N: | 38 |
| P: | 26 |
| Piston force: | 1.6 kN |
| Size: | 2 |

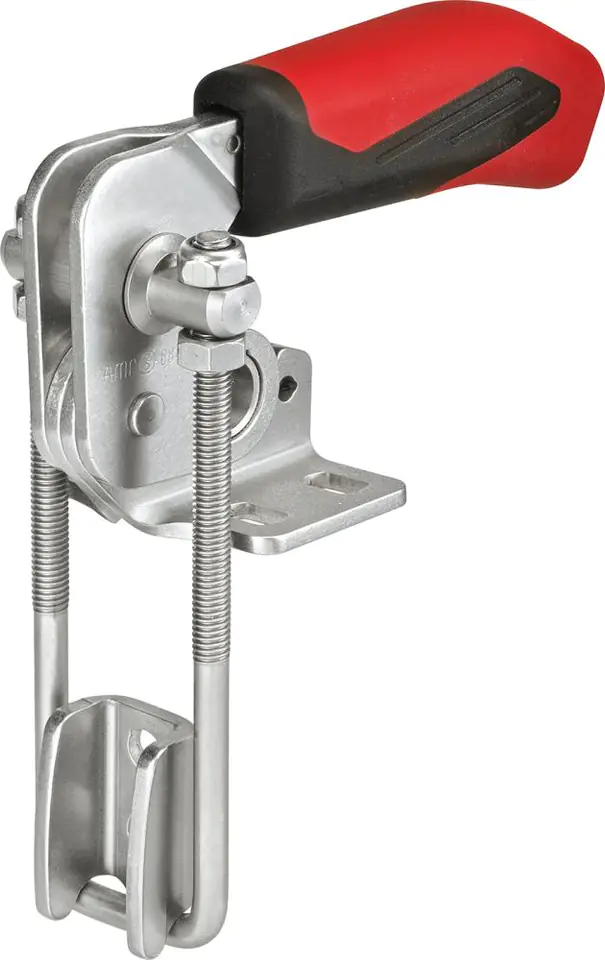

Coupling pressure, vertical
Material: galvanized and passivated. Bearing sleeves diffusion hardened, lubricated. Stainless steel rivets. Hook and collets heat enhanced. Handle made of red plastic, resistant to oils.
Scope of delivery: clamp with hook.
Note: Also available in stainless steel.
