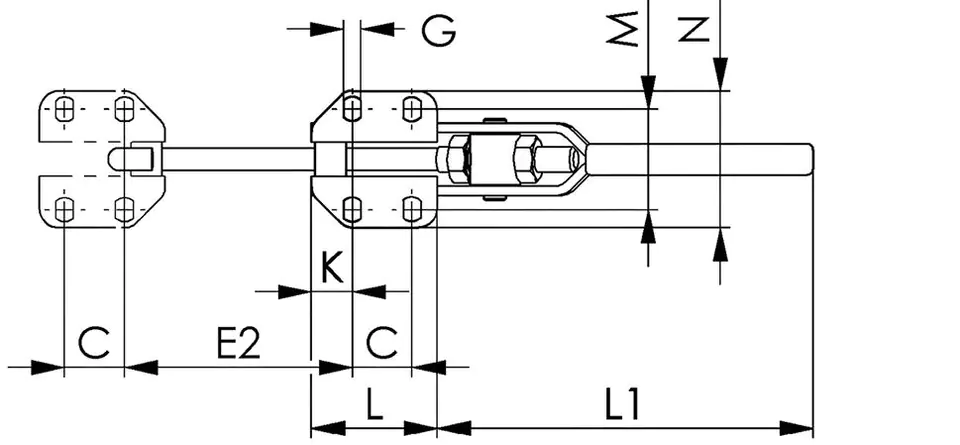

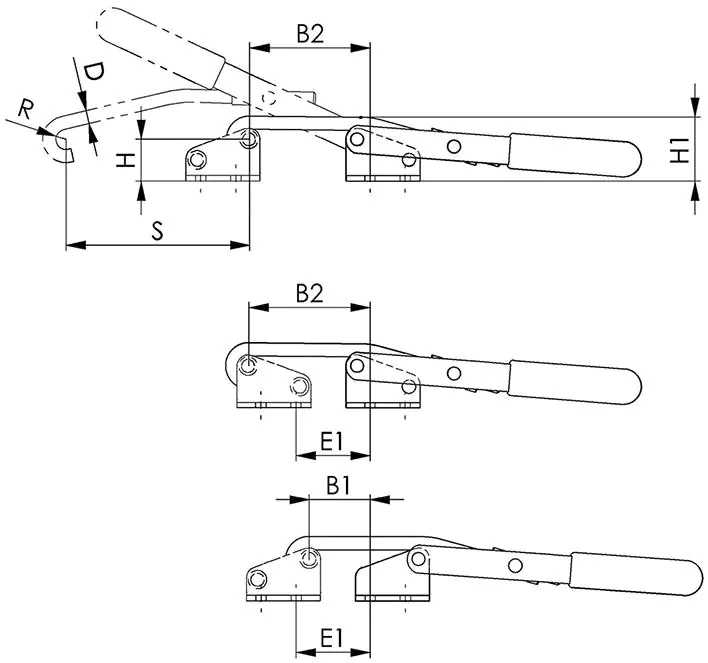

| Adjustment range: | 14 mm |
|---|---|
| B1: | 26–40 |
| B2: | 57–71 |
| C: | 29 |
| D: | 10,75 |
| E1: | 27–42 |
| E2: | 58–73 |
| G: | 11,2 |
| H: | 49 |
| H1: | 69 |
| K: | 13 |
| L: | 55 |
| L1: | 189,5 |
| M: | 55,5–63 |
| N: | 85 |
| Overall length: | 308 mm |
| Piston force: | 5 kN |
| R: | 8 |
| S: | 147 |
| Size: | 5 |
| Total height: | 282 mm |

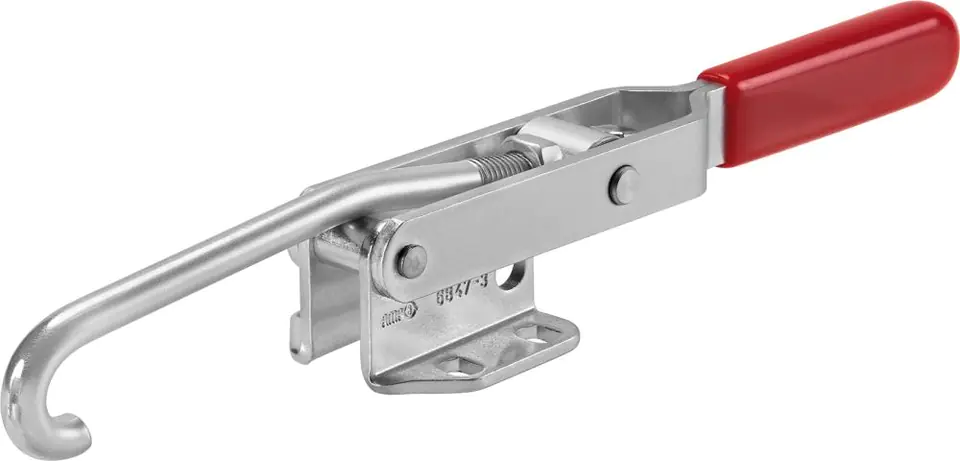

Hitch pressure
Material: galvanized and passivated. Bearing sleeves diffusion hardened, lubricated. Stainless steel rivets. Hook and collets heat enhanced. Handle made of red plastic, resistant to oils.
Application: for fixing flaps and covers on containers with a hook.
Note: Also available in stainless steel.
