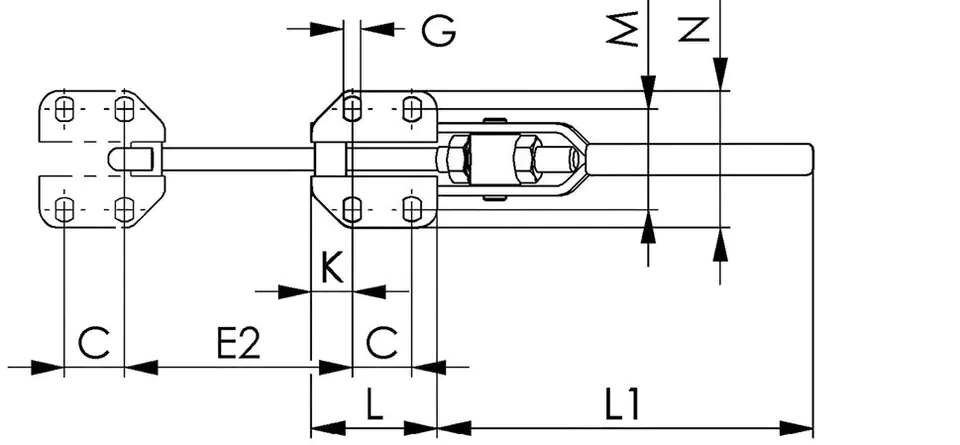

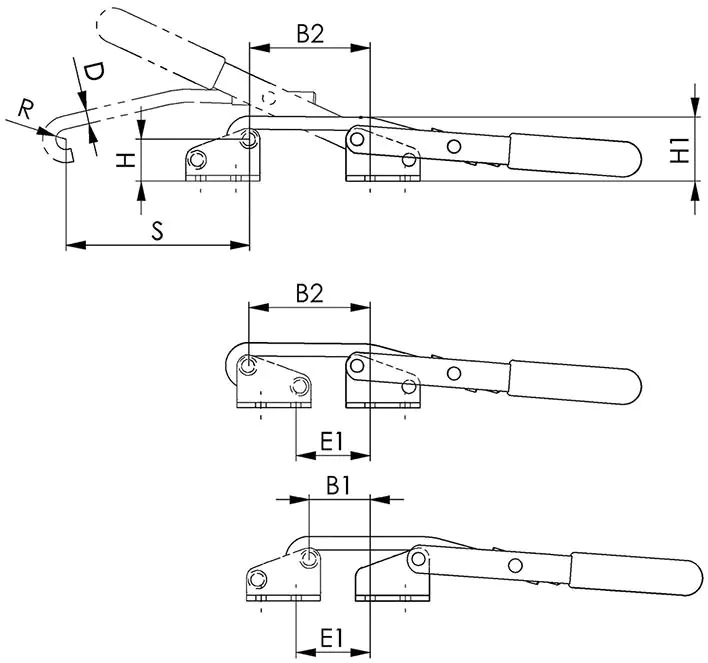

| Adjustment range: | 12 mm |
|---|---|
| B1: | 32–44 |
| B2: | 65–77 |
| C: | 19 |
| D: | 7,1 |
| E1: | 39–51 |
| E2: | 72–84 |
| G: | 5,5 |
| H: | 22,7 |
| H1: | 36 |
| K: | 13 |
| L: | 40 |
| L1: | 123,5 |
| M: | 31,5–35,5 |
| N: | 45 |
| Overall length: | 230 mm |
| Piston force: | 3 kN |
| R: | 5,5 |
| S: | 98 |
| Size: | 3 |
| Total height: | 181 mm |

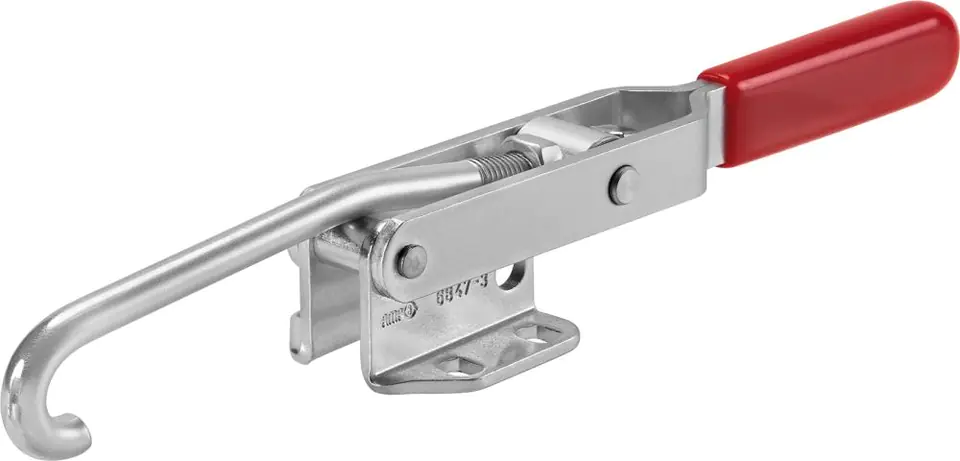

Hitch pressure
Material: galvanized and passivated. Bearing sleeves diffusion hardened, lubricated. Stainless steel rivets. Hook and collets heat enhanced. Handle made of red plastic, resistant to oils.
Application: for fixing flaps and covers on containers with a hook.
Note: Also available in stainless steel.
