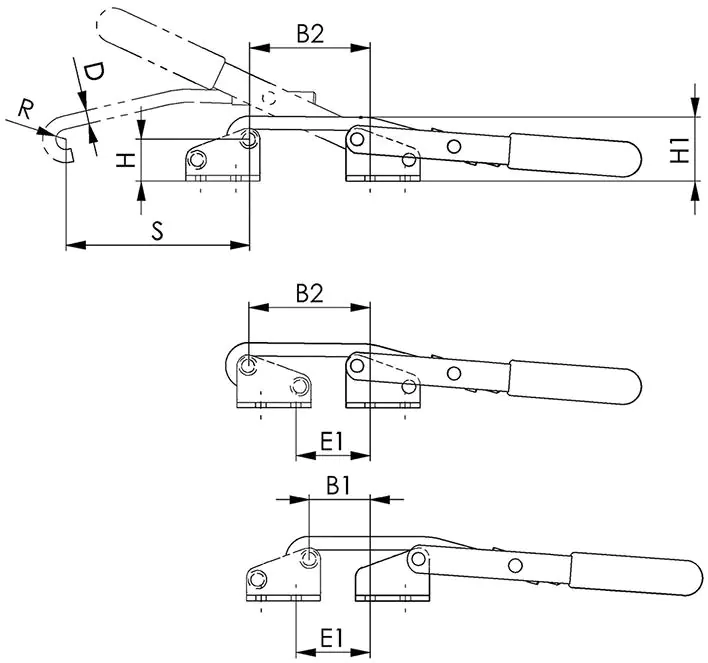

| Adjustment range: | 8 mm |
|---|---|
| B1: | 16–23 |
| B2: | 35–43 |
| C: | 19 |
| D: | 5,3 |
| E1: | 17–24 |
| E2: | 35–42 |
| G: | 4,5 |
| H: | 22,7 |
| H1: | 34,5 |
| K: | 6 |
| L: | 31 |
| L1: | 62,6 |
| M: | 26–30 |
| N: | 40 |
| Overall length: | 130 mm |
| Piston force: | 2 kN |
| R: | 4,5 |
| S: | 45 |
| Size: | 1 |
| Total height: | 111 mm |

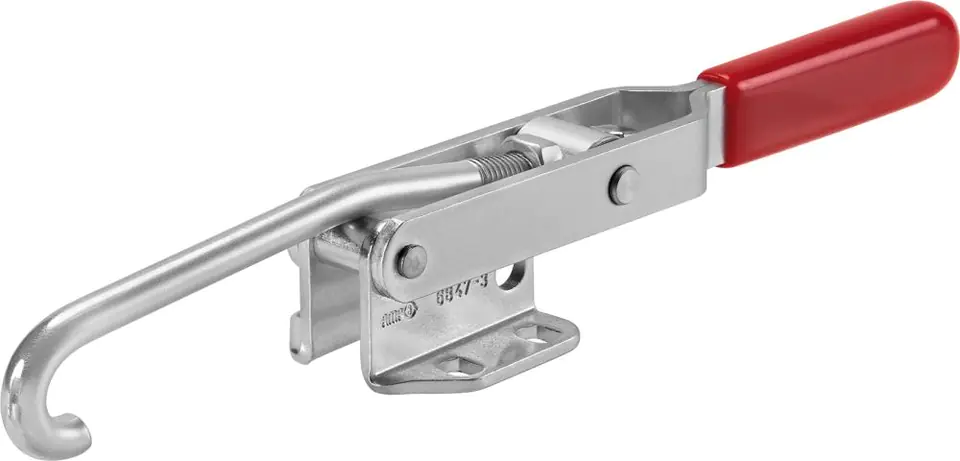

Hitch pressure
Material: galvanized and passivated. Bearing sleeves diffusion hardened, lubricated. Stainless steel rivets. Hook and collets heat enhanced. Handle made of red plastic, resistant to oils.
Application: for fixing flaps and covers on containers with a hook.
Note: Also available in stainless steel.
