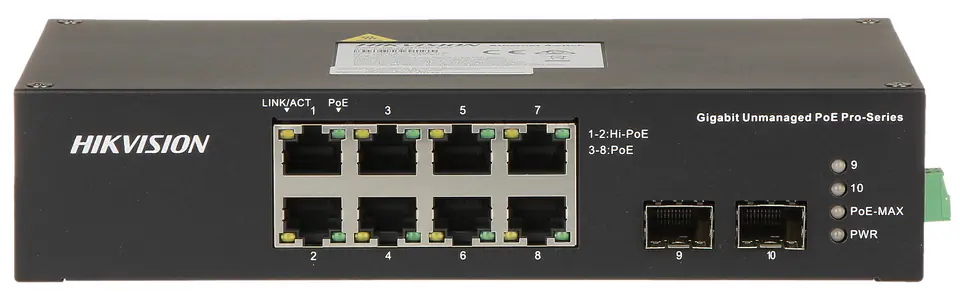

With reliability and high transmission quality, the DS-3T0510HP-E/HS 10/100/1000M desktop PoE Switch is ideal for home or office network expansion8 ports supports Power over Ethernet (PoE)
DS-3T0510HP-E/HS is designed for mounting on 35 mm DIN rail
10g support: | No |
---|---|
Auto mdi/mdi-x: | Yes |
Basic switching rj-45 ethernet ports quantity: | 8 |
Basic switching rj-45 ethernet ports type: | Gigabit Ethernet (10/100/1000) |
Baud:: | 10 / 100 / 1000 Mbps : 2 LAN & Hi-PoE Ports + 6 LAN & PoE Ports, 1000 Mbps : 2 SFP Ports |
Certificates:: | CE |
Dc input voltage: | 48 - 57 V |
Depth: | 42.2 mm |

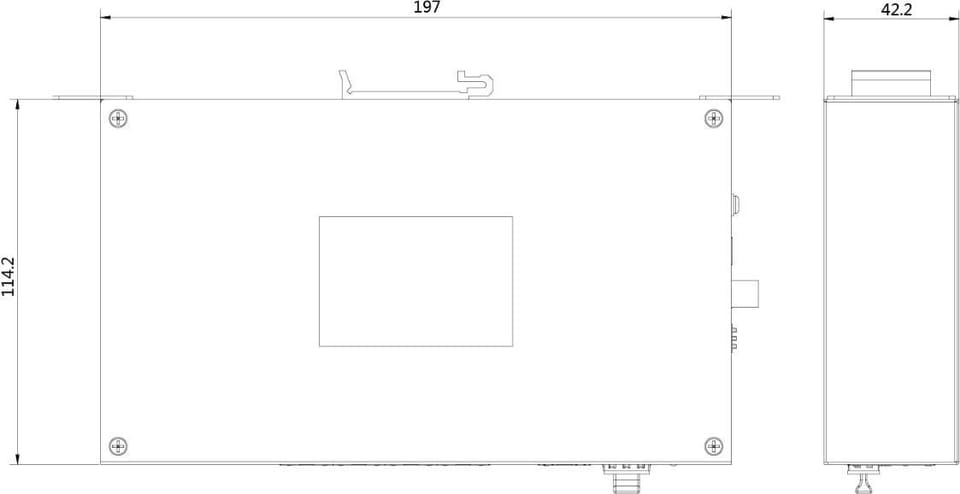

Dimensions:: | 197 x 114 x 42 mm |
Fiber optic connector: | SFP |
Fiber ports quantity: | 2 |
Forwarding rate: | 14.88 Mpps |
Full duplex: | Yes |
Harmonized system (hs) code: | 85176990 |
Height: | 114.2 mm |
Housing material: | Metal |
Input current: | 2.5 A |
Lan ports:: | 2 x RJ45 1000 Mbps - Hi-PoE (802.3bt), 6 x RJ45 1000 Mbps - PoE (802.3af/at) |

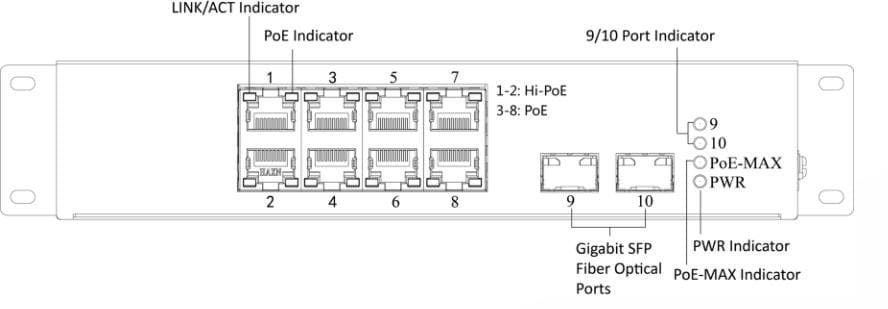

Leds:: | Power, PoE Max, SFP, Link/Act, PoE |
Mac address table: | 4000 entries |
Mac address table:: | 4k |
Manufacturer / brand:: | Hikvision |
Maximum output power:: | Max. 90 W / Hi-PoE port - 1 ports, 2 30 W / PoE port - 3 ports ... 8 |
Maximum total power:: | 110 watts (Printing) |
Networking standards: | IEEE 802.3, IEEE 802.3ab, IEEE 802.3at, IEEE 802.3bt, IEEE 802.3z, IEEE 802.3u, IEEE 802.3x, IEEE 802.3af |

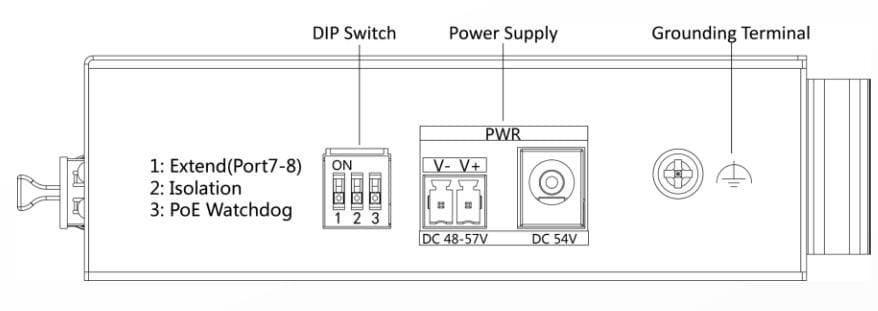

Operating modes:: | Extend On: 300 m, 10 Mb/s @ UTP cat. 5e, 6 - Ports 7, 8 Extend Off : 100 m, 100 Mb/s @ UTP cat. 5e, 6 |
Operating relative humidity (h-h): | 5 - 95% |
Operating temperature (t-t): | -30 - 65 °C |
Operating temperature:: | -30 °C ... 65 °C |
Package weight: | 1.11 kg |
Power consumption (max): | 120 W |
Power over ethernet (poe): | Yes |
Power over ethernet (poe) ports quantity: | 8 |

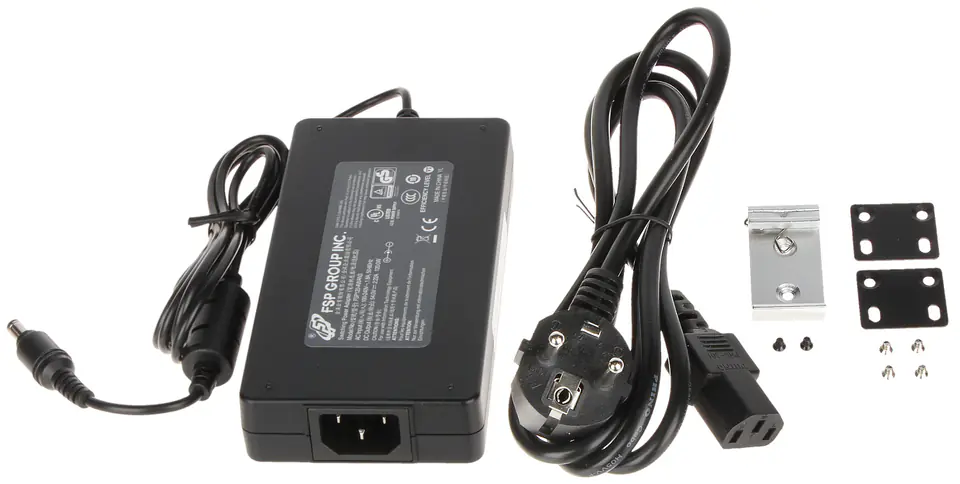

Power:: | 48 V ... 57 V DC / 2500 mA (power supply included) |
Product colour: | Black |
Rack mounting: | No |
Sap code:: | 301801604 |
Scales:: | 0.58 kg |
Stackable: | No |
Storage relative humidity (h-h): | 5 - 95% |
Storage temperature (t-t): | -40 - 85 °C |
Store-and-forward: | Yes |
Switch type: | Unmanaged |
Switching capacity: | 20 Gbit/s |
Total power over ethernet (poe) budget: | 110 W |
Warranty:: | 3 years |
Weight: | 585 g |
Width: | 197 mm |
With reliability and high transmission quality, the DS-3T0510HP-E/HS 10/100/1000M desktop PoE Switch is ideal for home or office network expansion8 ports supports Power over Ethernet (PoE)
DS-3T0510HP-E/HS is designed for mounting on 35 mm DIN rail
Despite our best efforts, we cannot guarantee that the published technical data and photos do not contain inaccuracies or errors, which, however, cannot be a basis for claims.
