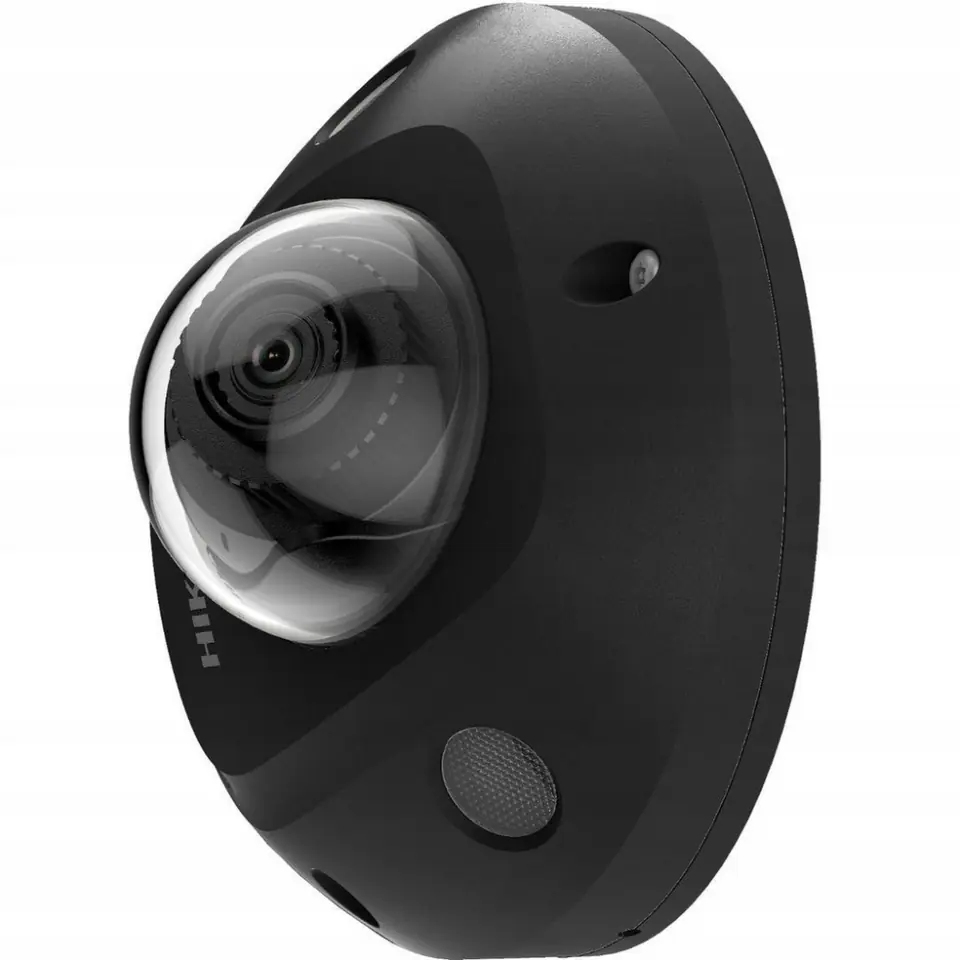

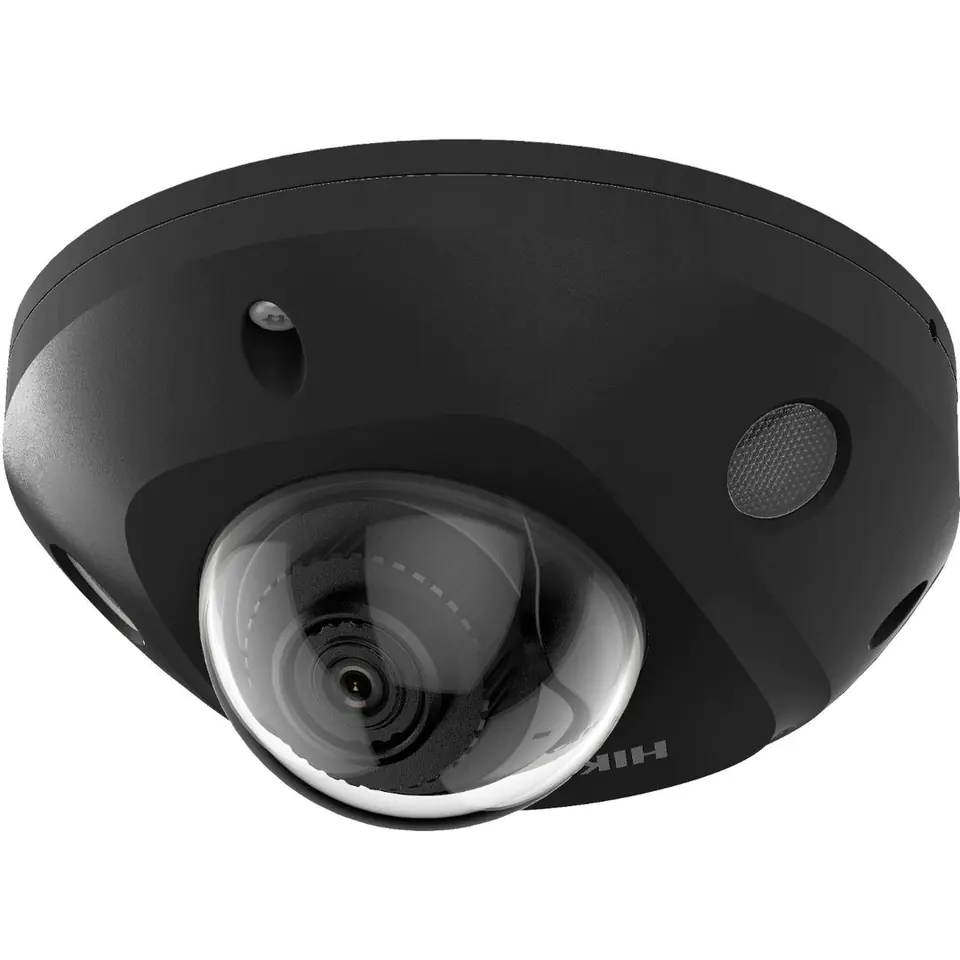

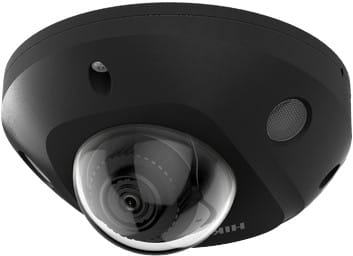

HIKVISION IP CAMERA DS-2CD2543G2-IS 2.8MM
Specification
| Alarm input/output: | Y |
|---|---|
| Angle of rotation: | 360° |
| Audio formats supported: | AAC, MP3 |
| Audio input channels: | 1 |
| Audio output channels: | 1 channels |
| Back light compensation (blc): | Y |
| Behavior analysis: | Intrusion detection, Line crossing detection |
| Bit rate: | 32 Kbps - 8 Mbps |
| Bit rate control: | Constant Bit Rate (CBR)/Variable Bit Rate (VBR) |
| Bluetooth: | N |
| Built-in hdd: | N |
| Camera pan control: | Y |
| Camera shutter speed: | 1/3 - 1/100000 s |
| Camera tilt control: | Y |
| Card reader integrated: | Y |
| Compatible memory cards: | MicroSD (TransFlash), MicroSDHC, MicroSDXC |
| Connectivity technology: | Wired |
| Day/night mode: | Y |
| Dc output voltage: | 12 |
| Detect distance: | 64 m |
| Diameter: | 11 cm |
| Ethernet interface type: | Fast Ethernet |
| Ethernet lan: | Y |
| Ethernet lan (rj-45) ports: | 1 |
| Fixed focal length: | 2.8 mm |
| Form factor: | Dome |
| Frame rate: | 30 fps |
| Gain control type: | Auto |
| Height: | 57.4 mm |
| Highlight compensation (hlc): | Y |
| Identify distance: | 6 m |
| Ik code: | IK08 |
| Image quality adjustment: | Contrast, Saturation, Sharpness, Brightness |
| Infra-red wavelength: | 850 nm |
| Infrared (ir) cut-off filter: | Y |
| Intelligent video surveillance (ivs) system features: | Face detection |
| International protection (ip) code: | IP67 |
| Led type: | IR |
| Maximum aperture number: | 1.6 |
| Maximum memory card size: | 256 GB |
| Maximum resolution: | 2688 x 1520 pixels |
| Mounting type: | Ceiling/wall |
| Night vision: | Y |
| Night vision distance: | 30 m |
| Noise reduction: | Y |
| Noise reduction technology: | 3D noise reduction |
| Number of cameras: | 1 |
| Number of languages: | 33 |
| Number of lenses: | 1 |
| Number of sensors: | 1 |
| Number of users: | 32 user(s) |
| Observe distance: | 25 m |
| Operating relative humidity (h-h): | 0 - 95% |
| Operating temperature (t-t): | -30 - 60 °C |
| Optical sensor size: | 25.4 / 3 mm (1 / 3") |
| Package depth: | 134 mm |
| Package height: | 108 mm |
| Package weight: | 615 g |
| Package width: | 134 mm |
| Pan range: | -30 - 30° |
| Placement supported: | Outdoor |
| Power consumption (power over ethernet (poe)): | 7 W |
| Power source type: | DC, PoE |
| Product colour: | Black |
| Progressive scan: | Y |
| Quality of service (qos) support: | Y |
| Recognize distance: | 13 m |
| Region of interest (roi) encoding: | Y |
| Reset button: | Y |
| Sample rate: | 48 kHz |
| Sensor type: | CMOS |
| Storage relative humidity (h-h): | 0 - 95% |
| Storage temperature (t-t): | -30 - 60 °C |
| Tilt angle range: | 0 - 75° |
| Total megapixels: | 4 MP |
| Type: | IP security camera |
| Video compression formats: | H.264, H.264+, H.265, H.265+, M-JPEG |
| Video motion detection: | Y |
| Video streaming: | Y |
| Voice codecs: | G.726, G.711alaw, MP2L2, G.722.1, G.711ulaw |
| Web-based management: | Y |
| Weight: | 380 g |
| Wi-fi: | N |
| Wide dynamic range (wdr): | Y |
Despite our best efforts, we cannot guarantee that the published technical data and photos do not contain inaccuracies or errors, which, however, cannot be a basis for claims.
