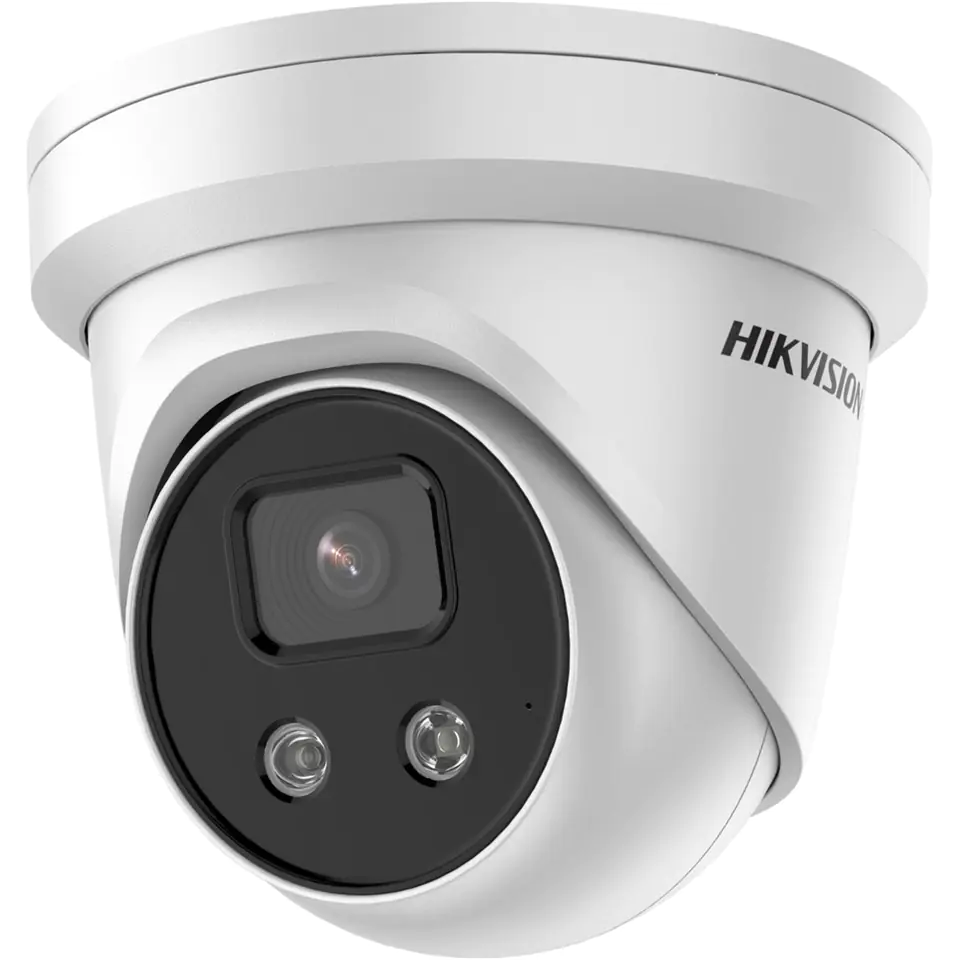

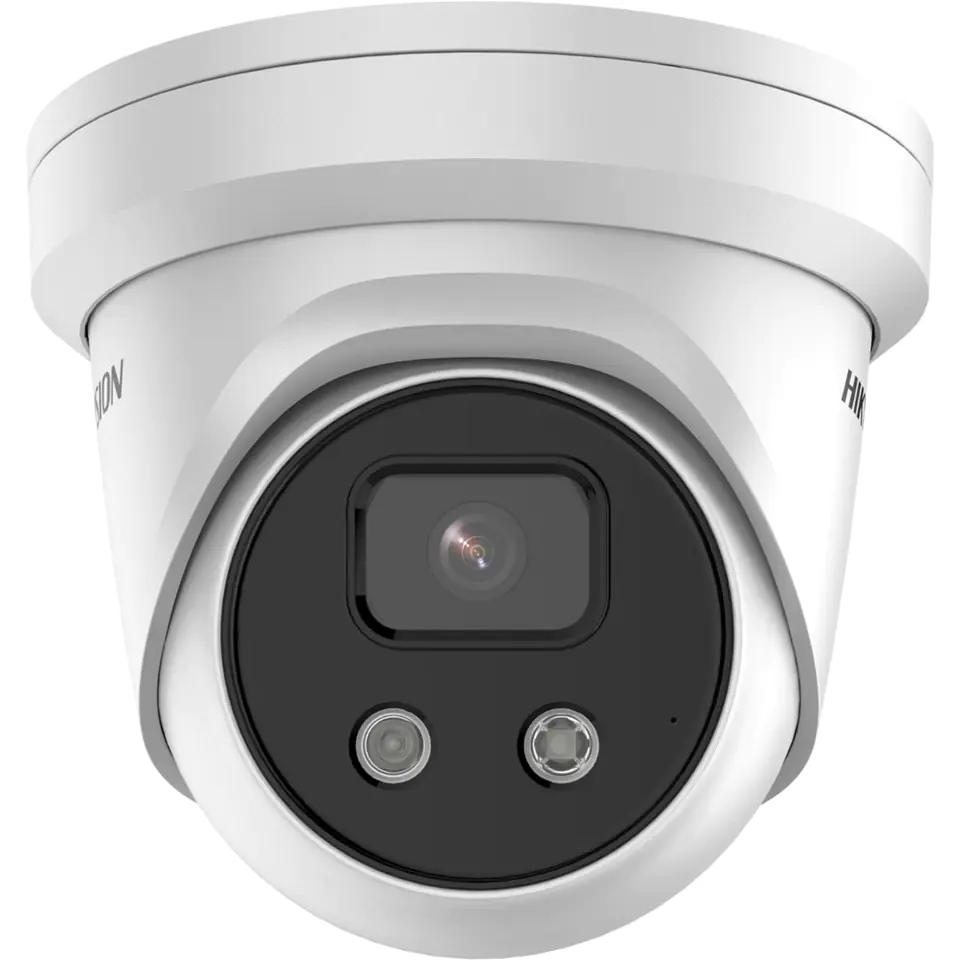

HIKVISION IP CAMERA DS-2CD2386G2-IU (2.8MM) C
Specification
| Active tampering alarm: | Yes |
|---|---|
| Angle of rotation: | 360° |
| Anti-flicker: | Yes |
| Back light compensation (blc): | Yes |
| Behavior analysis: | Intrusion detection, Line crossing detection, Region entrance detection, Region exiting detection |
| Bit rate: | 32 Kbps - 16 Mbps |
| Bit rate control: | Constant Bit Rate (CBR)/Variable Bit Rate (VBR) |
| Bluetooth: | No |
| Built-in hdd: | No |
| Built-in microphone: | Yes |
| Camera pan control: | Yes |
| Camera shutter speed: | 1/3 - 1/100000 s |
| Camera tilt control: | Yes |
| Card reader integrated: | Yes |
| Compatible memory cards: | MicroSDHC, MicroSD (TransFlash), MicroSDXC |
| Connectivity technology: | Wired |
| Day/night mode: | Yes |
| Dc output voltage: | 12 |
| Diameter: | 13.8 cm |
| Ethernet interface type: | Fast Ethernet |
| Ethernet lan: | Yes |
| Ethernet lan (rj-45) ports: | 1 |
| Fixed focal length: | 2.8 mm |
| Form factor: | Turret |
| Frame rate: | 30 fps |
| Gain control type: | Auto |
| Heartbeat: | Yes |
| Highlight compensation (hlc): | Yes |
| Housing material: | Metal |
| Https encryption: | Yes |
| Image quality adjustment: | Contrast, Sharpness, Saturation, Brightness |
| Infra-red wavelength: | 850 nm |
| Infrared (ir) cut-off filter: | Yes |
| Intelligent video surveillance (ivs) system features: | Scene change, Face detection |
| International protection (ip) code: | IP67 |
| Ip address filtering: | Yes |
| Languages support: | Multi |
| Led type: | IR |
| Lens viewing angle, diagonal: | 131° |
| Lens viewing angle, vertical: | 59° |
| Maximum aperture number: | 1.6 |
| Maximum memory card size: | 256 GB |
| Maximum resolution: | 3840 x 2160 pixels |
| Mirror: | Yes |
| Mounting type: | Ceiling/wall |
| Networking standards: | IEEE 802.3af |
| Night vision: | Yes |
| Night vision distance: | 30 m |
| Noise reduction: | Yes |
| Noise reduction technology: | 3D noise reduction |
| Number of cameras: | 1 |
| Number of languages: | 33 |
| Number of lenses: | 1 |
| Number of sensors: | 1 |
| Number of users: | 32 user(s) |
| Operating relative humidity (h-h): | 0 - 95% |
| Operating temperature (t-t): | -30 - 60 °C |
| Optical sensor size: | 25.4 / 1.8 mm (1 / 1.8") |
| Package depth: | 170 mm |
| Package height: | 150 mm |
| Package weight: | 1.02 kg |
| Package width: | 170 mm |
| Pan range: | 0 - 360° |
| Password protection: | Yes |
| Placement supported: | Indoor & outdoor |
| Power consumption (max): | 5.8 W |
| Power consumption (power over ethernet (poe)): | 6.8 W |
| Power source type: | DC, PoE |
| Privacy masking: | Yes |
| Product colour: | White |
| Progressive scan: | Yes |
| Protection features: | Dust resistant, Water resistant |
| Quality of service (qos) support: | Yes |
| Region of interest (roi) encoding: | Yes |
| Reset button: | Yes |
| Security algorithms: | TLS |
| Sensor type: | CMOS |
| Signal-to-noise ratio (snr): | 52 dB |
| Storage relative humidity (h-h): | 0 - 95% |
| Storage temperature (t-t): | -30 - 60 °C |
| Supported graphics resolutions: | 640 x 360, 2688 x 1520, 1920 x 1080 (HD 1080), 1280 x 720 (HD 720), 640 x 480 (VGA), 3840 x 2160 |
| Tilt angle range: | 0 - 75° |
| Total megapixels: | 8 MP |
| Type: | IP security camera |
| Video compression formats: | M-JPEG, H.264+, H.265, H.264, H.265+ |
| Video motion detection: | Yes |
| Video streaming: | Yes |
| Voice codecs: | PCM, G.726, G.722.1, G.711alaw, AAC, G.711ulaw, MP2L2 |
| Web browser: | Yes |
| Weight: | 740 g |
| Wi-fi: | No |
| Wide dynamic range (wdr): | Yes |
