HIKVISION DS-KD-TDM TOUCH DISPLAY MODULE

Name: HIKVISION DS-KD-TDM TOUCH DISPLAY MODULE
Brand: HIKVISION
SKU: 922192
Price: 433.02 EUR
Availability: InStock

€433.02

Shipping from warehouse: ⁨H7⁩

Estimated shipping: Thu, Nov 14 - Mon, Nov 18

14 days returnUnconditional return policy

Availability:: large quantity
Brand:
Product code:: DS-KD-TDM / 6931847168988

Specification

Case:	Plastic - Vandal resistant, IK08
Colour:	Black
Compatibility:	DS-KD8003-IME1, DS-KD8003-IME2

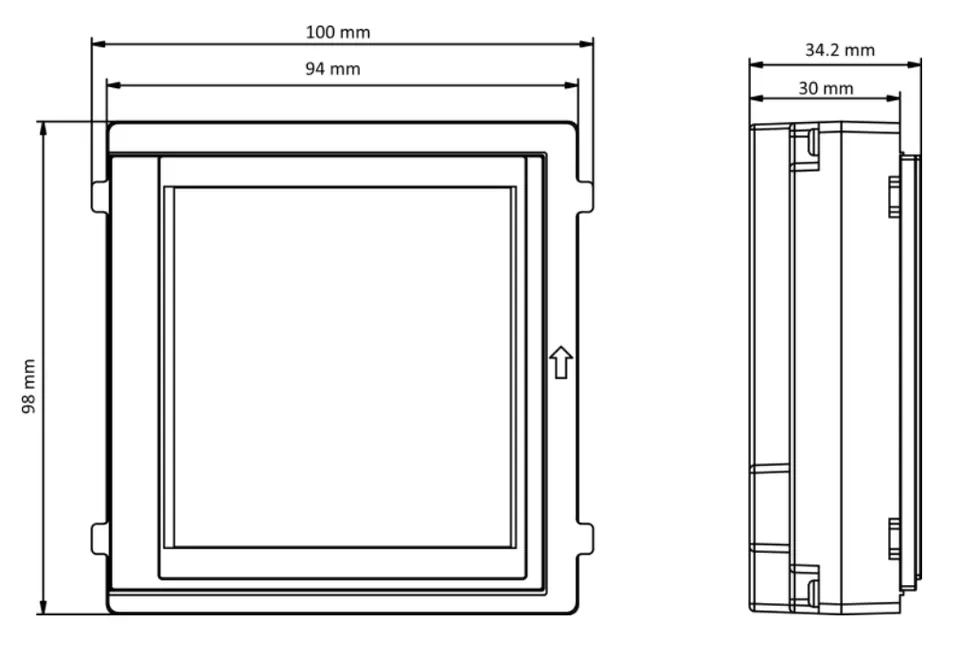

Dimensions:	100 x 98 x 34 mm
Display:	4 " IPS, touchscreen, 480 x 480 px
Operating temperature:	-20 °C ... 60 °C
Permissible relative ambient humidity:	10 ... 95 % (non-condensing)
Power:	Provided by DS-KD8003-IME1 or DS-KD8003-IME2
Power consumption:	≤ 10 watts
Producer / brand:	Hikvision
Sap code:	305302659
Scales:	0.23 kg
Sealing:	IP65

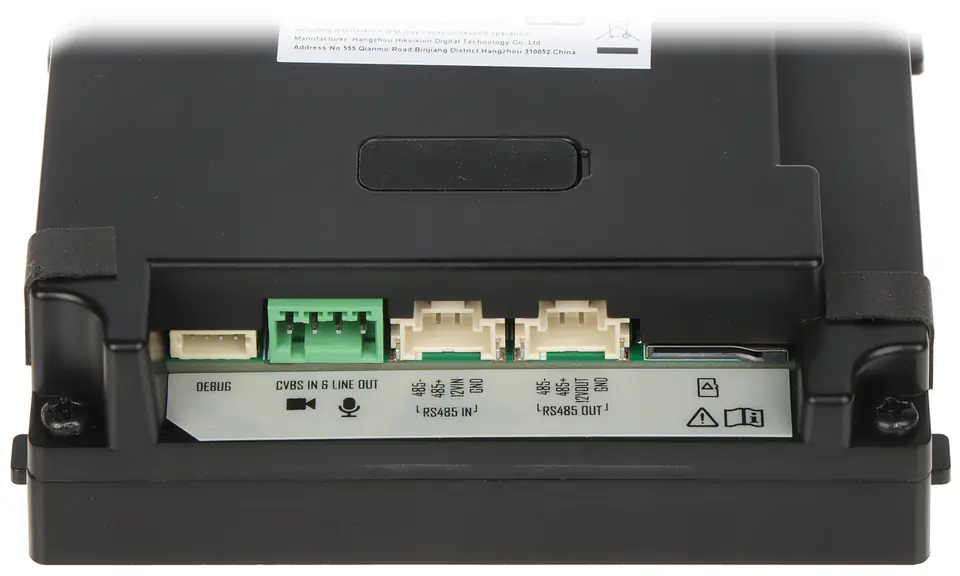

Selected features:	Display dialed numbers on the touch screen Virtual keyboard Remember and search your contact list Call an internal station from the contact list displayed on your device Display of advertising content Built-in Mifare proximity reader 13.56 MHz Card reading range : 2 cmOpening with card or PIN Buzzer RS-485 interface Cascadable to other modules Built-in Wi-Fi module in AP mode, enabling configuration from the iVMS-4200 level
Supported languages:	Polish, Bulgarian, Croatian, Czech, Dutch, English, French, German, Greek, Hungarian, Italian, Portuguese, Romanian, Russian, Serbian, Turkish, Ukrainian, Vietnamese
Warranty:	3 years

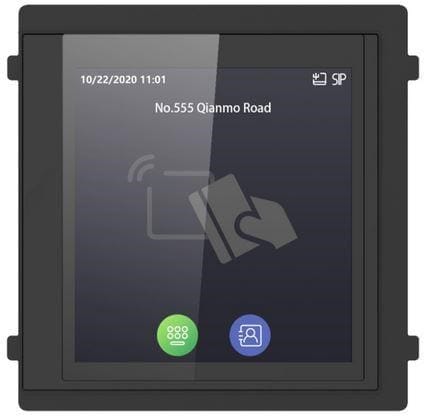

The DS-KD-TDM module is designed to work with the DS-KD8003-IME1 or DS-KD8003-IME2 video door phone moduleThe module has a built-in RFID proximity card reader in the Mifare 13.56MHz standardThe device allows you to call an internal station from the contact list presented on the DS-KD-TDM display allows you to display dialed numbers on the touch screen, display the contact list and advertising content, allows access via PIN code or proximity card

The modules of the DS-KD-xx series are installed in dedicated enclosures of the DS-KD-ACF series (flush-mounted enclosures) and DS-KD-ACW (surface-mounted enclosures)The masking frames attached to the enclosures of both series are made of aluminum

Despite our best efforts, we cannot guarantee that the published technical data and photos do not contain inaccuracies or errors, which, however, cannot be a basis for claims.
