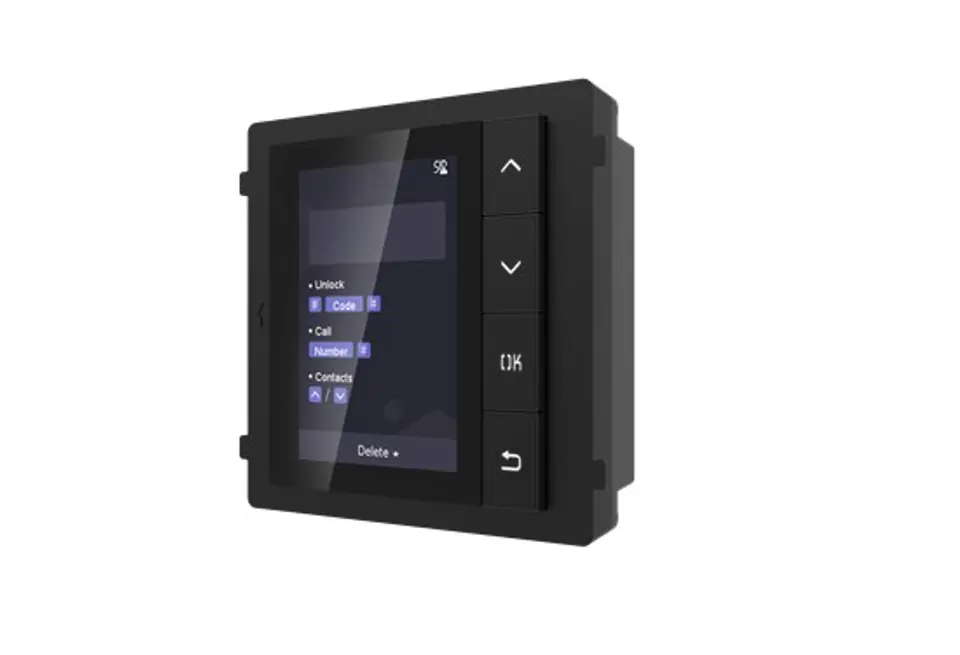

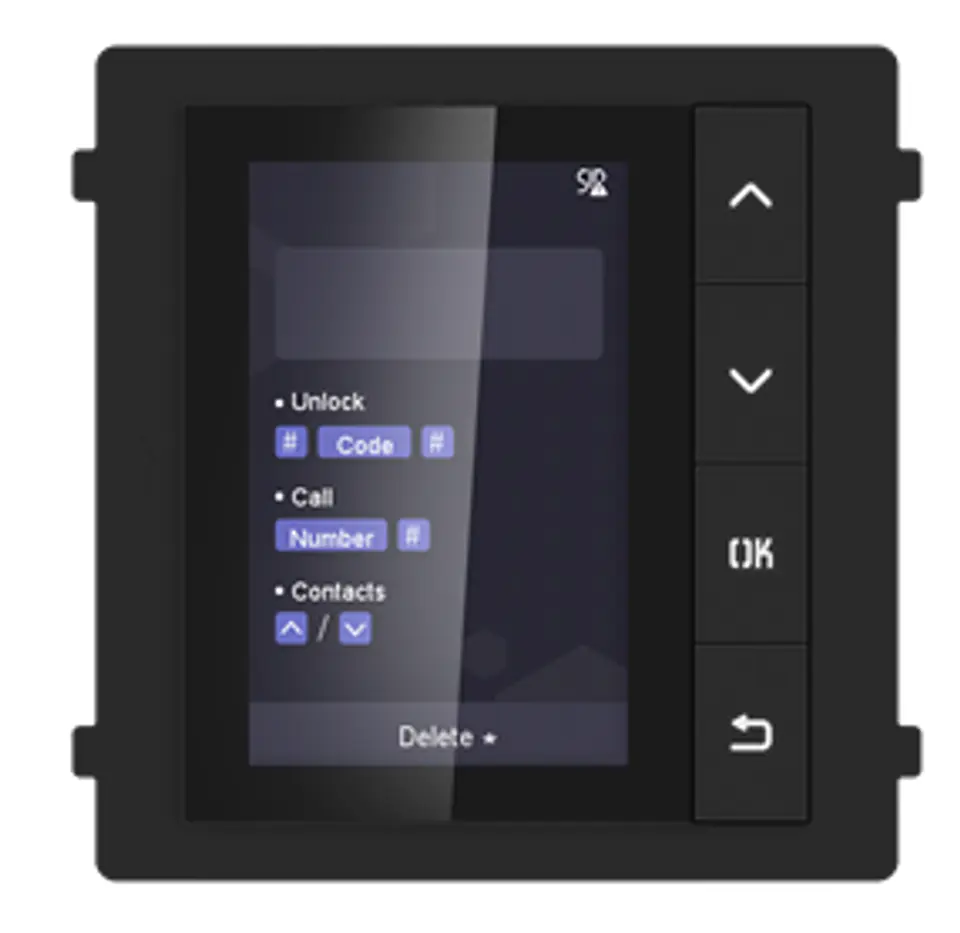

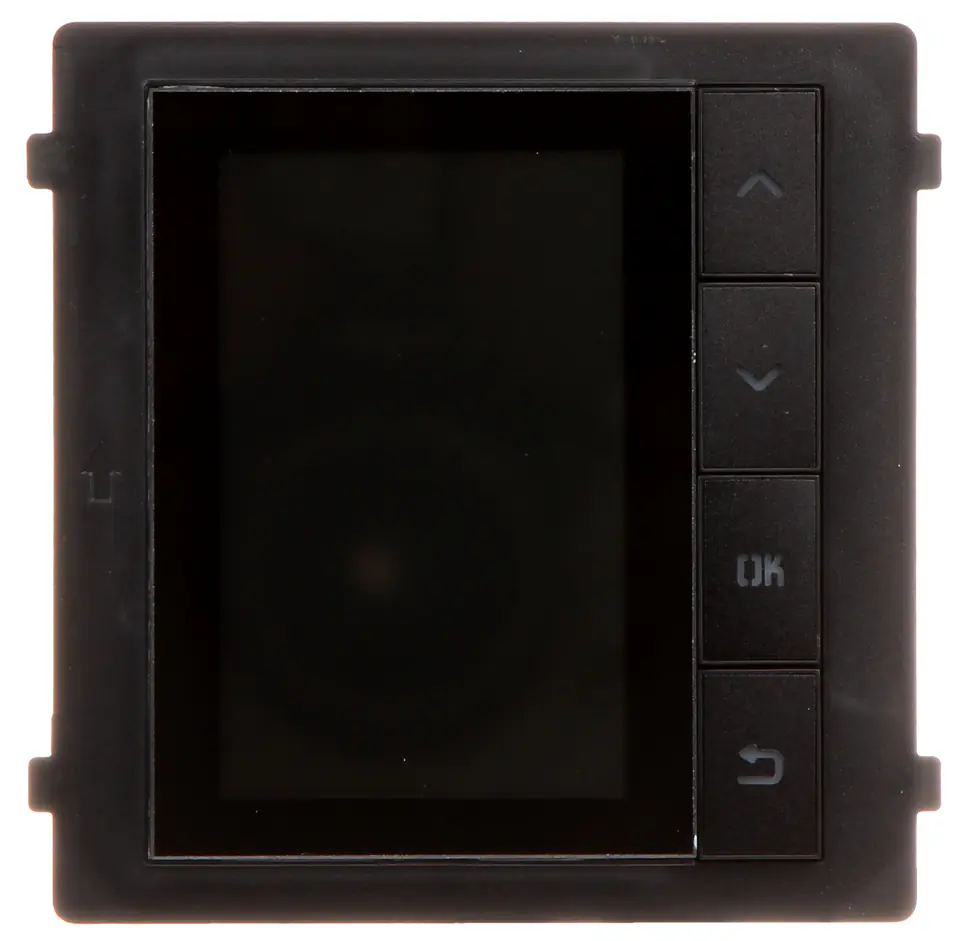

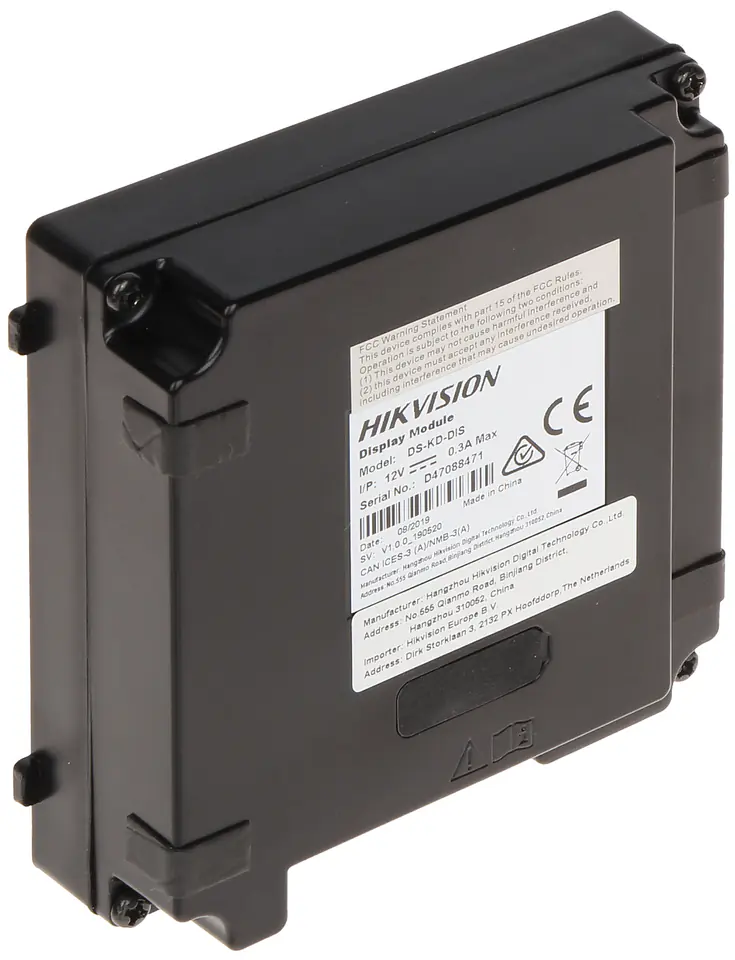

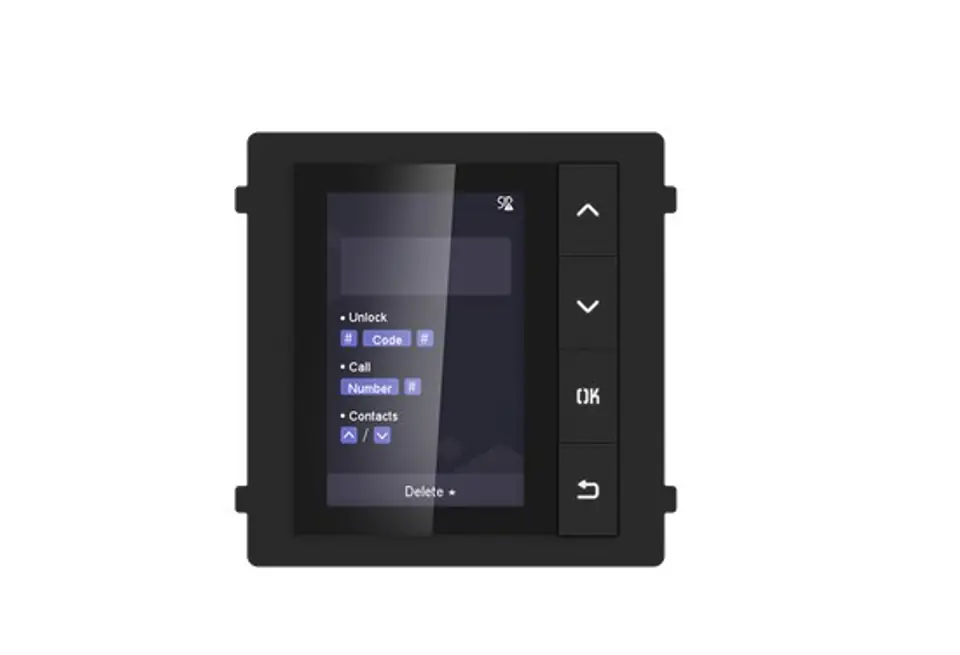

Hikvision DS-KD-DIS DISPLAY MODULE

Name: Hikvision DS-KD-DIS DISPLAY MODULE
Brand: HIKVISION
SKU: 515888
Price: 127.22 EUR
Availability: InStock

€127.22

Shipping from warehouse: ⁨D4⁩

Estimated shipping: Tue, Dec 24 - Fri, Dec 27

14 days returnUnconditional return policy

Availability:: moderate quantity
Brand:
Product code:: DS-KD-DIS / 6941264011590

Specification

Case::	Plastic
Colour::	Black
Compatibility::	DS-KD8003-IME1, DS-KD8003-IME2
Depth:	100 mm

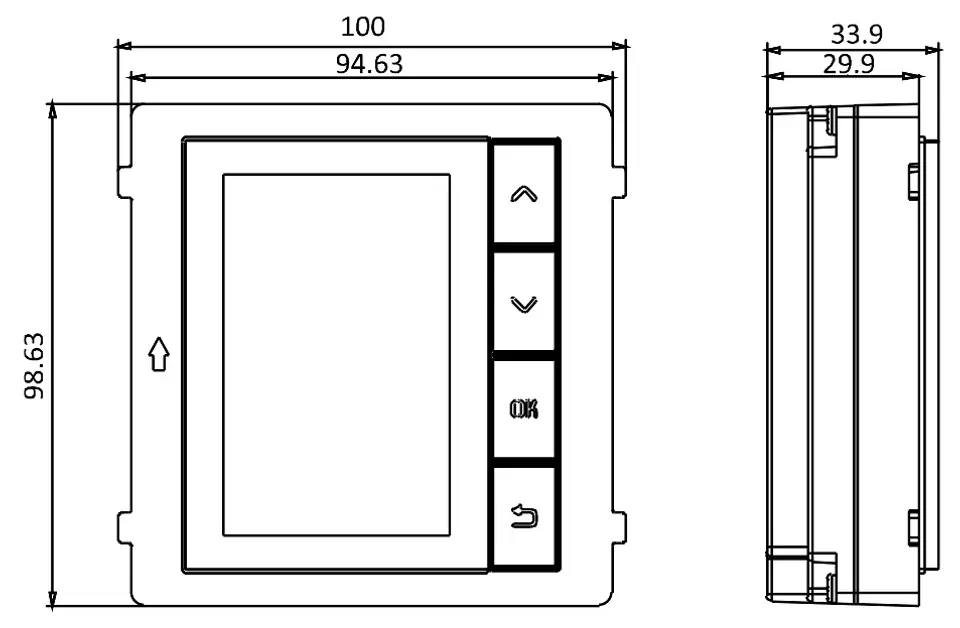

Dimensions::	100 x 98 x 34 mm
Display resolution:	320 x 480 pixels
Display type:	TFT
Display::	3.5" TFT LCD, 320 x 480 px
Height:	34.2 mm
Manufacturer / brand::	Hikvision
Operating temperature (t-t):	-20 - 60 °C
Operating temperature::	-20 °C ... 60 °C
Permissible relative humidity::	10 ... 95 % (non-condensing)
Power consumption::	≤ 3 W
Power::	Supplied by DS-KD8003-IME1 or DS-KD8003-IME2
Product colour:	Black
Product type:	Display
Quantity per pack:	1 pc(s)
Sap code::	305301210
Scales::	0.24 kg
Sealing::	IP65

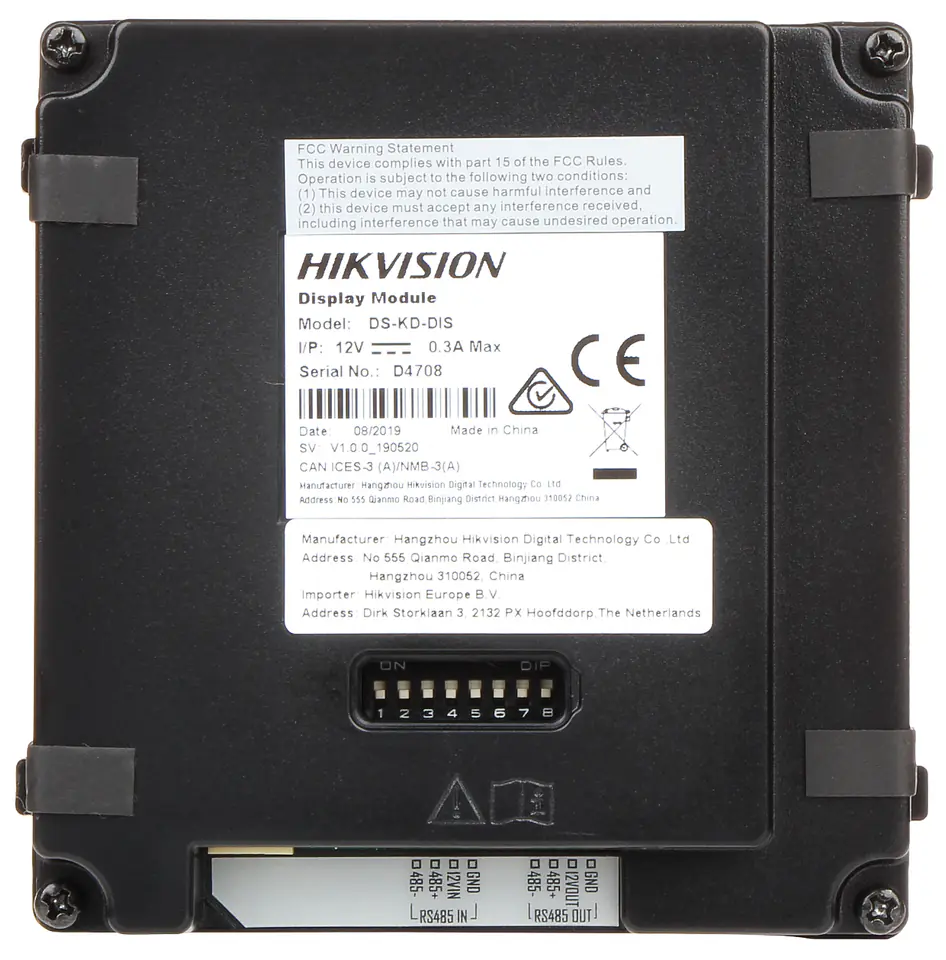

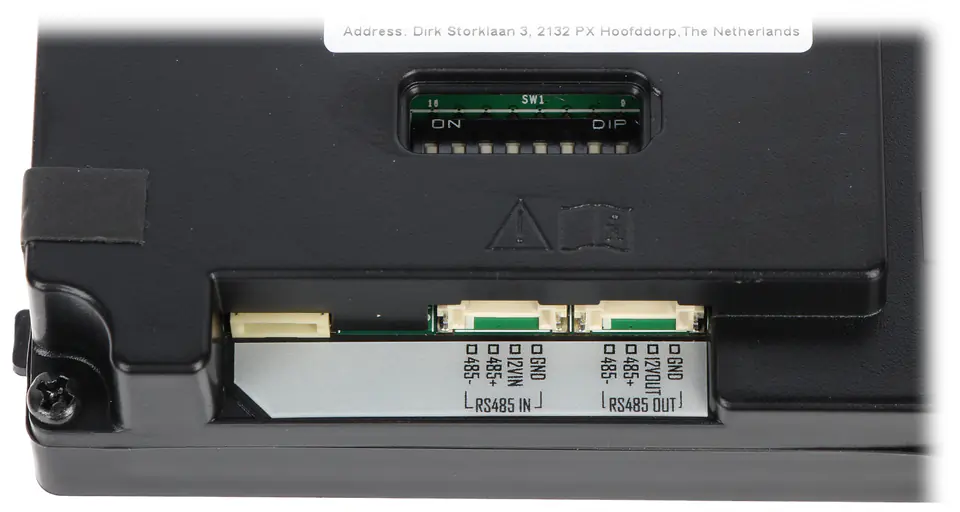

Selected features::	Up to 500 contacts can be added to the machine Calling the internal station from the contact list displayed on the device Displaying the internal station number entered using the DS-KD-KP keyboard module Displaying information about the duration of the call, opening the door, switching the door station to the message recording mode after a missed call Illuminated buttons - 4 pcs. RS-485 interface
Warranty::	3 years
Width:	98.5 mm

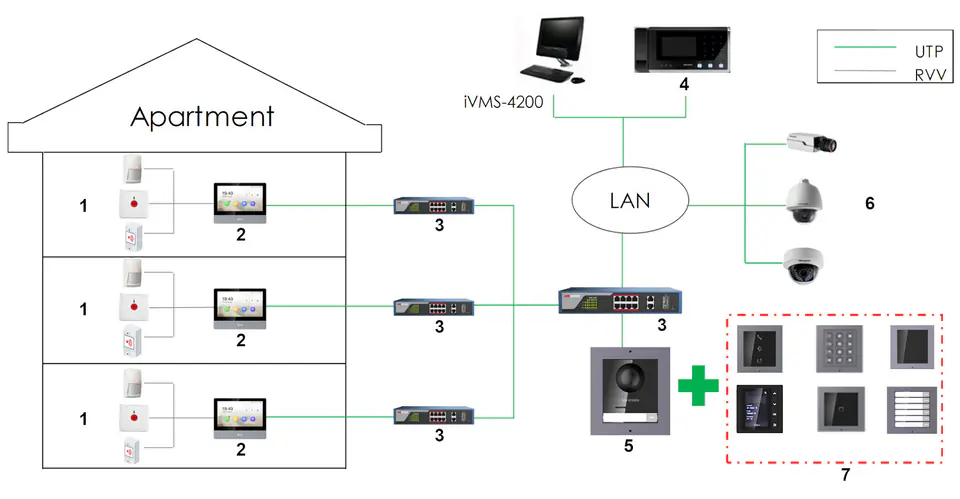

The DS-KD-DIS module is designed to work with the DS-KD8003-IME1 or DS-KD8003-IME2 video intercom moduleThe device allows you to call the internal station from the contact list presented on the displayDS-KD-DIS also allows you to display numbers dialed using the DS-KD-KP keyboard and information about the connection itself

Ds-KD-xx series modules are installed in dedicated DS-KD-ACF (flush-mounted enclosures) and DS-KD-ACW (surface-mounted enclosures) series.The masking frames included in the housings of both series are made of aluminum

Despite our best efforts, we cannot guarantee that the published technical data and photos do not contain inaccuracies or errors, which, however, cannot be a basis for claims.
