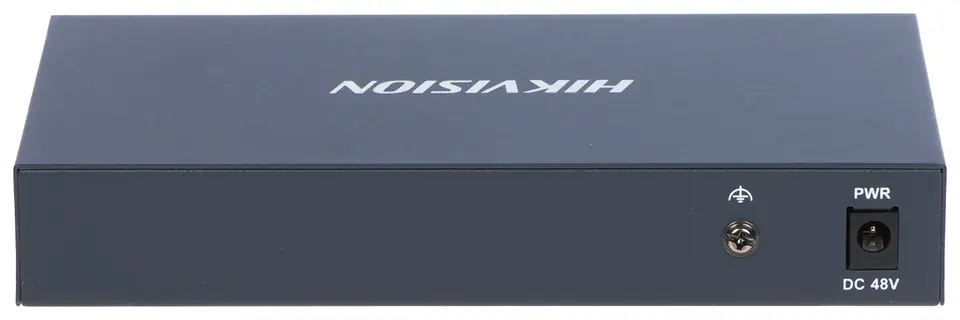

SWITCH HIKVISION DS-3E1309P-EI
- Model: DS-3E1309P-EI
10g support: | No |
---|---|
Auto mdi/mdi-x: | Yes |
Basic switching rj-45 ethernet ports quantity: | 8 |
Basic switching rj-45 ethernet ports type: | Fast Ethernet (10/100) |
Dc input voltage: | 48 V |
Depth: | 93.1 mm |
Fanless: | Yes |
Firmware upgradeable: | Yes |
Flow control support: | Yes |
Full duplex: | Yes |
Gigabit ethernet (copper) ports quantity: | 1 |
Height: | 27.6 mm |
Housing material: | Metal |
Input current: | 2.5 A |
Led indicators: | Link, Power, PoE |
Mac address table: | 16000 entries |
Networking standards: | IEEE 802.3at, IEEE 802.3, IEEE 802.3ab, IEEE 802.3x, IEEE 802.3u, IEEE 802.3af |
Operating relative humidity (h-h): | 5 - 95% |
Operating temperature (t-t): | -10 - 55 °C |
Power consumption (max): | 120 W |
Power over ethernet (poe): | Yes |
Power over ethernet (poe) ports quantity: | 8 |
Power over ethernet (poe) power per port: | 30 W |
Product colour: | Grey |
Rate limiting: | Yes |
Storage relative humidity (h-h): | 5 - 95% |
Storage temperature (t-t): | -40 - 85 °C |
Store-and-forward: | Yes |
Switch layer: | L2 |
Switch type: | Managed |
Switching capacity: | 3.6 Gbit/s |
System event log: | Yes |
Total power over ethernet (poe) budget: | 110 W |
Weight: | 350 g |
Width: | 170 mm |
