| Dimensions:: | 210 x 75 x 38 mm |
|---|---|
| Input voltage:: | 100 ... 240 V AC |

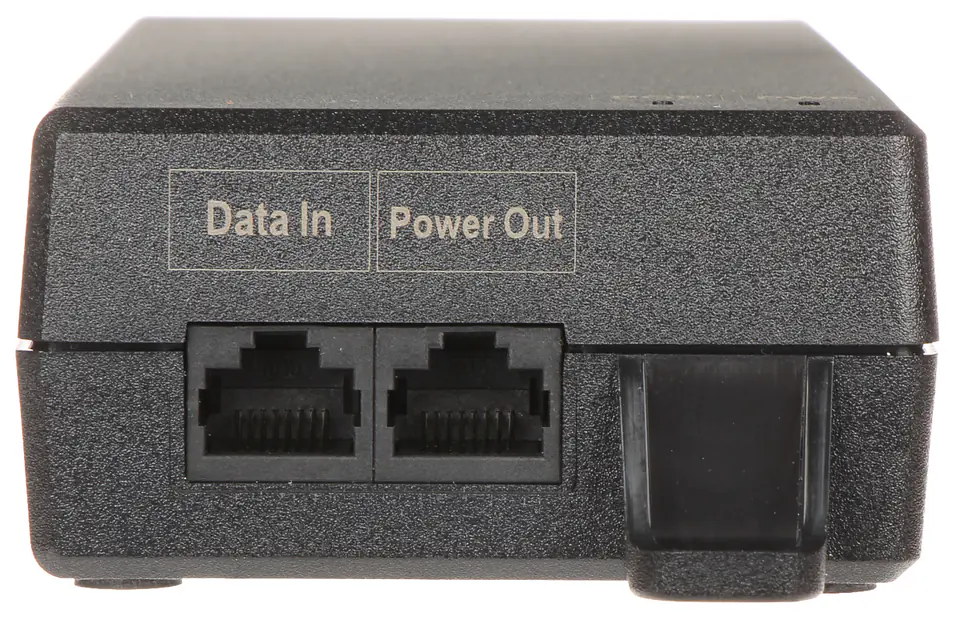

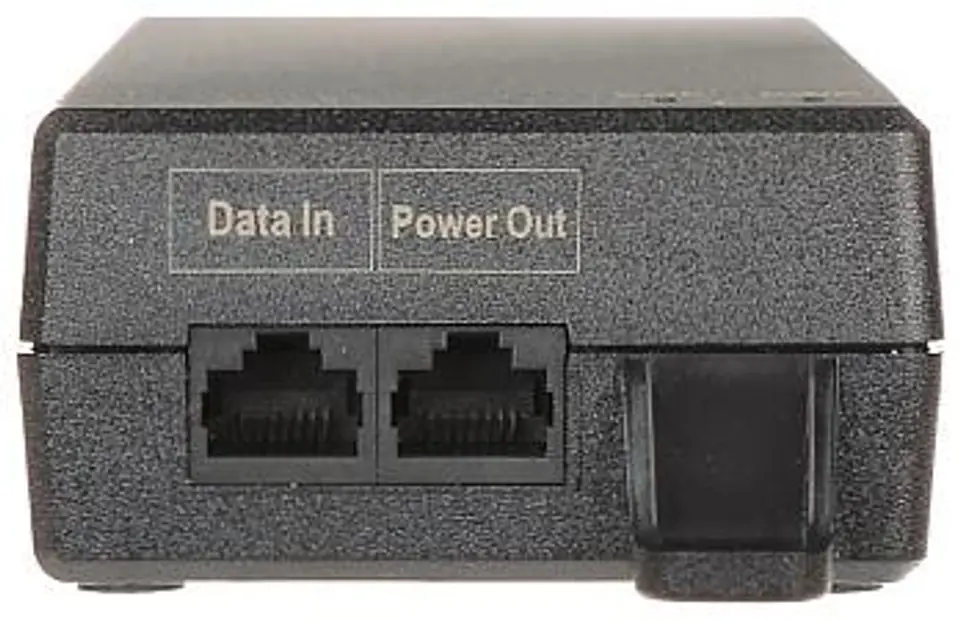

| Joint:: | 1 x RJ-45 Socket - Input 1 x RJ-45 Socket - Output |
| Manufacturer / brand:: | DAHUA |
| Maximum output current:: | 1.42 A |
| Number of inputs:: | 1 pc. RJ-45 |
| Operating temperature:: | -30 °C ... 65 °C |
| Output power:: | 75 watts (Printing) |
| Output voltage:: | 53 VDC |
| Scales:: | 0.48 kg |
| Selected features:: | Meets DoE Level VI requirements |
| Signal diodes:: | Power, PoE |
| Standards:: | High PoE - 75 W |
| Supported baud rate:: | Supported transmission speed 10 / 100 / 1000 Mbps - Gigabit Ethernet, Support Midspan mode |
| Warranty:: | 3 years |

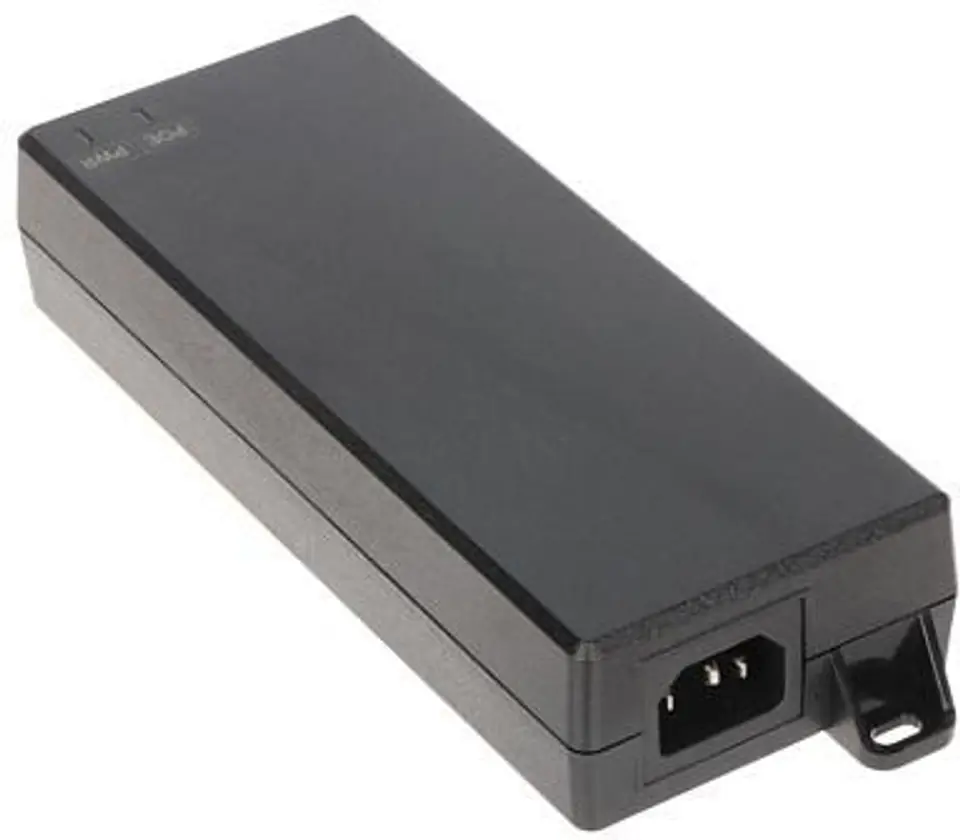

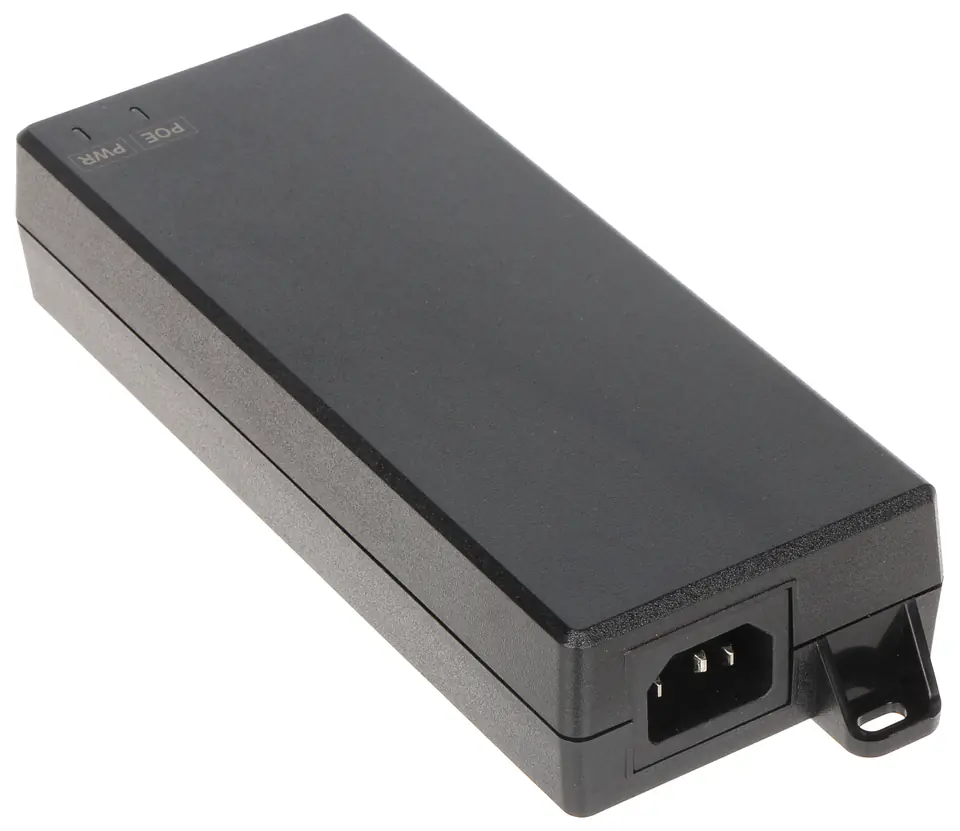

TAM01GT01GT-75 is used to power devices using High PoE technology

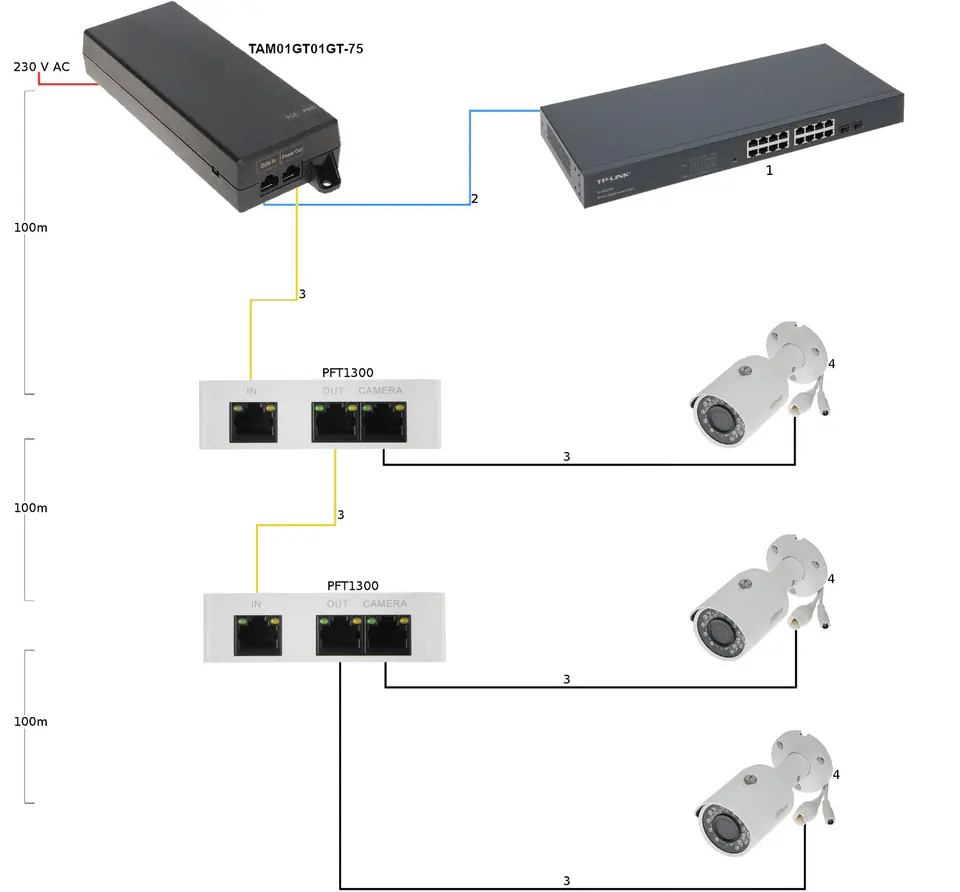

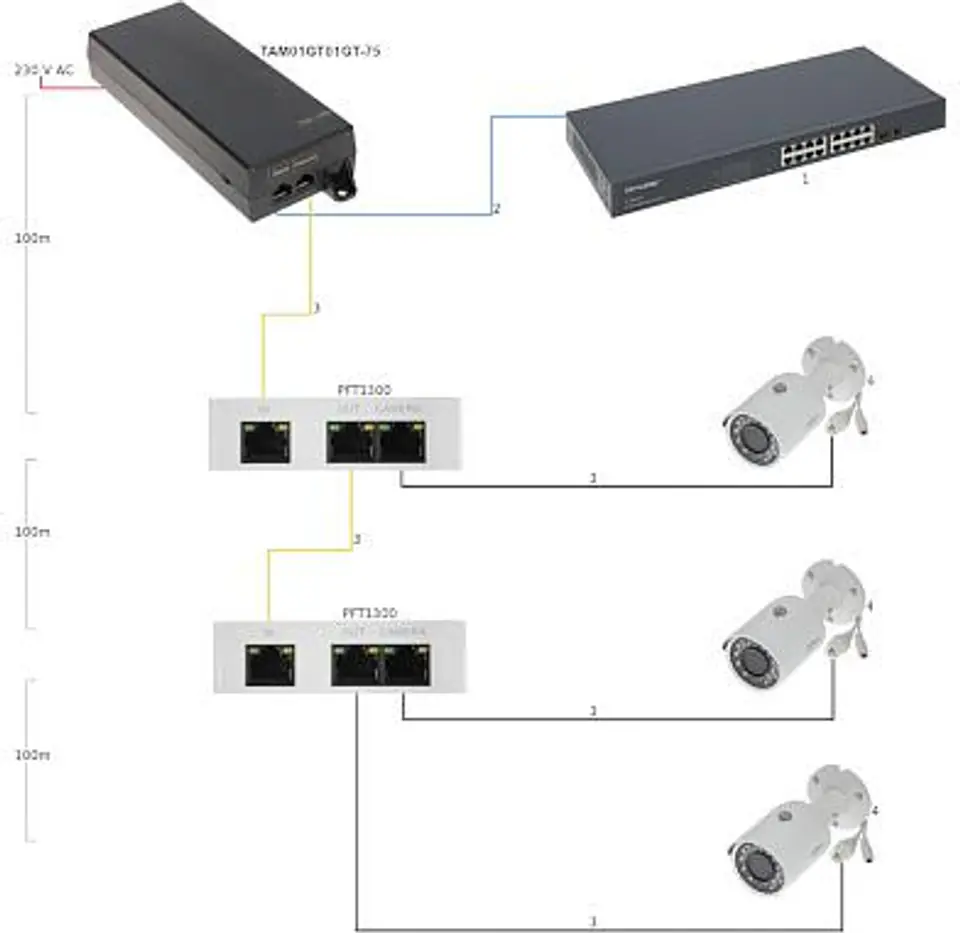

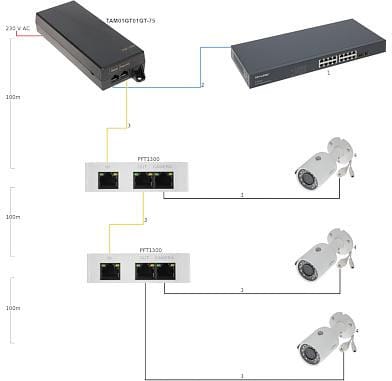

The device has a "midspan" function, which allows it to be installed between switches that do not contain PoE ports and network devices (e.g. IP cameras or access points), which must be powered by UTP cabling
