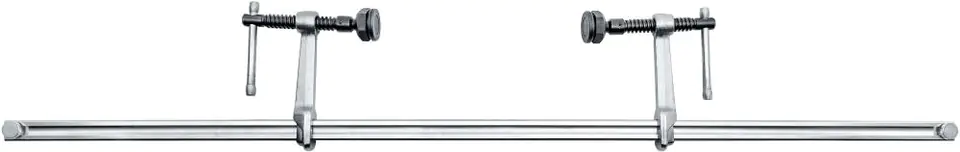

High performance clamp
Design: movable arm made of heat-treated forged steel for maximum safety under heavy loads. Tool-free release of the final safety device, for quick conversion of the sliding arm to the expansion function or to be replaced with another sliding arm variant as part of a modular system. Upgradeable spindle with high wear resistance. Heat-resistant, special pressure plate, rotated 35°. With a span of 3000 mm, additionally with a hardened and oil-soaked steel sintered insert for an extremely long service life thanks to excellent sliding and emergency properties.

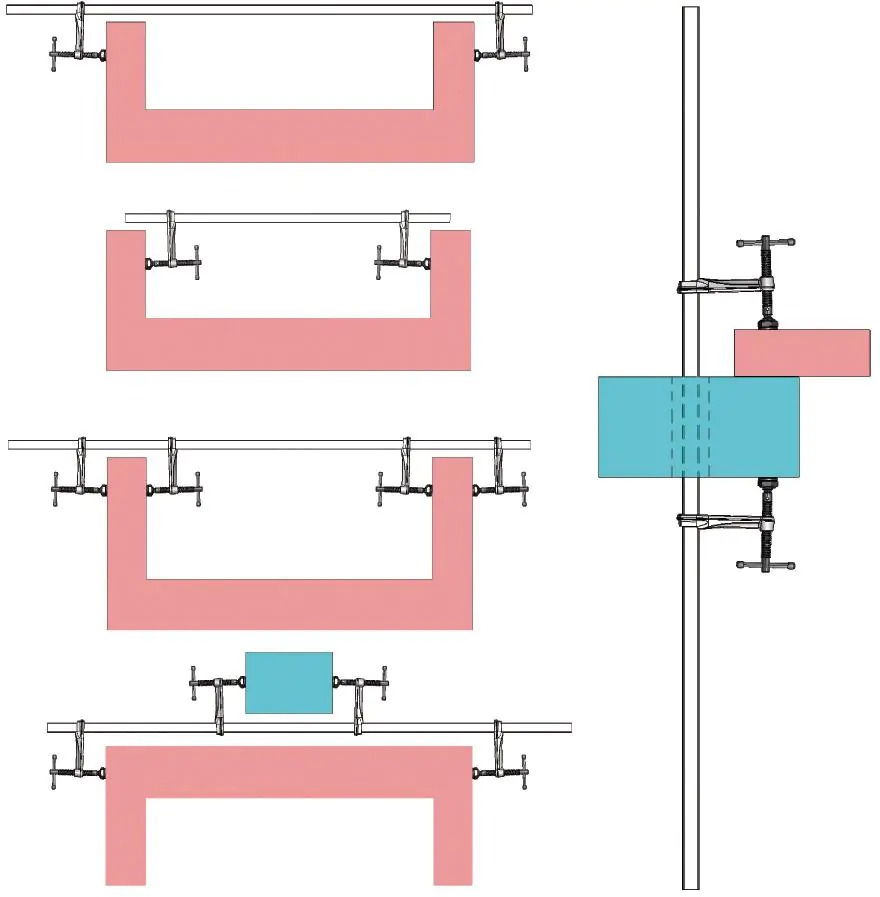

Application: for fastening and expansion with high clamping forces and large clamping spans in the field of metal and wood processing. Clamping force up to 6.5 kN for a span of 2000 mm and up to 9 kN with a span of 3000 mm.
Design: movable arm made of heat-treated forged steel for maximum safety under heavy loads. Loosening of the final safety without tools for quick conversion of the sliding arm to the expansion function or to be replaced with another variant of the sliding arm as part of a modular system. Upgradeable spindle with high wear resistance. Heat-resistant, special pressure plate, rotated 35°.
Application: for fastening and expansion with high clamping forces and large clamping spans in the field of metal and wood processing. Clamping force up to 6.5 kN. Design: movable arm made of heat-treated forged steel for maximum safety under heavy loads. Loosening of the final safety without tools for quick conversion of the sliding arm to the expansion function or to be replaced with another variant of the sliding arm as part of a modular system. Upgradeable spindle with high wear resistance. Heat-resistant, special pressure plate, rotated 35°.
Application: for fastening and expansion with high clamping forces and large clamping spans in the field of metal and wood processing. Clamping force up to 6.5 kN.
