| Case:: | Spy - Plastic |
|---|---|
| Colour:: | white |
| Dimensions:: | 119 x 69 x 48 mm |
| Manufacturer / brand:: | APTI |
| Matrix size:: | 5 Mpx |
| Objective:: | 3.7 mm |
| Operating temperature :: | -10 °C ... 50 °C |

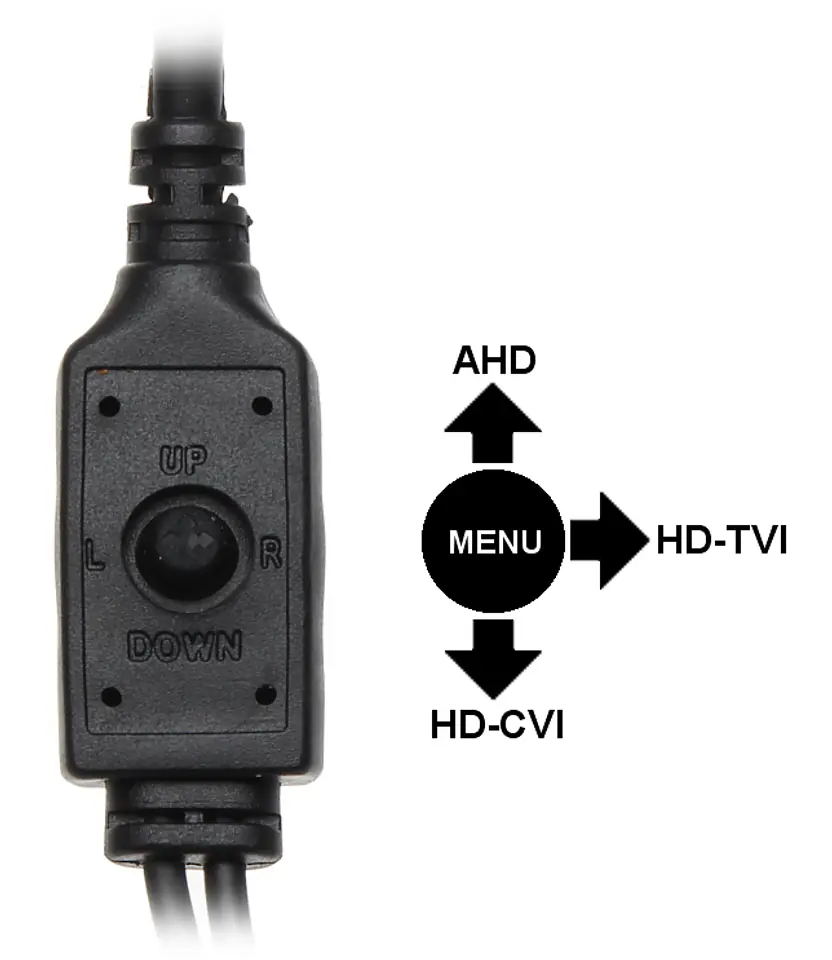

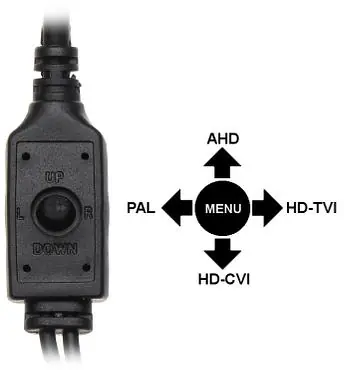

| Osd menu:: | OSD - using the remote control on the cable |
| Power consumption:: | ≤ 0.8 watts |
| Power:: | 12 VDC / 70 mA |
| Resolution:: | 2592 x 1944 - 5 Mpx @ AHD / HD-TVI @ 20 fps / 12.5 fps ; 2560 x 1440 - 4 Mpx @ AHD / HD-CVI / HD-TVI @ 25 fps, 1920 x 1080 - 1080p @ AHD / HD-CVI / HD-TVI @ 25 fps 960 x 576 - 960H @ PAL |
| Scales:: | 0.12 kg |
| Selected features:: | D-WDR - Wide Dynamic Range DNR - Digital Noise Reduction Mirror - Image Mirror Sharpness Motion Detection - Image Contour Sharpness |
| Standard:: | AHD, HD-CVI, HD-TVI, CVBS |
| Supported languages:: | English, Portuguese, Russian, Italian |
| Transducer:: | 1/2.7" CMOS |
| Use:: | For indoor use |
| Video output:: | 1 Vpp 75 Ω, AHD, HD-CVI, HD-TVI, CVBS |
| Viewing angle:: | 80° (manufacturer data) 70° (our tests) |
| Warranty:: | 3 years |

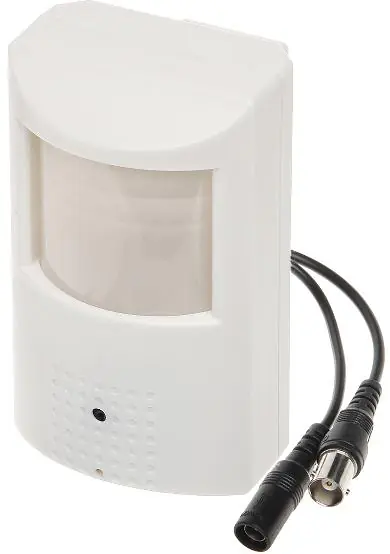

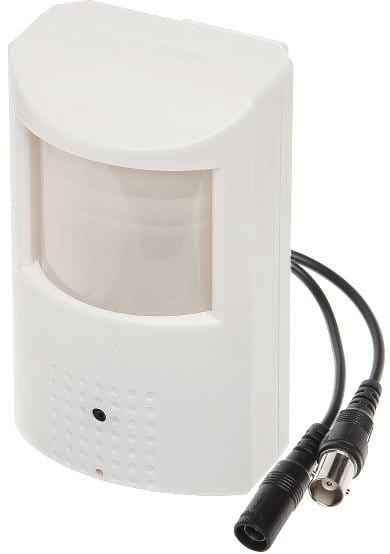

Megapixel camera with 1/2.7" CMOS sensor and AHD / HD-CVI / HD-TVI / CVBS interface
The AHD / HD-CVI / HD-TVI interface allows the transmission of analog video signal via coaxial cable in max. 8 Mpx (4K UHD)There are no delays during transmission and the original, high image quality is maintainedSetting the camera in PAL mode allows you to get an image in 960H resolution
Remark! The camera is preset at 2 Mpx (1080p)
