| Aluminium > 8% silicon: | 60 |
|---|---|
| Cast iron gg/gts: | 50 |
| Copper alloys: | 70 |
| Ggg cast iron: | 45 |
| Grip ø mk/mm: | 10 mm |
| Hardened steel < 55 hrc: | 12 |
| Hardened steel < 60 hrc: | 8 |
| Inox austenite.: | 30 |
| Inox duplex: | 25 |
| Inox ferrite./martenz.: | 25 |
| Ø min.: | 3.2 mm |
| Ø nominal d1: | 16.5 mm |
| Overall length: | 60 mm |
| Steel < 1000 n/mm2: | 50 |
| Steel < 1400 n/mm2: | 40 |
| Steel < 700 n/mm2: | 60 |
| Titanium > 850 n/mm2: | 15 |

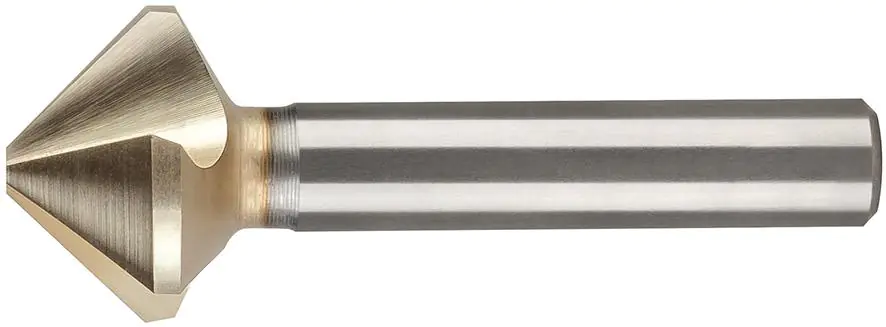

Conical and deburring countersink, 90°, unevenly graduated, solid carbide, cylindrical shank
Design: with radial grind of the stroke, with straight flute and chip chambers ground from solid material.
Application: for all materials with max. hardness 60 HRC. The highly uneven graduation of the cutting edges ensures extremely calm work during countersinking, resulting in a cleaner surface and a load on the cutting edges is reduced to a minimum.
