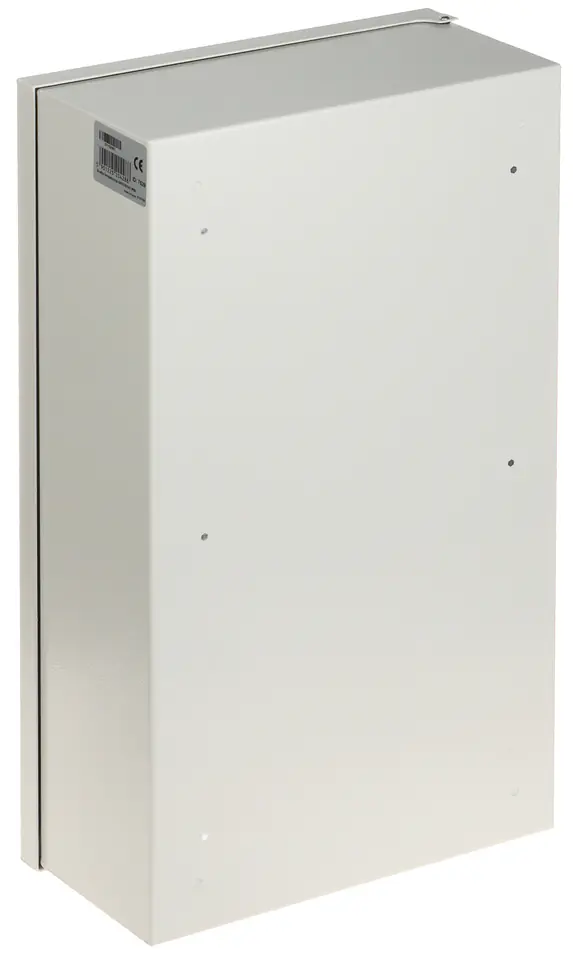

HERMETIC HOUSING SH-540/310/145 540 x 310 x 145 mm
€98.50
Shipping from warehouse: D4
Estimated shipping: Mon, Nov 25 - Tue, Nov 26
14 days returnUnconditional return policy
- Availability:
- moderate quantity
- Product code:
- SH-540/310/145 / 5901225204288
Share this product:
Specification
| Colour:: | Light grey (RAL 7035) |
|---|---|
| External dimensions of the housing:: | 540 x 310 x 145 mm |
| Internal dimensions:: | 520 x 290 x 110 mm |
| Material:: | Aluminium PA11 |

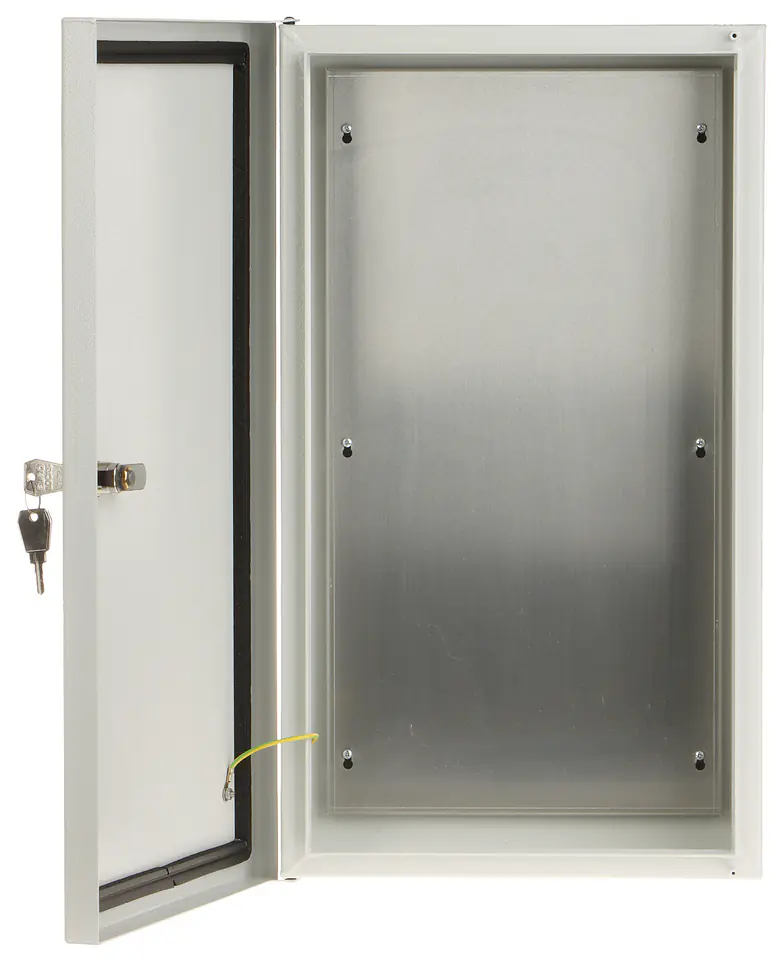

| Mounting plate:: | 253 x 478 mm - Metal |
| Scales:: | 3.01 kg |

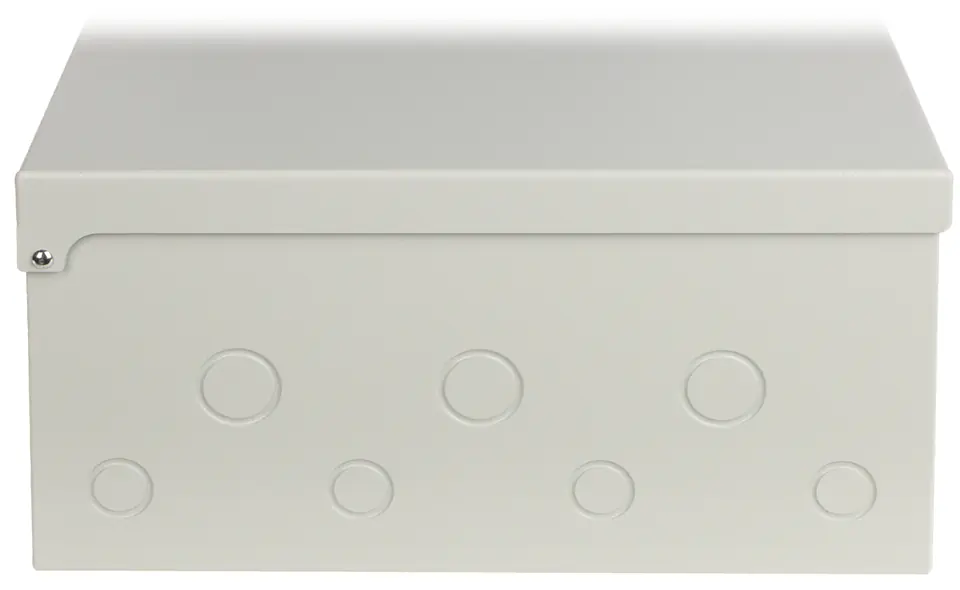

| Selected features:: | Hermetic Rubber Gasket Aluminum Properties PA11 : High corrosion resistance, including marine and industrial environment Good tensile strength High fatigue strength of the material Holes for wires from below : Ø 21 mm - 3 pcs., Ø 16 mm - 4 pcs. Enclosure suitable for wall or mast mounting (via dedicated bracket) Protection class : IP66 Vandal-proof enclosure (IK10) |
| Warranty:: | 2 years |
Despite our best efforts, we cannot guarantee that the published technical data and photos do not contain inaccuracies or errors, which, however, cannot be a basis for claims.
