| Colour:: | Grey RAL7035 |
|---|---|
| Door:: | Right door with sealing rubber |
| External depth:: | 235 mm |
| External height:: | 420 mm |
| Inner height:: | 6 U |
| Inner width:: | 10 " |
| Internal depth:: | 170 mm |
| Outer width:: | 335 mm |
| Scales:: | 6.4 kg |

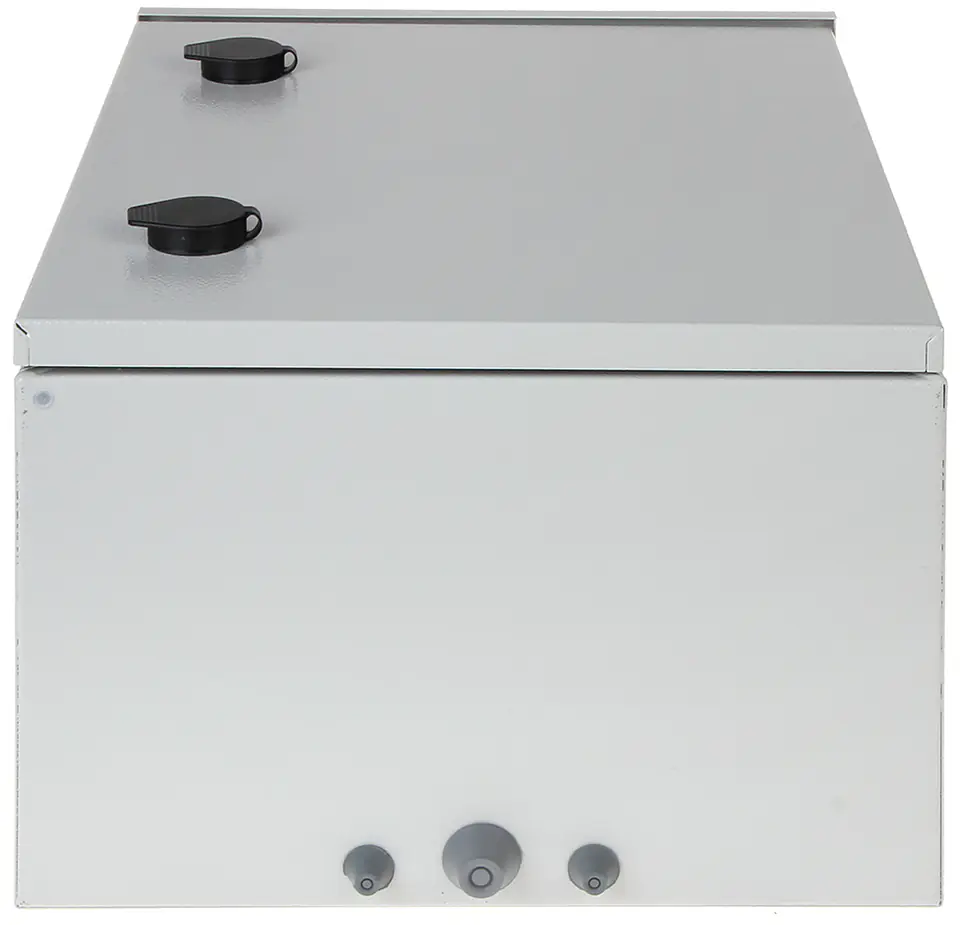

| Selected features:: | Holes for wires from the bottom : 2 x Ø 16 mm + 1 x Ø 24 mm 2 hermetic locks Sheet thickness : 1 mm Tightness class - IP65, Mechanical resistance class - IK10 Fastening - To the mast Ø 50 mm (max), To the wall |
| Warranty:: | 2 years |
Increasingly, home devices for LAN, RTV, CCTV installations are made with the RACK system in mind, so that their installation is aesthetic and that the devices are protected against unauthorized access and mechanical damage
The R10-6U/230/H cabinet is designed for mounting devices with a 10" housing

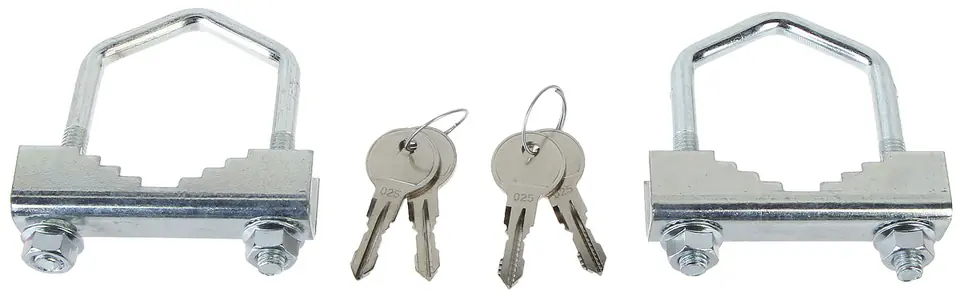

Suitable for both indoor and outdoor installationIncluding clamps allow the cabinet to be mounted on a mast with a diameter of up to 50 mm
