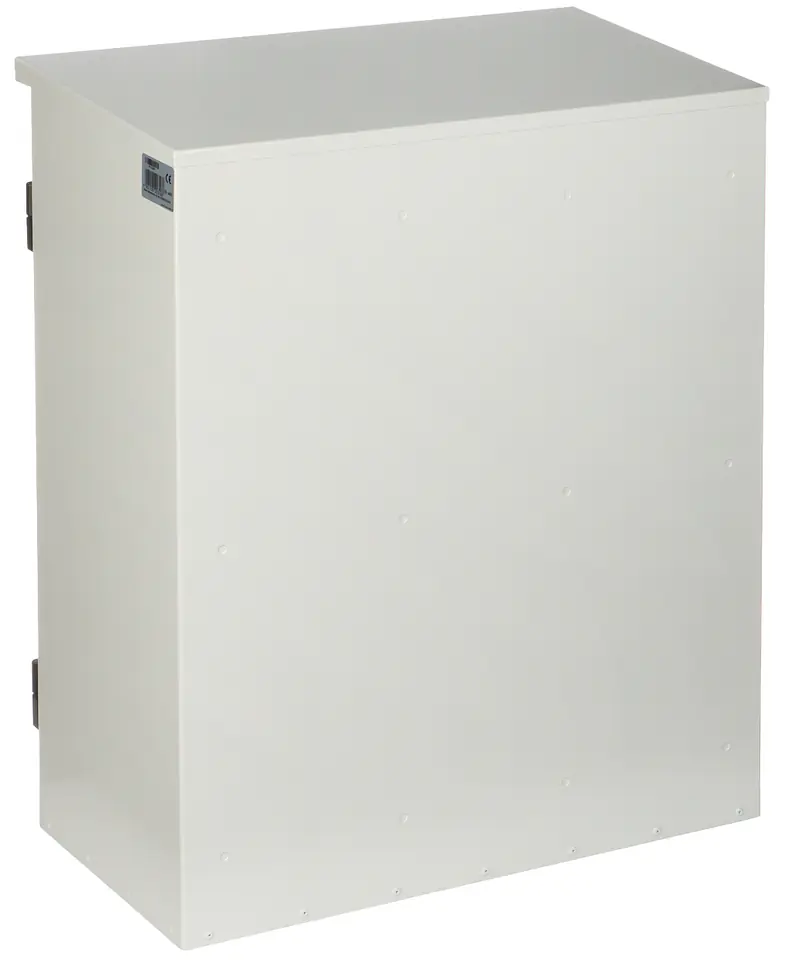

HERMETIC ENCLOSURE SH-750/595/322 750 x 595 x 322 mm
€275.04
Shipping from warehouse: D4
Estimated shipping: Tue, Nov 26 - Fri, Nov 29
14 days returnUnconditional return policy
- Availability:
- moderate quantity
- Product code:
- SH-750/595/322 / 5901225203588
Share this product:
Specification
| Colour:: | Light grey (RAL 7035) |
|---|---|
| External dimensions of the housing:: | 750 x 595 x 322 mm |
| Internal dimensions:: | 580 x 710 x 285 mm |
| Material:: | Aluminium PA11 |
| Scales:: | 9.2 kg |

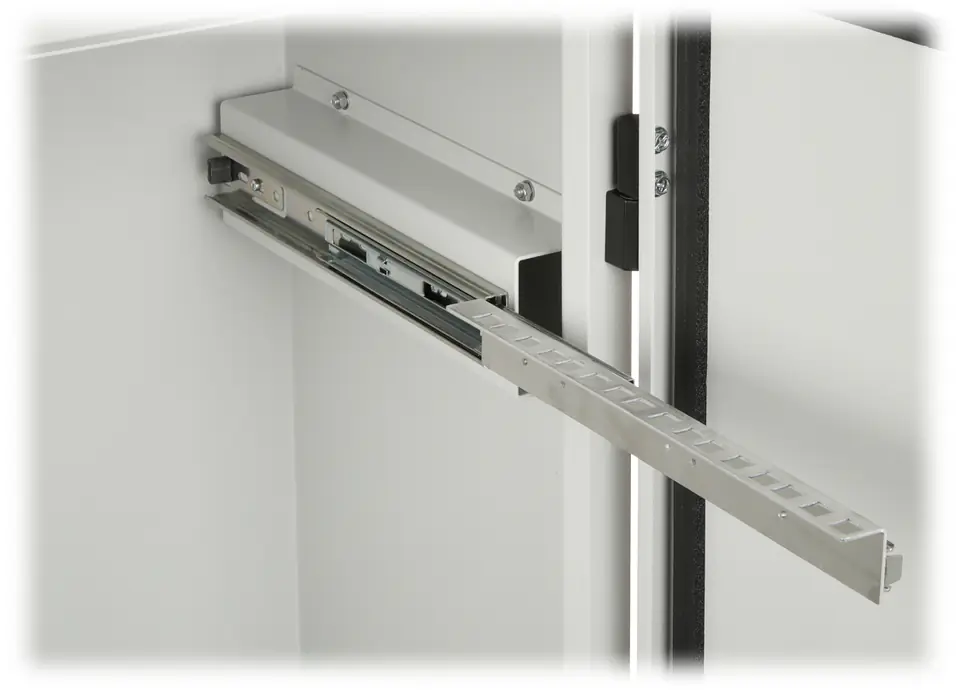

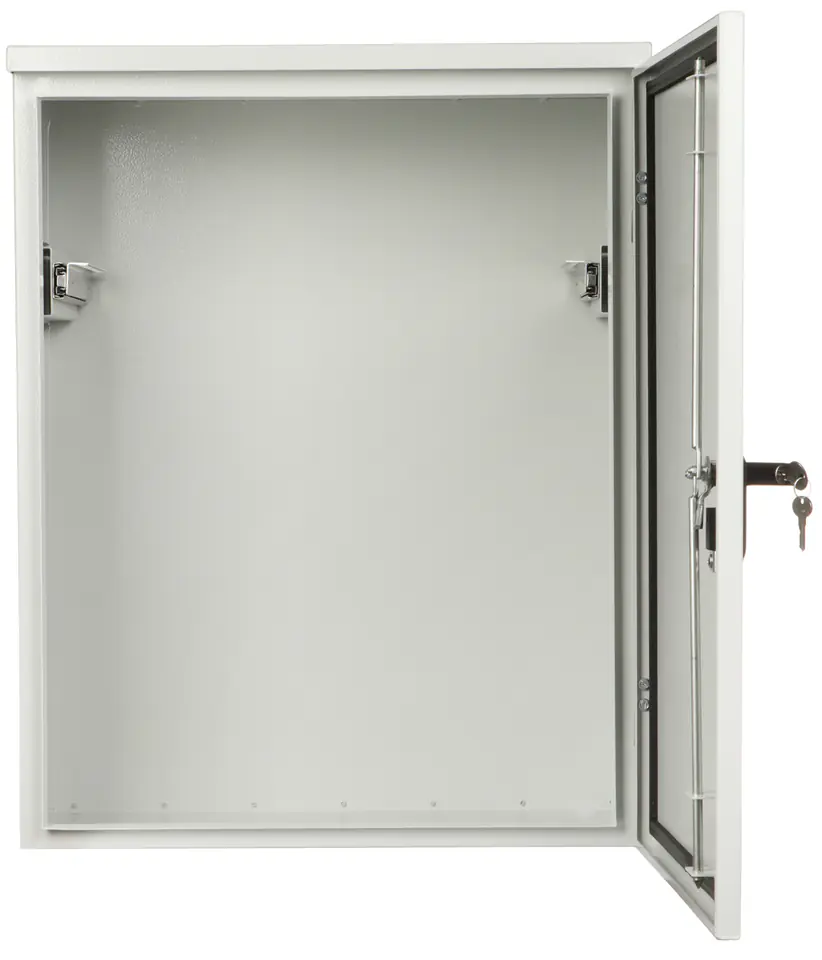

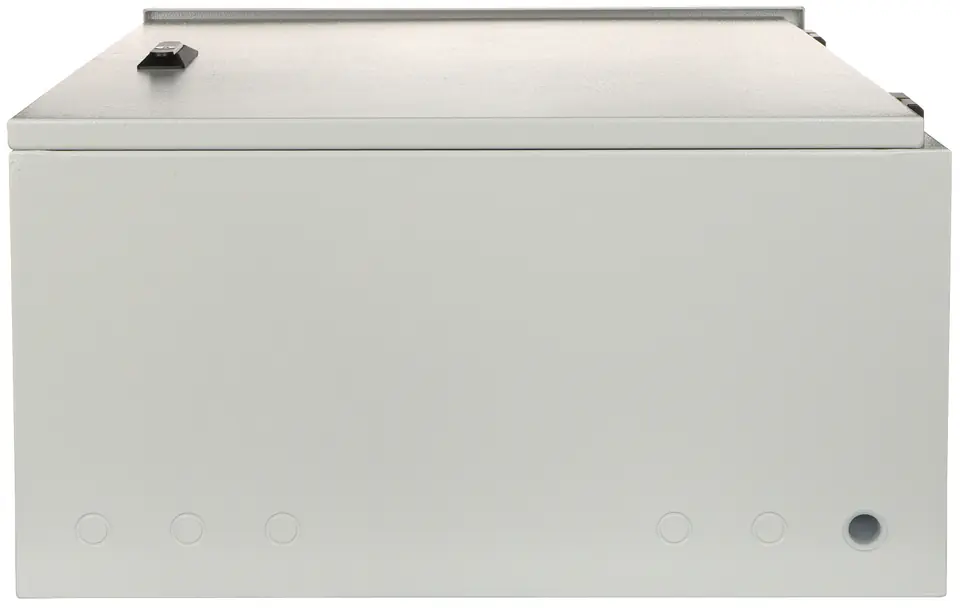

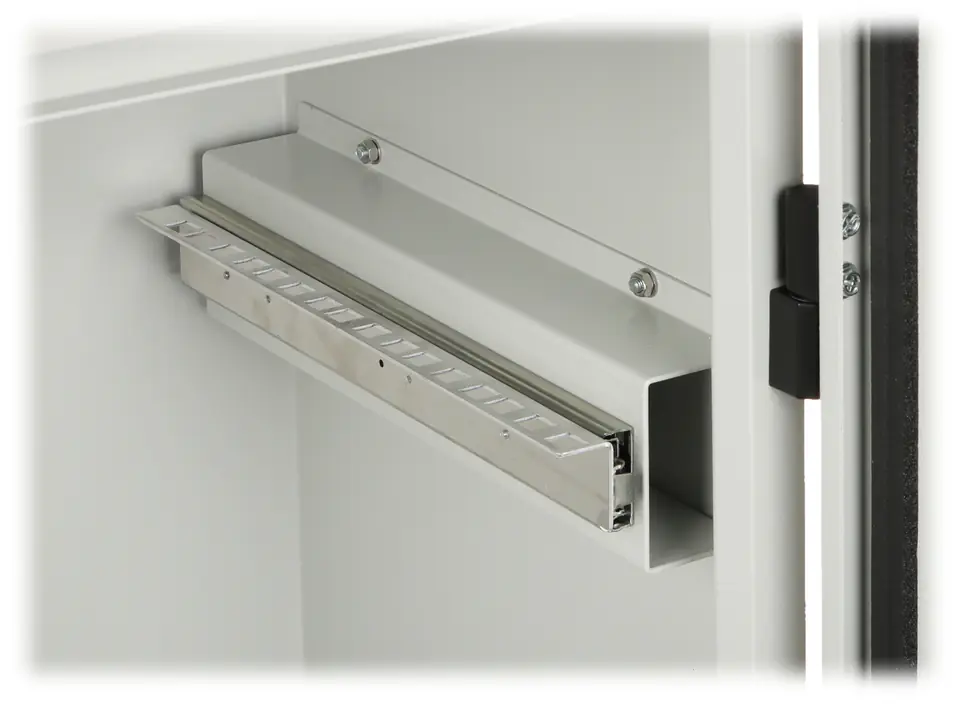

| Selected features:: | Hermetic Rubber Gasket PA11 Aluminum Properties: High corrosion resistance, including marine and industrial environment Good tensile strength High fatigue strength of 2 pcs. Rack rail slides for mounting devices: Rack 19", 5 U (54 cm from below, 20 cm from top) Holes for wires from below: Ø 16 mm - 6 pcs. Right-side opening door (max. 180°), secured by a brass handle with a lock and a three-point locking system Housing adapted for wall or mast mounting (using a dedicated bracket) Protection class: IP55 Vandal-proof housing (IK10) |
| Warranty:: | 2 years |
Despite our best efforts, we cannot guarantee that the published technical data and photos do not contain inaccuracies or errors, which, however, cannot be a basis for claims.
