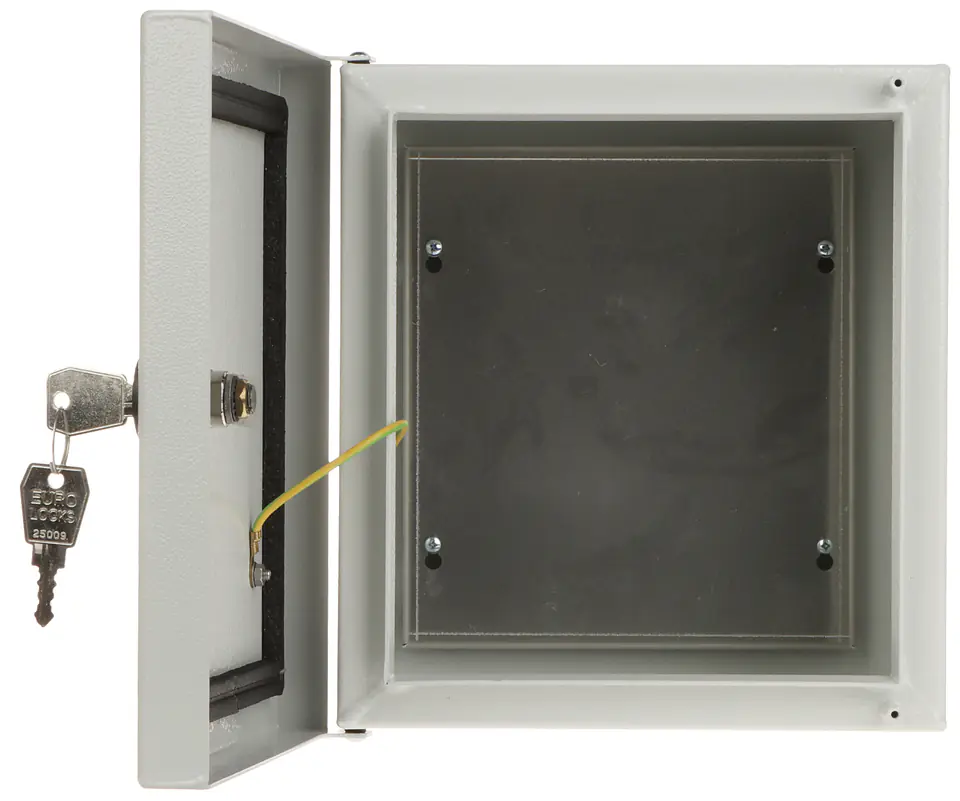

HERMETIC ENCLOSURE SH-230/210/145 230 x 210 x 145 mm
€97.17
Shipping from warehouse: D4
Estimated shipping: Tue, Nov 26 - Fri, Nov 29
14 days returnUnconditional return policy
- Availability:
- moderate quantity
- Product code:
- SH-230/210/145 / 5901225204240
Share this product:
Specification
| Colour:: | Light grey (RAL 7035) |
|---|---|
| External dimensions of the housing:: | 230 x 210 x 145 mm |
| Internal dimensions:: | 205 x 220 x 110 mm |
| Material:: | Aluminium PA11 |
| Mounting plate:: | 168 x 193 mm - Metal |
| Scales:: | 1.25 kg |
| Selected features:: | Hermetic Rubber Gasket Properties of aluminum PA11 : High corrosion resistance, including marine and industrial environment Good tensile strength High fatigue strength of the material Holes for wires from below : Ø 21 mm - 2 pcs., Ø 16 mm - 2 pcs. Wall mount housing Protection class: IP66 Vandal proof enclosure (IK10) |
| Warranty:: | 2 years |
Despite our best efforts, we cannot guarantee that the published technical data and photos do not contain inaccuracies or errors, which, however, cannot be a basis for claims.
