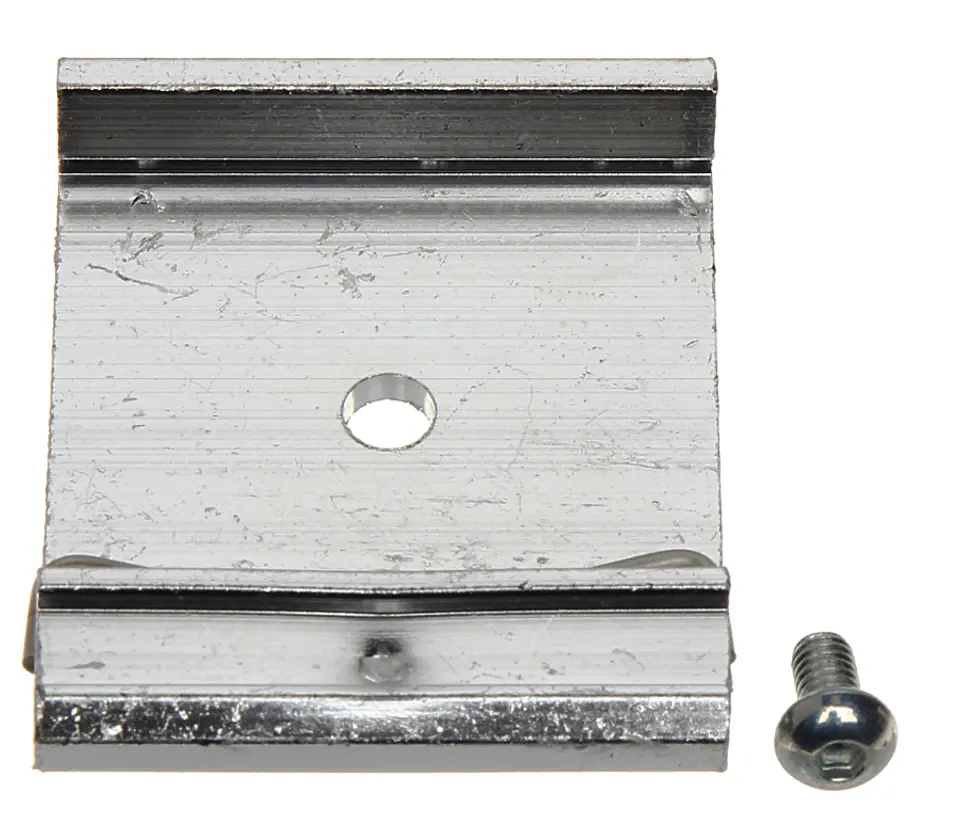

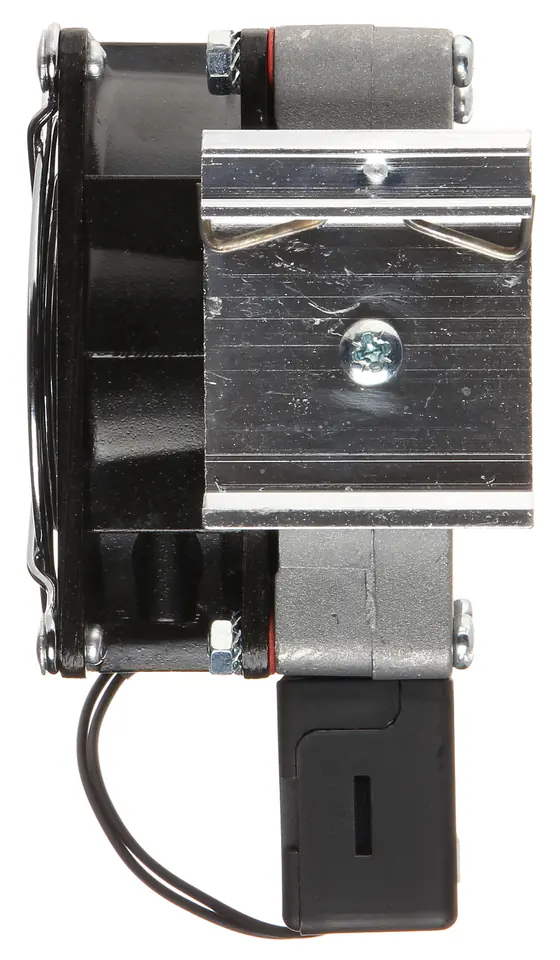

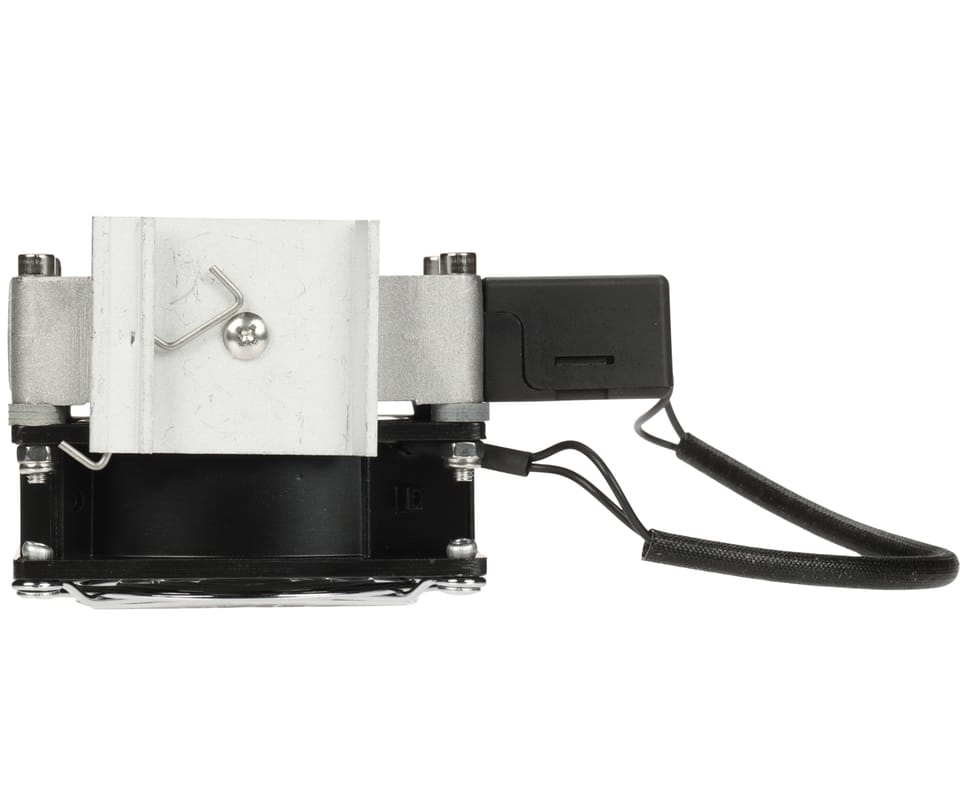

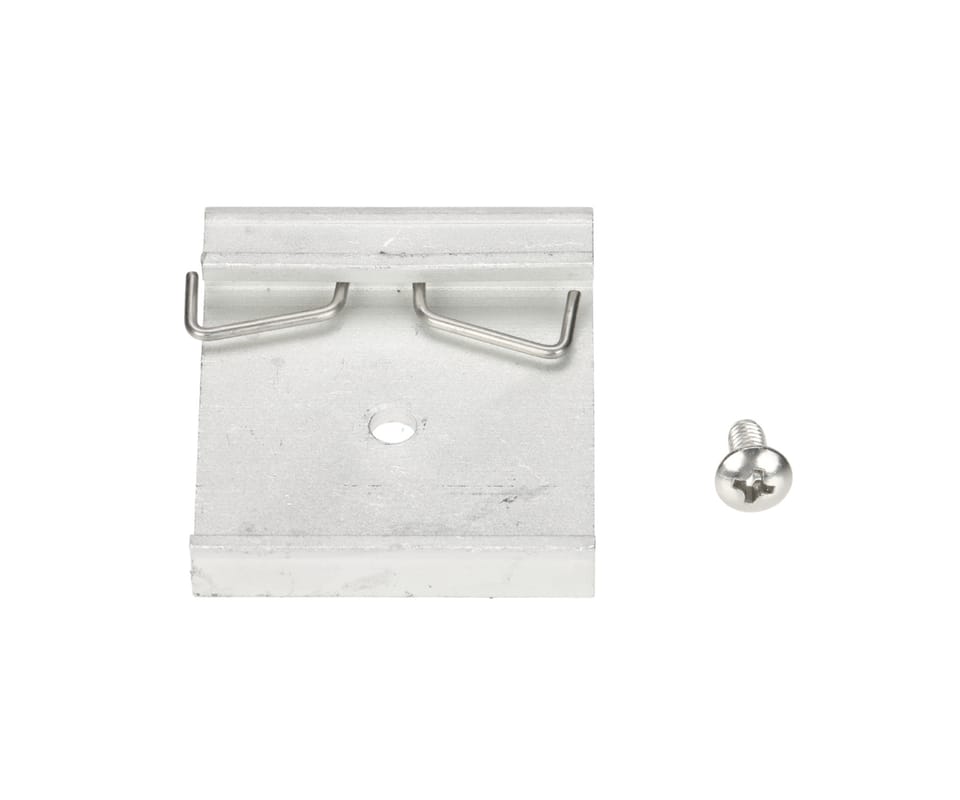

| Assembly:: | DIN rail TS-35 |
|---|---|

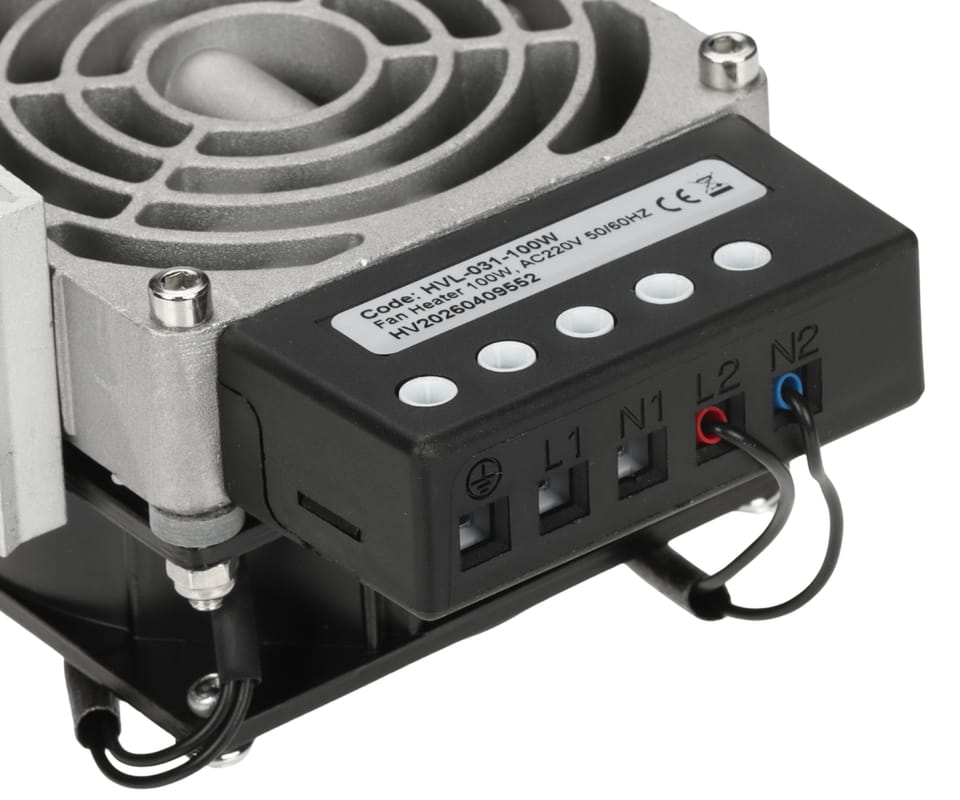

| Connectors:: | Cable clamps - 3 pcs. |

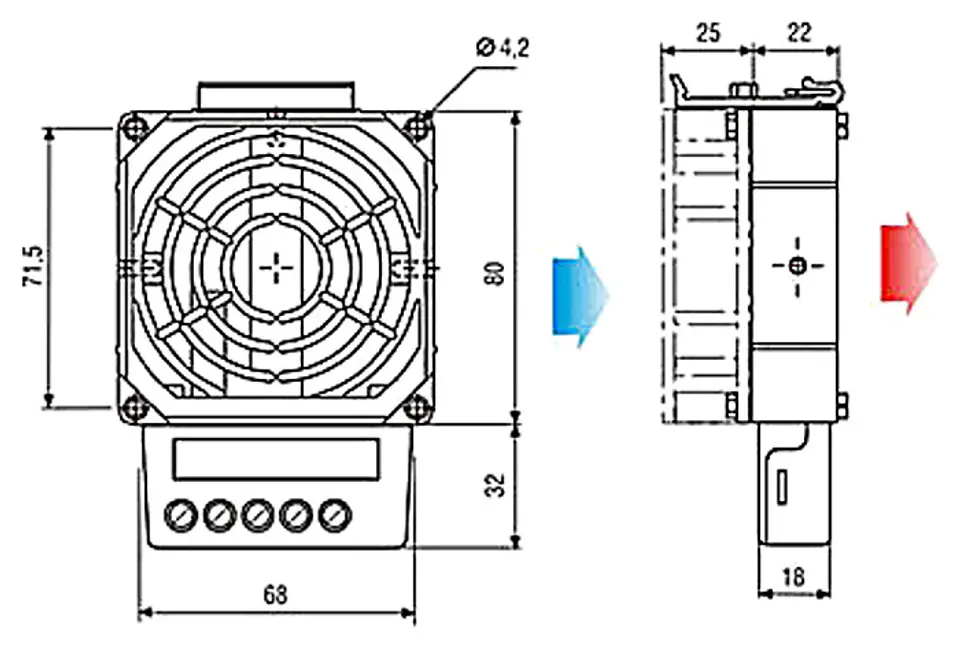

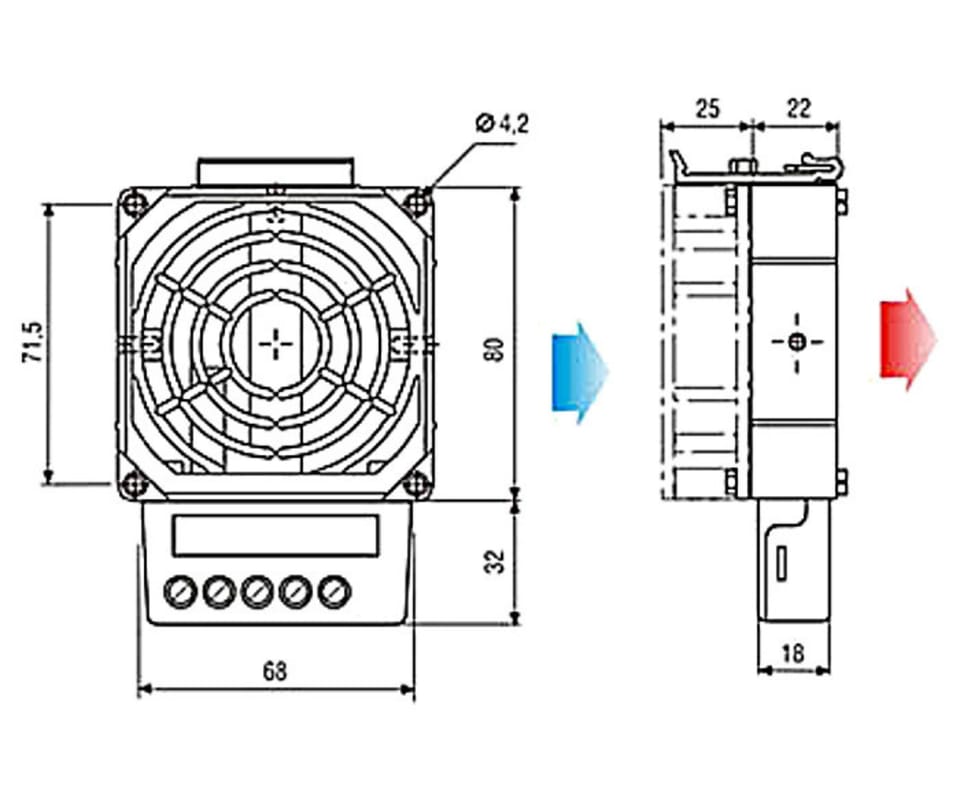

| Dimensions:: | 112 x 80 x 52 mm |
| Heating element:: | High power resistor |
| Heating power:: | 100 watts (Printing) |
| Heatsink:: | Aluminium - Die-cast housing, Glass surface |
| Minimum airflow:: | 35 m³/h |
| Number of fans:: | 1 pc. |
| Operating temperature:: | -45 °C ... 70 °C |
| Power:: | 110 V ... 265 VAC/DC |
| Scales:: | 0.48 kg |
| Warranty:: | 2 years |

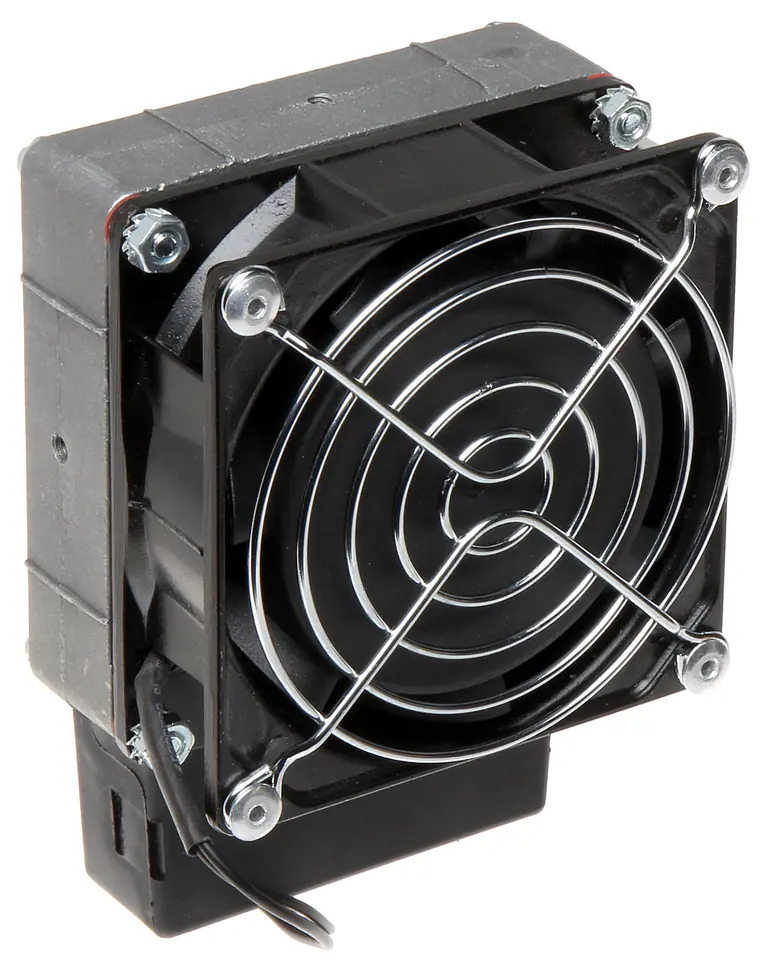

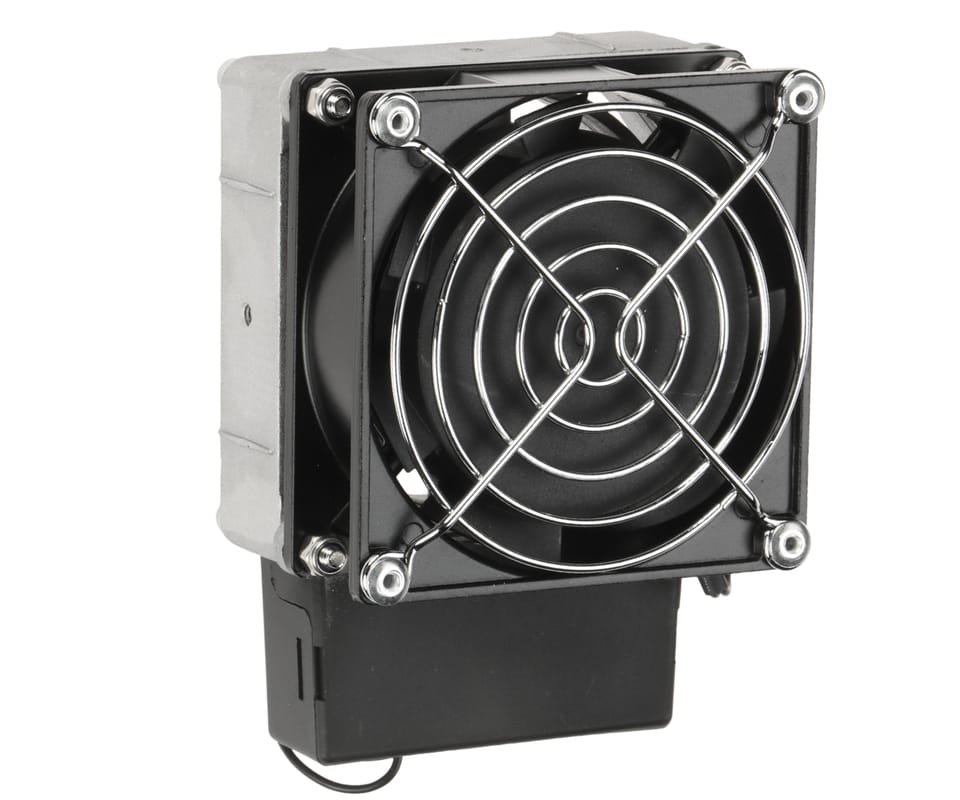

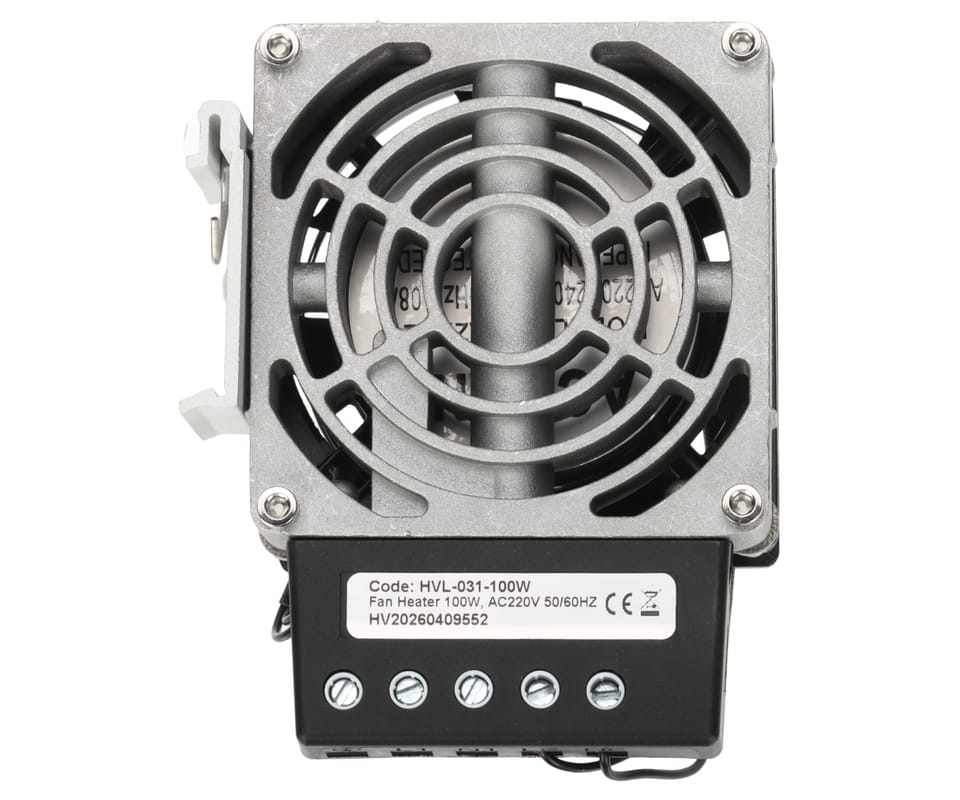

Heating blower HVL-031-100W is designed for installation in closed distribution cabinetsHeaters and heating blowers prevent condensation of water vapor and maintain the right operating temperature of devices
Remark! For safety reasons, a minimum distance of 150mm from cables and other devices should be maintained
In order to maintain a constant temperature in the cabinet, a suitable thermostat should be connected in series to the heating blower
