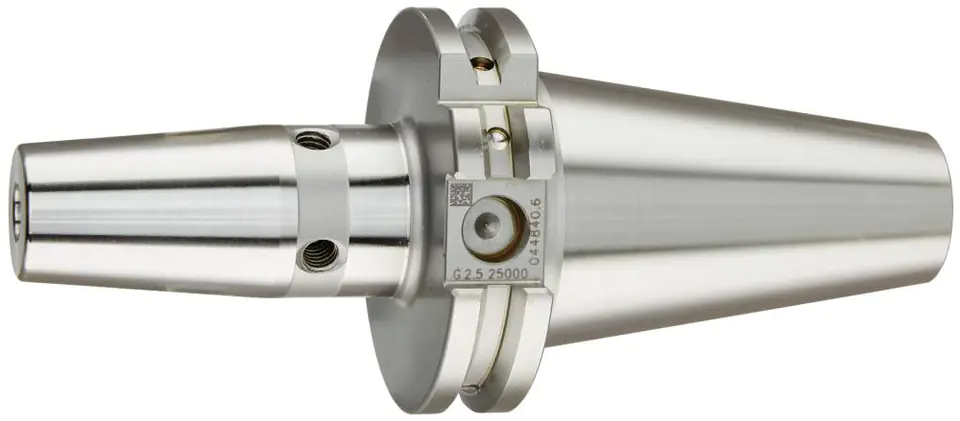

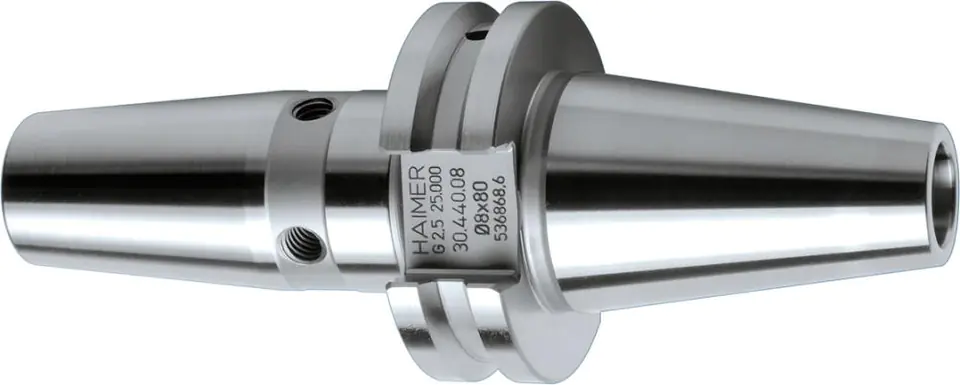

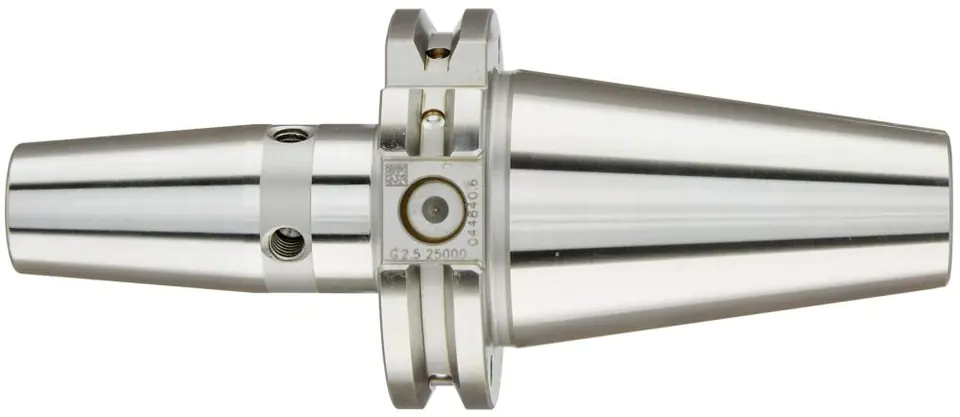

Heat shrink holder DIN69871, shank SK50 20,0x80mm HAIMER

€331.21
Shipping from warehouse: ⁨B6⁩
Estimated shipping: Tue, Nov 26 - Fri, Nov 29
14 days returnUnconditional return policy
Availability:
moderate quantity
Brand:
HAIMER
Product code:
50.440.20 / 4034221023735

Specification

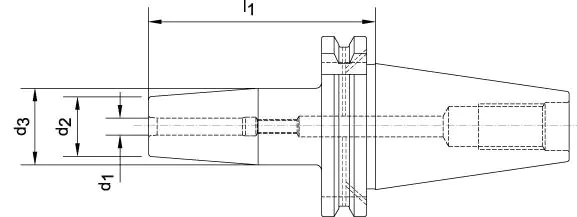

Diameter d1:20 mm
Diameter d2:33 mm
Diameter d3:42 mm
L1:80 mm

Heat shrink holder, DIN 69871, shape AD/B, SK 50

Execution: precisely balanced. Made of heat-resistant steel for hot work. All functional surfaces after finishing , guaranteed quality thanks to dual 100% control. Precise balancing with balancing screws. Suitable for HSS and carbide tools.
Cone tolerance: AT3
Gripping tolerance: h6
Hardness after hardening: 54 –2 HRC.
Application: adapted for induction, contact and shrinkable devices.
Scope of delivery: shrink holder with screw for length adjustment.

No adjustment screw, no thread for balancing screw, with coolant supply slots in the mounting hole.

Despite our best efforts, we cannot guarantee that the published technical data and photos do not contain inaccuracies or errors, which, however, cannot be a basis for claims.
