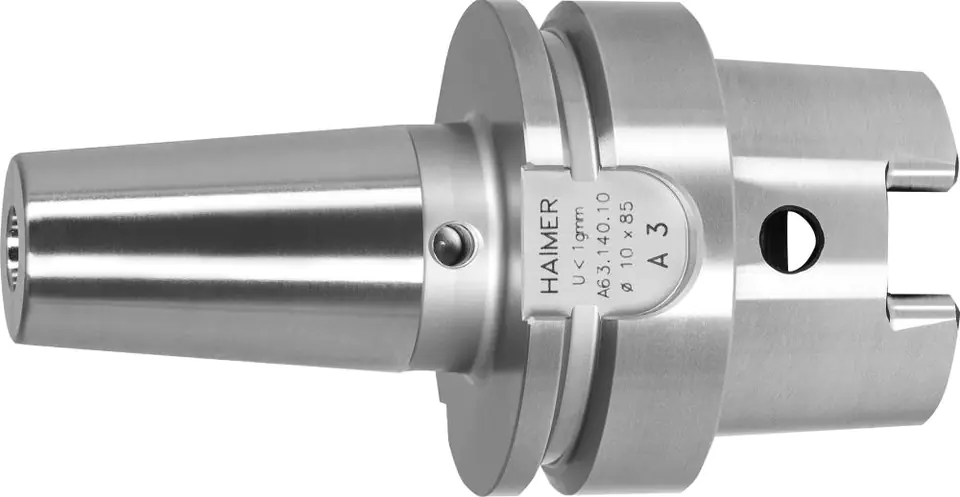

Heat shrink holder, DIN 69893, shape A, HSK 63
Execution: precisely balanced. All functional surfaces after finishing , guaranteed quality thanks to dual 100% control. More accurate than DIN. Made of heat-resistant steel for hot work. Precise balancing with balancing screws possible. For HSS tools and cemented carbides.
Gripping tolerance: h6.
Balance quality: G2.5 25000 min-1.
Radial run-out tolerance: < 0.003 mm on the tool (3 x d).
Hardened to 54 -2 HRC.
Application: for heat-shrinkable induction, contact and hot air devices.
Scope of delivery: heat shrink holder with screw for length adjustment, without coolant supply tube.
Heat shrink holder DIN69863A, shank A-63 8x80mm HAIMER
€231.23
Shipping from warehouse: B6
Estimated shipping: Mon, Nov 25 - Wed, Nov 27
14 days returnUnconditional return policy
- Availability:
- moderate quantity
- Brand:
- HAIMER
- Product code:
- A63.140.08 / 4034221020895
Share this product:

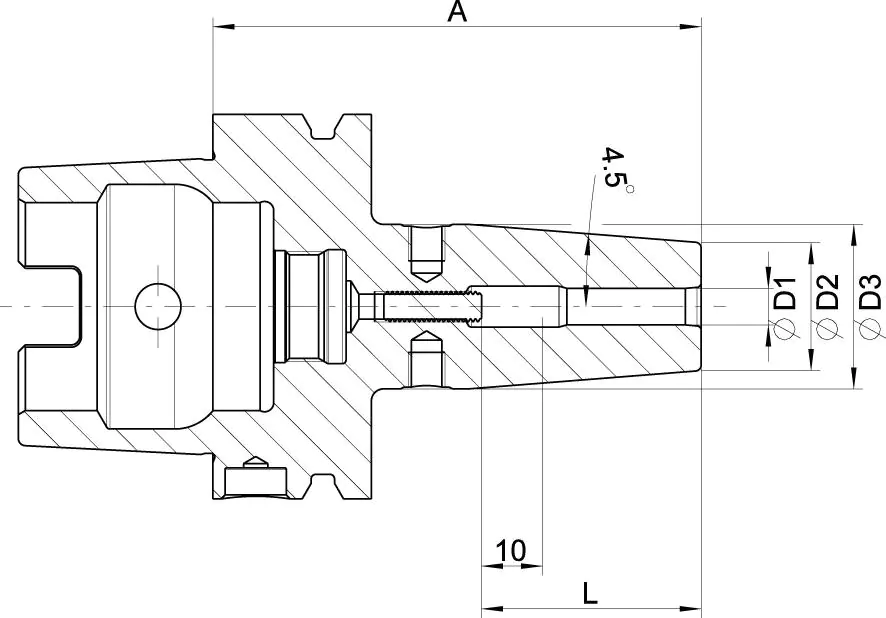

Specification
| Diameter d1: | 8 mm |
|---|---|
| Diameter d2: | 21 mm |
| Diameter d3: | 27 mm |
| Hsk: | 63 |
| L1: | 80 mm |
| L2: | 36 mm |
Despite our best efforts, we cannot guarantee that the published technical data and photos do not contain inaccuracies or errors, which, however, cannot be a basis for claims.
