Heat shrink holder DIN69863A, grip A-63 SL 20x75mm HAIMER

€428.61
Shipping from warehouse: ⁨B6⁩
Estimated shipping: Thu, Nov 14 - Mon, Nov 18
14 days returnUnconditional return policy
Availability:
large quantity
Brand:
HAIMER
Product code:
A63.145.20.37 / 4034221063694

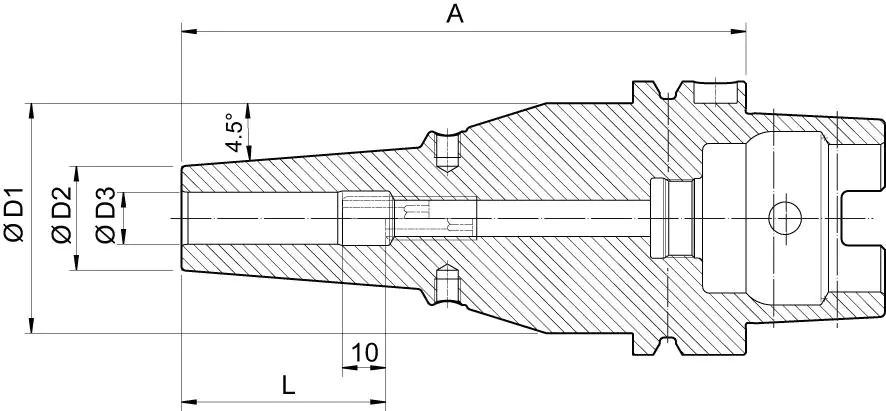

Specification

A:75 mm
Diameter d1:20 mm
Diameter d2:35.5 mm
Hsk:63
L:49 mm

Uchwyt termokurczliwy Power Shrink Chuck – Safe-Lock

Material: heat-resistant steel for hot work. With Safe-Lock mount. The optimal design combines high rigidity with vibration damping. Precise balancing with balancing screws. With lockable Cool-Jet holes. All functional surfaces after finishing , guaranteed quality thanks to dual 100% control. Suitable for HSS and carbide tools.
Cone tolerance: AT3
Gripping tolerance: h6
Hardened to 54 -2 HRC.
Application: for heat-shrinkable induction, contact and hot air devices. For maximum cutting performance in high-speed and heavy-duty machining.
Scope of delivery: shrink holder with screw for length adjustment.

Despite our best efforts, we cannot guarantee that the published technical data and photos do not contain inaccuracies or errors, which, however, cannot be a basis for claims.
