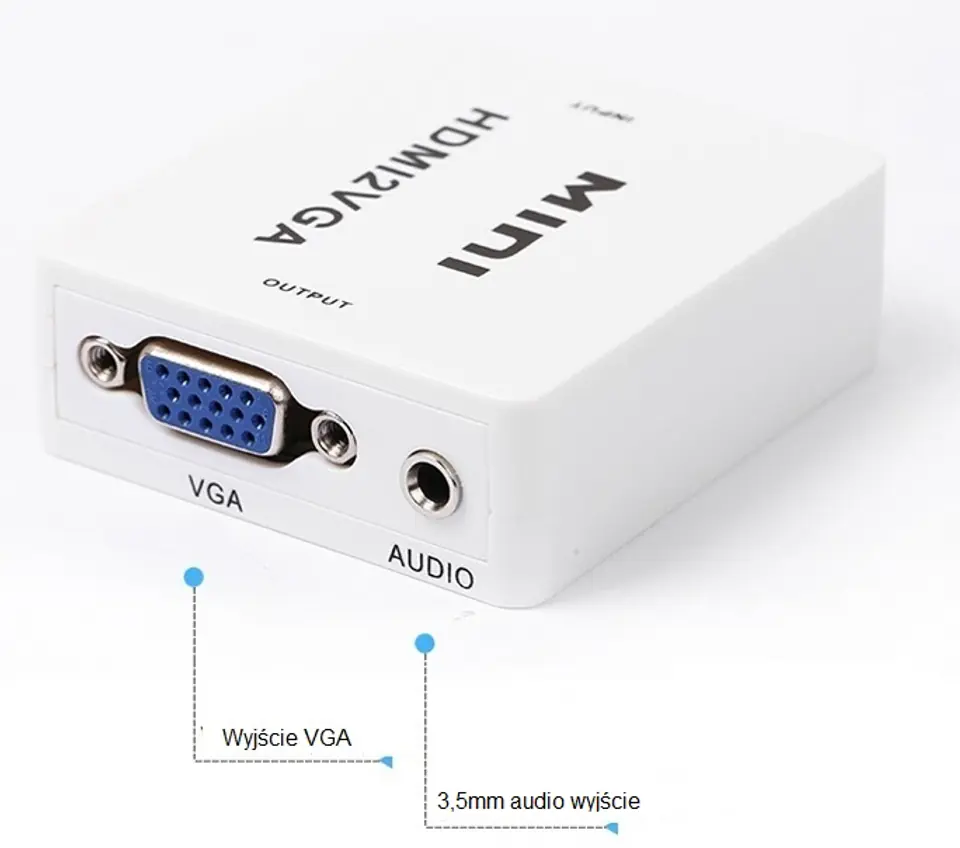

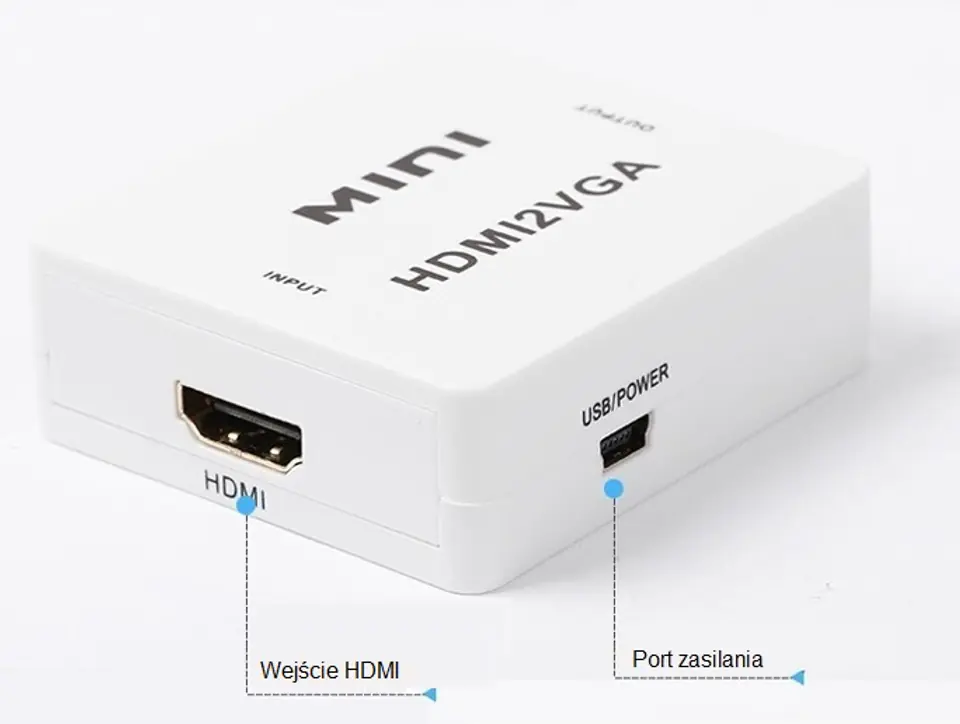

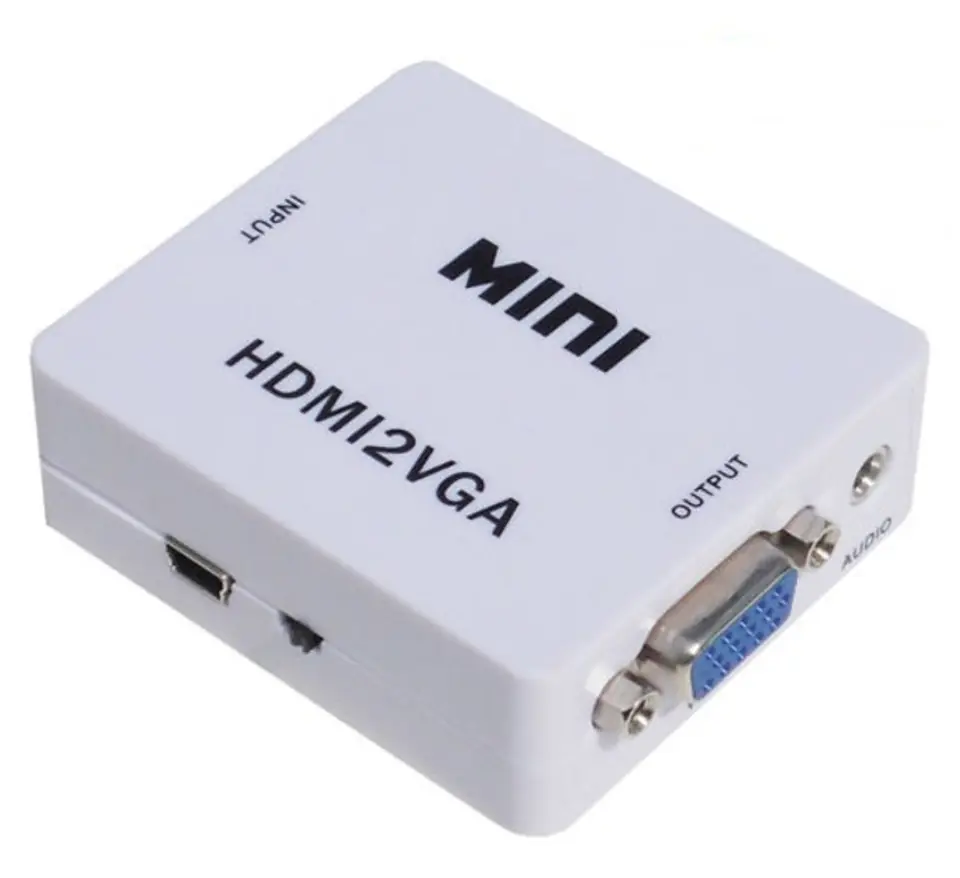

The Spacetronik SPH-VA01 converter can convert the signal from one HDMI signal input to analog VGA video signal and audio signal. The HDMI input port can be connected to any standard HDMI source device (such as DVD player, PS4, XboxONE, STB, PC). The VGA output port can be connected to the device to display the image (TV / monitor / projector). The audio output is used to connect to home theater, speakers or other devices with audio output (3.5mm Jack).

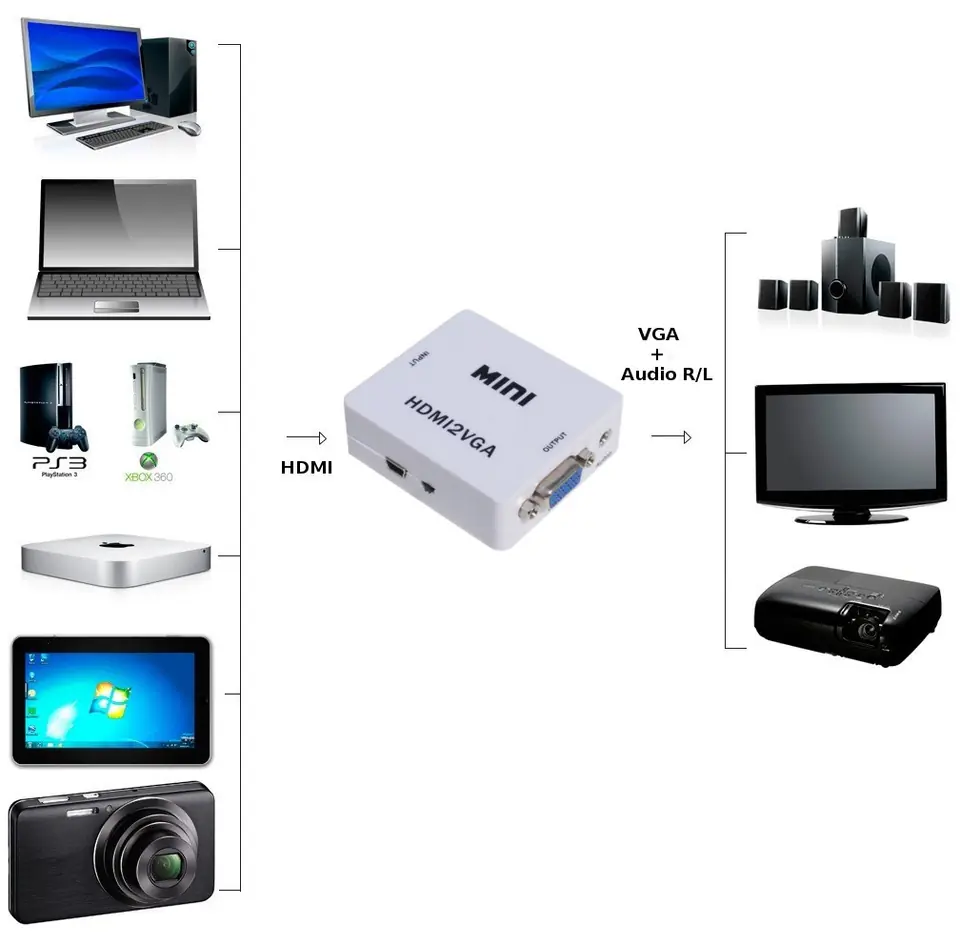

Example of use:
Specification:
- one HDMI signal input for conversion to VGA + 3.5mm audio output
- HDMI signal format at input: 480i/60Hz, 480p/60Hz, 576i/60Hz, 576p/60Hz, 720p50/60Hz, 1080i50/60Hz, 1080p50/60Hz
- signal output: 1* VGA signal, 1*3.5mm audio
- output image format: PAL, NTSC.
- impedance: 75 Ohms
- compatible with HDCP protocol
- powered from the USB port - does not need an additional power source!
- mini USB cable included
Declaration of conformity >>HERE<<
