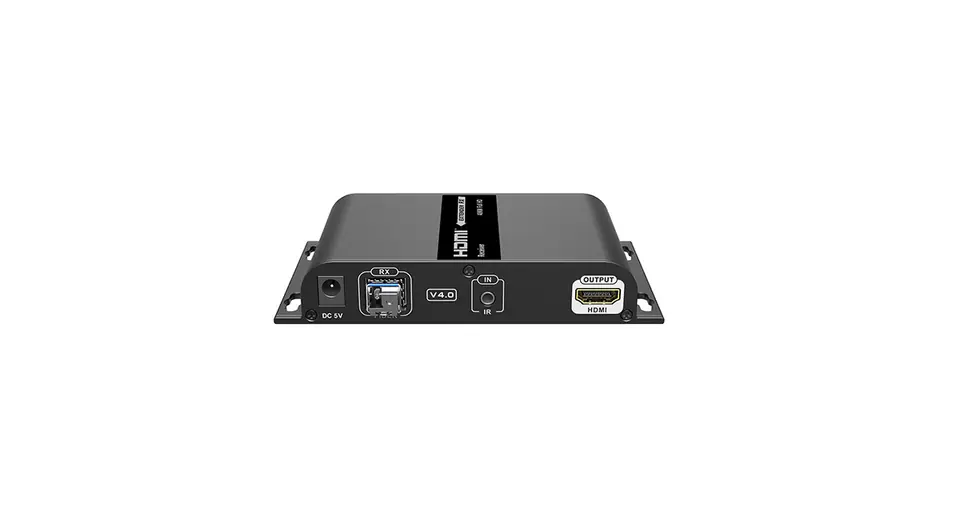

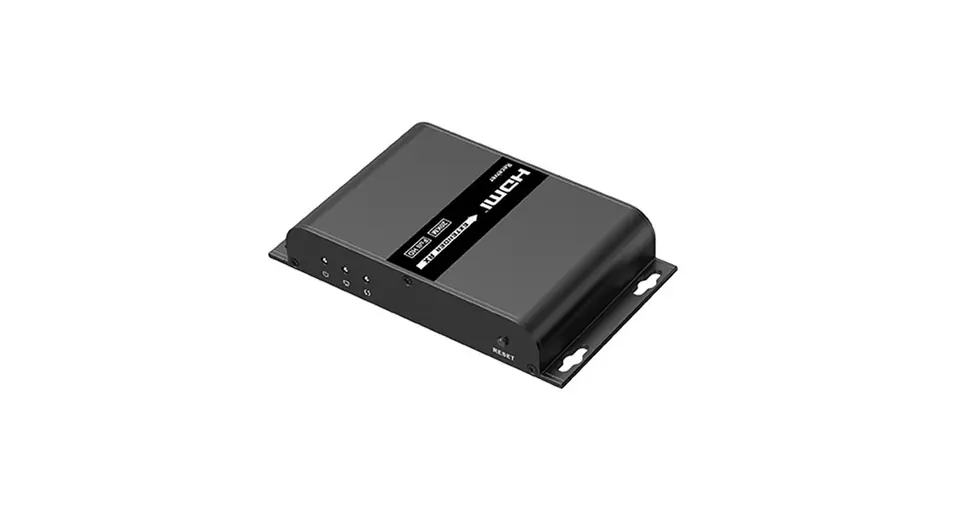

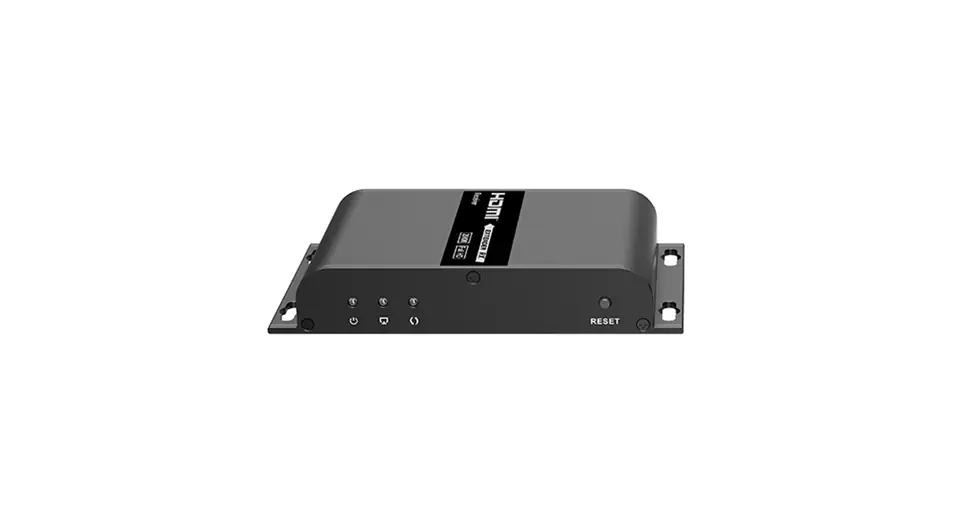

40KM HDMI transmitter receiver 1080p@60Hz

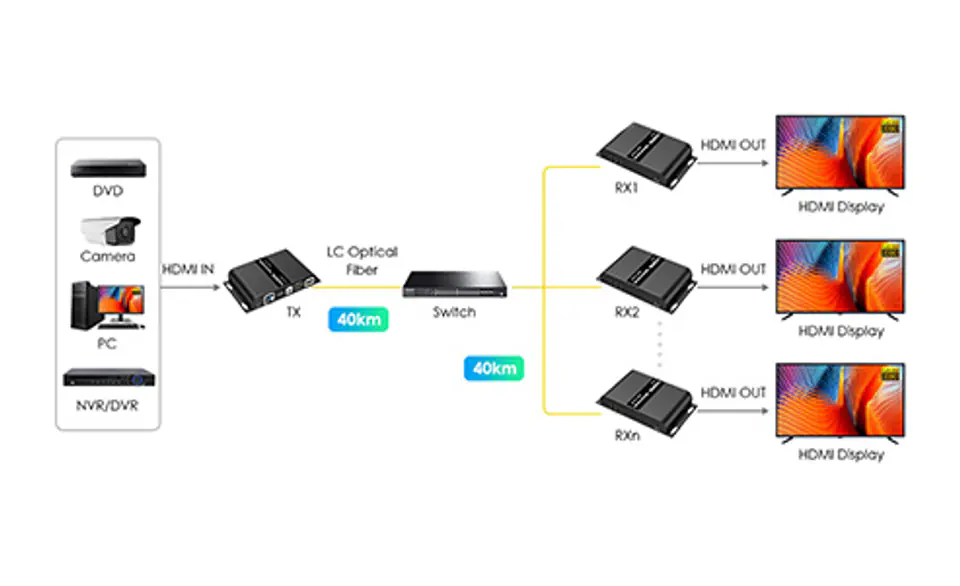

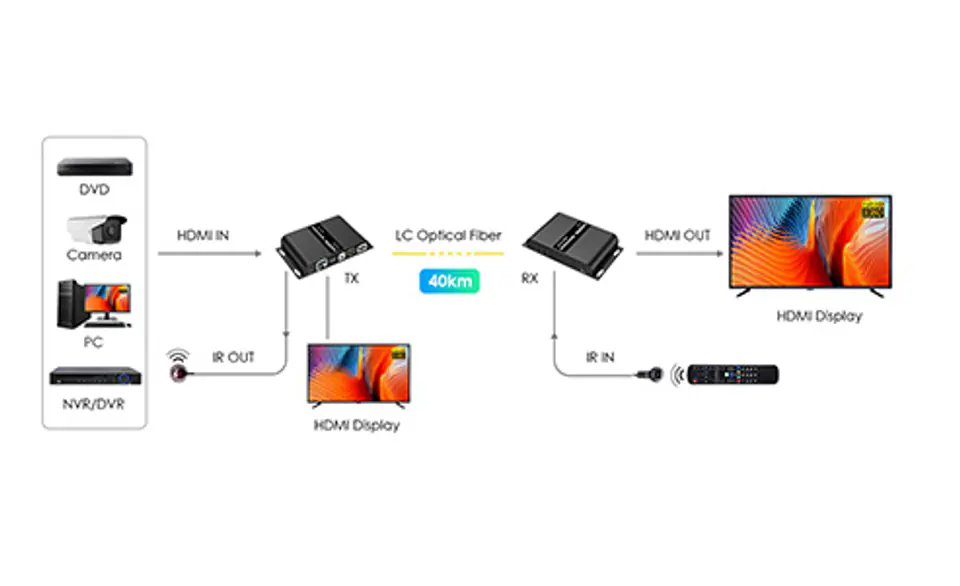

HDMI extender via single-mode fiber (SMF) allows you to transmit a high-resolution signal over a distance of up to 40km. The HDMI transmitter is equipped with an HDMI grommet. The whole set also supports IR transmission. ATTENTION! The set includes the receiver itself
- HDMI1.3, compatible with HDCP1.4
- Supported resolution 1080p@50/60Hz, 1080i@50/60Hz, 720p@50/60Hz, 576p@50Hz, 576i@50Hz, 480p@50Hz, 480i@50Hz
- Voltage 5Vp-p(TTL)
- middle wavelength 1310/155nm
- LC connector
- Data transfer 1.25Gbps
- SMF fiber
- Transmission distance up to 40km
- IR frequency 20-60KHz
- Protection in accordance with IEC61000-4-2 standard
- Current consumption TX<3W RX<3W
- Power supply DC5V/2A
- Temp. work -20st. up to +60st.
- Temp. storage -30st. up to +70st.
- Aluminum housing
- Dimensions 138x82x24mm
- Weight 180g
The price applies to an additional RX receiver!
