HDMI to LAN Converter Spacetronik 4K Spacetronik IP SPH-676E Set

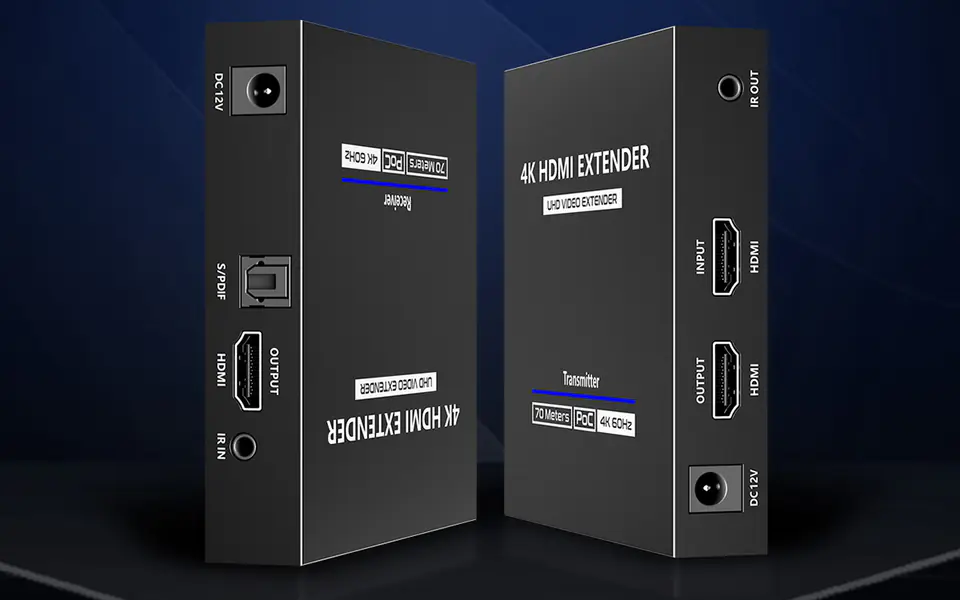

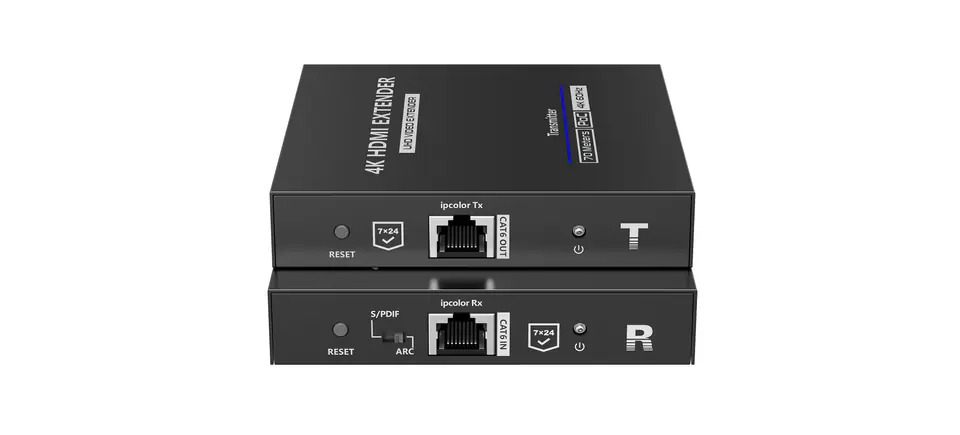

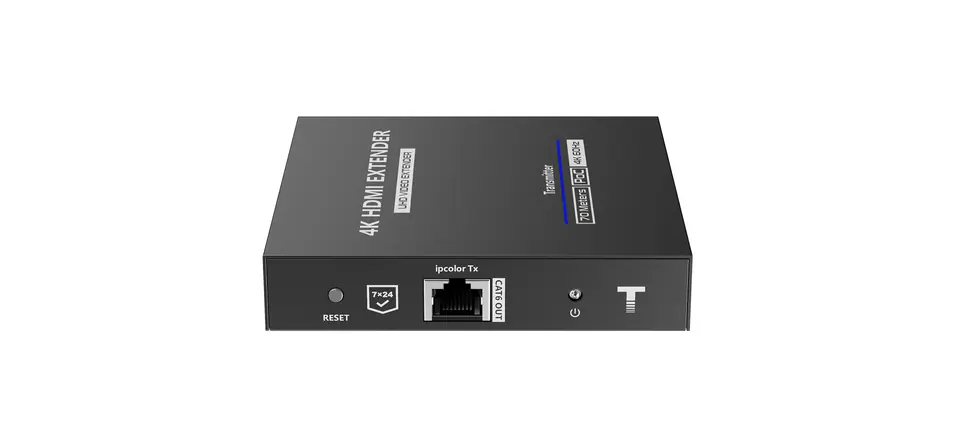

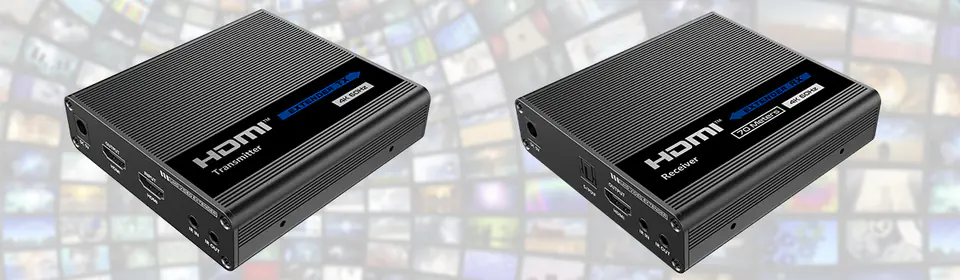

The HDMI extender enables you to transmit and expand uncompressed UHD 4K@60Hz HDMI signal via CAT6/6A/7 network cable, the transmission distance is up to 70 meters in 4K resolution with zero latency. The kit includes a transmitter unit (TX) and a receiver unit (RX), working as a pair. The device has two-way IR support functions.
The SPH-676E device allows media to be transmitted without delays in 4K@60Hz quality over distances of up to 70m using CAT6 / 6A / 7 cables.
A lot of technology in a small device
The SPH-676E model has many state-of-the-art technological solutions. The most important are:
- HDR 4K@60Hz resolution with 18Gbps spinning
- Zero delays
- S/PDIF audio connector
- Overvoltage, anti-static and short-circuit protection

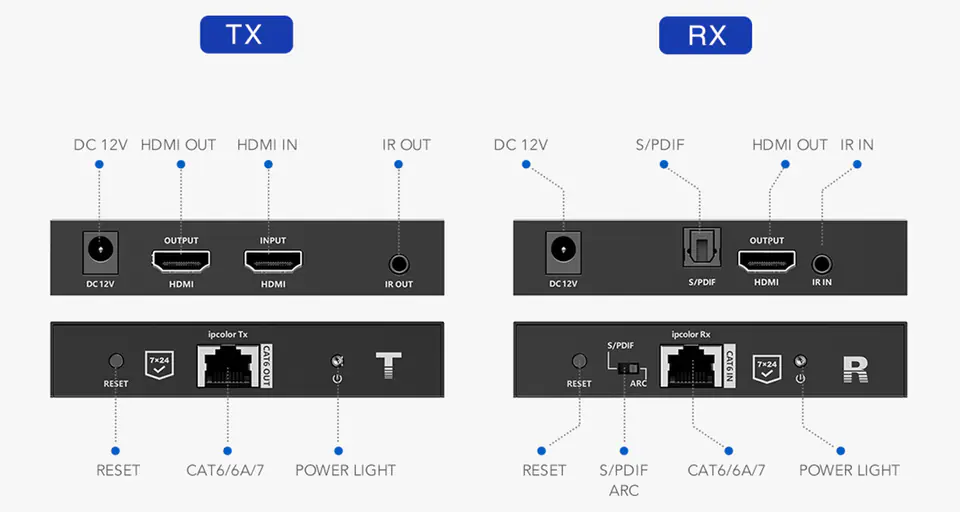

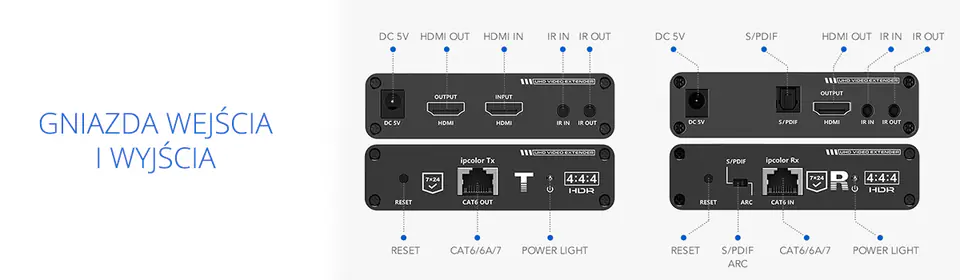

- HDMI port on the transmitter for additional screen (loop)
- HDCP 2.2 / HDMI 2.0
- Possibility of continuous operation 24/7

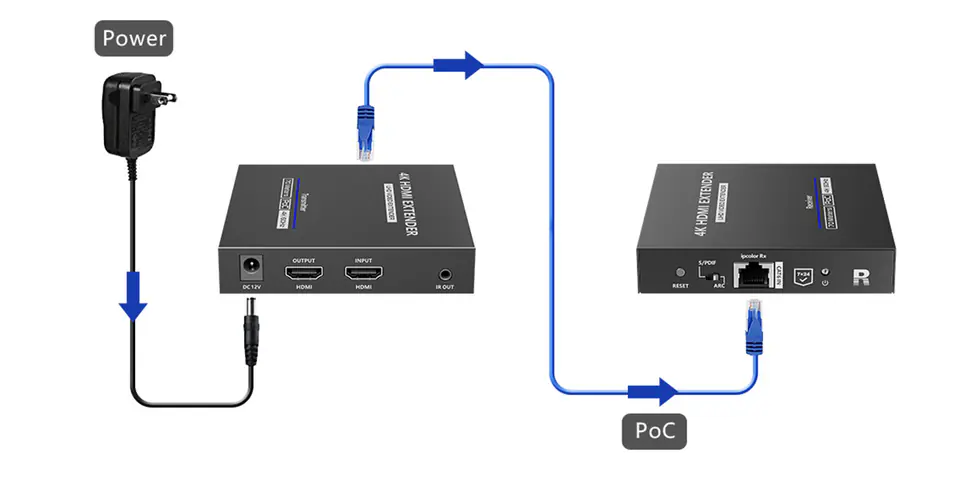

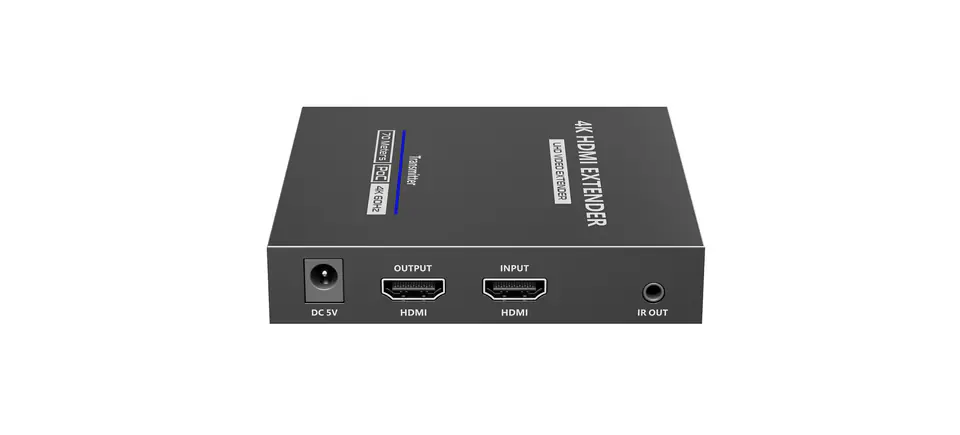

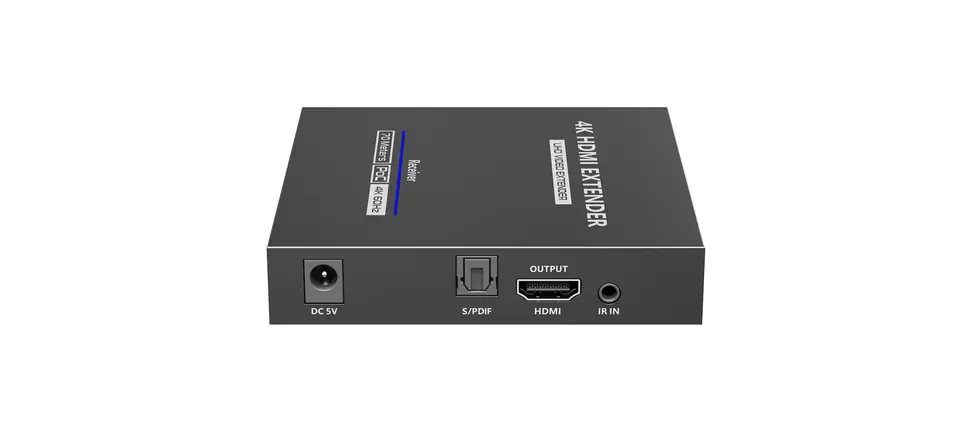

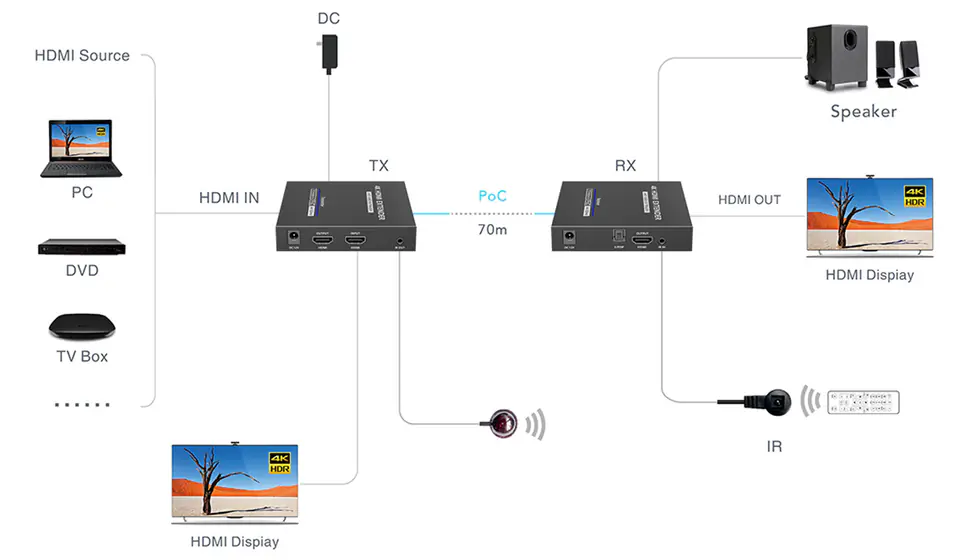

The transmitter can be connected via HDMI connector - e.g. cameras, PC, DVD, TV Box, etc. An additional HDMI output allows you to connect the monitor directly to the transmitter. The main signal via CAT6/6A/7 cable is sent to the receiver at a distance of up to 70m. You can connect a monitor, speaker and another receiver to the receiver, thus creating a cascade.
- CAT6/6A/7 cable length between Rx and TX: up to 70 meters
- HDMI Input: 4K / 1080p / 720p / 576p / 576i / 480p / 480i
- Supports audio format: Dolby TrueHD 7.1CH / Dolby Digital 5.1CH
- HDMI Output: 4K/1080p/720p/576p/576i/480p/480i
- Maximum bandwidth: 600 MHz
- Maximum transmission speed: 13 Gbps
- HDMI version 2.0
- Power supply: DC 5V/2A
- TX Maximum operating current: 350mA
- RX Max working current: 200mA
- Power supply format: Input: AC (50Hz, 60Hz) 100V-240V; Output: DC5V/1A
- Operating temperature range: (- 20 to + 60 °C)
- Operating humidity range: 5% to 90% RH (non-condensing)
- Dimensions (L x W x H): 106x99x26 (mm)
https://spacetronik.eu/katalogi/banery/LKV676Emanual.docx
Certificates:
https://spacetronik.eu/katalogi/banery/LVD-certyfikat-lvk.pdf
https://spacetronik.eu/katalogi/banery/EMC-certyfikat-lvk.pdf
https://spacetronik.eu/katalogi/banery/ROHS-certyfikat-lvk.pdf
