HDMI to LAN Converter Spacetronik 4K Spacetronik IP SPH-675E ipcolor Kit

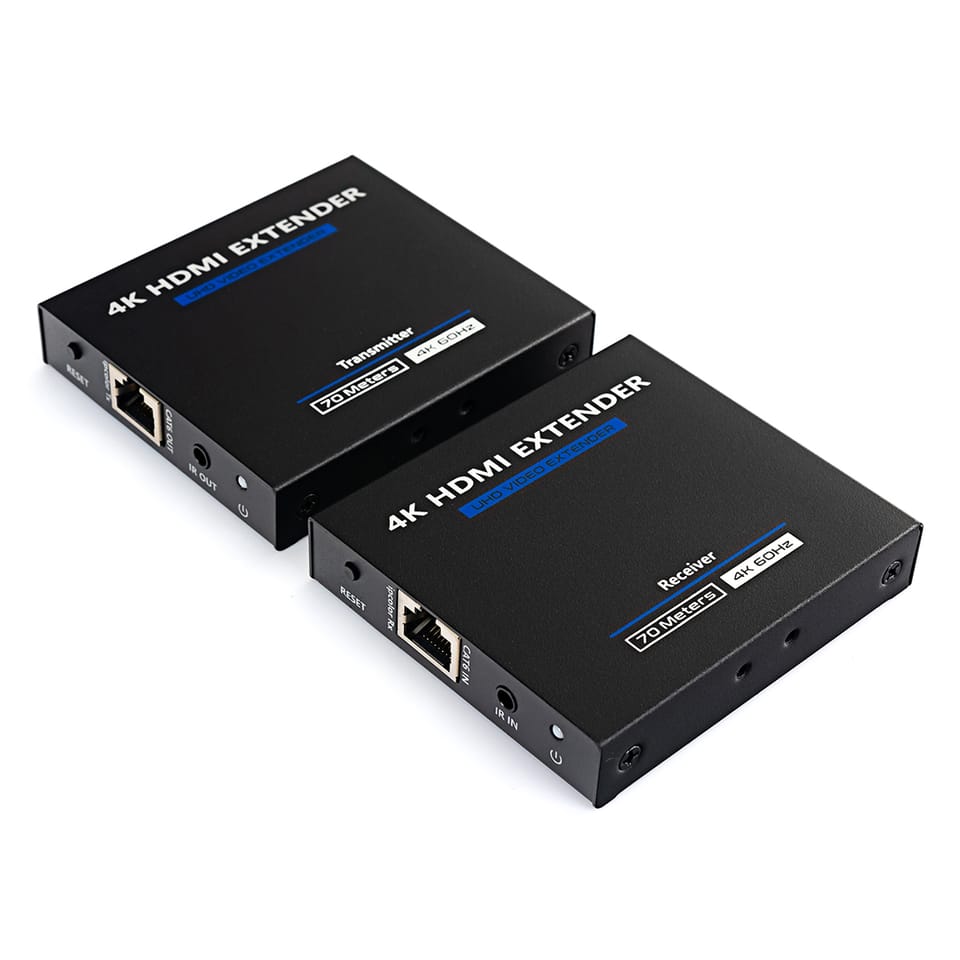

HdMI extender enables you to transmit and expand uncompressed HDMI UHD 4K@60Hz signal with CAT6/6A/7 network cable, the transmission distance is up to 70 meters in 4K resolution with zero latency. The kit includes a transmitter unit (TX) and a receiver unit (RX), working as a pair. The device has two-way IR operation functions.
The SPH-675E device allows you to send media without delay in 4K@60Hz quality over a distance of up to 70m using CAT6 / 6A / 7 cables.
The enormity of technology in a small device
The SPH-676E model has many state-of-the-art technological solutions. The most important are:
- Resolution of transmitted data in HDR 4K@60Hz with 18Gbps yarn
- Zero latency
- Surge protection, antistatic and short-circuit protection

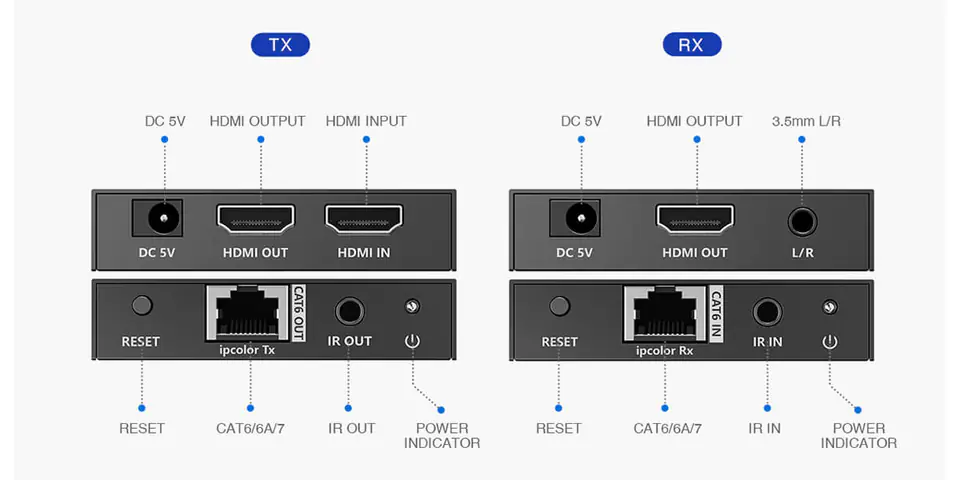

- HDMI port on the transmitter for an additional screen (loop)
- HDCP 2.2 / HDMI 2.0
- Possibility of continuous operation 24/7

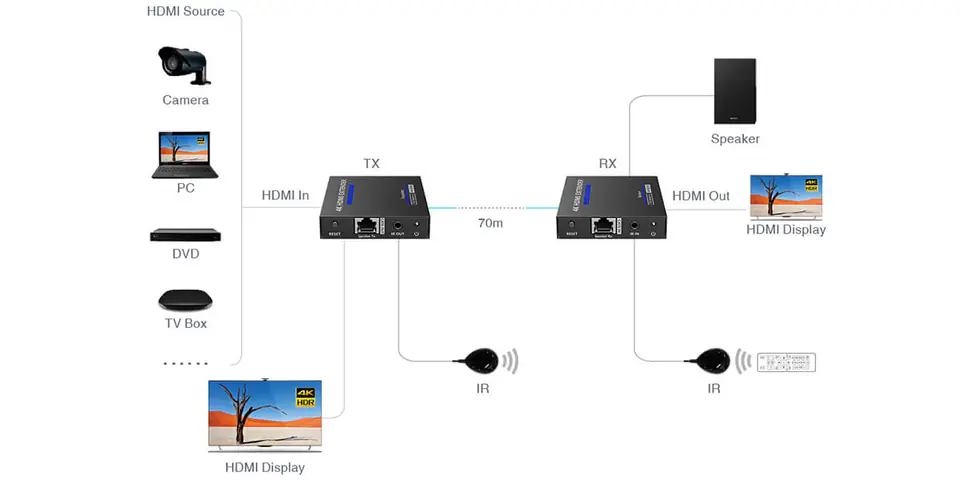

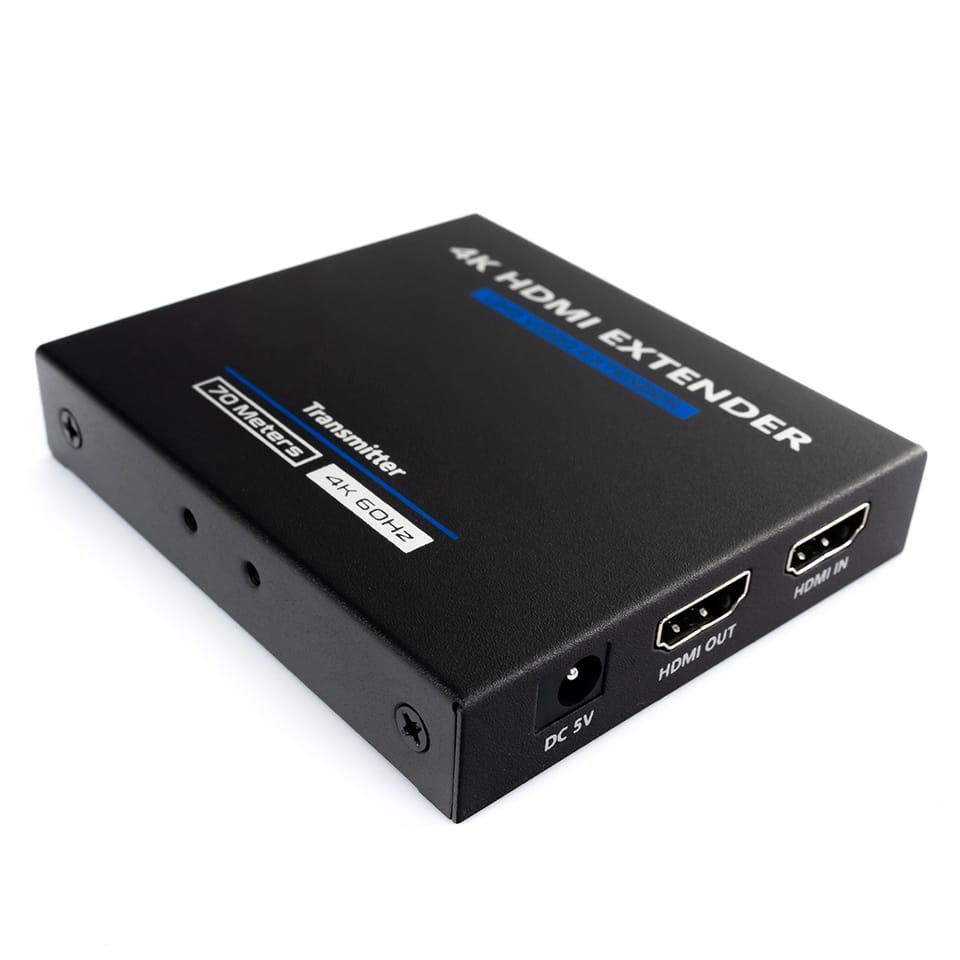

Devices can be connected to the transmitter via HDMI connector - e.g. cameras, PC, DVD, TV Boxes, etc. An additional HDMI output allows you to connect the monitor directly to the transmitter. The main signal via CAT6/6A/7 cable is sent to the receiver over a distance of up to 70m. A monitor, speaker and another receiver can be connected to the receiver, thus creating a cascade.
- CAT6/6A/7 cable length between Rx and TX: up to 70 meters
- HDMI Input: 4K@60Hz/1080p/720p/576p/576i/480p/480i
- Supports audio format: LPCM/DTS-HD/DTS-Audio/Dolby Digital 5.1CH/Dolby Atmos
- HDMI output: 4K/1080p/720p/576p/576i/480p/480i
- Maximum bandwidth: 600MHz
- Maximum transmission speed: 18 Gbps
- HDMI version 2.0
- Power supply: DC 5V/2A
- TX Maximum operating current: 350mA
- RX Max working current: 200mA
- Power supply format: Input: AC (50 Hz, 60 Hz) 100 V-240 V; Output: DC5V/1A
- Operating temperature range: (- 20 to + 60 °C)
- Operating humidity range: 5% to 90% RH (non-condensing)

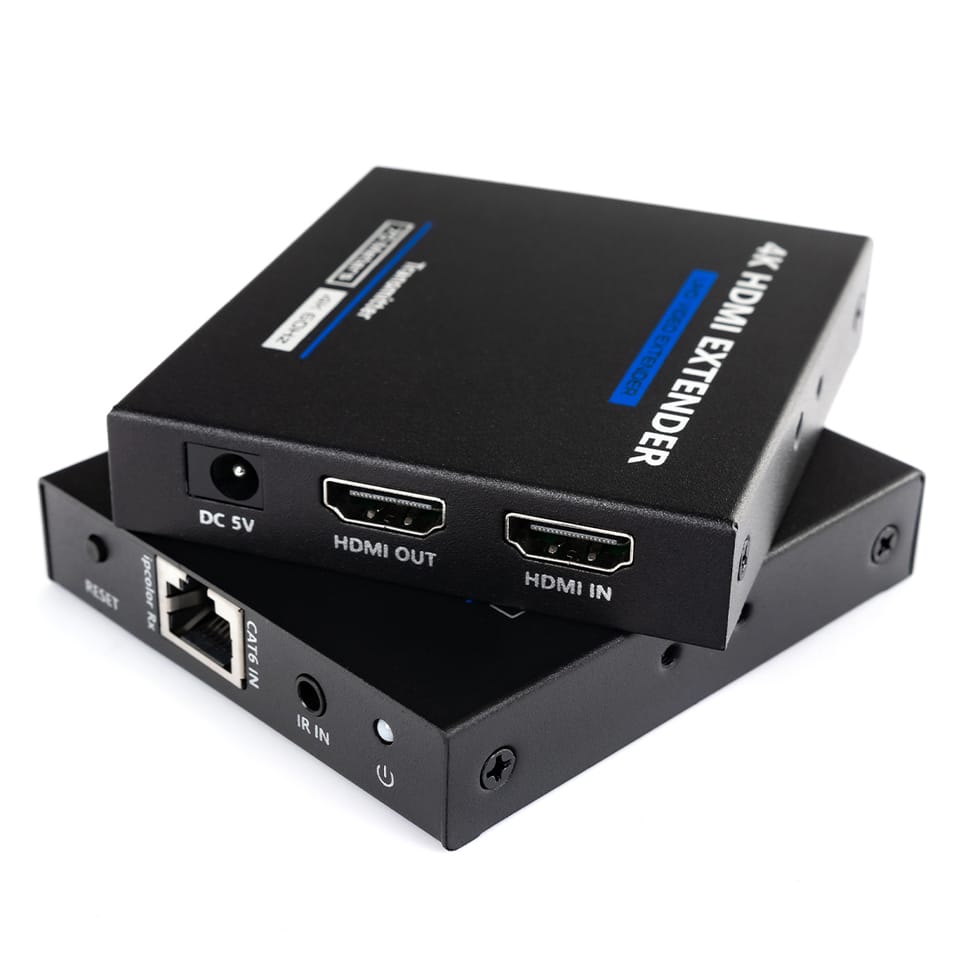

Kit contents:

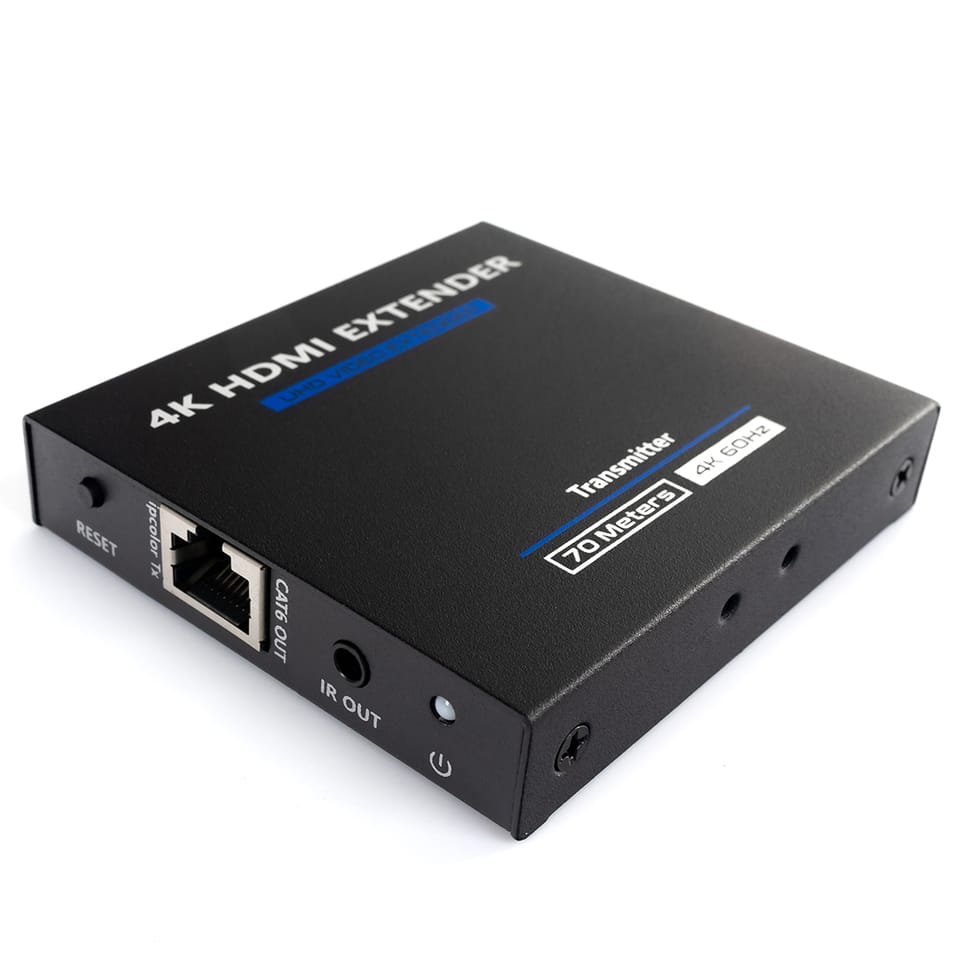

- Transmitter - TX
- Receiver - RX
- IR IN and IR OUT
- 2x Power Supply
- mounting brackets
