HDMI to LAN Converter Spacetronik IP SPH-HLC7KVM Kit

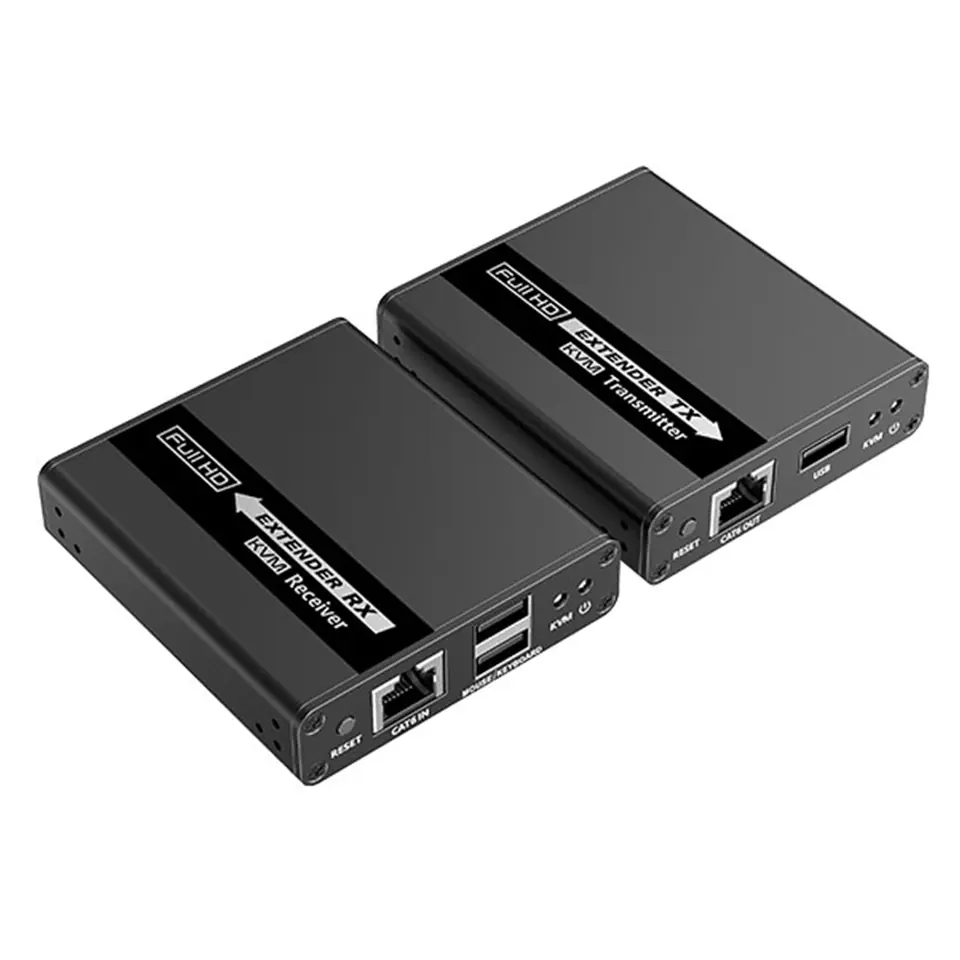

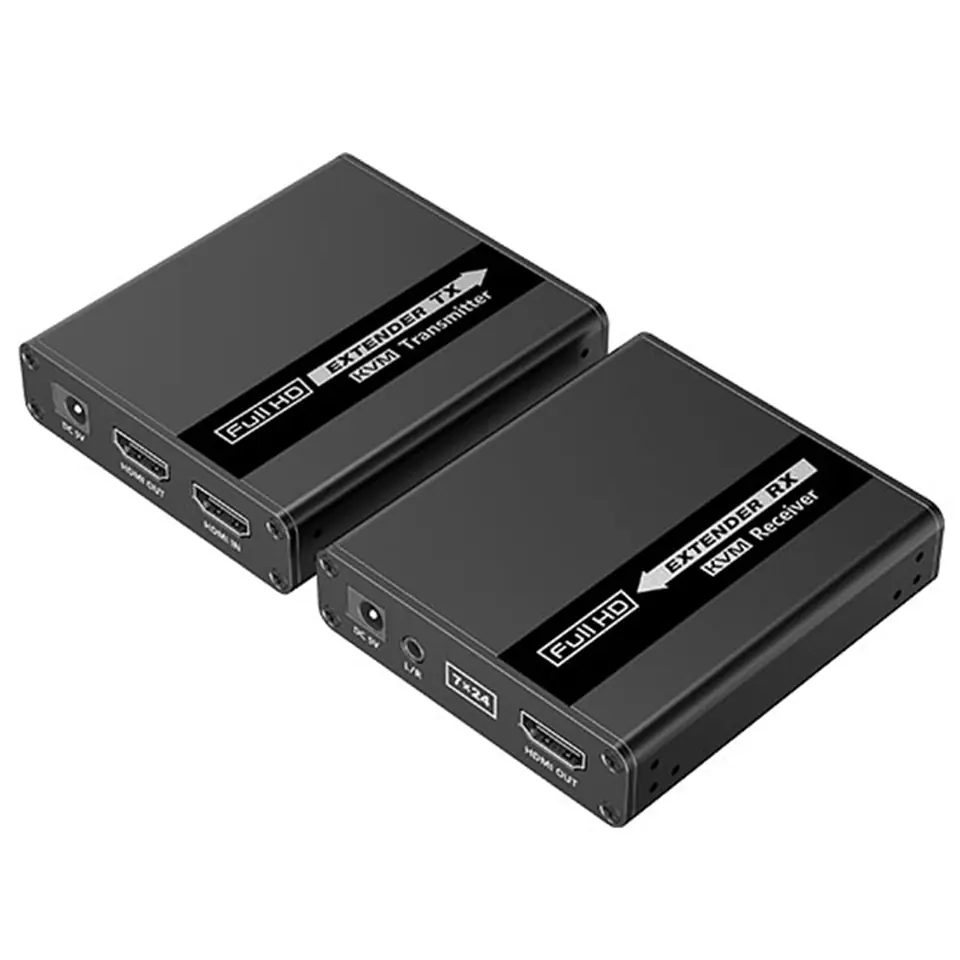

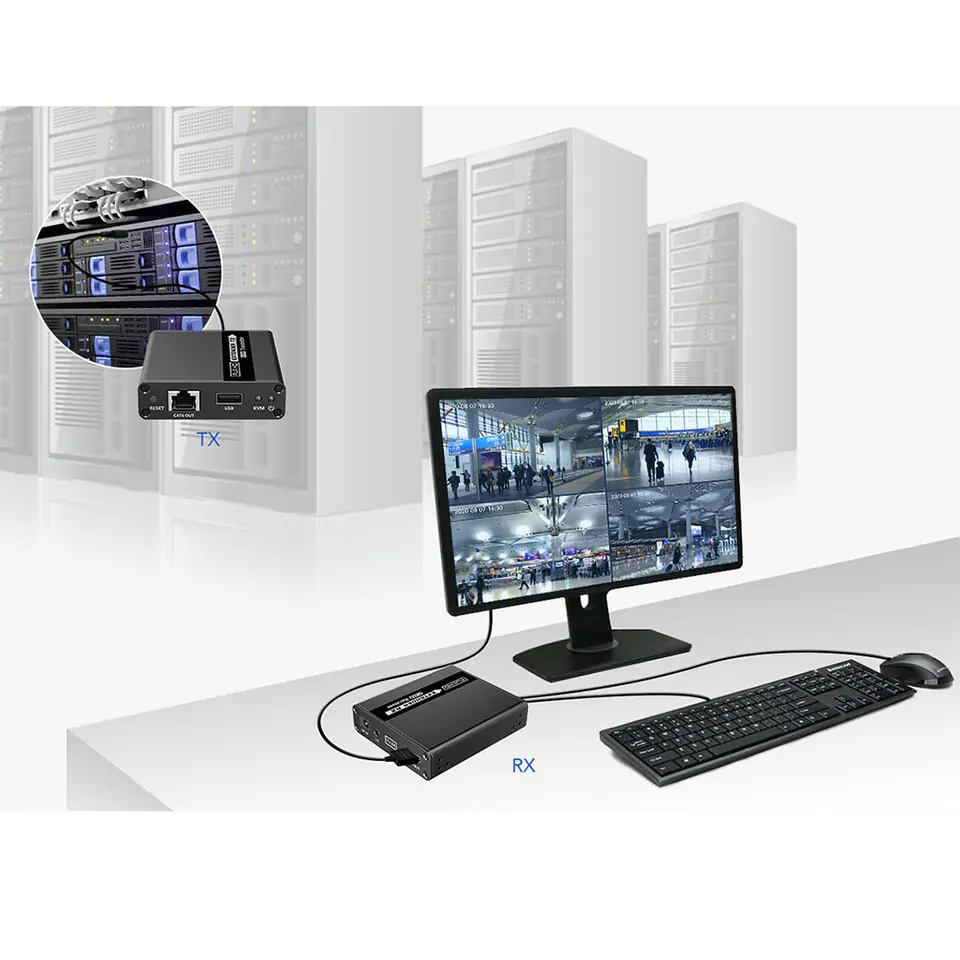

The HDMI extender enables you to transmit and expand the uncompressed HDMI Full HD 1080P@60Hz signal with CAT6/6A/7 network cable, the transmission distance is up to 70 meters in 1080P resolution with zero latency. The kit includes a transmitter unit (TX) and a receiver unit (RX), working as a pair. The KVM function allows you to transmit mouse and keyboard signals.
The SPH-HLC-7 device allows you to transfer media without delay in Full HD 1080P quality @60Hz over a distance of up to 70m using CAT6 / 6A / 7 cables. This solution is often used in outdoor advertising, RTV showrooms, multimedia centers, monitoring systems, etc.
The enormity of technology in a small device
The presented model has many state-of-the-art technological solutions. The most important are:
- Resolution of transmitted data in Full HD 1080P@60Hz HDR
- Zero latency
- KVM function - mouse and keyboard signal transmission
- Audio jack connector in receiver

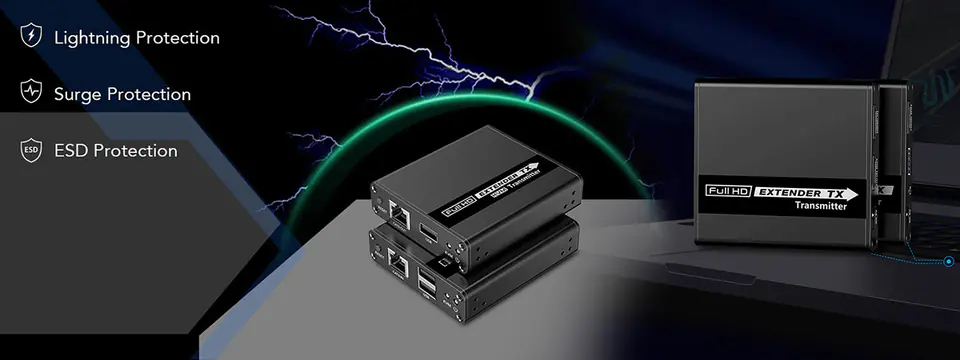

- Surge protection, antistatic and short-circuit protection

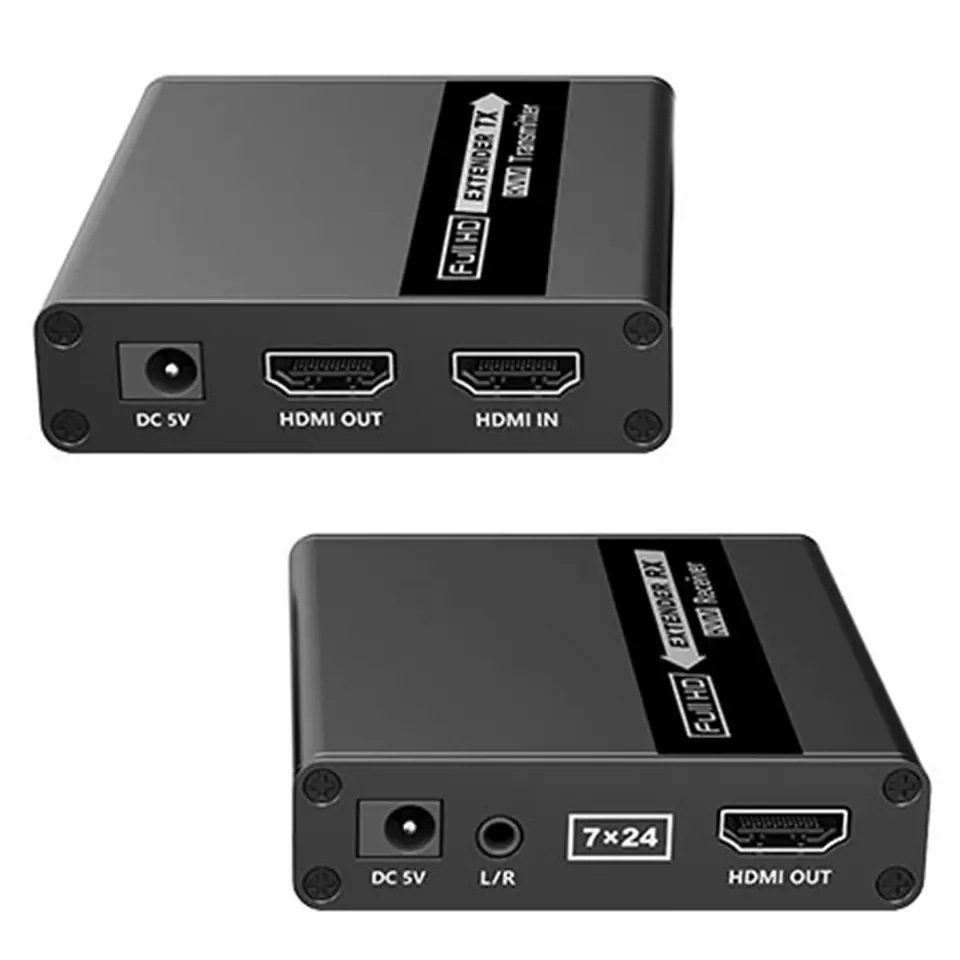

- HDMI port on the transmitter for an additional screen (loop)
- HDCP 1.4 / HDMI 1.3
- Possibility of continuous operation 24/7

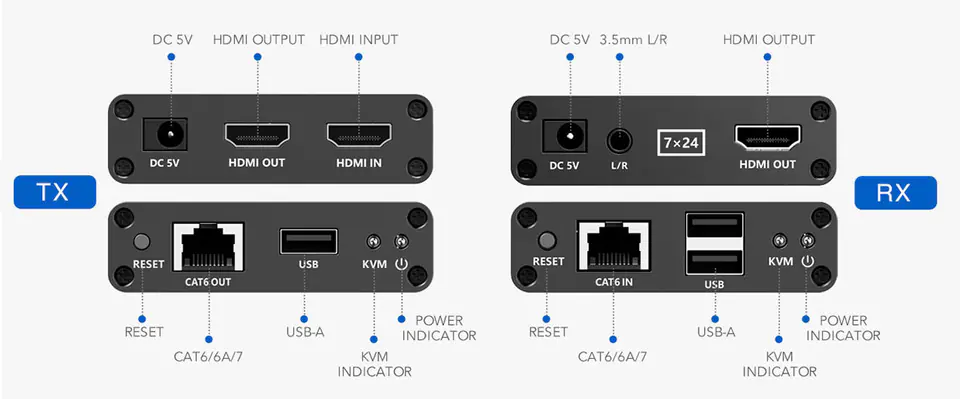

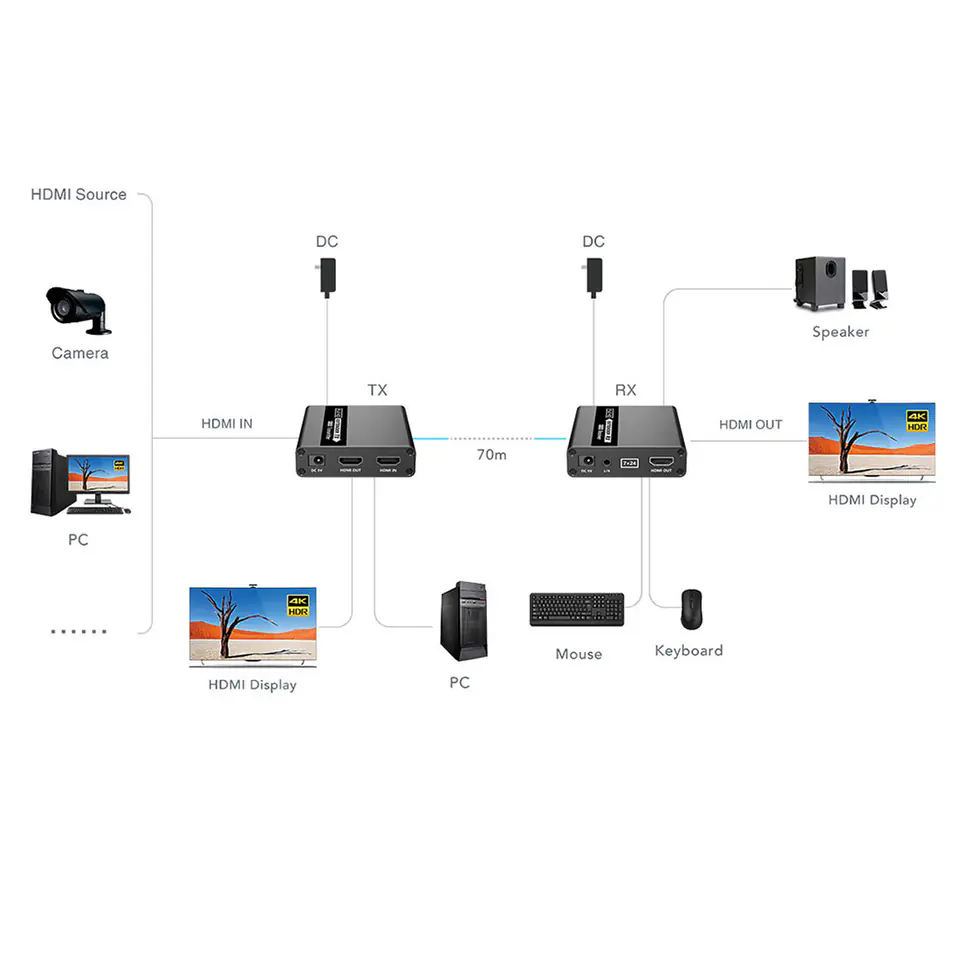

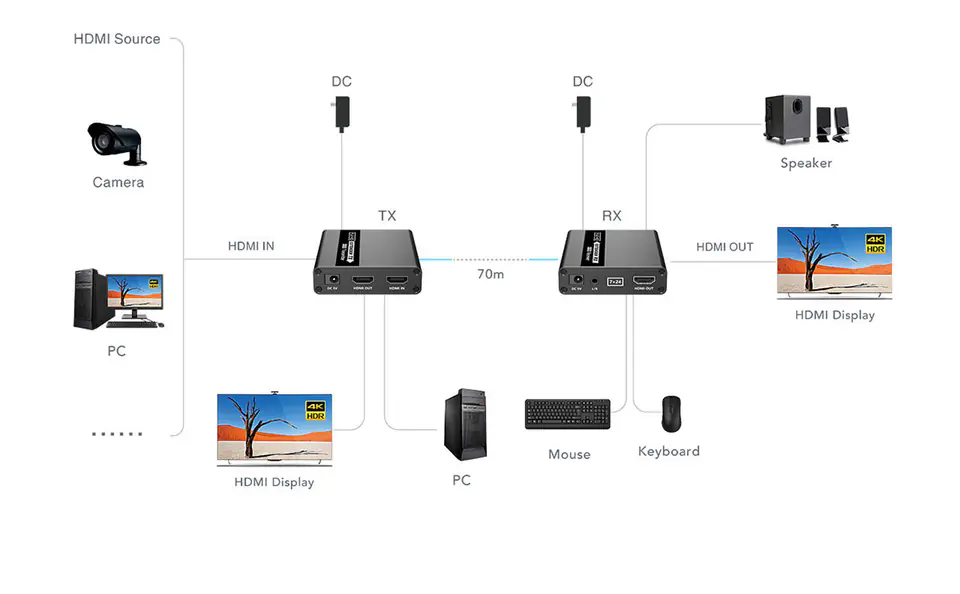

Devices can be connected to the transmitter via HDMI - e.g. cameras, PC, DVD, TV Boxes, computers, etc. An additional HDMI output allows you to connect the monitor directly to the transmitter. The main signal via CAT6/6A/7 cable is sent to the receiver over a distance of up to 70m. The KVM model also transmits a mouse or computer signal.
