HDMI transmitter one cable each with IR output

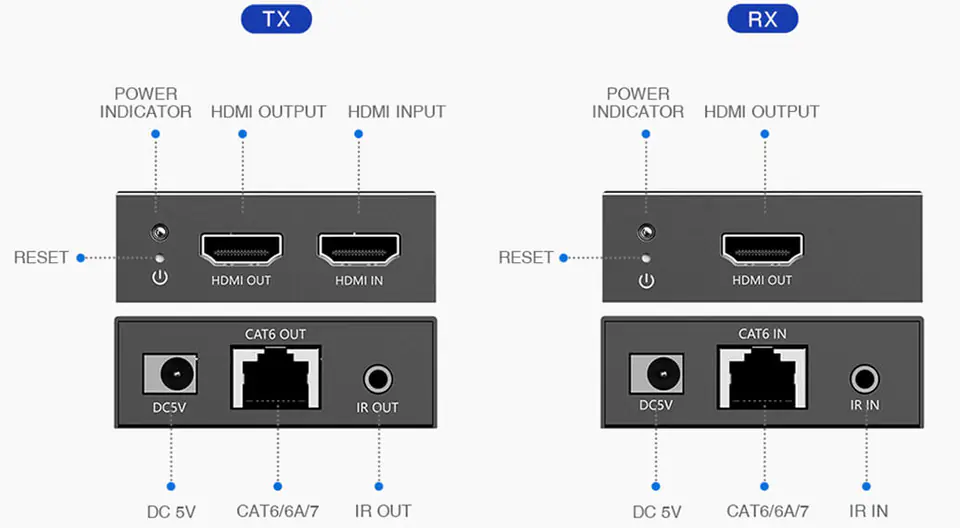

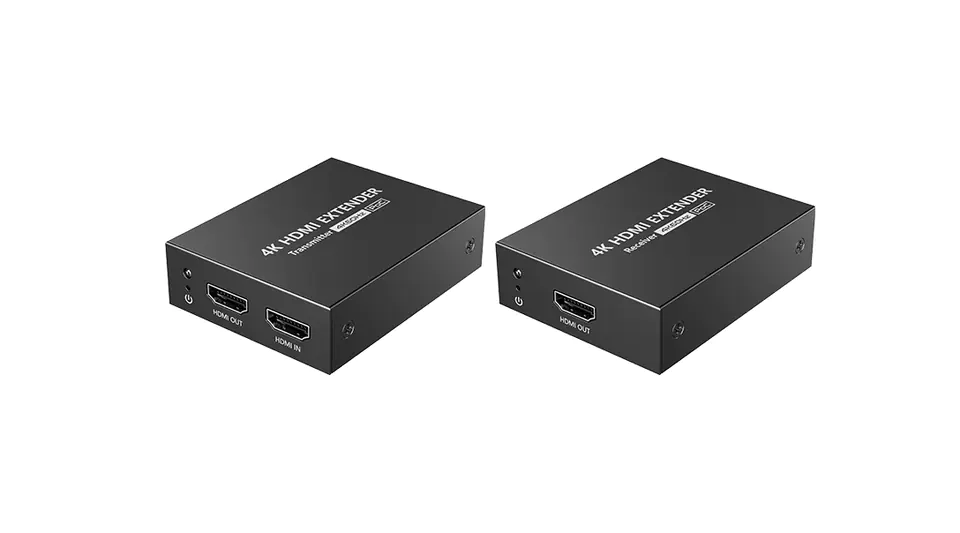

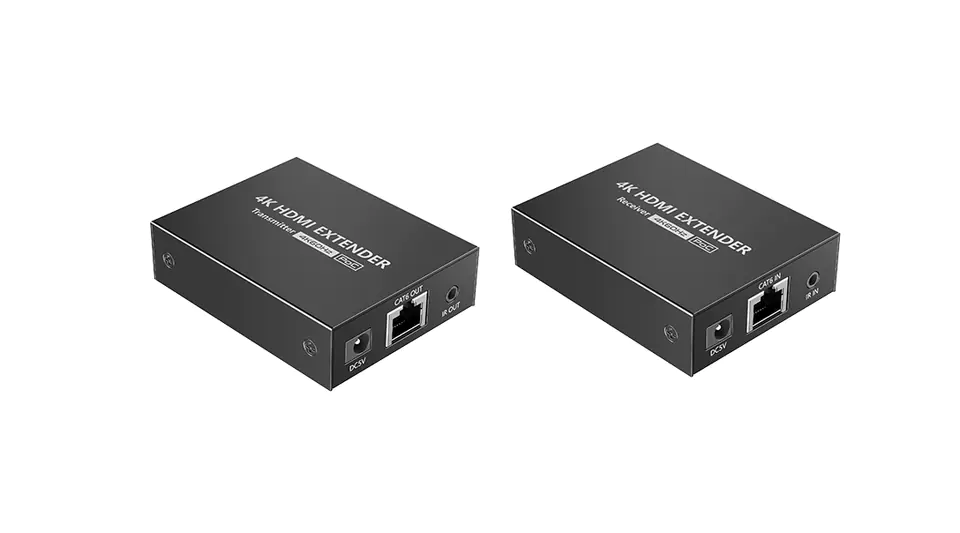

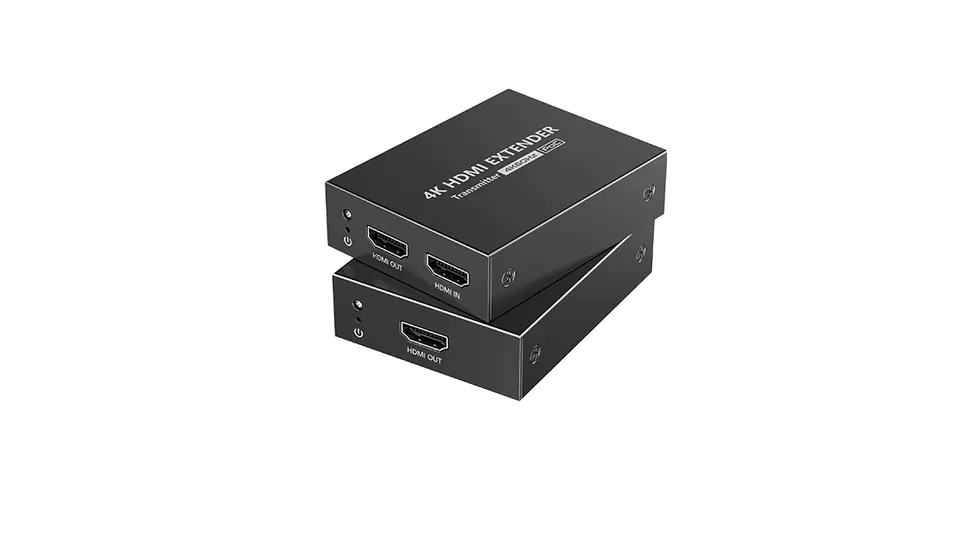

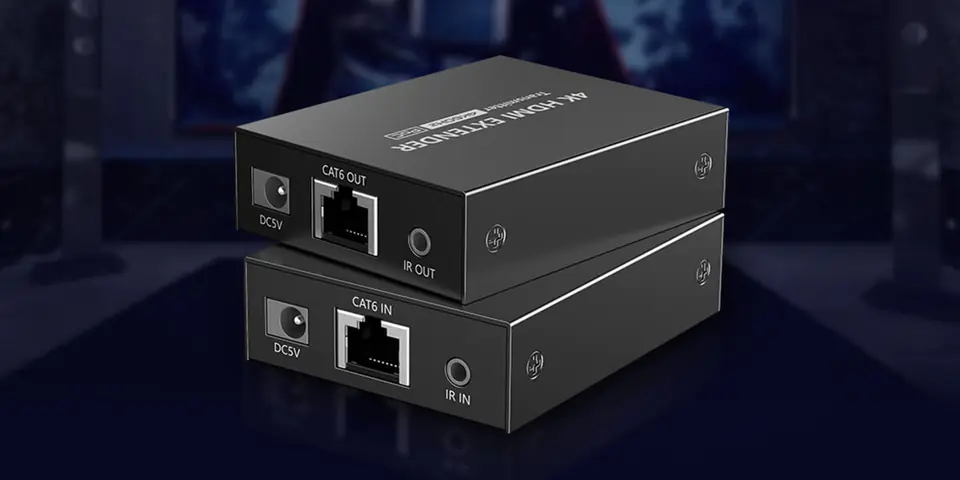

HDMI Extender Spacetronik SPH-HLC6IR. The device allows to connect a high-resolution 4K@60Hz signal to a receiver (TV, monitor, etc.) equipped with HDMI connector via twisted-pair cable category 6 or higher. The set includes transmitter (TX) and receiver (RX). An additional advantage of the device is the transmission of the remote control functions using the included IR infrared. The device transmits HDMI 2160p over a distance of 50 meters.

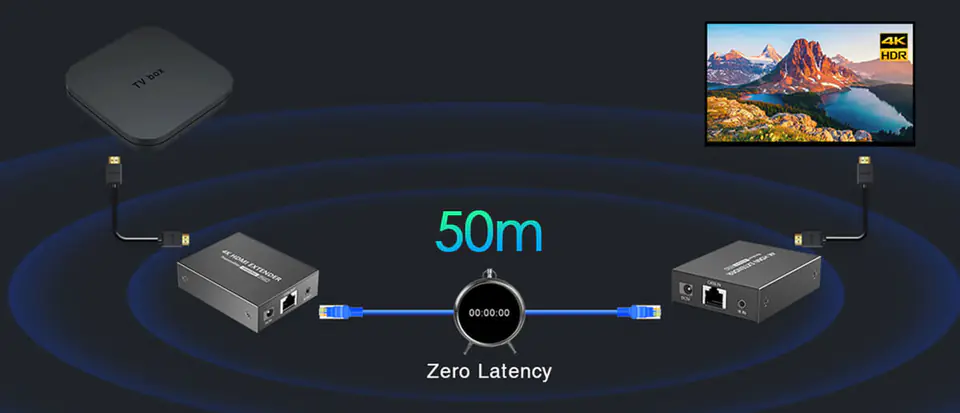

HDMI over LAN transmission without delays
Thanks to the use of the highest quality components together with the use of CAT6/6A/7 cable, we can enjoy a large transmission distance completely without delays.
Extender HDMI 4K@60Hz HDR
The device supports resolutions up to 3840x2160@60Hz. The quality of the displayed image is exactly the same as the original one, and even clearer, more real and presents more detail.
Automatic downscaling
Based on the EDID information from the display, the transmitter will automatically adjust the resolution, so that the image quality will be the best possible.
Adapted to audio formats
HDMI 4K Extender supports such audio formats as: LPCM, DTS-HD, DTS-AUdio, Dolby Digital, Dolby Atmos

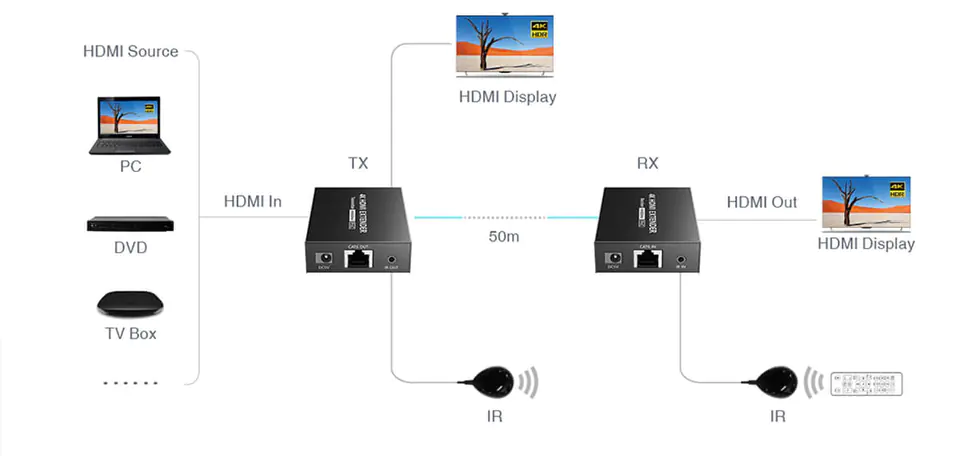

Connection diagram
Example connection diagram. Importantly, only the transmitter requires power. POC powered receiver (Power supply via LAN cable

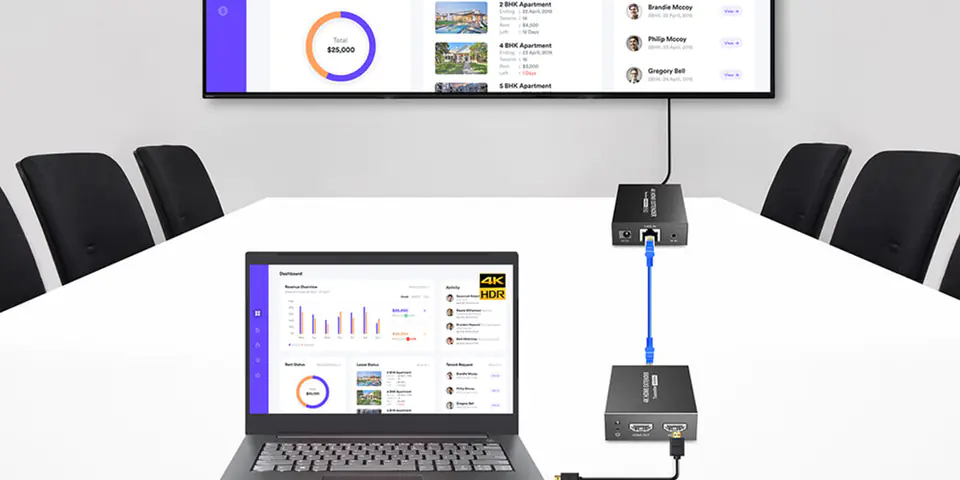

The device is perfect for connecting a satellite receiver, DVD player, computer or console to a receiver away from the devices. Only one twisted-pair cable should be connected to the TV, which facilitates the installation of the device and improves the appearance of the TV hung on the wall using the LCD bracket.
Specification:- HDMI cable length: up to 5m
- Max. transmission speed: 18Gbps
- Max. frequency: 600MHz
- Compatibility: HDMI2.0, HDCP 2.2, HDCP 1.4
- Resolution: 480i@60Hz、480p@60Hz、576i@50Hz、576p@50Hz、 720p@50/60Hz、1080i@50/60Hz、1080p@50/60Hz、 3840x2160@24/25/30/50/60Hz、3440x1440、2560x1440、 2560x1080、204040 8x1080、1920x1440、1920x1080、 1280x960、1280x800、1280x768、1680x1050、 1360x768、1366x768、1600x900、1024x768、800x600
