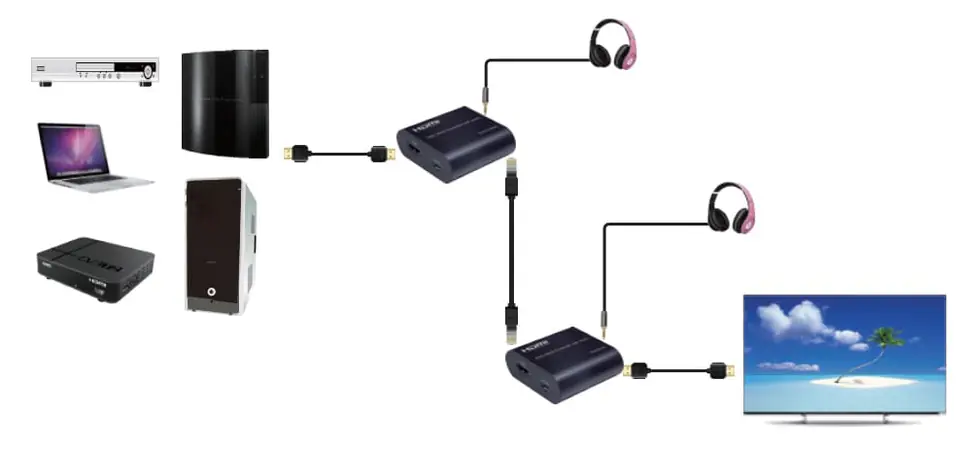

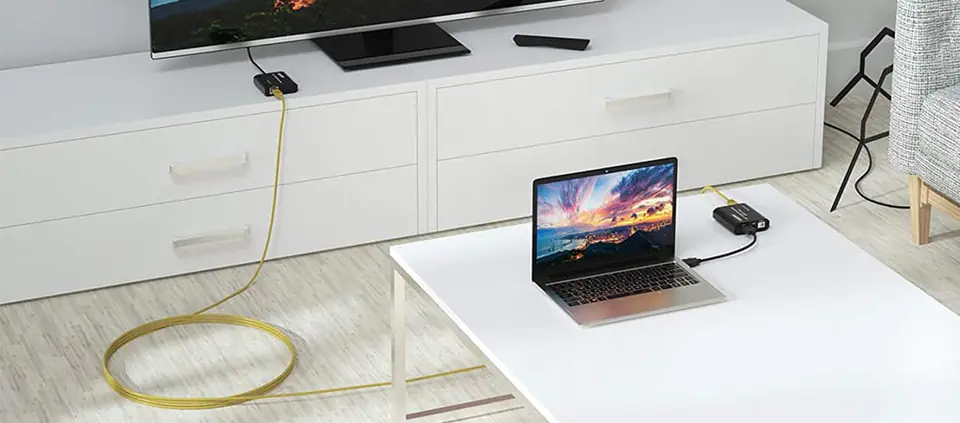

Connecting an HDMI to LAN converter is very easy in this case. In principle, it is enough to connect HDMI inputs, e.g. from a laptop, DVD, console, etc. to the transmitter, connect the output device such as monitor, projector, TV to the receiver. Then connect both devices (transmitter and transmitter) with each other using a LAN cable depending on your preferences and connect the power supply (USB cable included).
Distinguishing features:- transmission via one cable cat. 6 or 5e
- 4K@30Hz picture mode
- maximum cable length 120m
- audio transfer thanks to 3.5mm jack jacks
Technical parameters:- Name: HDMI to LAN Extender
- maximum cable length CAT6/5e - up to 60 meters
- HDMI input - 4K@30Hz/1080p/1080i/720p/576p/576i/480p/480i
- HDMI output - 4K@30Hz/1080p/1080i/720p/576p/576i/480p/480i
- EDID function - 1080p/4K resolution switch - default when 4K is turned on
- operating temperature: -15...55ºC
- humidity: 5%-90% (non-condensing)
- dimensions 64x59x22mm
- weight: TX 53g / RX 53g
- power supply: 2x micro USB cable (included)

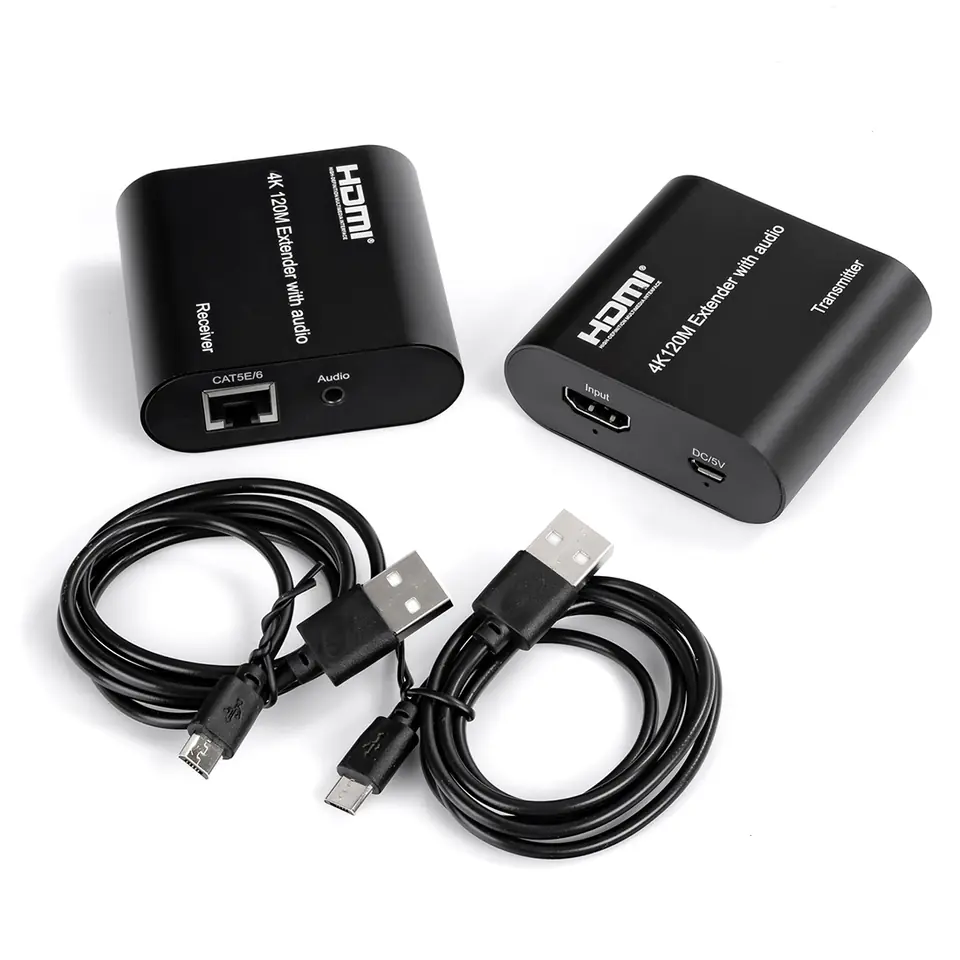

Kit Contents:1x Transmitter
1x Receiver
2x micro USB cable
