The HDMI to IP converter allows you to connect a high-definition (HD) signal to a receiver (TV, monitor) equipped with an HDMI connector via twisted pair computer cat 5e or cat. 6. The set includes a transmitter and receiver. The IP signal coming out of the transmitter can be fed to the Ethernet switch to be divided into a larger number of receivers. The bit rate of the compressed signal at the output of the transmitter is about 30Mbit/s. For proper decoding of the signal, a dedicated RX receiver is necessary - viewing the image on a PC equipped with a network card is impossible. Transmission range up to 120m.
Supported resolution up to 1080p
The device is ideal for connecting a satellite tuner, DVD player, computer or console to a receiver away from the devices. Only one twisted pair cable should be brought to the TV, which facilitates the installation of the device and improves the appearance of the INSTALLATION of the TV hung on the wall using the LCD bracket. The set is suitable for both single-point and multi-point connection, making the device very versatile. REMARK! The set includes a transmitter and receiver for single-point connection. To transmit the signal multi-point, we need to buy RX receivers, available in our offer.

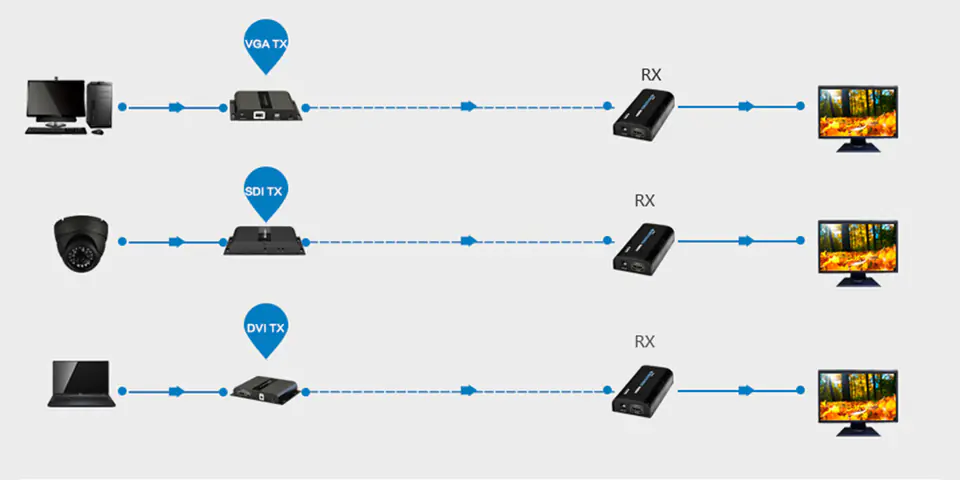

Scheme application of the converter:

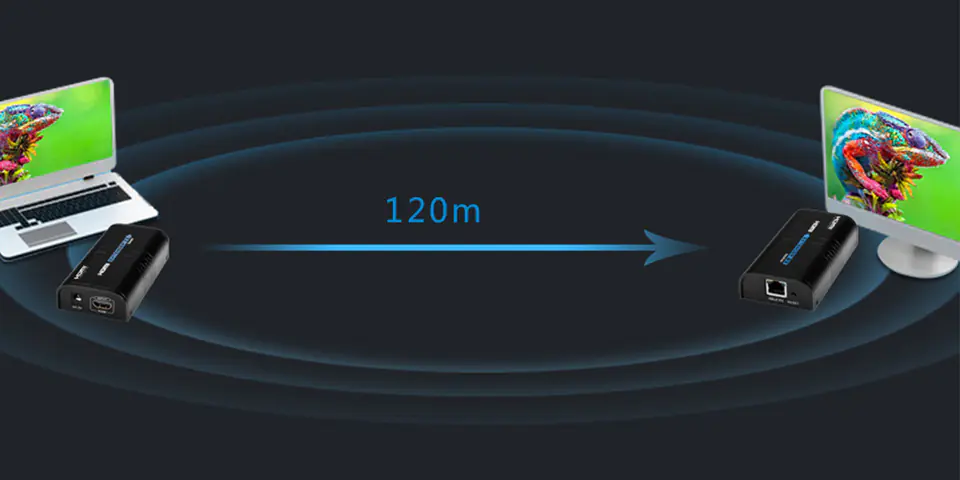

- single point

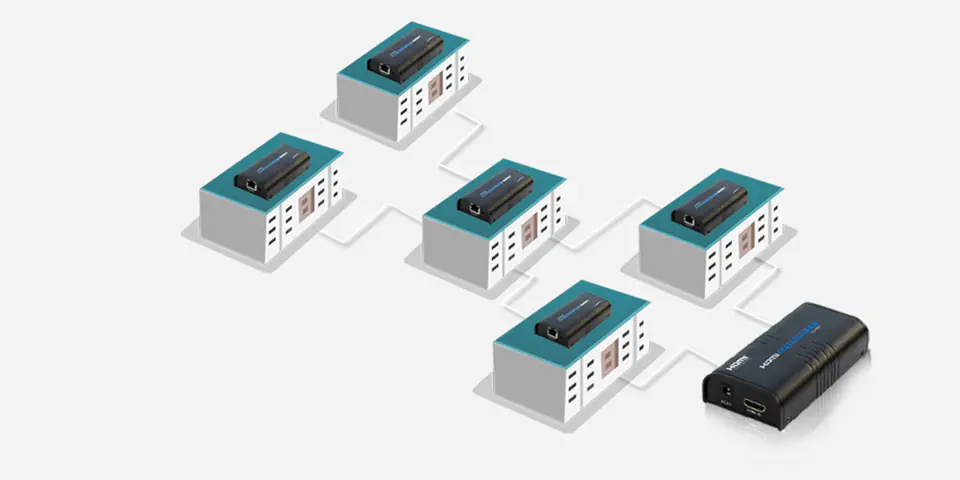

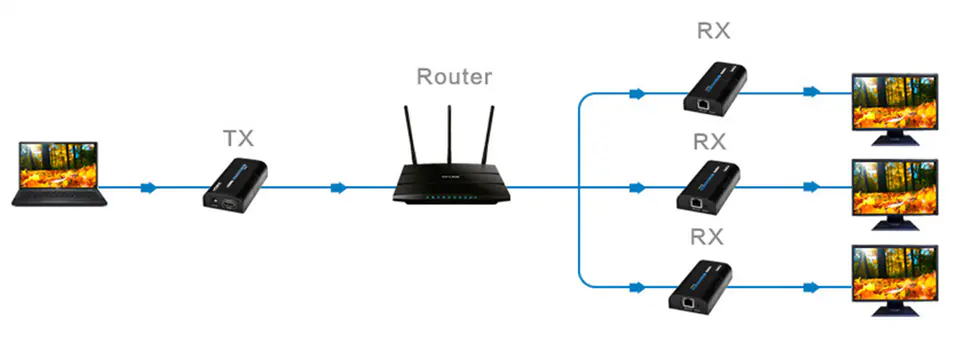

- multi-point:
Distinguishing features:
- transmission by one wire cat. 5e/6
- UDP/IP transmission (multicast)
- the ability to create point-to-multipoint connections
- 1080p picture mode
- maximum cable length 120m
Technical parameters:- version v 4.0
- Name: HDMI to IP Converter
- Supported Video formats: DTV/HDTV: 480i/576i/480p/576p/720p/1080i/1080p
- maximum length of twisted pair cat. 5e/6: 100/120m
- operating temperature: -10...60ºC
- humidity: 20%-90% (non-condensing)
- dimensions: 110x58x26mm
- power supply: 230V AC/ 5 V DCbr

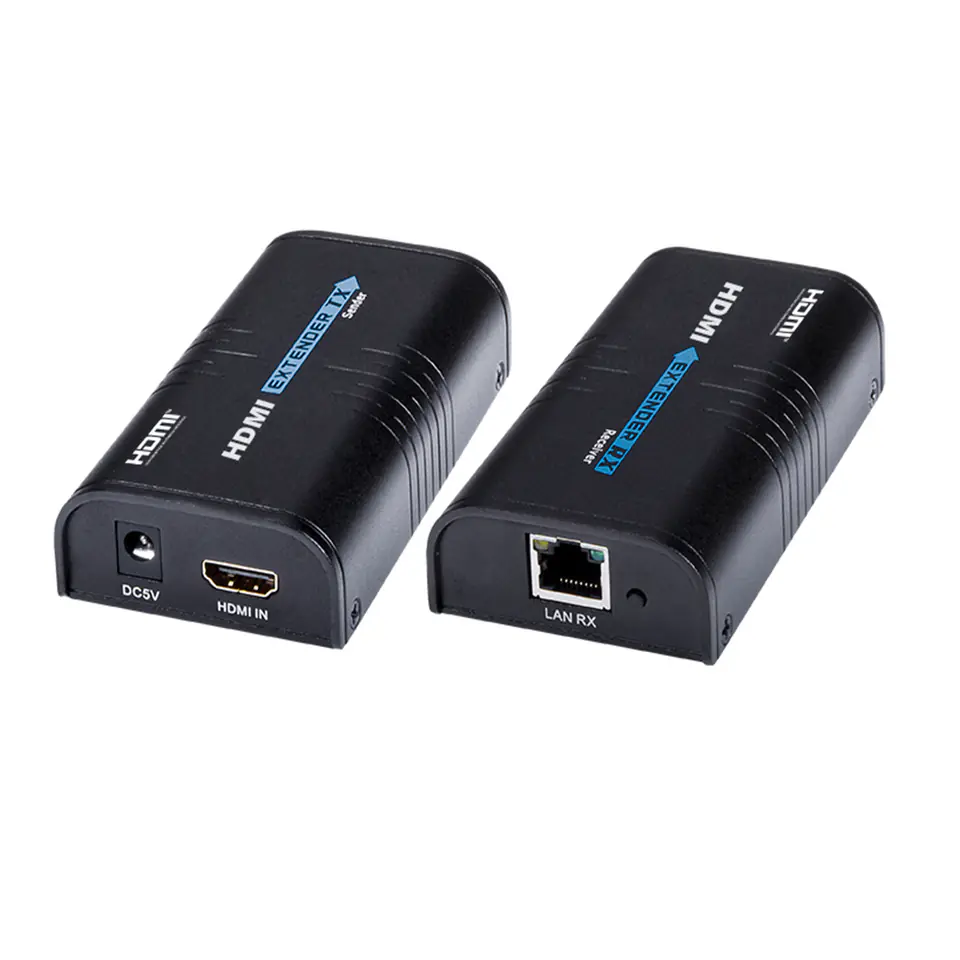

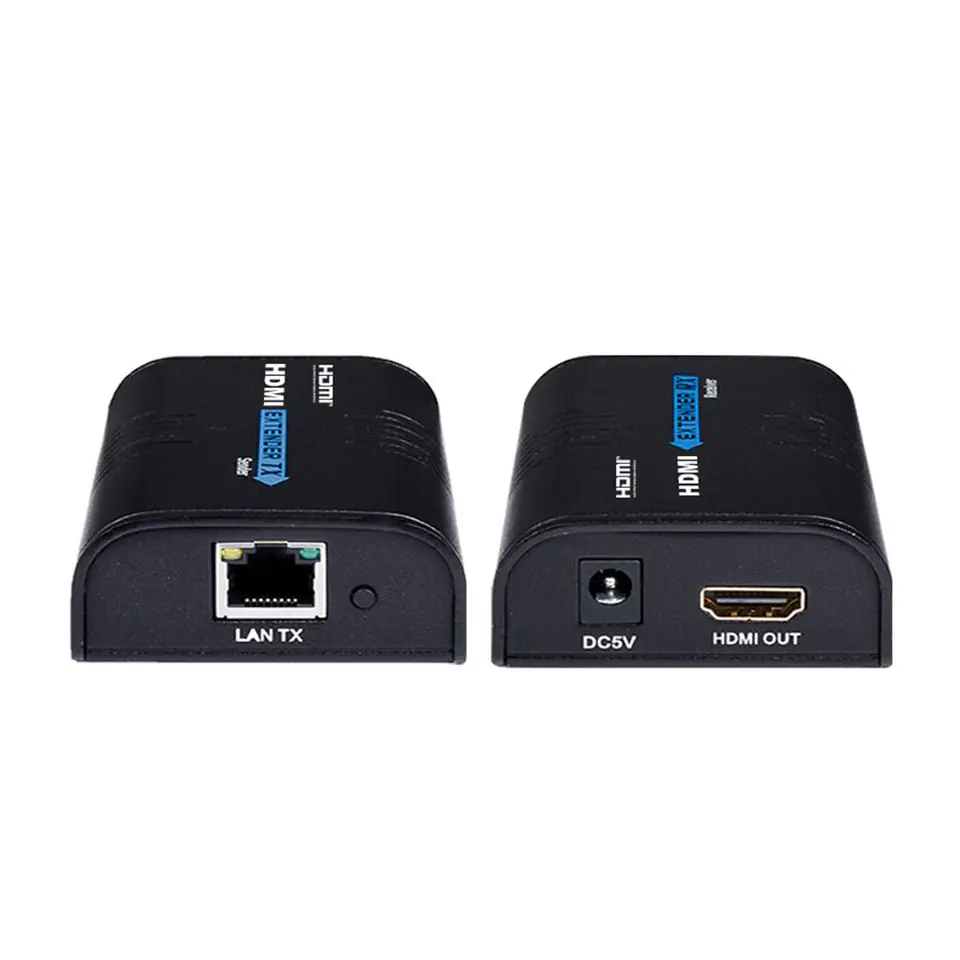

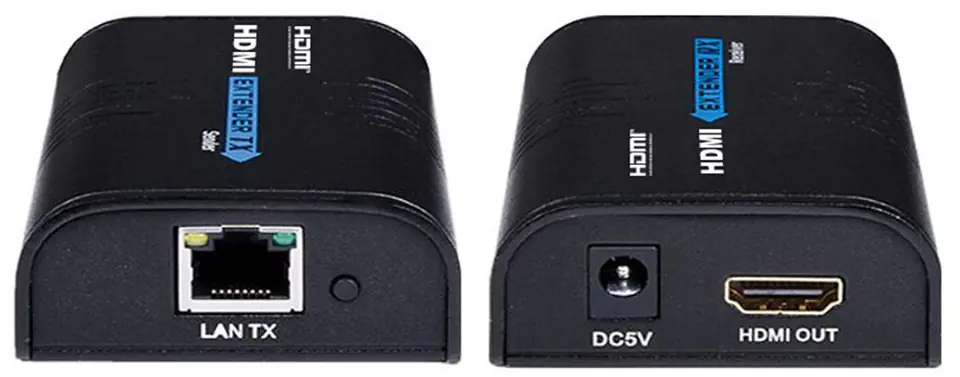

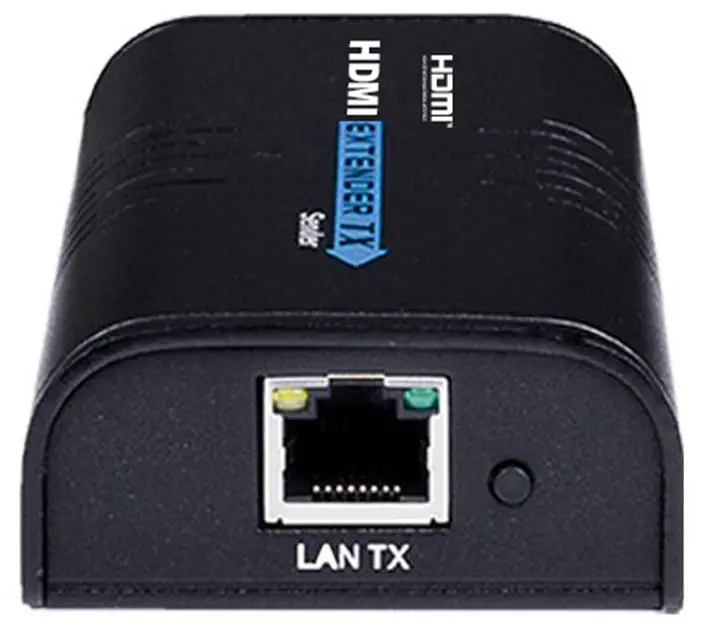

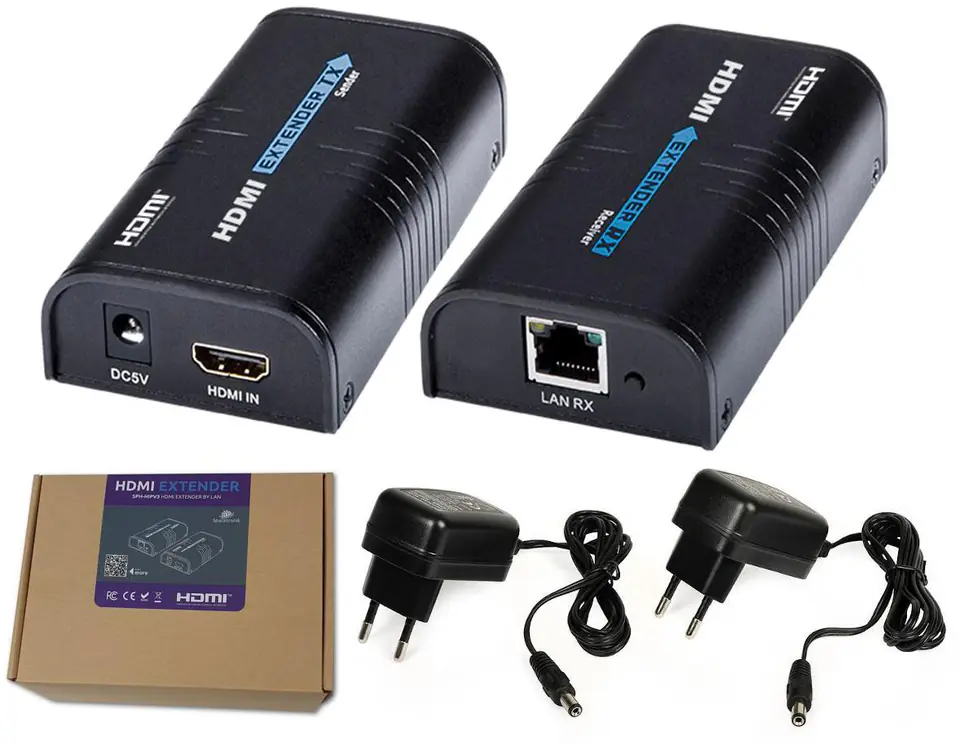

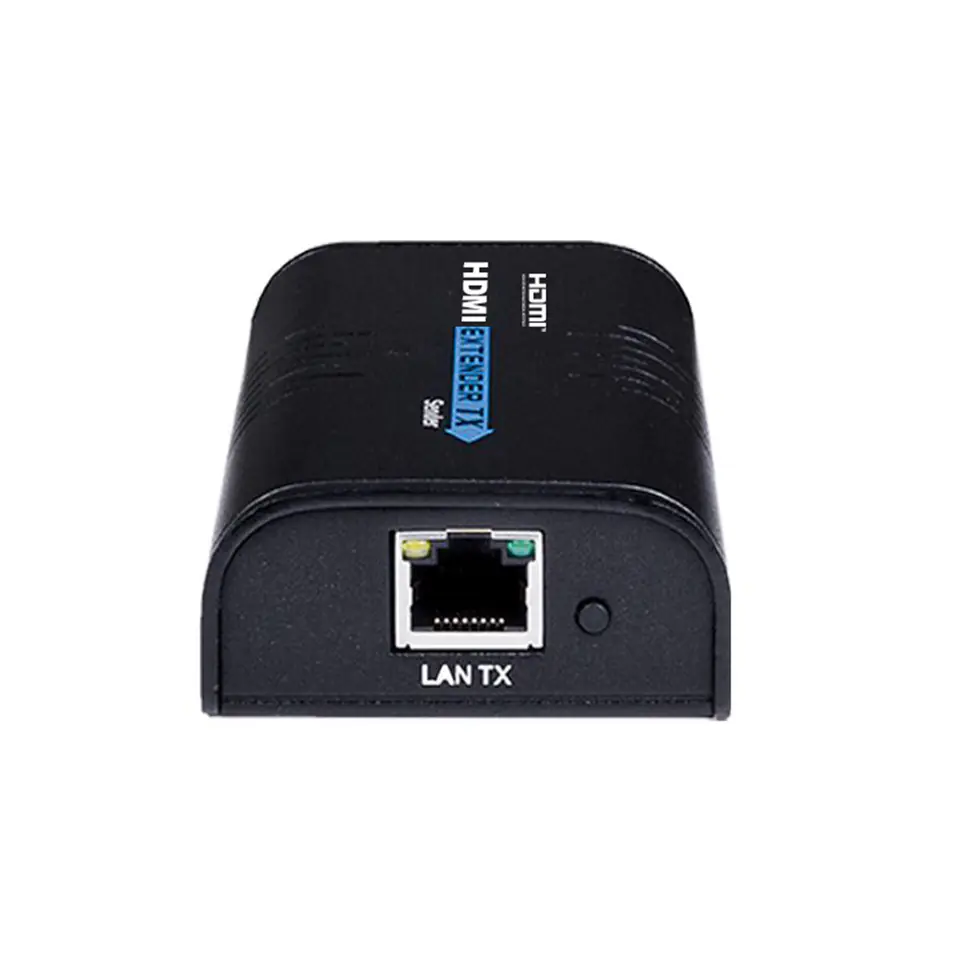

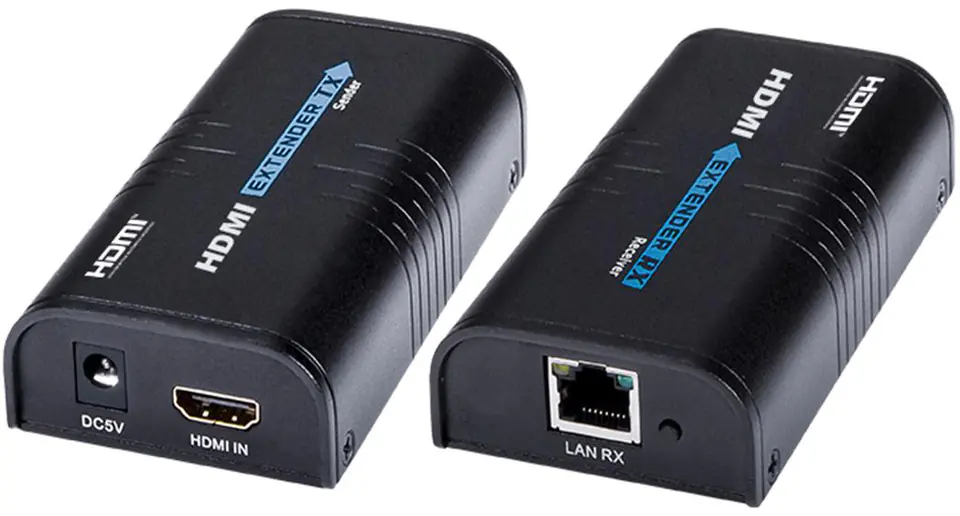

Kit Contents:- TX Transmitter

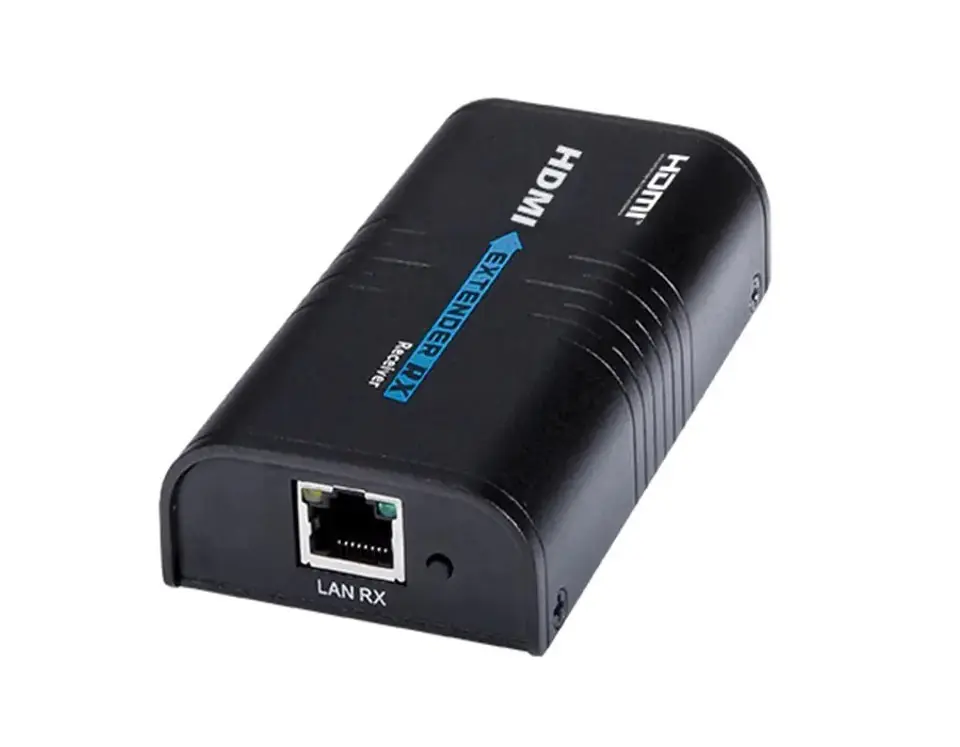

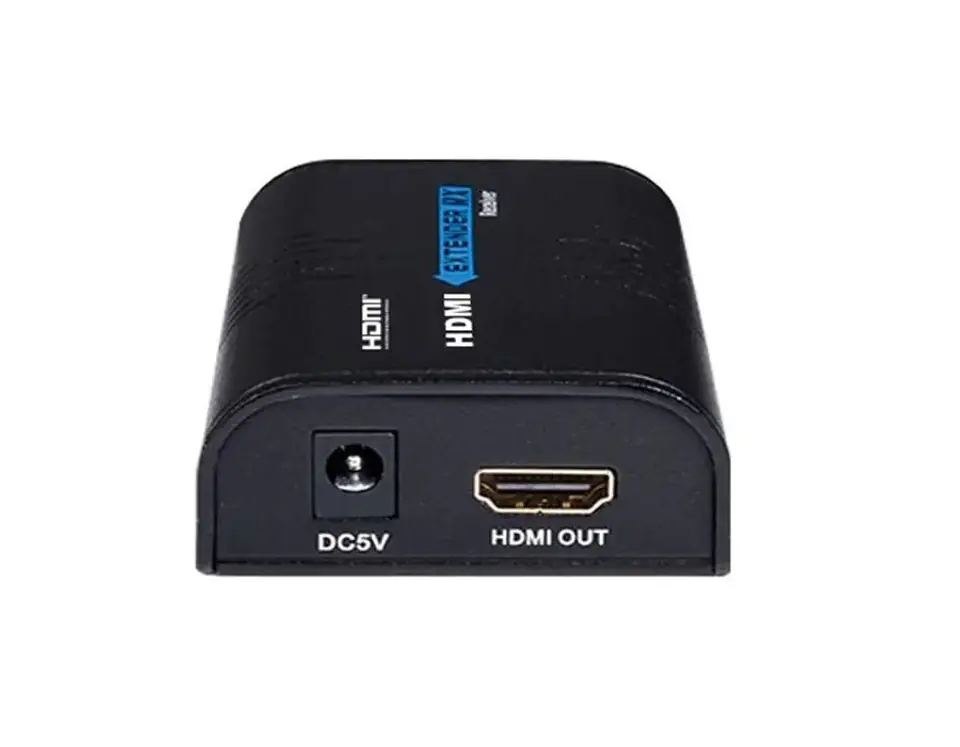

- RX receiver

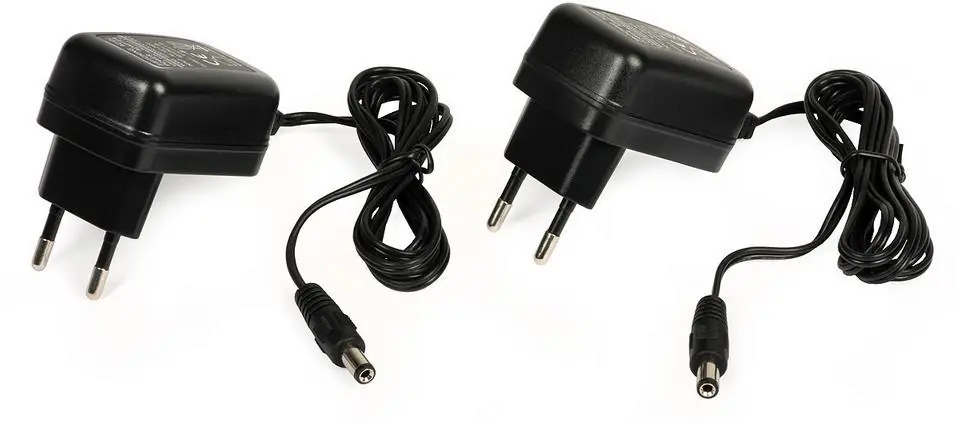

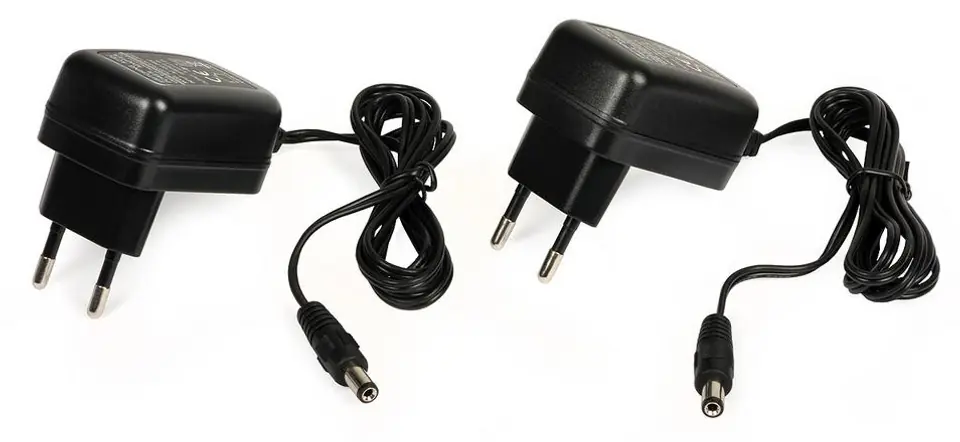

- 2x Power Supply
