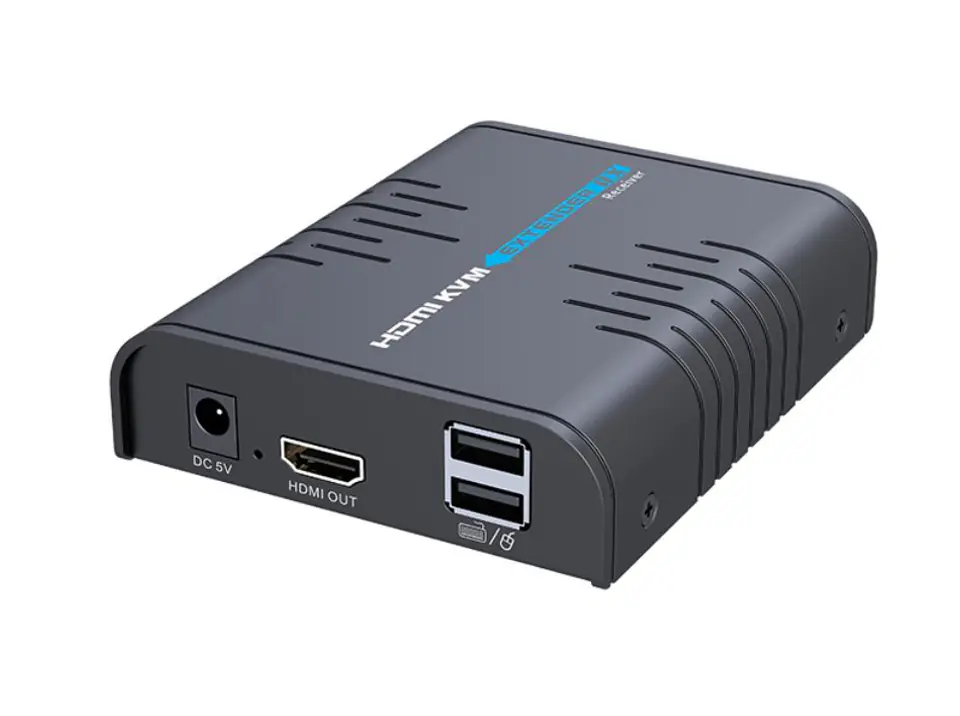

An additional receiver for the HDMI to IP KVM set that allows the HDMI signal to be sent via the IP network to the next receiver. The receiver has the ability to transmit a USB signal.
The IP signal coming out of the transmitter can be fed to the Ethernet switch to be divided into a larger number of receivers. The bitrate of the compressed signal at the output of the transmitter is about 15 Mbit/s. For proper decoding of the signal, a dedicated receiver is necessary - viewing the image on a PC equipped with a network card is impossible.
Distinguishing features:
- Extend HDMI signal up to 120 meters via a single network cable
- Highest supported resolution up to 1080p @ 60Hz
- 3x INDICATORS LED indicating the status of connection, power supply and USB communication
- Supports 802.3 Ethernet 10/100/1000Mbps
- Compatible with STP and UTP CAT5 /5e/6 network cables
- Construction made of aluminum - stable and durable
Advantages:
- Transmission via one cable cat. 5e/6
- UDP/IP transmission
- 1080p image mode
- Maximum cable length 100 m
- USB extension cable
The bitrate of the compressed signal at the output of the transmitter is about 20 Mbit/s.
For proper decoding of the signal, a dedicated receiver is necessary - viewing the image on a PC equipped with a network card is impossible.

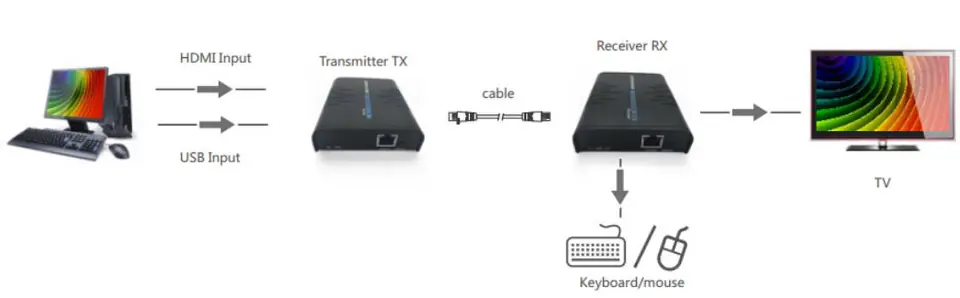

The device is perfect for connecting a recorder, computer or console to a receiver away from the devices.
Only one twisted pair cable should be brought to the TV, which facilitates the installation of the device and improves the appearance of the INSTALLATION of the TV hung on the wall using the LCD bracket.

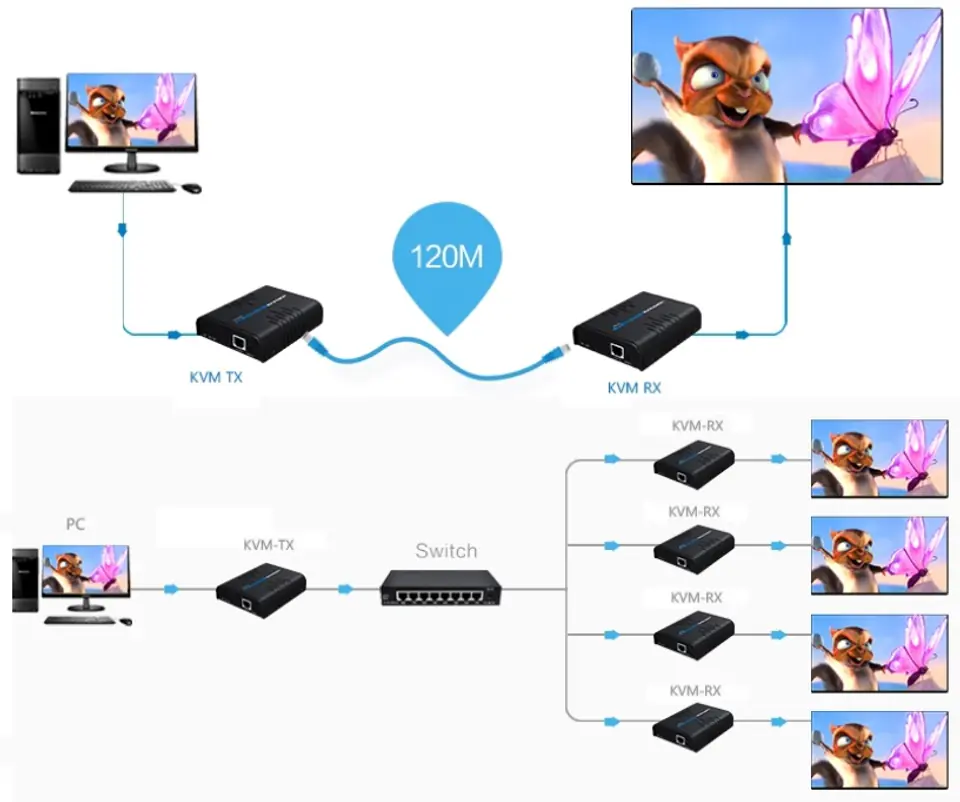

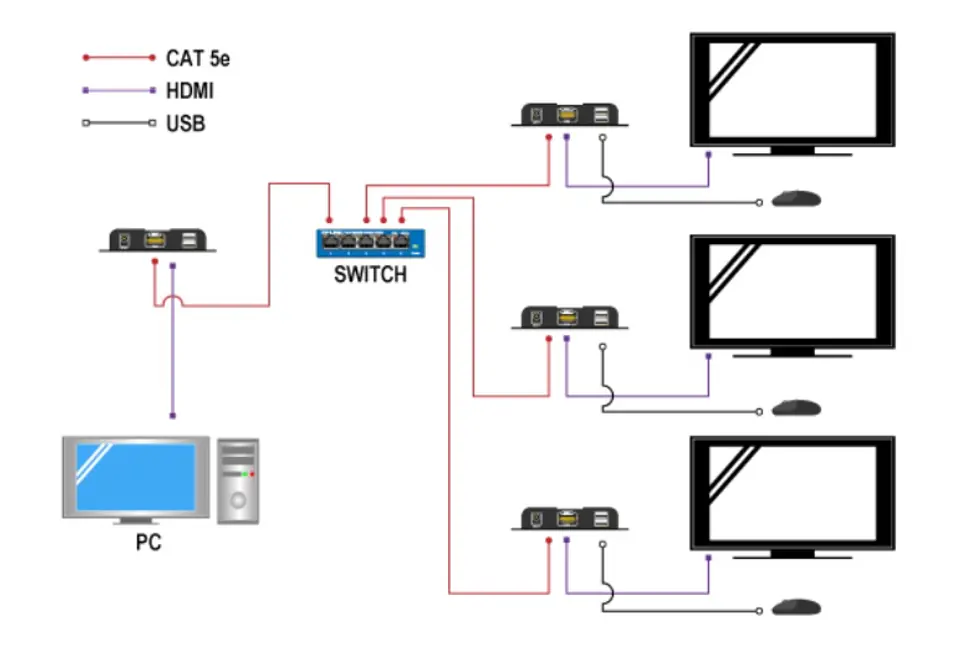

Example of an installation solution:
Technical parameters:
- Supported Video formats: DTV/HDTV: 480i/576i/480p/576p/720p/1080i/1080p
- Maximum length of twisted pair cat.5e: 100 m
- Operating temperature: -10...60 ºC
- Humidity: 20%-90% (non-condensing)
- USB: 2.0
- Dimensions: 138x90x26 mm
- Power supply: AC 230V / DC 5V (included)
