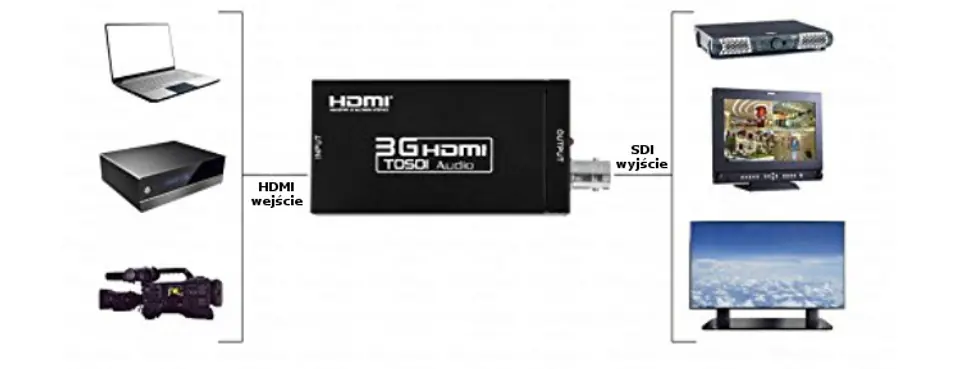

The converter is designed to process 3G SDI video signals. It converts the input HDMI signal to SDI, allowing computer users to display the image not only on a computer monitor, but also on a TV set, which allows the image to be displayed in higher resolutions. The converter offers ideal solutions for security systems, HDTV, STB, DVD, projectors. It is used in installations in public places, data control centers, information management systems, conference rooms, multimedia presentations, schools, training centers and security systems.
Key features:
- ease of use: installation takes a few seconds, does not require additional adjustments.
- converts HDMI signal to HD-SDI
- HDCP compliant
Technical Specifications
- HDMI input: support up to 1080p resolution
- SDI output: SD (480p), HD (720/1080p), 3G (1080p)
- gain: 2.97 Gbps; 1.49 Gbps; 270 Mbps
- depending on the distance, the maximum conversion type changes: up to 100 m 3G-SDI, up to 200 m HD-SDI, above 200 m SD-SDI
- DDC signal at output: 5V p-p(TTL)
- operating temperature: -10st to +80st.
- operating humidity: 5% to 90% RH
- power supply: 5V 1A
