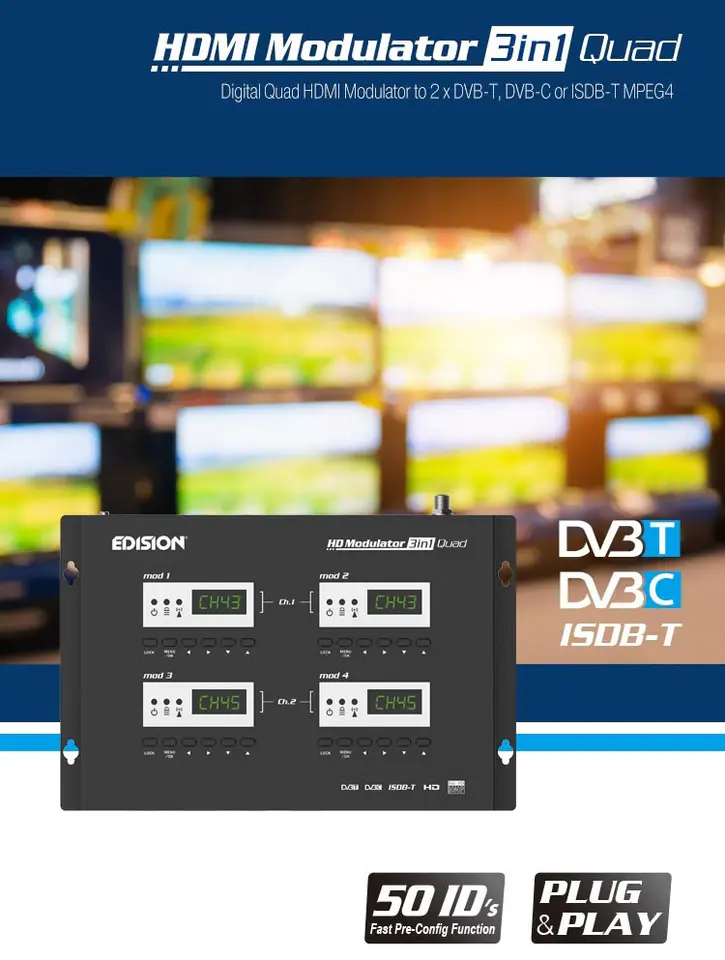

Digital Modulator 4x HDMI to 2x MUX DVB-T/C/ISDB-T EDISION 3in1 QUAD
The 3in1 QUAD digital HDMI modulator is extremely flexible and can convert up to 4x HDMI signals (e.g. from satellite receivers, DVB-T2 terrestrial tuners, PCs, notebooks, surveillance cameras, DVD/Blu-ray players, etc.) to 2x MUX DVB-T, DVB-C or ISDB-T MPEG4. Digital HD input signals up to 1080p are fully preserved here, RF output channels can be very easily received by HDTV receivers or TVs with built-in DVB-T, DVB-C or ISDB-T MPEG4 tuner. In addition to excellent signal quality combined with reliability, Quad Modulator offers easy and quick configuration with Pre-Config function, making installation very fast PLUG & PLAY!

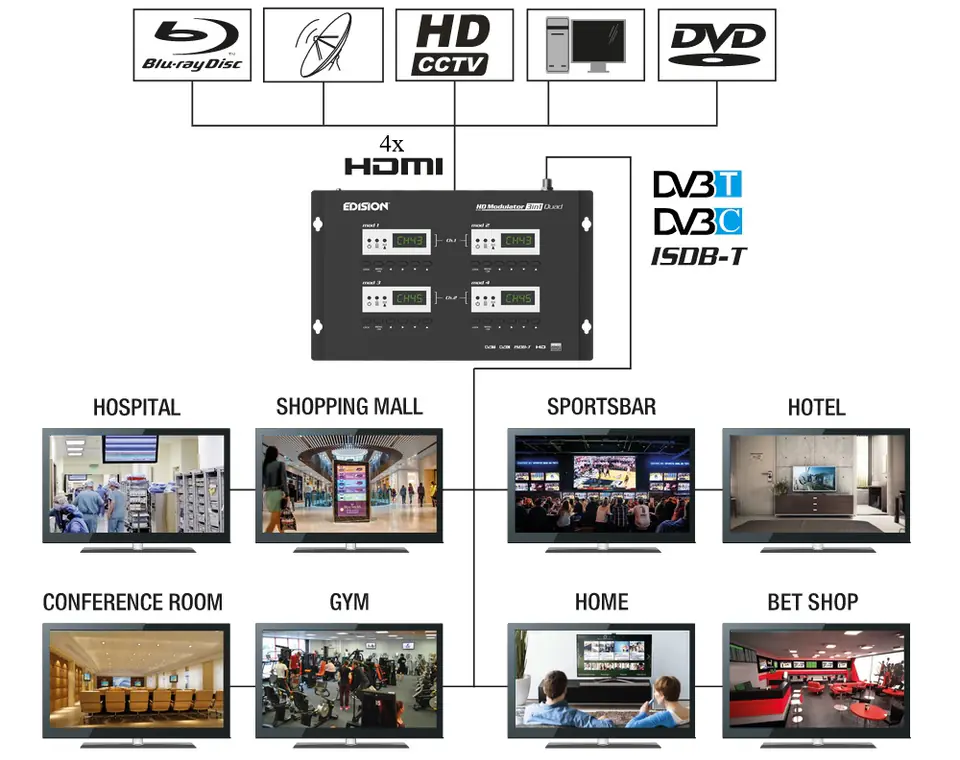

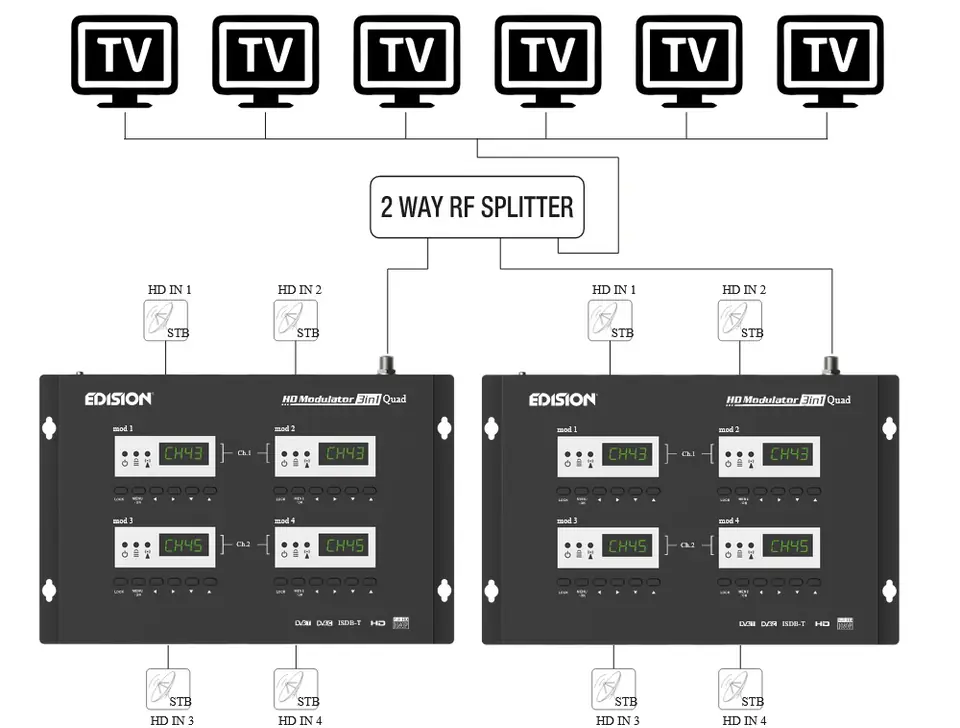

Possibility to connect four HDMI signal sources and modulate them into four channels, two digital multiplexes DVB-T / DVB-C / ISDB-T MPEG-4. Of course, the modulators can be combined with each other, which allows for network expansion. Transmission of signals via coaxial cables in existing TV installations. Application of the device:
Hospitals
- television for patients
- transmission from operating rooms
- student education
-monitoring
-Ads
Shops and galleries
- promotional channels
-Ads
Corporate TV
- company TV channels
-Video conferencing
-education
Schools and universities
- broadcast of lessons and lectures
- university television
-Feeds
- transmission from PCs
Sport
- TV in the gym
- transmission of sports events in high definition
-Ads
Technical Specifications:
- Digital modulator QUAD HDMI for DVB-T, DVB-C or ISDB-T/MPEG4
- Input signal: 4 x HDMI v1.4a
- Output signal: terrestrial digital DVB-T, ISDB-T or cable DVB-C MPEG4
- Video resolution up to Full HD 1080pp@30FPS
- 16:9 widescreen, 4:3 letter box, 4:3 pan-scan
- DVB-C frequency range: 47-862 MHz
- DVB-T frequency range: VHF (CH.5-12) and UHF (CH.21-69)
- ISDB-T frequency range: VHF (CH.7-13) and UHF (CH.14-69)
- RF output level: factory setting 90 dbμV, up to +6dbμV or up to -14dbμV
- Highest quality of MER modulator >35dB
- 6MHZ transmission rate: up to 2x8000 Mbps, 7MHZ: up to 2x9000 MBPS, 8MHZ: up to 2x10000 Mbps
- Band 6 MHZ, 7 MHZ, 8 MHZ
- Video codec: MPEG1, MPEG2 MP@HL, MPEG4 SP@L3 to ASP@L5, MPEG4 AVC HP @level4.1, MP@level4.1
- Audio codec: MPEGI L1/2, MPEGII LII, AAC LC, HE-AAC v1/v2 (2-channel)
- Processor system: CPU 4 x 200 MHz 32-bit RISC
- 4 x DDRII 16bit 512Mbit memory (built-in) and NOR Flash 32Mbit
- USB Type 4 x USB 2.0 HOST, support Fat32
- Quick pre-configuration function / 50 identifiers to choose from
- USB backup and configuration function
- USB software update function
- Connectors: 4x HDMI IN, RF OUT, 4x USB, SERVICE PORT, DC 12V
- LED display
- External power supply: input: 100~240V AC universal EU/UK, output: DC 12V/4,5A
- Low power consumption, maximum <20W
Contents:
- HDMI Modulator 3in1 QUAD
- External power supply 12V/4,5A universal EU/UK
- Mounting screws
- User manual EN/DE/GR/ES/IT/FR
General:
- Dimensions: 255x195x40mm
- Weight: 1.65 kg
-Black
- Warranty: 2 years
