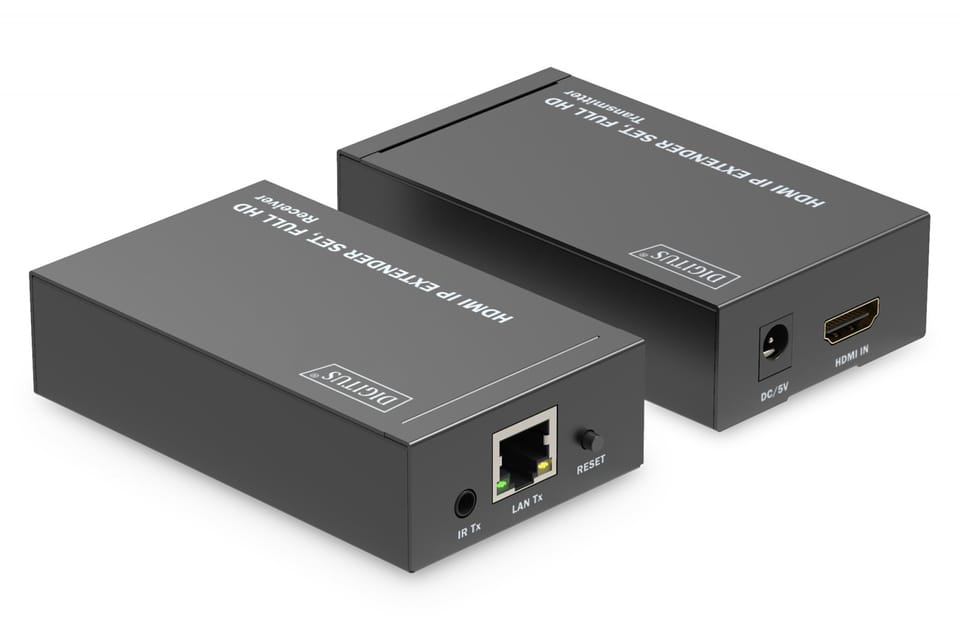

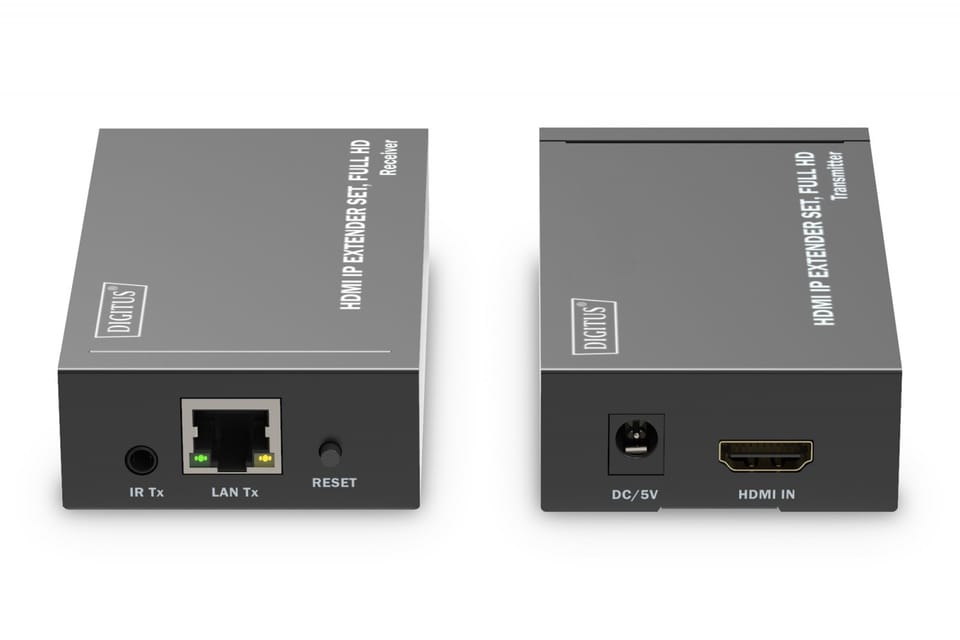

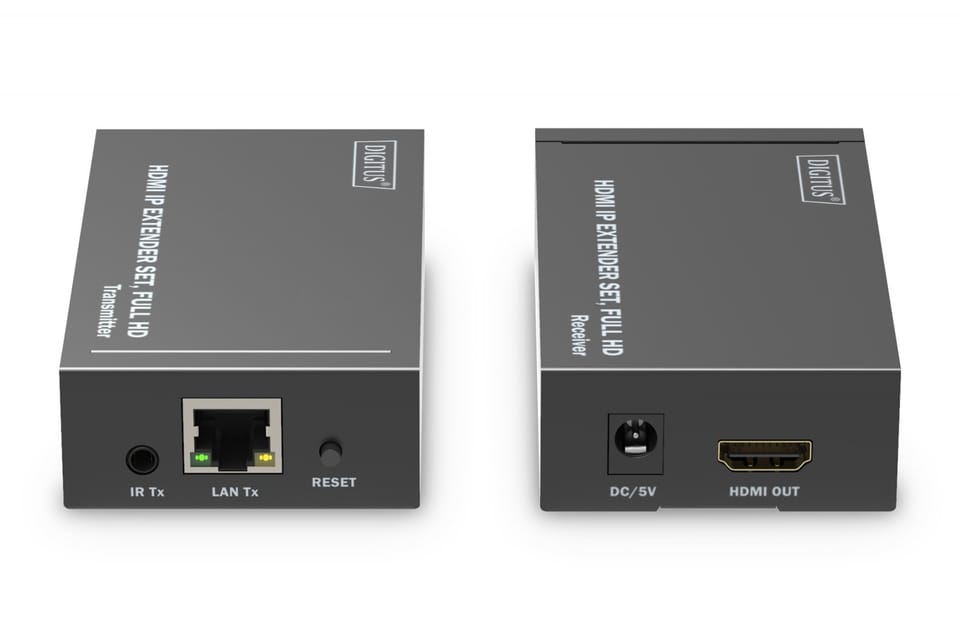

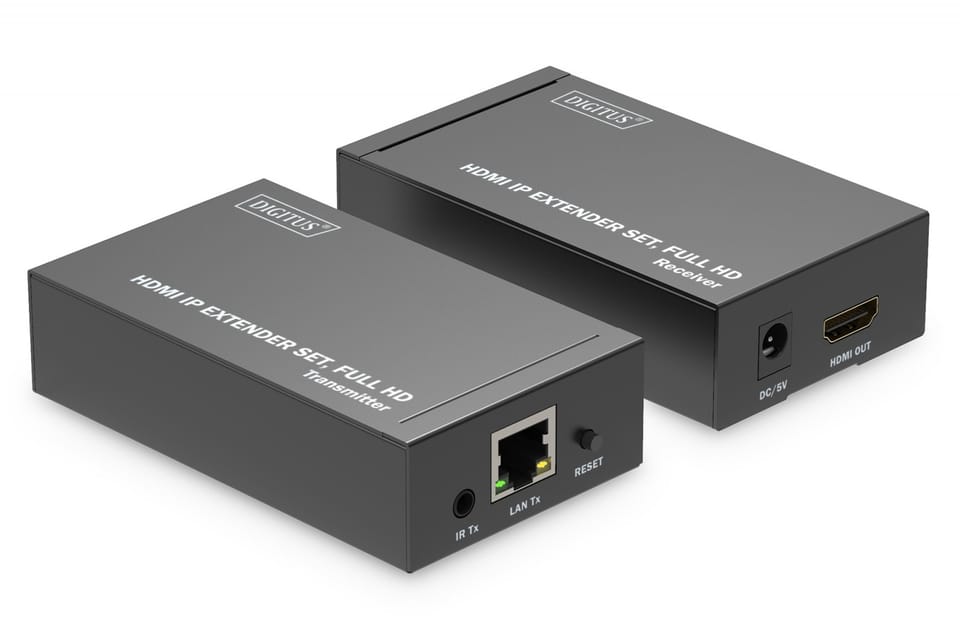

The HDMI extender kit is a high-performance video signal extender system consisting of transmitter and receiver modules. Extends the range of the Full HD audio-video signal up to 120 m using a CAT6 network cable (point-to-point connection). Additionally, you can use network switches and single receiver modules (DS-55518) to transmit video content over your existing network infrastructure (IP connection) to up to 253 displays and extend the coverage to an unlimited distance. Additionally, the integrated bidirectional infrared (IR) signal interface allows remote control of the input signal source via the output screen (on the receiver side).
- The solution allows you to extend the audio-video signal in Full HD via a CAT 6 cable over an unlimited distance via your existing network infrastructure or using commercially available network switches

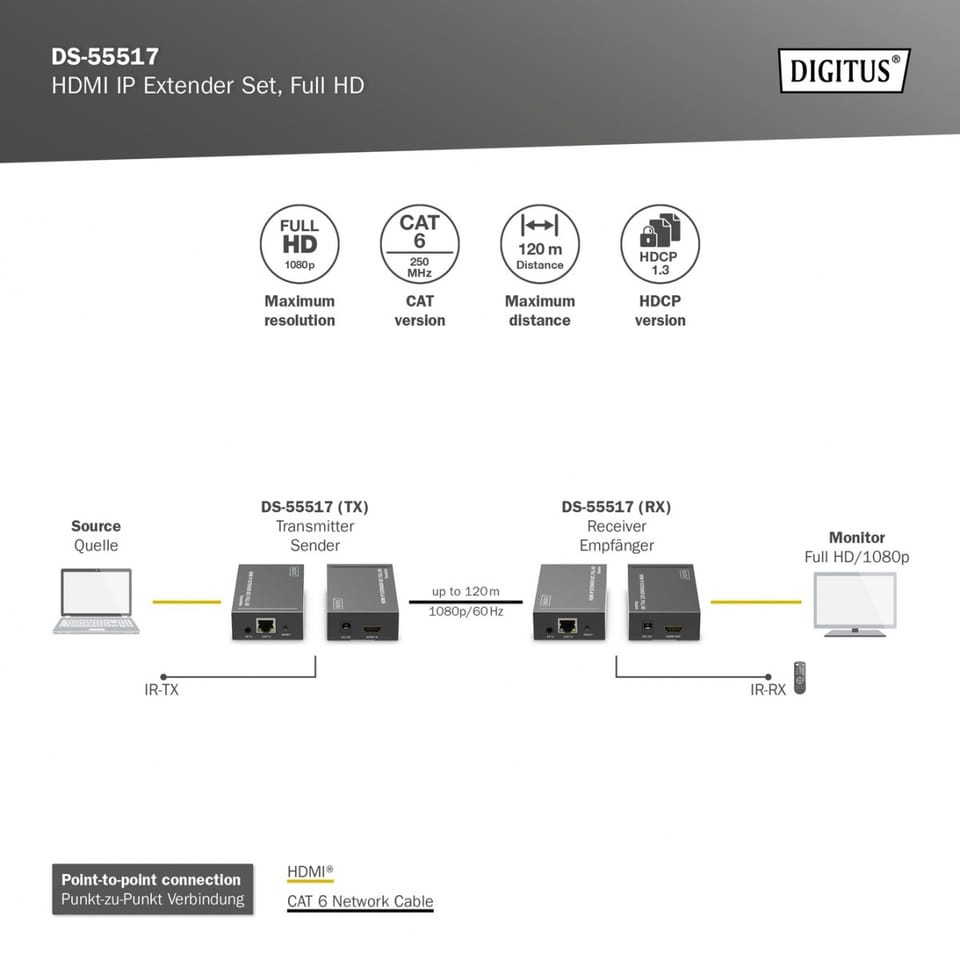

- Extends the range of the Full HD audio-video signal via a CAT 6 cable to a distance of up to 120 m (point-to-point connection)
- Resolution support up to max. 1080p/60 Hz, Full HD
- Support for CAT 6, CAT 6A, CAT 7, CAT 8 network cables

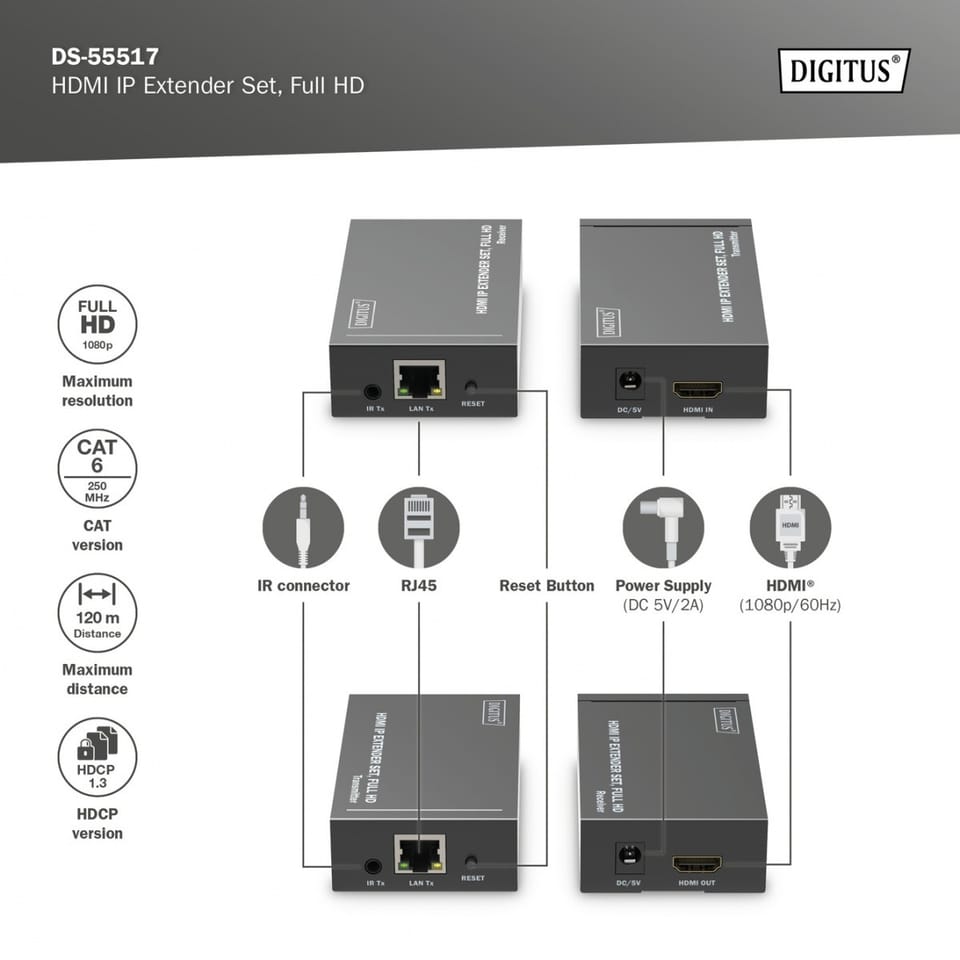

- The infrared (IR) signal interface allows remote control of the input signal source via the output screen

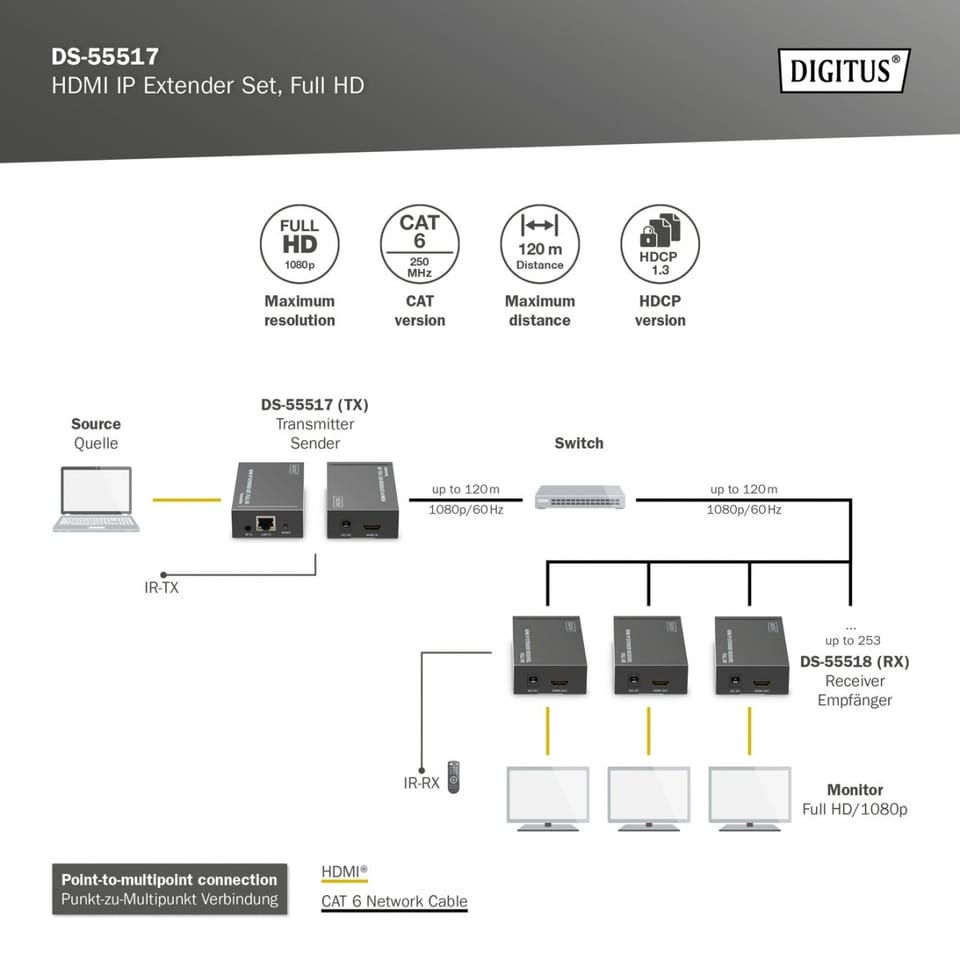

- You can use additional receiver modules (DS-55518) and your existing network infrastructure to display video content on up to 253 screens (IP connection)
- Housing: metal
- Suitable for wall mounting
