Audio and HDMI Switch with extractor function in one

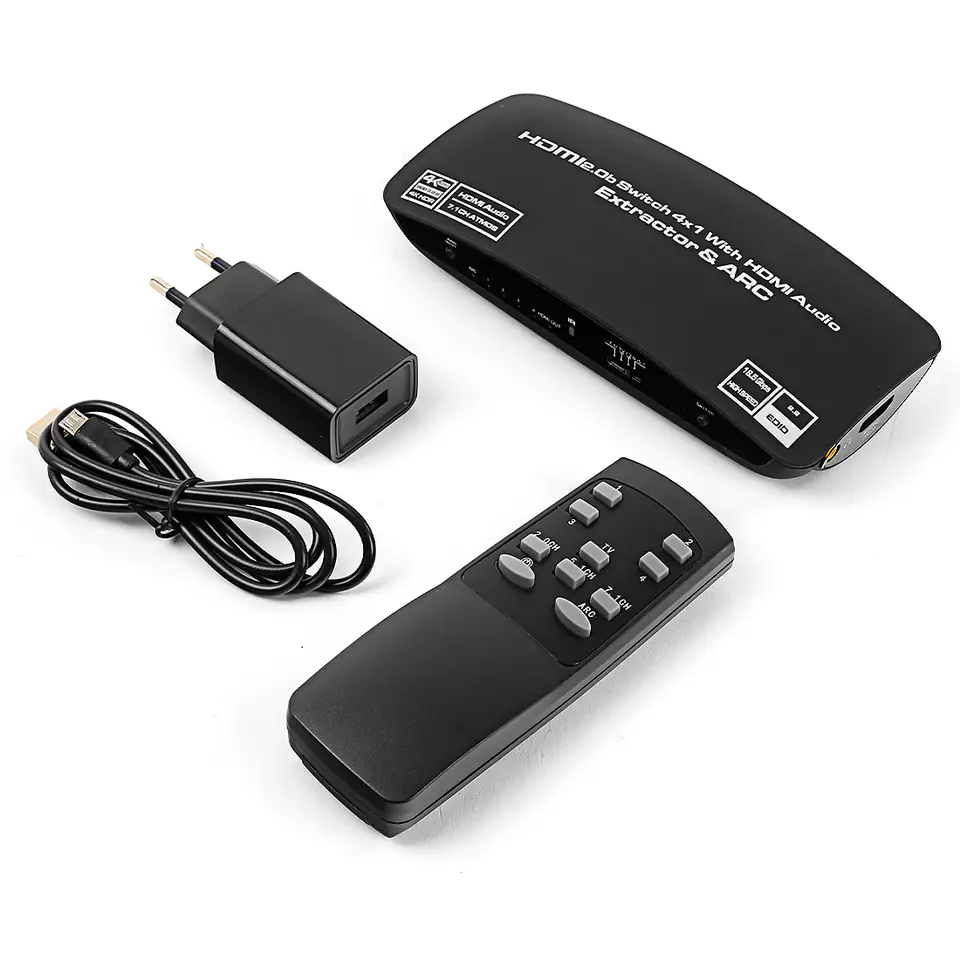

The SPH-RAE04 switch is capable of transmitting HDMI signals from four different HDMI sources and displaying one of them on the screen in 4K@60Hz quality . At the same time, it is extremely easy to connect external speakers, amplifiers, soudbars and other audio devices. The whole can be controlled using the included remote control.

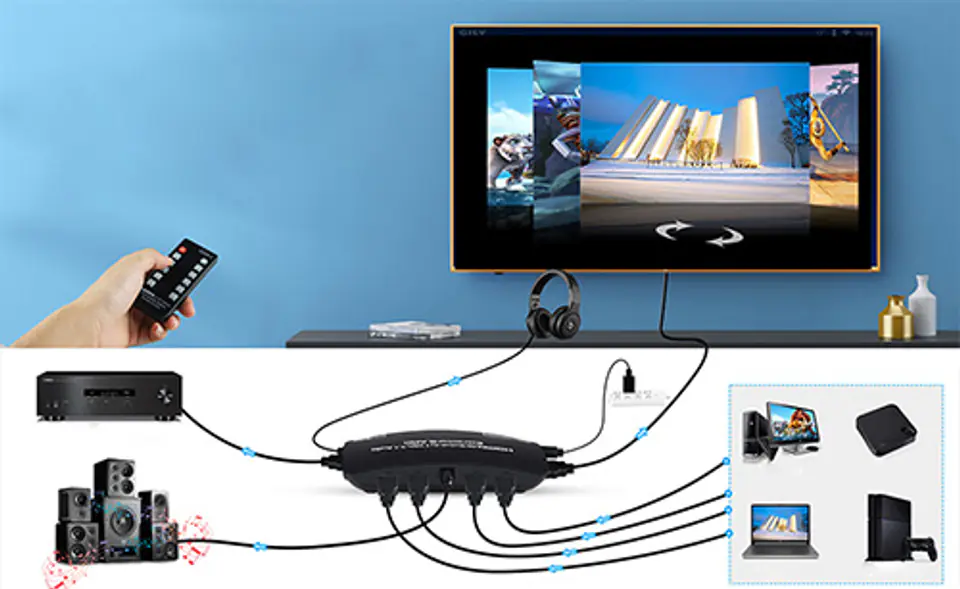

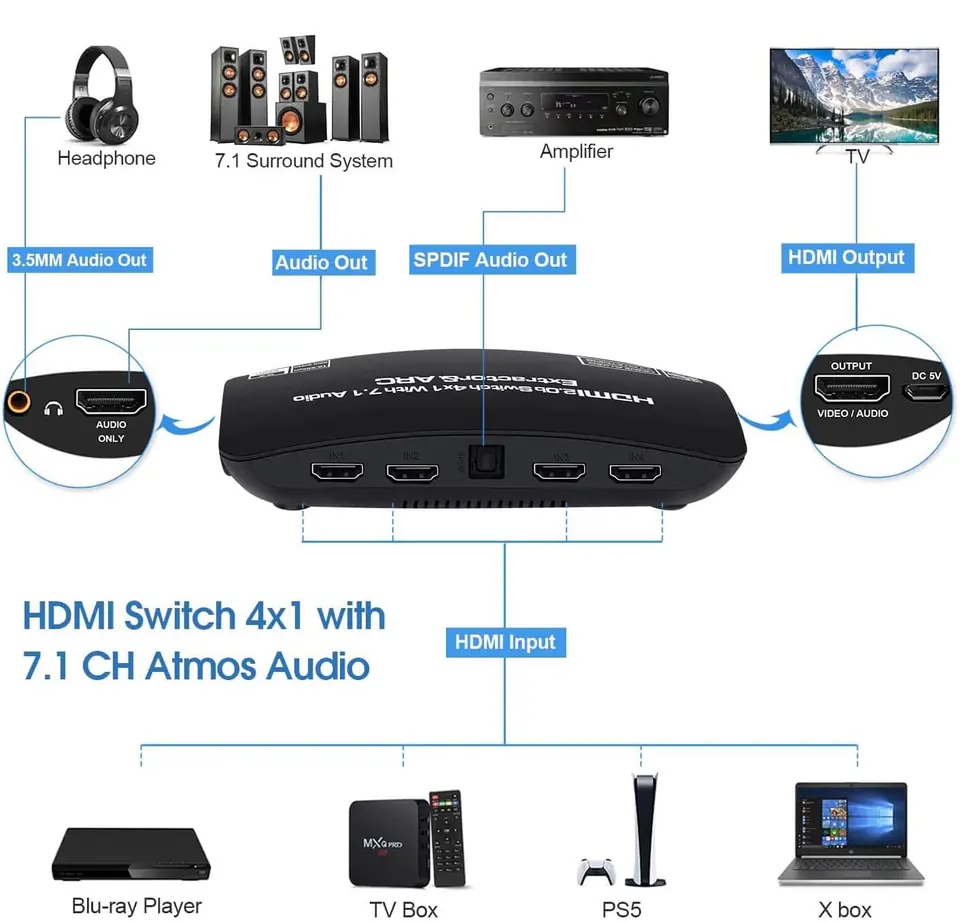

Connection diagram for HDMI adder and extractor SPH-RAE04
Technical specification SPH-RAE04
- Inputs: 4x HDMI
- Outputs: 1xHDMI, 1x Toslink, 1x 3.5mm Jack
- Audio support: LPCM 7.1CH, Dolby True HD, DTS-HD Master Audio
- Resolution: up to 8:8:8 RGB 4K@60Hz
- Operating temperature: 0-40 ° C
Storage temperature: -20-60 deg C
