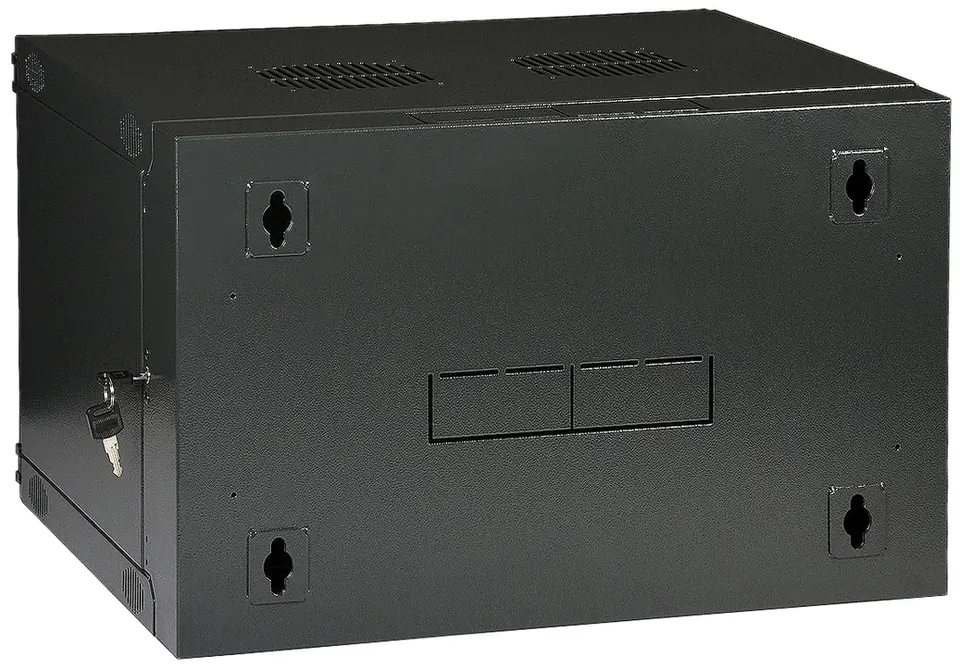

HANGING RACK CABINET, TWO SECTION R19-9U/450/2S

This product is not available
Availability:
expected delivery
Product code:
R19-9U/450/2S / 5907634597911

Specification

Colour::Dark graphite

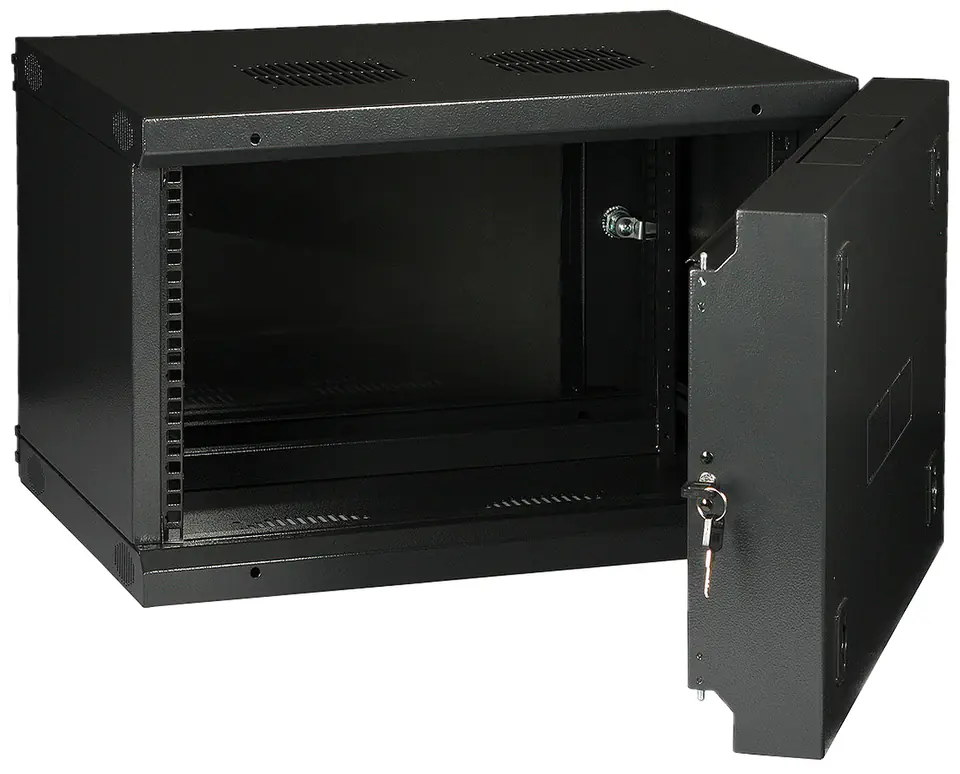

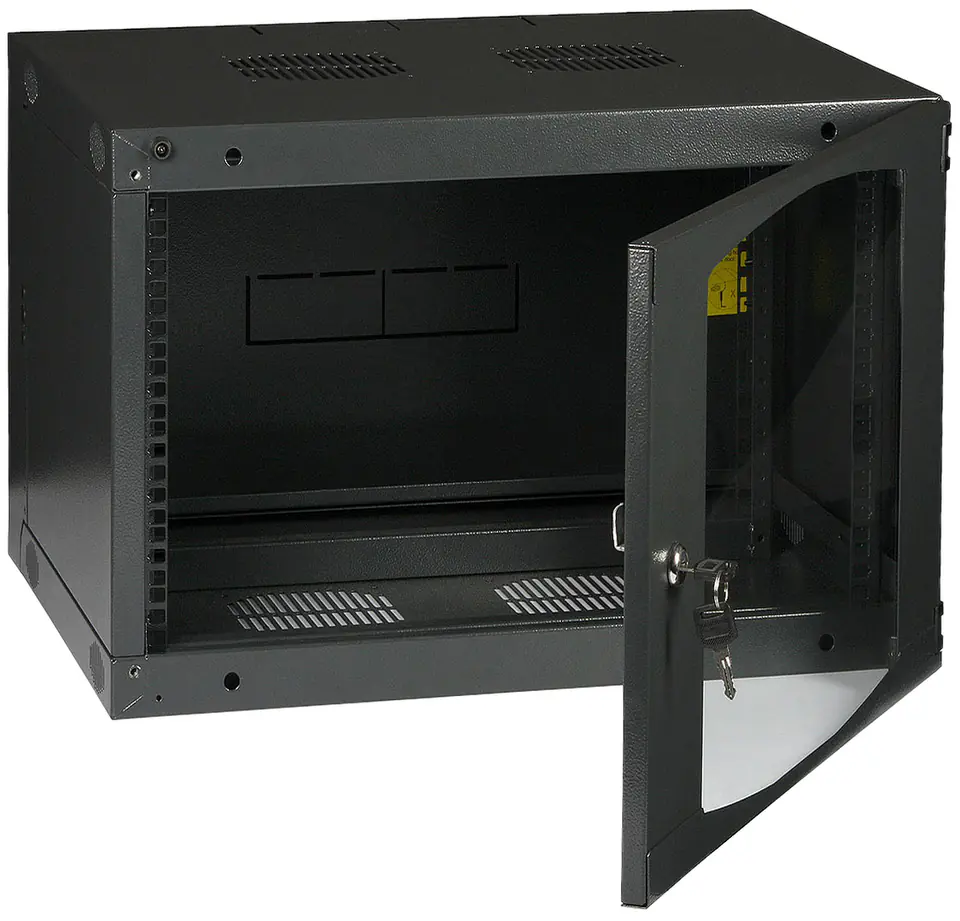

Door::Front: glazed Rear: metal, hinged Both front and rear doors can be mounted as left or right
External depth::450 mm
External height::500 mm
Fan holes::105 x 105 mm (2 seats)
Inner height::9 U
Inner width::19 "
Internal depth::350 mm
Outer width::540 mm
Scales::17.3 kg
Selected features::Hole for wires: in the back wall, from the top, from the bottom 2 keys 4 pcs. Rack rails for mounting devices
Warranty::2 years

Increasingly, home devices for LAN, RTV, CCTV installations are made with the RACK system in mind, so that their installation is aesthetic and that the devices are protected against unauthorized access and mechanical damage

Wall-mounted two-section hanging cabinets provide access to devices both front and back

The R19-9U/450/2S cabinet is designed for mounting devices with a housing in the 19\"Ideal solution for the installation of recorders, power supplies, splitters, headends, network devices, etc. The enclosure can also accommodate devices that are not in the RACK-19 standard, e.g. recorders, multiswitches, RTV-SAT amplifiers, modulatorsTo use shelves mounted to the RACK cabinet

The RACK cabinet has many ventilation holes ensuring proper air circulationIn addition, it is possible to install fans to ensure adequate cooling in the rack

Despite our best efforts, we cannot guarantee that the published technical data and photos do not contain inaccuracies or errors, which, however, cannot be a basis for claims.
