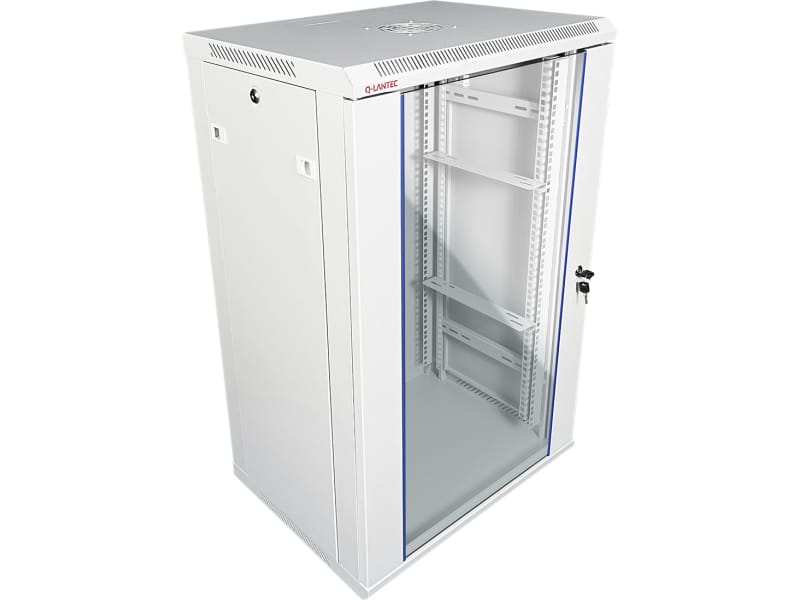

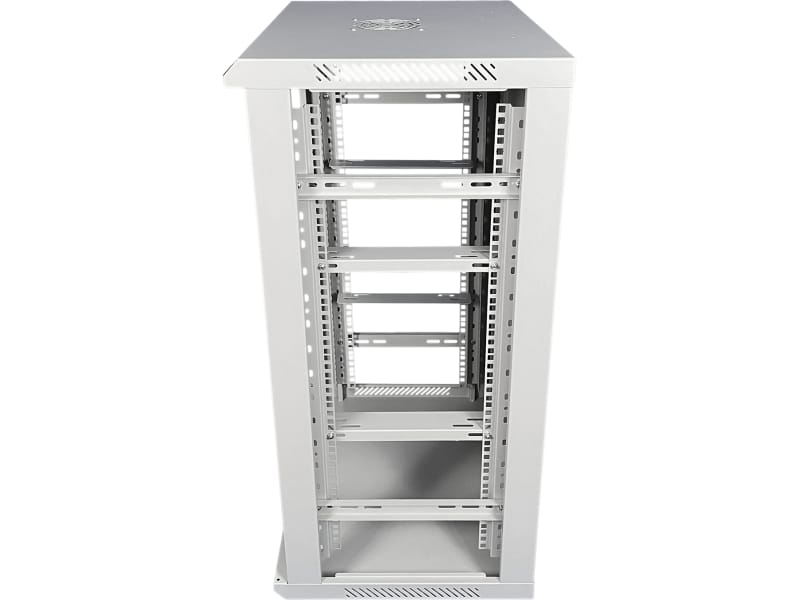

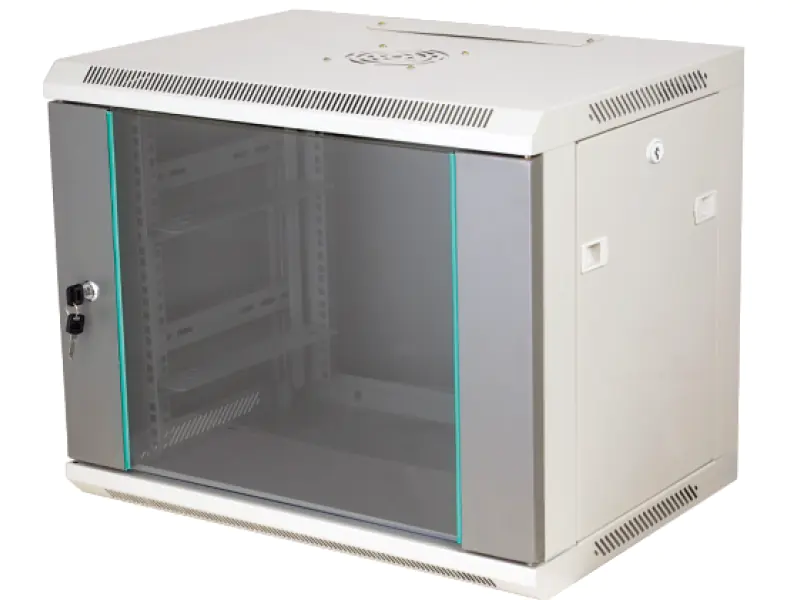

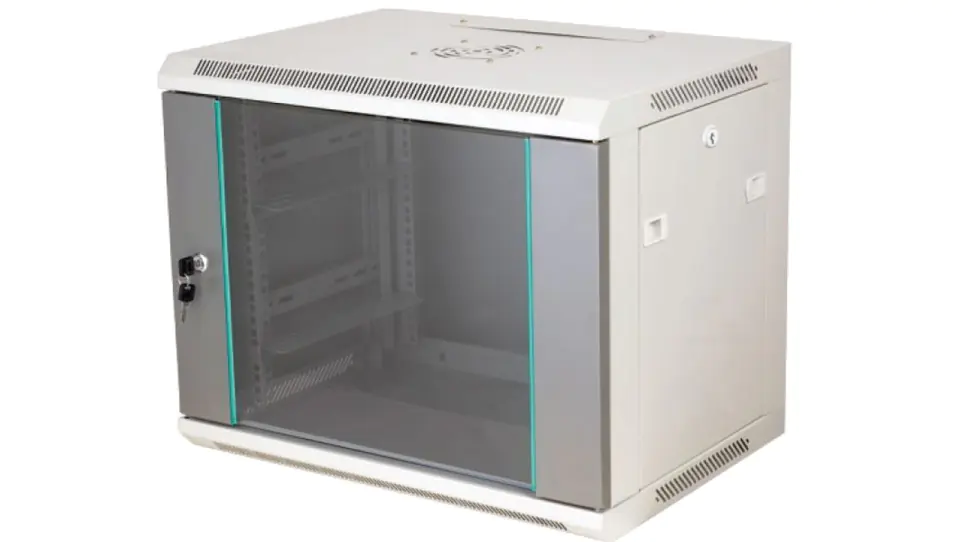

19" hanging RACK cabinets designed for indoor applications, available in 6 usable heights (4, 6, 9, 12, 15 and 18U) with glass doors for mounting cabling and active equipment. They can also be successfully used in CCTV or security systems. It is mounted to the wall using four special anchors included in the set. The cabinet has two broken cable glands - one in the top and one in the bottom cover. The cabinets are packed in a cardboard box with grounding cables and mounting accessories.
Complex product, ready for assembly.
PROPERTIES
- 6 cabinet sizes
- cabinet made of steel sheet
- glass in the front door ESG safety hardening

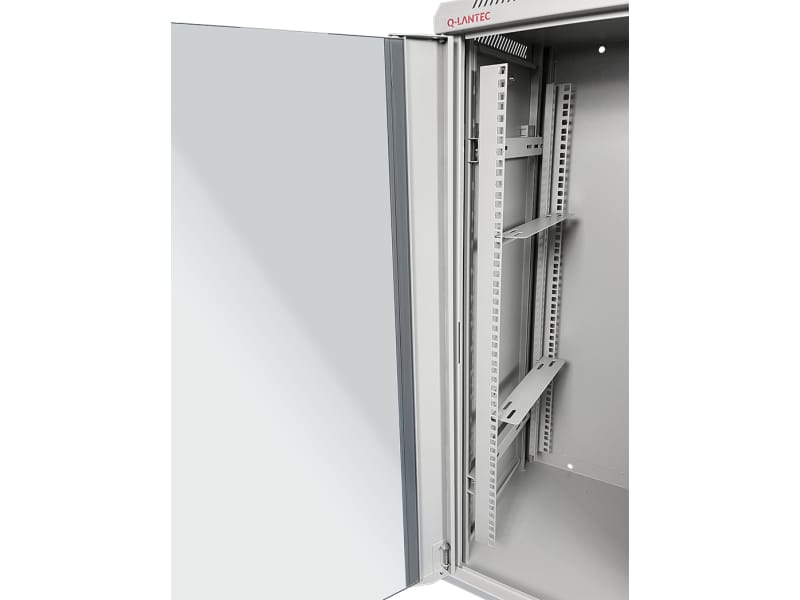

- removable front door (reversible opening direction)

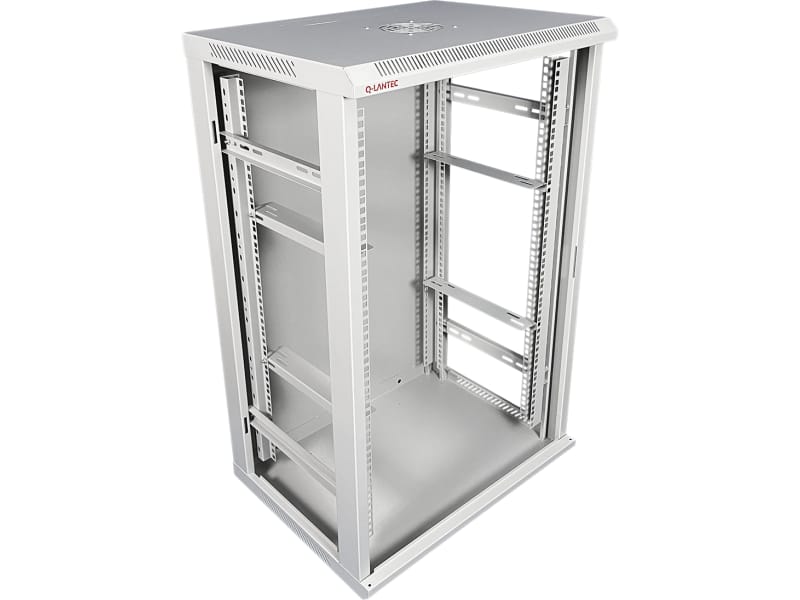

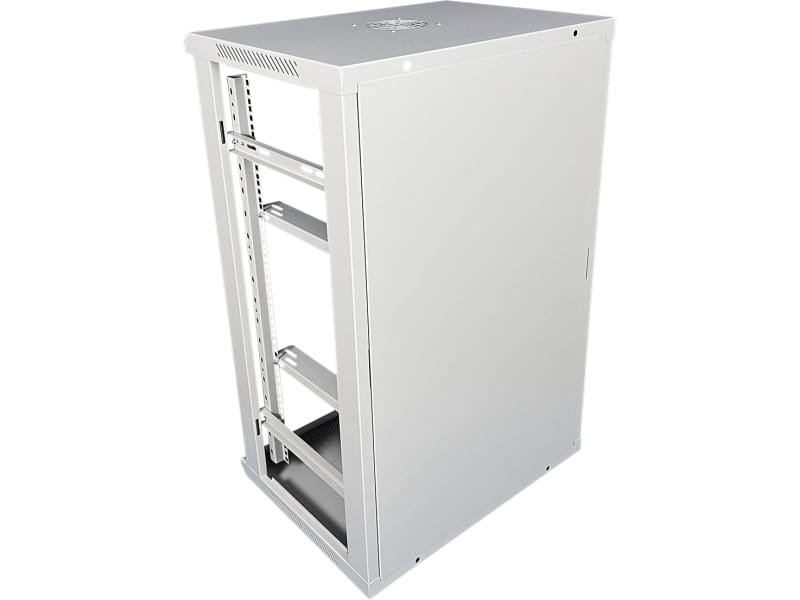

- removable side covers with key locking (patent lock)
- Lockable front door (patent lock)
- can be installed in the top cover of the fan 120x120 mm
- protection class IP20 in accordance with PN-EN 60529
- Grey
- galvanized mounting rails
- Cabinets can be equipped with shelves, drawers, ventilation panels, etc.
- in 19" spacing
| DANE TECHNICZNE | DANE TECHNICZNE2 |
|---|---|
| Wysokość | 15U |
| Drzwi | szklane, szyba hartowana bezpieczna ESG |
| Kolor | RAL 7035 |
| Nośność | 60 kg |
| Stopień ochrony | IP20 |
| Grubość ścian | 1.2 mm |
| Wysokość zewnętrzna | 800 mm |
| Szerokość zewnętrzna | 600 mm |
| Głębokość zewnętrzna | 450 mm |
