HAND PUMP KN-3

Specifications:

Operating temperature range: 35°C
Material execution:
Housing: cast iron
Piston: Cast iron

Maximum capacity: 33 l/min
Maximum lifting height: 20 m
Pressure connection: 1 1/4''



USE:

K hand pumps, also called wing pumps, are suction and pressure pumps, which allows water to be sucked in from a depth of up to 7 meters and can also be pumped under pressure. The performance and pressure parameters depend on the size of the pump. Pumping is carried out due to the rotational-turning movement of the wing located in the housing. This movement is transmitted from the handle mounted centrally on the lid of the pump. K pumps are attached to a vertical wall or other supporting structure, but can also be used as portable for emptying drums and other tanks.


**

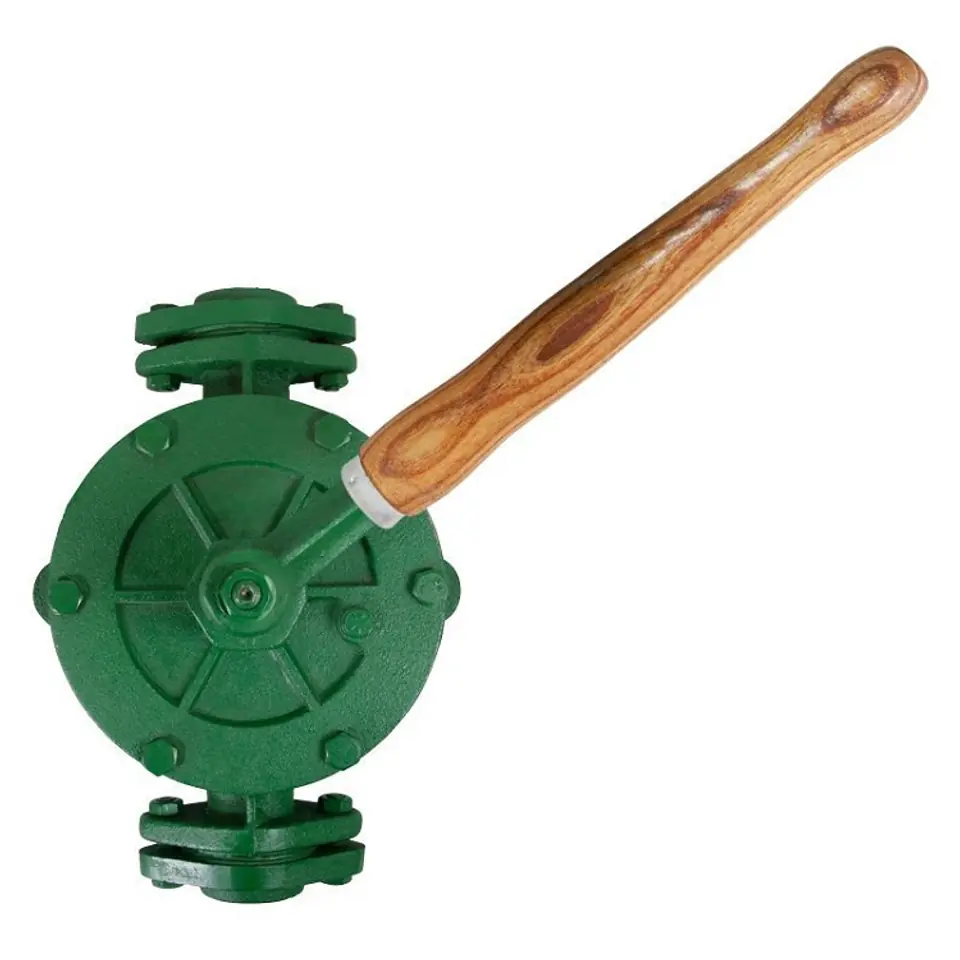

Illustrative photo
