Specifications:
Brand: Yato
Symbol: YT-24800
Series: GRE
Dimensions: 490x160x165 mm
Application: pressure testing and leak testing of piping systems (water, CO, compressed air, oil)|filling solar systems
Surface finish: powder coated
Handle finish: chrome plated
Body Material: Aluminum
Max. pressure: 5 MPa
Connection thread size: G1/2
Tank capacity: 12 l
Max. fluid temperature: 50 °C
Designed for pressure tests and leak testing of piping systems (water, CO, compressed air, oil), filling solar installations, introducing antifreeze into central heating systems.
.max. pressure: 50 bar (5 MPa)
Tank capacity: 12 l
aluminum body
chrome handle
tank made of 2 mm powder coated steel
Suction capacity: approx. 45 ml/stroke
tank dimensions: 490 x 160 x 165 mm
Connection: R 1/2" (internal thread)
**

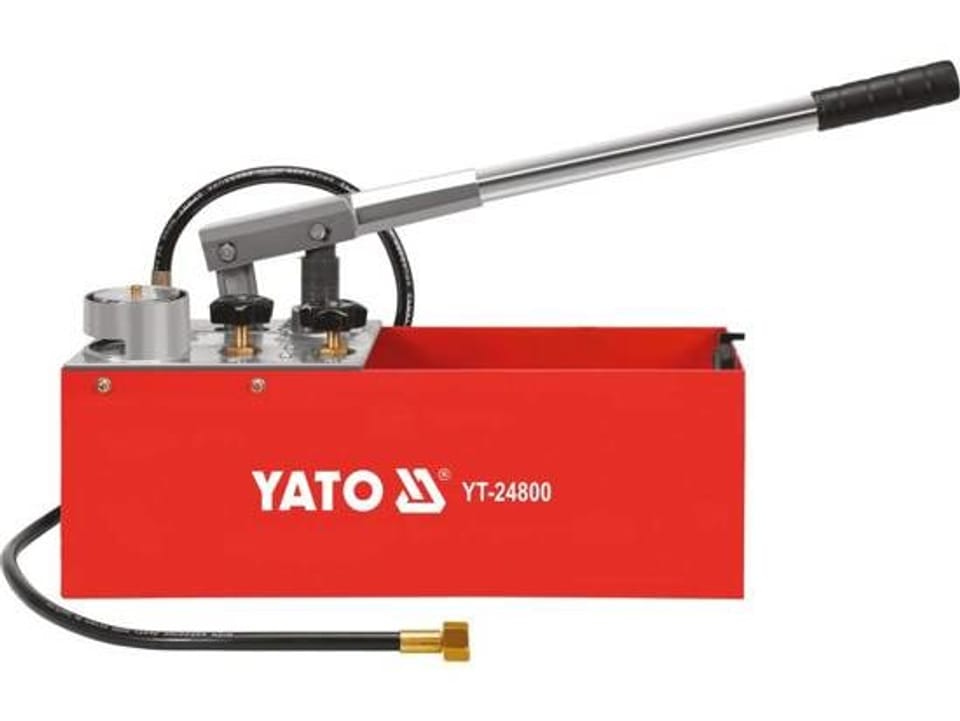

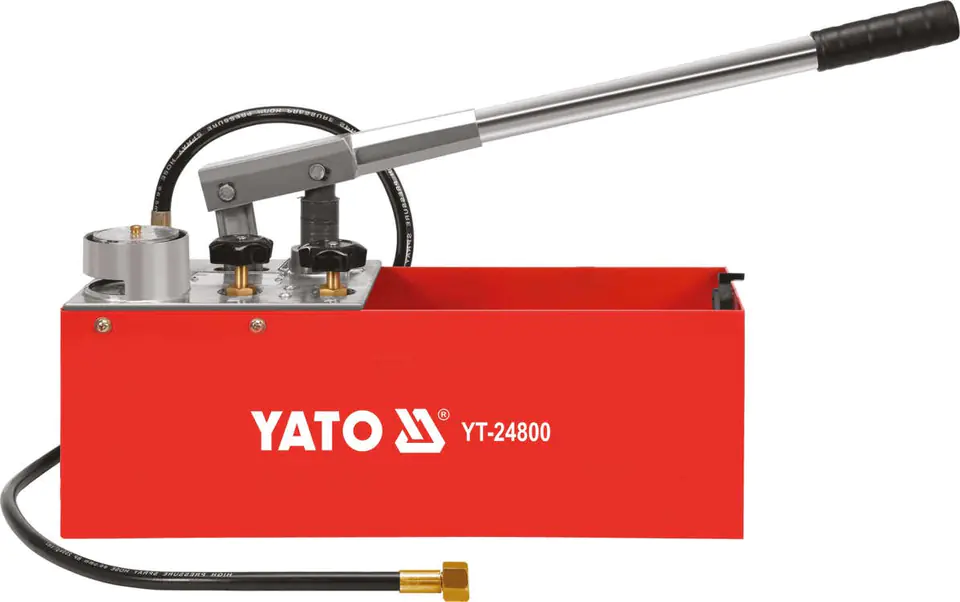

HAND PUMP FOR PRESSURE TESTS
€85.38
Shipping from warehouse: U1
Estimated shipping: Mon, Nov 18 - Thu, Nov 21
14 days returnUnconditional return policy
- Availability:
- large quantity
- Brand:
- Product code:
- YT-24800 / 5906083064937
Share this product:
Specification
| Built-in display: | Yes |
|---|---|
| Bursting pressure: | 50 bar |
| Connecting thread (male): | 1/2" |
| Depth: | 490 mm |
| Height: | 165 mm |
| Width: | 160 mm |
Despite our best efforts, we cannot guarantee that the published technical data and photos do not contain inaccuracies or errors, which, however, cannot be a basis for claims.
