Manual lever press
Design: hardened and ground spindle, with a long guide. T-key milled centrally according to DIN 650, adjustable working height. Lever with return spring.
Highest efficiency with maximum deflection of the lever.
Application: for economical pressing, riveting, pressing, punching, etc. Highest efficiency with maximum deflection of the lever.
Application: for economical pressing, riveting, pressing, punching, etc.

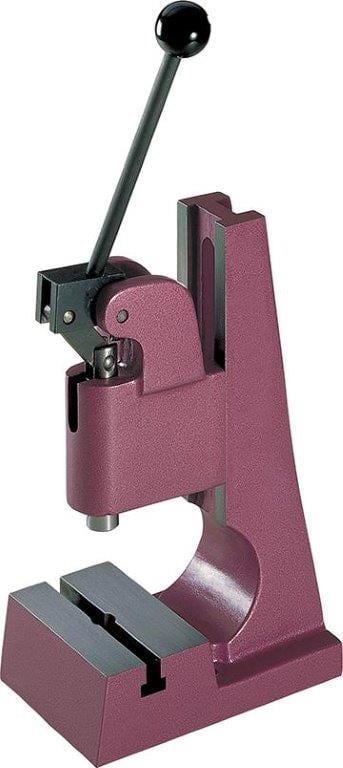

Hand Lever Press 500kp Berg + Schmid Pressentechnik
€464.51
Shipping from warehouse: B6
Estimated shipping: Tue, Nov 26 - Fri, Nov 29
14 days returnUnconditional return policy
- Availability:
- large quantity
- Brand:
- Berg & Schmid Pressentechnik
- Product code:
- 30035 / 4330816412527
Share this product:
Specification
| Base surface: | 115 x 175 mm |
|---|---|
| Force: | 5 kN |
| Force transmission: | knee lever |
| Groove width: | 10 mm |
| Jump: | 40 mm |
| Model: | HK 500 |
| Outreach: | 73 mm |
| Spindle bore: | 10 H 7 mm |
| Spindle guide: | 50 mm |
| Spindle ø: | 20 mm |
| Stand height: | 290 mm |
| Table surface: | 115 x 70 mm |
| Weight: | 10.0 kg |
| Working height: | 60-150 mm |
Despite our best efforts, we cannot guarantee that the published technical data and photos do not contain inaccuracies or errors, which, however, cannot be a basis for claims.
