Technical data:
Rated power: 1400W
Speed idling: 5500 rpm
Max. cutting depth at 90°: 67 mm
Max. cutting depth at 45°: 48.5 mm
Dial Diameter: 190mm
Dial Hole Diameter: 30mm
No kerf splitting wedge
Handy levers allow tool-free fixing of the guide and quick adjustment of the depth and angle of cutting
Optimal balance
Flat motor housing for easy disc replacement
Angle cutting up to 50°
Chip blowing function from the cutting line
Possibility to mount the nozzle and connect to an external suction device
PARALLEL GUIDE (164095-8)
SUCTION CONNECTION (453289-3)
ALLEN KEY 6 (783204-6)
CUTTING DISC MAKFORCE 190x30mm 12Z (B-08224)
**

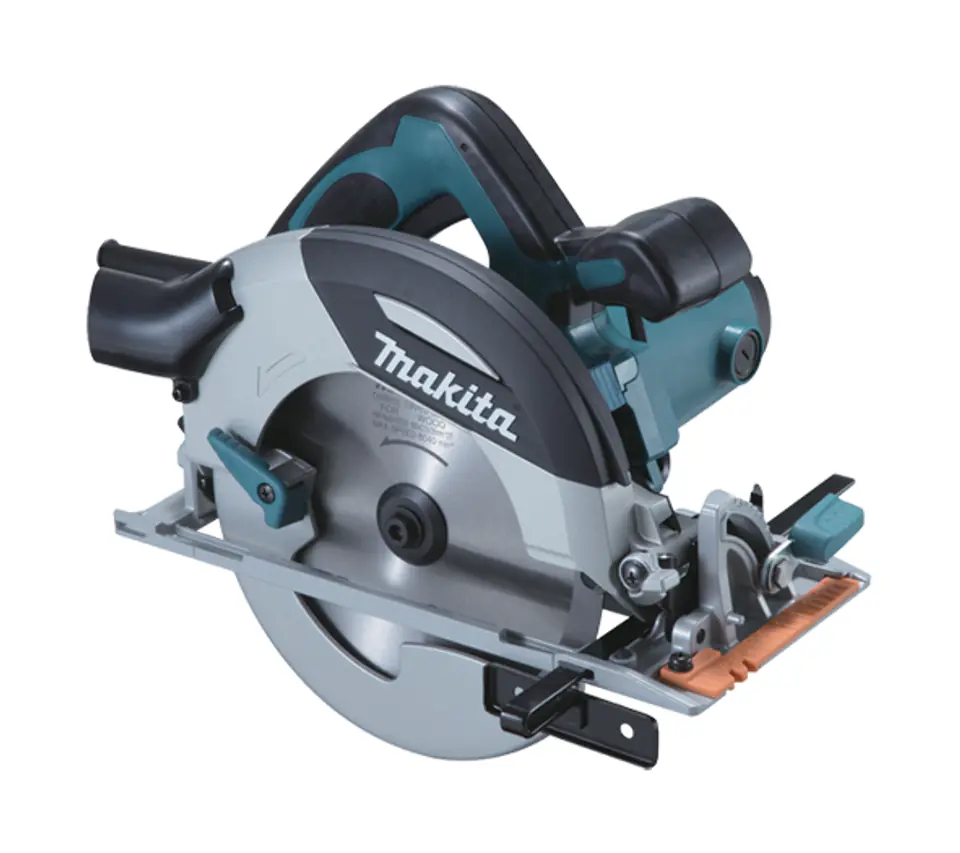

The photo has an illustrative function.
Rated power: 1400W
Speed idling: 5500 rpm
Max. cutting depth at 90°: 67 mm
Max. cutting depth at 45°: 48.5 mm
Dial Diameter: 190mm
Dial Hole Diameter: 30mm
No kerf splitting wedge
Handy levers allow tool-free fixing of the guide and quick adjustment of the depth and angle of cutting
Optimal balance
Flat motor housing for easy disc replacement
Angle cutting up to 50°
Chip blowing function from the cutting line
Possibility to mount the nozzle and connect to an external suction device
PARALLEL GUIDE (164095-8)
SUCTION CONNECTION (453289-3)
ALLEN KEY 6 (783204-6)
CUTTING DISC MAKFORCE 190x30mm 12Z (B-08224)
**
The photo has an illustrative function.
